This funny bounding volume is an infinite line with no thickness and extending to infinity in both directions. More...
#include "boundingLine.h"

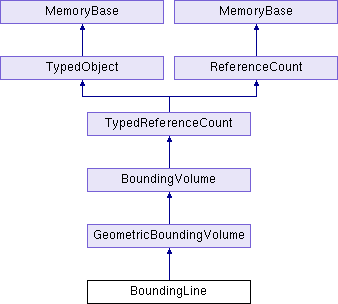

Inheritance diagram for BoundingLine:
Public Member Functions | |
| BoundingLine (const LPoint3 &a, const LPoint3 &b) | |
| virtual const BoundingLine * | as_bounding_line () const |
| Virtual downcast method. More... | |
| virtual TypeHandle | force_init_type () |
| virtual LPoint3 | get_approx_center () const |
| const LPoint3 & | get_point_a () const |
| Returns the first point that defines the line. More... | |
| LPoint3 | get_point_b () const |
| Returns the second point that defines the line. More... | |
| virtual TypeHandle | get_type () const |
| virtual BoundingVolume * | make_copy () const |
| virtual void | output (std::ostream &out) const |
| virtual void | xform (const LMatrix4 &mat) |
 Public Member Functions inherited from GeometricBoundingVolume | |
| bool | around (const GeometricBoundingVolume **first, const GeometricBoundingVolume **last) |
| Resets the volume to enclose only the volumes indicated. More... | |
| bool | around (const LPoint3 *first, const LPoint3 *last) |
| Resets the volume to enclose only the points indicated. More... | |
| virtual GeometricBoundingVolume * | as_geometric_bounding_volume () final |
| Virtual downcast method. More... | |
| virtual const GeometricBoundingVolume * | as_geometric_bounding_volume () const final |
| Virtual downcast method. More... | |
| int | contains (const GeometricBoundingVolume *vol) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated volume. More... | |
| int | contains (const LPoint3 &point) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated point. More... | |
| int | contains (const LPoint3 &a, const LPoint3 &b) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated line segment. More... | |
| bool | extend_by (const GeometricBoundingVolume *vol) |
| Increases the size of the volume to include the given volume. More... | |
| bool | extend_by (const LPoint3 &point) |
| Increases the size of the volume to include the given point. More... | |
| Public Member Functions inherited from BoundingVolume | |
| bool | around (const BoundingVolume **first, const BoundingVolume **last) |
| Resets the volume to enclose only the volumes indicated. More... | |
| virtual const BoundingBox * | as_bounding_box () const |
| Virtual downcast method. More... | |
| virtual const BoundingHexahedron * | as_bounding_hexahedron () const |
| Virtual downcast method. More... | |
| virtual const BoundingPlane * | as_bounding_plane () const |
| Virtual downcast method. More... | |
| virtual const BoundingSphere * | as_bounding_sphere () const |
| Virtual downcast method. More... | |
| virtual const FiniteBoundingVolume * | as_finite_bounding_volume () const |
| Virtual downcast method. More... | |
| int | contains (const BoundingVolume *vol) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated volume. More... | |
| bool | extend_by (const BoundingVolume *vol) |
| Increases the size of the volume to include the given volume. More... | |
| bool | is_empty () const |
| Any kind of volume might be empty. More... | |
| bool | is_infinite () const |
| The other side of the empty coin is an infinite volume. More... | |
| void | set_infinite () |
| Marks the volume as infinite, even if it is normally finite. More... | |
| virtual void | write (std::ostream &out, int indent_level=0) const |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from GeometricBoundingVolume | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from BoundingVolume | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static BoundsType | string_bounds_type (const std::string &str) |
| Returns the BoundsType corresponding to the indicated string. More... | |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Friends | |
| class | BoundingBox |
| class | BoundingSphere |
Additional Inherited Members | |
| Public Types inherited from BoundingVolume | |
| enum | BoundsType { BT_default, BT_best, BT_sphere, BT_box, BT_fastest } |
| enum | IntersectionFlags { IF_no_intersection = 0, IF_possible = 0x01, IF_some = 0x02, IF_all = 0x04, IF_dont_understand = 0x08 } |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
This funny bounding volume is an infinite line with no thickness and extending to infinity in both directions.
Note that it *always* extends in both directions, despite the fact that you specify two points to the constructor. These are not endpoints, they are two arbitrary points on the line.
Definition at line 29 of file boundingLine.h.
Member Function Documentation
◆ as_bounding_line()
|
virtual |
Virtual downcast method.
Returns this object as a pointer of the indicated type, if it is in fact that type. Returns NULL if it is not that type.
Reimplemented from BoundingVolume.
Definition at line 78 of file boundingLine.cxx.
◆ get_point_a()
|
inline |
Returns the first point that defines the line.
Definition at line 39 of file boundingLine.I.
◆ get_point_b()
|
inline |
Returns the second point that defines the line.
Definition at line 49 of file boundingLine.I.
The documentation for this class was generated from the following files:
- panda/src/mathutil/boundingLine.h
- panda/src/mathutil/boundingLine.cxx
- panda/src/mathutil/boundingLine.I
