Represents the type specification for a single parameter within a field specification. More...
#include "dcParameter.h"

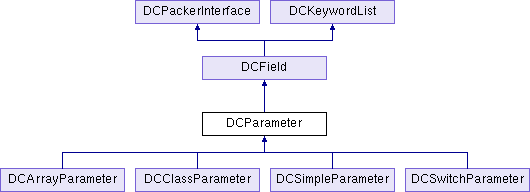

Inheritance diagram for DCParameter:
Public Member Functions | |
| virtual DCParameter * | append_array_specification (const DCUnsignedIntRange &size) |
| Returns the type represented by this_type[size]. More... | |
| virtual DCArrayParameter * | as_array_parameter () |
| virtual const DCArrayParameter * | as_array_parameter () const |
| virtual DCClassParameter * | as_class_parameter () |
| virtual const DCClassParameter * | as_class_parameter () const |
| virtual DCParameter * | as_parameter () |
| virtual const DCParameter * | as_parameter () const |
| virtual DCSimpleParameter * | as_simple_parameter () |
| virtual const DCSimpleParameter * | as_simple_parameter () const |
| virtual DCSwitchParameter * | as_switch_parameter () |
| virtual const DCSwitchParameter * | as_switch_parameter () const |
| virtual void | generate_hash (HashGenerator &hashgen) const |
| Accumulates the properties of this type into the hash. More... | |
| const DCTypedef * | get_typedef () const |
| If this type has been referenced from a typedef, returns the DCTypedef instance, or NULL if the type was declared on-the-fly. More... | |
| virtual bool | is_valid () const =0 |
| virtual DCParameter * | make_copy () const =0 |
| virtual void | output (std::ostream &out, bool brief) const |
| virtual void | output_instance (std::ostream &out, bool brief, const std::string &prename, const std::string &name, const std::string &postname) const =0 |
| void | output_typedef_name (std::ostream &out, bool brief, const std::string &prename, const std::string &name, const std::string &postname) const |
| Formats the instance like output_instance, but uses the typedef name instead. More... | |
| void | set_typedef (const DCTypedef *dtypedef) |
| Records the DCTypedef object that generated this parameter. More... | |
| virtual void | write (std::ostream &out, bool brief, int indent_level) const |
| virtual void | write_instance (std::ostream &out, bool brief, int indent_level, const std::string &prename, const std::string &name, const std::string &postname) const |
| Formats the parameter in the C++-like dc syntax as a typename and identifier. More... | |
| void | write_typedef_name (std::ostream &out, bool brief, int indent_level, const std::string &prename, const std::string &name, const std::string &postname) const |
| Formats the instance like write_instance, but uses the typedef name instead. More... | |
 Public Member Functions inherited from DCField | |
| DCField (const std::string &name, DCClass *dclass) | |
| virtual DCAtomicField * | as_atomic_field () |
| Returns the same field pointer converted to an atomic field pointer, if this is in fact an atomic field; otherwise, returns NULL. More... | |
| virtual const DCAtomicField * | as_atomic_field () const |
| Returns the same field pointer converted to an atomic field pointer, if this is in fact an atomic field; otherwise, returns NULL. More... | |
| virtual DCField * | as_field () |
| virtual const DCField * | as_field () const |
| virtual DCMolecularField * | as_molecular_field () |
| Returns the same field pointer converted to a molecular field pointer, if this is in fact a molecular field; otherwise, returns NULL. More... | |
| virtual const DCMolecularField * | as_molecular_field () const |
| Returns the same field pointer converted to a molecular field pointer, if this is in fact a molecular field; otherwise, returns NULL. More... | |
| std::string | format_data (const vector_uchar &packed_data, bool show_field_names=true) |
| Given a blob that represents the packed data for this field, returns a string formatting it for human consumption. More... | |
| DCClass * | get_class () const |
| Returns the DCClass pointer for the class that contains this field. More... | |
| const vector_uchar & | get_default_value () const |
| Returns the default value for this field. More... | |
| int | get_number () const |
| Returns a unique index number associated with this field. More... | |
| bool | has_default_value () const |
| Returns true if a default value has been explicitly established for this field, false otherwise. More... | |
| bool | is_airecv () const |
| Returns true if the "airecv" flag is set for this field, false otherwise. More... | |
| bool | is_bogus_field () const |
| Returns true if the field has been flagged as a bogus field. More... | |
| bool | is_broadcast () const |
| Returns true if the "broadcast" flag is set for this field, false otherwise. More... | |
| bool | is_clrecv () const |
| Returns true if the "clrecv" flag is set for this field, false otherwise. More... | |
| bool | is_clsend () const |
| Returns true if the "clsend" flag is set for this field, false otherwise. More... | |
| bool | is_db () const |
| Returns true if the "db" flag is set for this field, false otherwise. More... | |
| bool | is_ownrecv () const |
| Returns true if the "ownrecv" flag is set for this field, false otherwise. More... | |
| bool | is_ownsend () const |
| Returns true if the "ownsend" flag is set for this field, false otherwise. More... | |
| bool | is_ram () const |
| Returns true if the "ram" flag is set for this field, false otherwise. More... | |
| bool | is_required () const |
| Returns true if the "required" flag is set for this field, false otherwise. More... | |
| void | output (std::ostream &out) const |
| Write a string representation of this instance to <out>. More... | |
| virtual bool | pack_default_value (DCPackData &pack_data, bool &pack_error) const |
| Packs the field's specified default value (or a sensible default if no value is specified) into the stream. More... | |
| vector_uchar | parse_string (const std::string &formatted_string) |
| Given a human-formatted string (for instance, as returned by format_data(), above) that represents the value of this field, parse the string and return the corresponding packed data. More... | |
| void | set_class (DCClass *dclass) |
| Assigns the class pointer to this field. More... | |
| void | set_default_value (vector_uchar default_value) |
| Establishes a default value for this field. More... | |
| virtual void | set_name (const std::string &name) |
| Sets the name of this field. More... | |
| void | set_number (int number) |
| Assigns the unique number to this field. More... | |
| bool | validate_ranges (const vector_uchar &packed_data) const |
| Verifies that all of the packed values in the field data are within the specified ranges and that there are no extra bytes on the end of the record. More... | |
| void | write (std::ostream &out, int indent_level) const |
| Write a string representation of this instance to <out>. More... | |
| Public Member Functions inherited from DCPackerInterface | |
| DCPackerInterface (const std::string &name=std::string()) | |
| DCPackerInterface (const DCPackerInterface ©) | |
| virtual int | calc_num_nested_fields (size_t length_bytes) const |
| This flavor of get_num_nested_fields is used during unpacking. More... | |
| bool | check_match (const DCPackerInterface *other) const |
| Returns true if the other interface is bitwise the same as this one–that is, a uint32 only matches a uint32, etc. More... | |
| bool | check_match (const std::string &description, DCFile *dcfile=nullptr) const |
| Returns true if this interface is bitwise the same as the interface described with the indicated formatted string, e.g. More... | |
| virtual bool | do_check_match_array_parameter (const DCArrayParameter *other) const |
| Returns true if this field matches the indicated array parameter, false otherwise. More... | |
| virtual bool | do_check_match_atomic_field (const DCAtomicField *other) const |
| Returns true if this field matches the indicated atomic field, false otherwise. More... | |
| virtual bool | do_check_match_class_parameter (const DCClassParameter *other) const |
| Returns true if this field matches the indicated class parameter, false otherwise. More... | |
| virtual bool | do_check_match_molecular_field (const DCMolecularField *other) const |
| Returns true if this field matches the indicated molecular field, false otherwise. More... | |
| virtual bool | do_check_match_simple_parameter (const DCSimpleParameter *other) const |
| Returns true if this field matches the indicated simple parameter, false otherwise. More... | |
| virtual bool | do_check_match_switch_parameter (const DCSwitchParameter *other) const |
| Returns true if this field matches the indicated switch parameter, false otherwise. More... | |
| int | find_seek_index (const std::string &name) const |
| Returns the index number to be passed to a future call to DCPacker::seek() to seek directly to the named field without having to look up the field name in a table later, or -1 if the named field cannot be found. More... | |
| const DCPackerCatalog * | get_catalog () const |
| Returns the DCPackerCatalog associated with this field, listing all of the nested fields by name. More... | |
| size_t | get_fixed_byte_size () const |
| If has_fixed_byte_size() returns true, this returns the number of bytes this field type will use. More... | |
| const std::string & | get_name () const |
| Returns the name of this field, or empty string if the field is unnamed. More... | |
| virtual DCPackerInterface * | get_nested_field (int n) const |
| Returns the DCPackerInterface object that represents the nth nested field. More... | |
| size_t | get_num_length_bytes () const |
| Returns the number of bytes that should be written into the stream on a push() to record the number of bytes in the record up until the next pop(). More... | |
| int | get_num_nested_fields () const |
| Returns the number of nested fields required by this field type. More... | |
| DCPackType | get_pack_type () const |
| Returns the type of value expected by this field. More... | |
| bool | has_fixed_byte_size () const |
| Returns true if this field type always packs to the same number of bytes, false if it is variable. More... | |
| bool | has_fixed_structure () const |
| Returns true if this field type always has the same structure regardless of the data in the stream, or false if its structure may vary. More... | |
| bool | has_nested_fields () const |
| Returns true if this field type has any nested fields (and thus expects a push() . More... | |
| bool | has_range_limits () const |
| Returns true if this field, or any sub-field of this field, has a limit imposed in the DC file on its legal values. More... | |
| virtual void | pack_blob (DCPackData &pack_data, const vector_uchar &value, bool &pack_error, bool &range_error) const |
| Packs the indicated numeric or string value into the stream. More... | |
| virtual void | pack_double (DCPackData &pack_data, double value, bool &pack_error, bool &range_error) const |
| Packs the indicated numeric or string value into the stream. More... | |
| virtual void | pack_int (DCPackData &pack_data, int value, bool &pack_error, bool &range_error) const |
| Packs the indicated numeric or string value into the stream. More... | |
| virtual void | pack_int64 (DCPackData &pack_data, int64_t value, bool &pack_error, bool &range_error) const |
| Packs the indicated numeric or string value into the stream. More... | |
| virtual void | pack_string (DCPackData &pack_data, const std::string &value, bool &pack_error, bool &range_error) const |
| Packs the indicated numeric or string value into the stream. More... | |
| virtual void | pack_uint (DCPackData &pack_data, unsigned int value, bool &pack_error, bool &range_error) const |
| Packs the indicated numeric or string value into the stream. More... | |
| virtual void | pack_uint64 (DCPackData &pack_data, uint64_t value, bool &pack_error, bool &range_error) const |
| Packs the indicated numeric or string value into the stream. More... | |
| virtual void | unpack_blob (const char *data, size_t length, size_t &p, vector_uchar &value, bool &pack_error, bool &range_error) const |
| Unpacks the current numeric or string value from the stream. More... | |
| virtual void | unpack_double (const char *data, size_t length, size_t &p, double &value, bool &pack_error, bool &range_error) const |
| Unpacks the current numeric or string value from the stream. More... | |
| virtual void | unpack_int (const char *data, size_t length, size_t &p, int &value, bool &pack_error, bool &range_error) const |
| Unpacks the current numeric or string value from the stream. More... | |
| virtual void | unpack_int64 (const char *data, size_t length, size_t &p, int64_t &value, bool &pack_error, bool &range_error) const |
| Unpacks the current numeric or string value from the stream. More... | |
| virtual bool | unpack_skip (const char *data, size_t length, size_t &p, bool &pack_error) const |
| Increments p to the end of the current field without actually unpacking any data or performing any range validation. More... | |
| virtual void | unpack_string (const char *data, size_t length, size_t &p, std::string &value, bool &pack_error, bool &range_error) const |
| Unpacks the current numeric or string value from the stream. More... | |
| virtual void | unpack_uint (const char *data, size_t length, size_t &p, unsigned int &value, bool &pack_error, bool &range_error) const |
| Unpacks the current numeric or string value from the stream. More... | |
| virtual void | unpack_uint64 (const char *data, size_t length, size_t &p, uint64_t &value, bool &pack_error, bool &range_error) const |
| Unpacks the current numeric or string value from the stream. More... | |
| virtual bool | unpack_validate (const char *data, size_t length, size_t &p, bool &pack_error, bool &range_error) const |
| Internally unpacks the current numeric or string value and validates it against the type range limits, but does not return the value. More... | |
| virtual bool | validate_num_nested_fields (int num_nested_fields) const |
| After a number of fields have been packed via push() . More... | |
| Public Member Functions inherited from DCKeywordList | |
| DCKeywordList (const DCKeywordList ©) | |
| bool | add_keyword (const DCKeyword *keyword) |
| Adds the indicated keyword to the list. More... | |
| void | clear_keywords () |
| Removes all keywords from the field. More... | |
| bool | compare_keywords (const DCKeywordList &other) const |
| Returns true if this list has the same keywords as the other list, false if some keywords differ. More... | |
| void | copy_keywords (const DCKeywordList &other) |
| Replaces this keyword list with those from the other list. More... | |
| void | generate_hash (HashGenerator &hashgen) const |
| Accumulates the properties of these keywords into the hash. More... | |
| const DCKeyword * | get_keyword (int n) const |
| Returns the nth keyword in the list. More... | |
| const DCKeyword * | get_keyword_by_name (const std::string &name) const |
| Returns the keyword in the list with the indicated name, or NULL if there is no keyword in the list with that name. More... | |
| int | get_num_keywords () const |
| Returns the number of keywords in the list. More... | |
| bool | has_keyword (const std::string &name) const |
| Returns true if this list includes the indicated keyword, false otherwise. More... | |
| bool | has_keyword (const DCKeyword *keyword) const |
| Returns true if this list includes the indicated keyword, false otherwise. More... | |
| void | operator= (const DCKeywordList ©) |
| void | output_keywords (std::ostream &out) const |
Additional Inherited Members | |
| Static Public Member Functions inherited from DCPackerInterface | |
| static void | do_pack_float64 (char *buffer, double value) |
| static void | do_pack_int16 (char *buffer, int value) |
| static void | do_pack_int32 (char *buffer, int value) |
| static void | do_pack_int64 (char *buffer, int64_t value) |
| static void | do_pack_int8 (char *buffer, int value) |
| static void | do_pack_uint16 (char *buffer, unsigned int value) |
| static void | do_pack_uint32 (char *buffer, unsigned int value) |
| static void | do_pack_uint64 (char *buffer, uint64_t value) |
| static void | do_pack_uint8 (char *buffer, unsigned int value) |
| static double | do_unpack_float64 (const char *buffer) |
| static int | do_unpack_int16 (const char *buffer) |
| static int | do_unpack_int32 (const char *buffer) |
| static int64_t | do_unpack_int64 (const char *buffer) |
| static int | do_unpack_int8 (const char *buffer) |
| static unsigned int | do_unpack_uint16 (const char *buffer) |
| static unsigned int | do_unpack_uint32 (const char *buffer) |
| static uint64_t | do_unpack_uint64 (const char *buffer) |
| static unsigned int | do_unpack_uint8 (const char *buffer) |
| static void | validate_int64_limits (int64_t value, int num_bits, bool &range_error) |
| Confirms that the signed value fits within num_bits bits. More... | |
| static void | validate_int_limits (int value, int num_bits, bool &range_error) |
| Confirms that the signed value fits within num_bits bits. More... | |
| static void | validate_uint64_limits (uint64_t value, int num_bits, bool &range_error) |
| Confirms that the unsigned value fits within num_bits bits. More... | |
| static void | validate_uint_limits (unsigned int value, int num_bits, bool &range_error) |
| Confirms that the unsigned value fits within num_bits bits. More... | |
Detailed Description
Represents the type specification for a single parameter within a field specification.
This may be a simple type, or it may be a class or an array reference.
This may also be a typedef reference to another type, which has the same properties as the referenced type, but a different name.
Definition at line 35 of file dcParameter.h.
Member Function Documentation
◆ append_array_specification()
|
virtual |
Returns the type represented by this_type[size].
In the case of a generic DCParameter, this means it returns a DCArrayParameter wrapped around this type.
Reimplemented in DCArrayParameter.
Definition at line 156 of file dcParameter.cxx.
Referenced by DCArrayParameter::append_array_specification().
◆ generate_hash()
|
virtual |
Accumulates the properties of this type into the hash.
Reimplemented from DCField.
Reimplemented in DCSimpleParameter, DCArrayParameter, DCSwitchParameter, and DCClassParameter.
Definition at line 238 of file dcParameter.cxx.
References DCKeywordList::generate_hash(), and DCKeywordList::get_num_keywords().
Referenced by DCClassParameter::generate_hash(), DCSwitchParameter::generate_hash(), DCArrayParameter::generate_hash(), and DCSimpleParameter::generate_hash().
◆ get_typedef()
| const DCTypedef * DCParameter::get_typedef | ( | ) | const |
If this type has been referenced from a typedef, returns the DCTypedef instance, or NULL if the type was declared on-the-fly.
Definition at line 136 of file dcParameter.cxx.
Referenced by DCArrayParameter::append_array_specification(), DCClassParameter::output_instance(), DCArrayParameter::output_instance(), output_typedef_name(), and write_typedef_name().
◆ output_typedef_name()
| void DCParameter::output_typedef_name | ( | std::ostream & | out, |
| bool | brief, | ||
| const std::string & | prename, | ||
| const std::string & | name, | ||
| const std::string & | postname | ||
| ) | const |
Formats the instance like output_instance, but uses the typedef name instead.
Definition at line 205 of file dcParameter.cxx.
References DCTypedef::get_name(), and get_typedef().
Referenced by DCClassParameter::output_instance(), and DCArrayParameter::output_instance().
◆ set_typedef()
| void DCParameter::set_typedef | ( | const DCTypedef * | dtypedef | ) |
Records the DCTypedef object that generated this parameter.
This is normally called only from DCTypedef::make_new_parameter().
Definition at line 145 of file dcParameter.cxx.
Referenced by DCTypedef::make_new_parameter().
◆ write_instance()
|
virtual |
Formats the parameter in the C++-like dc syntax as a typename and identifier.
Reimplemented in DCSwitchParameter.
Definition at line 187 of file dcParameter.cxx.
References indent().
◆ write_typedef_name()
| void DCParameter::write_typedef_name | ( | std::ostream & | out, |
| bool | brief, | ||
| int | indent_level, | ||
| const std::string & | prename, | ||
| const std::string & | name, | ||
| const std::string & | postname | ||
| ) | const |
Formats the instance like write_instance, but uses the typedef name instead.
Definition at line 218 of file dcParameter.cxx.
References DCTypedef::get_name(), get_typedef(), and indent().
The documentation for this class was generated from the following files:
- direct/src/dcparser/dcParameter.h
- direct/src/dcparser/dcParameter.cxx
