This is one node of a hierarchy of EggJointData nodes, each of which represents a single joint of the character hierarchy across all loaded files: the various models, the LOD's of each model, and the various animation channel files. More...

#include "eggJointData.h"

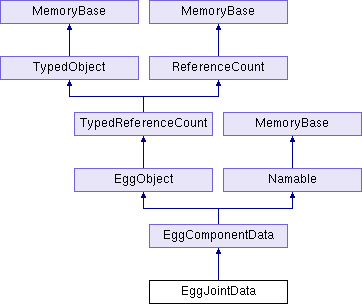

Inheritance diagram for EggJointData:

Public Member Functions
	EggJointData (EggCharacterCollection collection, EggCharacterData char_data)

virtual void	add_back_pointer (int model_index, EggObject *egg_object)
	Adds the indicated model joint or anim table to the data. More...

void	apply_default_pose (int source_model, int frame)
	Applies the pose from the indicated frame of the indicated source model_index as the initial pose for this joint, and does this recursively on all joints below. More...

bool	do_rebuild_all (EggCharacterDb &db)
	Calls do_rebuild() on all models, and recursively on all joints at this node and below. More...

void	expose (EggGroup::DCSType dcs_type=EggGroup::DC_default)
	Calls expose() on all models for this joint, but does not recurse downwards. More...

EggJointData *	find_joint (const std::string &name)
	Returns the first descendent joint found with the indicated name, or NULL if no joint has that name. More...

virtual TypeHandle	force_init_type ()

void	force_initial_rest_frame ()
	Forces all of the joints to have the same rest frame value as the first joint read in. More...

EggJointData *	get_child (int n) const

LMatrix4d	get_frame (int model_index, int n) const
	Returns the local transform matrix corresponding to this joint position in the nth frame in the indicated model. More...

LMatrix4d	get_net_frame (int model_index, int n, EggCharacterDb &db) const
	Returns the complete transform from the root corresponding to this joint position in the nth frame in the indicated model. More...

LMatrix4d	get_net_frame_inv (int model_index, int n, EggCharacterDb &db) const
	Returns the inverse of get_net_frame(). More...

int	get_num_children () const

EggJointData *	get_parent () const

const LMatrix4d &	get_rest_frame () const
	Returns the rest frame of the joint. More...

virtual TypeHandle	get_type () const

bool	has_rest_frame () const
	Returns true if the joint knows its rest frame, false otherwise. More...

void	move_vertices_to (EggJointData *new_owner)
	Moves the vertices assigned to this joint into the indicated joint, without changing their weight assignments. More...

void	optimize ()
	Calls optimize() on all models, and recursively on all joints at this node and below. More...

void	quantize_channels (const std::string &components, double quantum)
	Calls quantize_channels() on all models for this joint, and then recurses downwards to all joints below. More...

void	reparent_to (EggJointData *new_parent)
	Indicates an intention to change the parent of this joint to the indicated joint, or NULL to remove it from the hierarchy. More...

bool	rest_frames_differ () const
	Returns true if the rest frames for different models differ in their initial value. More...

int	score_reparent_to (EggJointData *new_parent, EggCharacterDb &db)
	Computes a score >= 0 reflecting the similarity of the current joint's animation (in world space) to that of the indicated potential parent joint (in world space). More...

virtual void	write (std::ostream &out, int indent_level=0) const

void	zero_channels (const std::string &components)
	Calls zero_channels() on all models for this joint, but does not recurse downwards. More...

Public Member Functions inherited from EggComponentData
	EggComponentData (EggCharacterCollection collection, EggCharacterData char_data)

void	add_name (const std::string &name, NameUniquifier &uniquifier)
	Adds the indicated name to the set of names that this component can be identified with. More...

void	extend_to (int model_index, int num_frames) const
	Extends the number of frames in the indicated model (presumably an animation table model) to the given number. More...

double	get_frame_rate (int model_index) const
	Returns the number of frames of animation for this particular component in the indicated model. More...

EggBackPointer *	get_model (int model_index) const
	Returns the back pointer to an egg file for the indicated model if it exists, or NULL if it does not. More...

int	get_num_frames (int model_index) const
	Returns the number of frames of animation for this particular component in the indicated model. More...

int	get_num_models () const
	Returns the maximum number of back pointers this component may have. More...

bool	has_model (int model_index) const
	Returns true if the component has a back pointer to an egg file somewhere for the indicated model, false otherwise. More...

bool	matches_name (const std::string &name) const
	Returns true if the indicated name matches any name that was ever matched with this particular joint, false otherwise. More...

void	set_model (int model_index, EggBackPointer *back)
	Sets the back_pointer associated with the given model_index. More...

Public Member Functions inherited from EggObject
	EggObject (const EggObject &copy)

virtual EggTransform *	as_transform ()
	Returns this object cross-cast to an EggTransform pointer, if it inherits from EggTransform, or NULL if it does not. More...

void	clear_user_data ()
	Removes all user data pointers from the node. More...

void	clear_user_data (TypeHandle type)
	Removes the user data pointer of the indicated type. More...

EggUserData *	get_user_data () const
	Returns the user data pointer most recently stored on this object, or NULL if nothing was previously stored. More...

EggUserData *	get_user_data (TypeHandle type) const
	Returns the user data pointer of the indicated type, if it exists, or NULL if it does not. More...

bool	has_user_data () const
	Returns true if a generic user data pointer has recently been set and not yet cleared, false otherwise. More...

bool	has_user_data (TypeHandle type) const
	Returns true if the user data pointer of the indicated type has been set, false otherwise. More...

EggObject &	operator= (const EggObject &copy)

void	set_user_data (EggUserData *user_data)
	Sets the user data associated with this object. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggComponentData
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Friends
class	EggCharacterCollection

class	EggCharacterData

class	OrderJointsByNewDepth

Additional Inherited Members
Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Detailed Description

This is one node of a hierarchy of EggJointData nodes, each of which represents a single joint of the character hierarchy across all loaded files: the various models, the LOD's of each model, and the various animation channel files.

Definition at line 31 of file eggJointData.h.

Member Function Documentation

◆ add_back_pointer()

void EggJointData::add_back_pointer	(	int	model_index,
		EggObject *	egg_object
	)

virtual

Adds the indicated model joint or anim table to the data.

Implements EggComponentData.

Definition at line 417 of file eggJointData.cxx.

◆ apply_default_pose()

void EggJointData::apply_default_pose	(	int	source_model,
		int	frame
	)

Applies the pose from the indicated frame of the indicated source model_index as the initial pose for this joint, and does this recursively on all joints below.

Definition at line 391 of file eggJointData.cxx.

References EggComponentData::has_model().

◆ do_rebuild_all()

bool EggJointData::do_rebuild_all ( EggCharacterDb & db )

Calls do_rebuild() on all models, and recursively on all joints at this node and below.

Returns true if all models returned true, false otherwise.

Definition at line 279 of file eggJointData.cxx.

◆ expose()

void EggJointData::expose ( EggGroup::DCSType dcs_type = EggGroup::DC_default )

Calls expose() on all models for this joint, but does not recurse downwards.

Definition at line 333 of file eggJointData.cxx.

◆ find_joint()

EggJointData * EggJointData::find_joint ( const std::string & name )

inline

Returns the first descendent joint found with the indicated name, or NULL if no joint has that name.

Definition at line 44 of file eggJointData.I.

Referenced by EggCharacterData::find_joint().

◆ force_initial_rest_frame()

void EggJointData::force_initial_rest_frame ( )

Forces all of the joints to have the same rest frame value as the first joint read in.

This is a drastic way to repair models whose rest frame values are completely bogus, but should not be performed on models that are otherwise correct.

Definition at line 121 of file eggJointData.cxx.

References EggComponentData::get_num_models(), EggComponentData::has_model(), and has_rest_frame().

Referenced by EggCharacterCollection::check_errors().

◆ get_frame()

LMatrix4d EggJointData::get_frame	(	int	model_index,
		int	n
	)		const

Returns the local transform matrix corresponding to this joint position in the nth frame in the indicated model.

Definition at line 51 of file eggJointData.cxx.

References EggComponentData::get_model().

◆ get_net_frame()

LMatrix4d EggJointData::get_net_frame	(	int	model_index,
		int	n,
		EggCharacterDb &	db
	)		const

Returns the complete transform from the root corresponding to this joint position in the nth frame in the indicated model.

Definition at line 68 of file eggJointData.cxx.

References EggComponentData::get_model().

◆ get_net_frame_inv()

LMatrix4d EggJointData::get_net_frame_inv	(	int	model_index,
		int	n,
		EggCharacterDb &	db
	)		const

Returns the inverse of get_net_frame().

Definition at line 94 of file eggJointData.cxx.

References EggComponentData::get_model().

◆ get_rest_frame()

const LMatrix4d & EggJointData::get_rest_frame ( ) const

inline

Returns the rest frame of the joint.

This is the matrix value that appears for the joint in each model file; it should be the same transform in each model.

Definition at line 79 of file eggJointData.I.

◆ has_rest_frame()

bool EggJointData::has_rest_frame ( ) const

inline

Returns true if the joint knows its rest frame, false otherwise.

In general, this will be true as long as the joint is included in at least one model file, or false if it appears only in animation files.

Definition at line 59 of file eggJointData.I.

Referenced by force_initial_rest_frame().

◆ move_vertices_to()

void EggJointData::move_vertices_to ( EggJointData * new_owner )

Moves the vertices assigned to this joint into the indicated joint, without changing their weight assignments.

Definition at line 143 of file eggJointData.cxx.

References EggComponentData::get_num_models(), and EggComponentData::has_model().

◆ optimize()

void EggJointData::optimize ( )

Calls optimize() on all models, and recursively on all joints at this node and below.

Definition at line 310 of file eggJointData.cxx.

◆ quantize_channels()

void EggJointData::quantize_channels	(	const std::string &	components,
		double	quantum
	)

Calls quantize_channels() on all models for this joint, and then recurses downwards to all joints below.

Definition at line 367 of file eggJointData.cxx.

◆ reparent_to()

void EggJointData::reparent_to ( EggJointData * new_parent )

inline

Indicates an intention to change the parent of this joint to the indicated joint, or NULL to remove it from the hierarchy.

The joint is not reparented immediately, but rather all of the joints are reparented at once when do_reparent() is called.

Definition at line 91 of file eggJointData.I.

◆ rest_frames_differ()

bool EggJointData::rest_frames_differ ( ) const

inline

Returns true if the rest frames for different models differ in their initial value.

This is not technically an error, but it is unusual enough to be suspicious.

Definition at line 69 of file eggJointData.I.

Referenced by EggCharacterCollection::check_errors().

◆ score_reparent_to()

int EggJointData::score_reparent_to	(	EggJointData *	new_parent,
		EggCharacterDb &	db
	)

Computes a score >= 0 reflecting the similarity of the current joint's animation (in world space) to that of the indicated potential parent joint (in world space).

The lower the number, the more similar the motion, and the more suitable is the proposed parent-child relationship. Returns -1 if there is an error.

Definition at line 174 of file eggJointData.cxx.

References FFTCompressor::is_compression_available().

Referenced by EggCharacterData::choose_optimal_hierarchy().

◆ zero_channels()

void EggJointData::zero_channels ( const std::string & components )

Calls zero_channels() on all models for this joint, but does not recurse downwards.

Definition at line 350 of file eggJointData.cxx.

The documentation for this class was generated from the following files:

pandatool/src/eggcharbase/eggJointData.h
pandatool/src/eggcharbase/eggJointData.cxx
pandatool/src/eggcharbase/eggJointData.I

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add_back_pointer()

◆ apply_default_pose()

◆ do_rebuild_all()

◆ expose()

◆ find_joint()

◆ force_initial_rest_frame()

◆ get_frame()

◆ get_net_frame()

◆ get_net_frame_inv()

◆ get_rest_frame()

◆ has_rest_frame()

◆ move_vertices_to()

◆ optimize()

◆ quantize_channels()

◆ reparent_to()

◆ rest_frames_differ()

◆ score_reparent_to()

◆ zero_channels()
