The set of UV's that may or may not be assigned to a vertex. More...

#include "eggVertexUV.h"

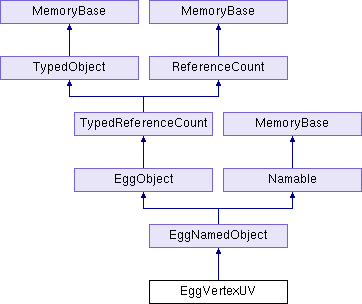

Inheritance diagram for EggVertexUV:

Public Member Functions
	EggVertexUV (const std::string &name, const LTexCoordd &uv)

	EggVertexUV (const std::string &name, const LTexCoord3d &uvw)

	EggVertexUV (const EggVertexUV &copy)

void	clear_binormal ()

void	clear_tangent ()

int	compare_to (const EggVertexUV &other) const
	An ordering operator to compare two vertices for sorting order. More...

virtual TypeHandle	force_init_type ()

const LNormald &	get_binormal () const

int	get_num_dimensions () const
	Returns the number of components of the texture coordinate set. More...

const LNormald &	get_tangent () const

virtual TypeHandle	get_type () const

LTexCoordd	get_uv () const
	Returns the texture coordinate pair, if get_num_dimensions() is 2. More...

const LTexCoord3d &	get_uvw () const
	Returns the texture coordinate triple, if get_num_dimensions() is 3. More...

bool	has_binormal () const

bool	has_tangent () const

bool	has_w () const
	Returns true if the texture coordinate has a third, w component, false if it is just a normal 2-d texture coordinate. More...

EggVertexUV &	operator= (const EggVertexUV &copy)

void	set_binormal (const LNormald &binormal)

void	set_name (const std::string &name)

void	set_tangent (const LNormald &tangent)

void	set_uv (const LTexCoordd &texCoord)
	Sets the texture coordinate pair. More...

void	set_uvw (const LTexCoord3d &texCoord)
	Sets the texture coordinate triple. More...

void	transform (const LMatrix4d &mat)
	Applies the indicated transformation matrix to the UV's tangent and/or binormal. More...

void	write (std::ostream &out, int indent_level) const

Public Member Functions inherited from EggNamedObject
	EggNamedObject (const std::string &name="")

	EggNamedObject (const EggNamedObject &copy)

EggNamedObject &	operator= (const EggNamedObject &copy)

void	output (std::ostream &out) const

void	write_header (std::ostream &out, int indent_level, const char *egg_keyword) const
	Writes the first line of the egg object, e.g. More...

Public Member Functions inherited from EggObject
	EggObject (const EggObject &copy)

virtual EggTransform *	as_transform ()
	Returns this object cross-cast to an EggTransform pointer, if it inherits from EggTransform, or NULL if it does not. More...

void	clear_user_data ()
	Removes all user data pointers from the node. More...

void	clear_user_data (TypeHandle type)
	Removes the user data pointer of the indicated type. More...

EggUserData *	get_user_data () const
	Returns the user data pointer most recently stored on this object, or NULL if nothing was previously stored. More...

EggUserData *	get_user_data (TypeHandle type) const
	Returns the user data pointer of the indicated type, if it exists, or NULL if it does not. More...

bool	has_user_data () const
	Returns true if a generic user data pointer has recently been set and not yet cleared, false otherwise. More...

bool	has_user_data (TypeHandle type) const
	Returns true if the user data pointer of the indicated type has been set, false otherwise. More...

EggObject &	operator= (const EggObject &copy)

void	set_user_data (EggUserData *user_data)
	Sets the user data associated with this object. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static std::string	filter_name (const std::string &name)
	Returns the actual name that should be set for a given name string. More...

static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (EggVertexUV) make_average(const EggVertexUV *first

Static Public Member Functions inherited from EggNamedObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
EggMorphTexCoordList	_duvs

static const EggVertexUV *	second

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Detailed Description

The set of UV's that may or may not be assigned to a vertex.

To support multitexturing, there may be multiple sets of UV's on a particular vertex, each with its own name.

Definition at line 29 of file eggVertexUV.h.

Member Function Documentation

◆ compare_to()

int EggVertexUV::compare_to ( const EggVertexUV & other ) const

An ordering operator to compare two vertices for sorting order.

This imposes an arbitrary ordering useful to identify unique vertices.

Definition at line 166 of file eggVertexUV.cxx.

◆ filter_name()

std::string EggVertexUV::filter_name ( const std::string & name )

inlinestatic

Returns the actual name that should be set for a given name string.

Usually this is the same string that is input, but for historical reasons the texture coordinate name "default" is mapped to the empty string.

Definition at line 20 of file eggVertexUV.I.

Referenced by EggVertex::clear_uv(), EggVertex::get_uv(), EggVertex::get_uv_obj(), EggVertex::get_uvw(), EggVertex::has_uv(), EggVertex::has_uvw(), EggVertex::modify_uv_obj(), EggVertex::set_uv(), and EggVertex::set_uvw().

◆ get_num_dimensions()

int EggVertexUV::get_num_dimensions ( ) const

inline

Returns the number of components of the texture coordinate set.

This is either 2 (the normal case) or 3 (for a 3-d texture coordinate).

Definition at line 40 of file eggVertexUV.I.

References has_w().

◆ get_uv()

LTexCoordd EggVertexUV::get_uv ( ) const

inline

Returns the texture coordinate pair, if get_num_dimensions() is 2.

Definition at line 57 of file eggVertexUV.I.

◆ get_uvw()

const LTexCoord3d & EggVertexUV::get_uvw ( ) const

inline

Returns the texture coordinate triple, if get_num_dimensions() is 3.

This is also legal to call if get_num_dimensions() is 2 (but the last dimension will be zero).

Definition at line 68 of file eggVertexUV.I.

◆ has_w()

bool EggVertexUV::has_w ( ) const

inline

Returns true if the texture coordinate has a third, w component, false if it is just a normal 2-d texture coordinate.

Definition at line 49 of file eggVertexUV.I.

Referenced by get_num_dimensions(), EggVertexPool::get_uv_names(), EggVertex::has_uv(), and EggVertex::has_uvw().

◆ set_uv()

void EggVertexUV::set_uv ( const LTexCoordd & uv )

inline

Sets the texture coordinate pair.

This makes the texture coordinate a 2-d texture coordinate, which is the usual case.

Definition at line 77 of file eggVertexUV.I.

◆ set_uvw()

void EggVertexUV::set_uvw ( const LTexCoord3d & uvw )

inline

Sets the texture coordinate triple.

This makes the texture coordinate a 3-d texture coordinate.

Definition at line 87 of file eggVertexUV.I.

◆ transform()

void EggVertexUV::transform ( const LMatrix4d & mat )

Applies the indicated transformation matrix to the UV's tangent and/or binormal.

This does nothing if there is no tangent or binormal.

Definition at line 112 of file eggVertexUV.cxx.

The documentation for this class was generated from the following files:

panda/src/egg/eggVertexUV.h
panda/src/egg/eggVertexUV.cxx
panda/src/egg/eggVertexUV.I
