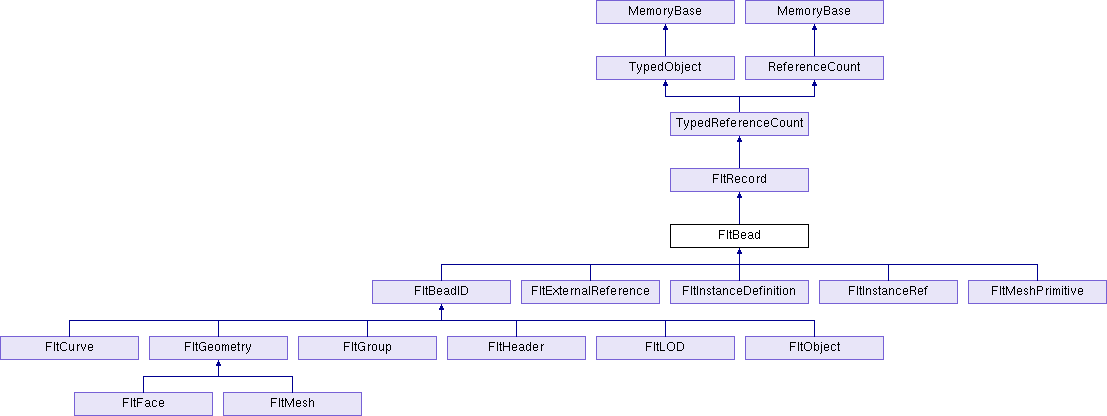

A base class for any of a broad family of flt records that represent particular beads in the hierarchy. More...
#include "fltBead.h"
Public Member Functions | |
| FltBead (FltHeader *header) | |
| void | add_transform_step (FltTransformRecord *record) |
| Applies the indicated transform step to the net transformation applied to the bead. More... | |
| void | clear_transform () |
| Removes any transform matrix and all transform steps on this bead. More... | |
| virtual TypeHandle | force_init_type () |
| int | get_num_transform_steps () const |
| Returns the number of individual steps that define the net transform on this bead as returned by set_transform(). More... | |
| int | get_replicate_count () const |
| Returns the replicate count of this bead. More... | |
| const LMatrix4d & | get_transform () const |
| Returns the single-precision 4x4 matrix that represents the transform applied to this bead, or the identity matrix if the bead has not been transformed. More... | |
| FltTransformRecord * | get_transform_step (int n) |
| Returns the nth individual step that defines the net transform on this bead. More... | |
| const FltTransformRecord * | get_transform_step (int n) const |
| Returns the nth individual step that defines the net transform on this bead. More... | |
| virtual TypeHandle | get_type () const |
| bool | has_transform () const |
| Returns true if the bead has been transformed, false otherwise. More... | |
| void | set_replicate_count (int count) |
| Changes the replicate count of this bead. More... | |
| void | set_transform (const LMatrix4d &mat) |
| Replaces the transform matrix on this bead. More... | |
 Public Member Functions inherited from FltRecord | |
| FltRecord (FltHeader *header) | |
| void | add_ancillary (FltRecord *ancillary) |
| Adds a new unsupported ancillary record to the end of the list of ancillary records for this record. More... | |
| void | add_child (FltRecord *child) |
| Adds a new child to the end of the list of children for this record. More... | |
| void | add_extension (FltRecord *extension) |
| Adds a new extension to the end of the list of extensions for this record. More... | |
| void | add_subface (FltRecord *subface) |
| Adds a new subface to the end of the list of subfaces for this record. More... | |
| virtual void | apply_converted_filenames () |
| Walks the hierarchy at this record and below and copies the _converted_filename record into the _orig_filename record, so the flt file will be written out with the converted filename instead of what was originally read in. More... | |
| void | check_remaining_size (const DatagramIterator &di, const std::string &name=std::string()) const |
| Checks that the iterator has no bytes left, as it should at the end of a successfully read record. More... | |
| void | clear_ancillary () |
| Removes all unsupported ancillary records from this record. More... | |
| void | clear_children () |
| Removes all children from this record. More... | |
| void | clear_comment () |
| Removes the comment for this record. More... | |
| void | clear_extensions () |
| Removes all extensions from this record. More... | |
| void | clear_subfaces () |
| Removes all subfaces from this record. More... | |
| FltRecord * | get_ancillary (int n) const |
| Returns the nth unsupported ancillary record of this record. More... | |
| FltRecord * | get_child (int n) const |
| Returns the nth child of this record. More... | |
| const std::string & | get_comment () const |
| Retrieves the comment for this record, or empty string if the record has no comment. More... | |
| FltRecord * | get_extension (int n) const |
| Returns the nth extension of this record. More... | |
| int | get_num_ancillary () const |
| Returns the number of unsupported ancillary records of this record. More... | |
| int | get_num_children () const |
| Returns the number of child records of this record. More... | |
| int | get_num_extensions () const |
| Returns the number of extension attribute records for this object. More... | |
| int | get_num_subfaces () const |
| Returns the number of subface records of this record. More... | |
| FltRecord * | get_subface (int n) const |
| Returns the nth subface of this record. More... | |
| bool | has_comment () const |
| Returns true if this record has a nonempty comment, false otherwise. More... | |
| virtual void | output (std::ostream &out) const |
| Writes a quick one-line description of the record, but not its children. More... | |
| void | set_comment (const std::string &comment) |
| Changes the comment for this record. More... | |
| virtual void | write (std::ostream &out, int indent_level=0) const |
| Writes a multiple-line description of the record and all of its children. More... | |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from FltRecord | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Additional Inherited Members | |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
A base class for any of a broad family of flt records that represent particular beads in the hierarchy.
These are things like group beads and object beads, as opposed to things like push and pop or comment records.
Member Function Documentation
◆ add_transform_step()
| void FltBead::add_transform_step | ( | FltTransformRecord * | record | ) |
Applies the indicated transform step to the net transformation applied to the bead.
Definition at line 123 of file fltBead.cxx.
◆ clear_transform()
| void FltBead::clear_transform | ( | ) |
Removes any transform matrix and all transform steps on this bead.
Definition at line 79 of file fltBead.cxx.
◆ get_num_transform_steps()
| int FltBead::get_num_transform_steps | ( | ) | const |
Returns the number of individual steps that define the net transform on this bead as returned by set_transform().
Each step is a single transformation; the concatenation of all transformations will produce the matrix represented by set_transform().
Definition at line 92 of file fltBead.cxx.
Referenced by FltToEggLevelState::set_transform().
◆ get_replicate_count()
| int FltBead::get_replicate_count | ( | ) | const |
Returns the replicate count of this bead.
If this is nonzero, it means that the bead is implicitly copied this number of additional times (for replicate_count + 1 total copies), applying the transform on this bead for each copy. In this case, the transform does *not* apply to the initial copy of the bead.
Definition at line 141 of file fltBead.cxx.
◆ get_transform()
| const LMatrix4d & FltBead::get_transform | ( | ) | const |
Returns the single-precision 4x4 matrix that represents the transform applied to this bead, or the identity matrix if the bead has not been transformed.
Definition at line 58 of file fltBead.cxx.
Referenced by FltToEggLevelState::get_synthetic_group().
◆ get_transform_step() [1/2]
| FltTransformRecord * FltBead::get_transform_step | ( | int | n | ) |
Returns the nth individual step that defines the net transform on this bead.
See get_num_transform_steps().
Definition at line 101 of file fltBead.cxx.
◆ get_transform_step() [2/2]
| const FltTransformRecord * FltBead::get_transform_step | ( | int | n | ) | const |
Returns the nth individual step that defines the net transform on this bead.
See get_num_transform_steps().
Definition at line 112 of file fltBead.cxx.
◆ has_transform()
| bool FltBead::has_transform | ( | ) | const |
Returns true if the bead has been transformed, false otherwise.
If this returns true, get_transform() will return the single-precision net transformation, and get_num_transform_steps() will return nonzero.
Definition at line 48 of file fltBead.cxx.
Referenced by FltToEggLevelState::set_transform().
◆ set_replicate_count()
| void FltBead::set_replicate_count | ( | int | count | ) |
Changes the replicate count of this bead.
If you are setting the replicate count to some nonzero number, you must also set a transform on the bead. See set_replicate_count().
Definition at line 151 of file fltBead.cxx.
◆ set_transform()
| void FltBead::set_transform | ( | const LMatrix4d & | mat | ) |
Replaces the transform matrix on this bead.
This implicitly removes all of the transform steps added previously, and replaces them with a single 4x4 general matrix transform step.
Definition at line 68 of file fltBead.cxx.
The documentation for this class was generated from the following files:
- pandatool/src/flt/fltBead.h
- pandatool/src/flt/fltBead.cxx
