Class MicrophoneAudio provides the means to read raw audio samples from a microphone. More...
#include "microphoneAudio.h"

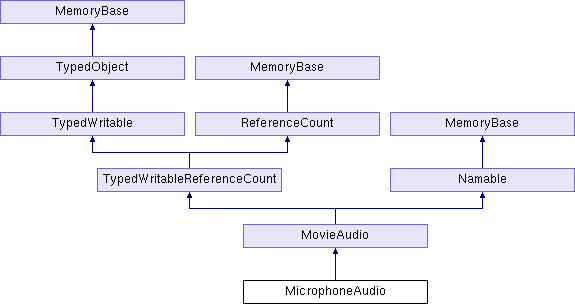

Inheritance diagram for MicrophoneAudio:
Public Member Functions | |
| virtual TypeHandle | force_init_type () |
| int | get_channels () const |
| int | get_rate () const |
| virtual TypeHandle | get_type () const |
| virtual | PT (MovieAudioCursor) open()=0 |
 Public Member Functions inherited from MovieAudio | |
| MovieAudio (const std::string &name="Blank Audio") | |
| This constructor returns a null audio stream — a stream of total silence, at 8000 samples per second. More... | |
| const Filename & | get_filename () const |
| Public Member Functions inherited from TypedWritableReferenceCount | |
| TypedWritableReferenceCount (const TypedWritableReferenceCount ©) | |
| virtual ReferenceCount * | as_reference_count () |
| Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More... | |
| void | operator= (const TypedWritableReferenceCount ©) |
| Public Member Functions inherited from TypedWritable | |
| TypedWritable (const TypedWritable ©) | |
| virtual int | complete_pointers (TypedWritable **p_list, BamReader *manager) |
| Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More... | |
| vector_uchar | encode_to_bam_stream () const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More... | |
| bool | encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More... | |
| virtual void | fillin (DatagramIterator &scan, BamReader *manager) |
| This internal function is intended to be called by each class's make_from_bam() method to read in all of the relevant data from the BamFile for the new object. More... | |
| virtual void | finalize (BamReader *manager) |
| Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More... | |
| UpdateSeq | get_bam_modified () const |
| Returns the current bam_modified counter. More... | |
| void | mark_bam_modified () |
| Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More... | |
| void | operator= (const TypedWritable ©) |
| virtual bool | require_fully_complete () const |
| Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More... | |
| virtual void | update_bam_nested (BamWriter *manager) |
| Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More... | |
| virtual void | write_datagram (BamWriter *manager, Datagram &dg) |
| Writes the contents of this object to the datagram for shipping out to a Bam file. More... | |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
| Public Member Functions inherited from Namable | |
| Namable (const std::string &initial_name="") | |
| void | clear_name () |
| Resets the Namable's name to empty. More... | |
| const std::string & | get_name () const |
| bool | has_name () const |
| Returns true if the Namable has a nonempty name set, false if the name is empty. More... | |
| void | output (std::ostream &out) const |
| Outputs the Namable. More... | |
| void | set_name (const std::string &name) |
Static Public Member Functions | |
| static void | find_all_microphones () |
| Scans the hardware for microphones, and pushes them onto the global list of all microphones. More... | |
| static TypeHandle | get_class_type () |
| static int | get_num_options () |
| static void | init_type () |
| static | PT (MicrophoneAudio) get_option(int n) |
| Static Public Member Functions inherited from MovieAudio | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (MovieAudio) get(const Filename &name) |
| Static Public Member Functions inherited from TypedWritableReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data |
| Static Public Member Functions inherited from TypedWritable | |
| static bool | decode_raw_from_bam_stream (TypedWritable *&ptr, ReferenceCount *&ref_ptr, vector_uchar data, BamReader *reader=nullptr) |
| Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from Namable | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Public Attributes | |
| get_channels | |
| Returns the number of channels. More... | |
| get_num_options | |
| Returns the number of microphone options. More... | |
| get_option | |
| get_rate | |
| Returns the sample rate. More... | |
| Public Attributes inherited from MovieAudio | |
| get_filename | |
| Returns the movie's filename. More... | |
| Public Attributes inherited from TypedWritableReferenceCount | |
| static BamReader * | reader = nullptr) |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
| Public Attributes inherited from Namable | |
| get_name | |
| set_name | |
Additional Inherited Members | |
| Static Public Attributes inherited from TypedWritable | |
| static TypedWritable *const | Null = nullptr |
Detailed Description
Class MicrophoneAudio provides the means to read raw audio samples from a microphone.
Definition at line 25 of file microphoneAudio.h.
Member Function Documentation
◆ find_all_microphones()
|
static |
Scans the hardware for microphones, and pushes them onto the global list of all microphones.
There are several implementations of MicrophoneAudio, including one based on DirectShow, one based on Linux ALSA, and so forth. These implementations are contained in one C++ file each, and they export nothing at all except a single "find_all" function. Otherwise, they can only be accessed through the virtual methods of the MicrophoneAudio objects they create.
Definition at line 39 of file microphoneAudio.cxx.
Referenced by PT().
Member Data Documentation
◆ get_channels
|
inline |
Returns the number of channels.
Definition at line 38 of file microphoneAudio.h.
◆ get_num_options
| int MicrophoneAudio::get_num_options |
Returns the number of microphone options.
An "option" consists of a device plus a set of configuration parameters. For example, "Soundblaster Audigy Line in at 44,100 samples/sec" would be an option.
Definition at line 32 of file microphoneAudio.h.
◆ get_rate
|
inline |
Returns the sample rate.
Definition at line 39 of file microphoneAudio.h.
The documentation for this class was generated from the following files:
- panda/src/movies/microphoneAudio.h
- panda/src/movies/microphoneAudio.cxx
- panda/src/movies/microphoneAudio.I
