A capsule character controller. More...
#include "physxCapsuleController.h"

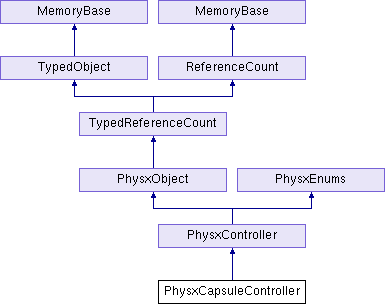

Inheritance diagram for PhysxCapsuleController:
Public Member Functions | |
| virtual TypeHandle | force_init_type () |
| float | get_height () const |
| Returns the controller's height. More... | |
| float | get_radius () const |
| Returns the controller's radius. More... | |
| virtual TypeHandle | get_type () const |
| void | link (NxController *controllerPtr) |
| NxController * | ptr () const |
| void | set_height (float height) |
| Resets the controller's height. More... | |
| void | set_radius (float radius) |
| Resets the controller's radius. More... | |
| void | unlink () |
 Public Member Functions inherited from PhysxController | |
| PhysxActor * | get_actor () const |
| Retrieves the actor which this controller is associated with. More... | |
| float | get_h () const |
| Returns the heading of the controller in global space. More... | |
| LPoint3f | get_pos () const |
| Retruns the position of the controller is global space. More... | |
| float | get_sharpness () const |
| Returns the sharpness used to ease the motion curve when the auto-step feature is used. More... | |
| void | ls () const |
| void | ls (std::ostream &out, int indent_level=0) const |
| void | release () |
| void | report_scene_changed () |
| The character controller uses caching in order to speed up collision testing, this caching can not detect when static objects have changed in the scene. More... | |
| void | set_collision (bool enable) |
| Enable/Disable collisions for this controller and actor. More... | |
| void | set_global_speed (const LVector3f &speed) |
| Sets the linear speed of the controller in global space. More... | |
| void | set_h (float heading) |
| Sets the heading of the controller is global space. More... | |
| void | set_local_speed (const LVector3f &speed) |
| Sets the linear speed of the controller in local coordinates. More... | |
| void | set_min_distance (float min_dist) |
| Sets the the minimum travelled distance to consider when moving the controller. More... | |
| void | set_omega (float omega) |
| Sets the angular velocity (degrees per second) of the controller. More... | |
| void | set_pos (const LPoint3f &pos) |
| Sets the position of the controller is global space. More... | |
| void | set_sharpness (float sharpness) |
| Sharpness is used to smooth motion with a feedback filter, having a value between 0 (so smooth it doesn't move) and 1 (no smoothing = unfiltered motion). More... | |
| void | set_step_offset (float offset) |
| Sets the step height/offset for the controller. More... | |
| void | start_jump (float v0) |
| Enters the jump mode. More... | |
| void | stop_jump () |
| Leaves the jump mode. More... | |
| void | update_controller (float dt) |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from PhysxController | |
| static PhysxController * | factory (NxControllerType shapeType) |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from PhysxObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Additional Inherited Members | |
| Public Types inherited from PhysxEnums | |
| enum | PhysxActorFlag { AF_disable_collision = NX_AF_DISABLE_COLLISION, AF_disable_response = NX_AF_DISABLE_RESPONSE, AF_lock_com = NX_AF_LOCK_COM, AF_fluid_disable_collision = NX_AF_FLUID_DISABLE_COLLISION, AF_contact_modification = NX_AF_CONTACT_MODIFICATION, AF_force_cone_friction = NX_AF_FORCE_CONE_FRICTION, AF_user_actor_pair_filtering = NX_AF_USER_ACTOR_PAIR_FILTERING } |
| enum | PhysxBodyFlag { BF_disable_gravity = NX_BF_DISABLE_GRAVITY, Bf_frozen_pos_x = NX_BF_FROZEN_POS_X, BF_frozen_pos_y = NX_BF_FROZEN_POS_Y, BF_frozen_pos_z = NX_BF_FROZEN_POS_Z, BF_frozen_rot_x = NX_BF_FROZEN_ROT_X, BF_frozen_rot_y = NX_BF_FROZEN_ROT_Y, BF_frozen_rot_z = NX_BF_FROZEN_ROT_Z, BF_frozen_pos = NX_BF_FROZEN_POS, BF_frozen_rot = NX_BF_FROZEN_ROT, BF_frozen = NX_BF_FROZEN, BF_kinematic = NX_BF_KINEMATIC, BF_visualization = NX_BF_VISUALIZATION, BF_filter_sleep_vel = NX_BF_FILTER_SLEEP_VEL, BF_energy_sleep_test = NX_BF_ENERGY_SLEEP_TEST } |
| enum | PhysxBroadPhaseType { BPT_sap_single = NX_BP_TYPE_SAP_SINGLE, BPT_sap_multi = NX_BP_TYPE_SAP_MULTI } |
| enum | PhysxClothFlag { CLF_pressure = NX_CLF_PRESSURE, CLF_static = NX_CLF_STATIC, CLF_disable_collision = NX_CLF_DISABLE_COLLISION, CLF_selfcollision = NX_CLF_SELFCOLLISION, CLF_visualization = NX_CLF_VISUALIZATION, CLF_gravity = NX_CLF_GRAVITY, CLF_bending = NX_CLF_BENDING, CLF_bending_ortho = NX_CLF_BENDING_ORTHO, CLF_damping = NX_CLF_DAMPING, CLF_collision_twoway = NX_CLF_COLLISION_TWOWAY, CLF_triangle_collision = NX_CLF_TRIANGLE_COLLISION, CLF_tearable = NX_CLF_TEARABLE, CLF_hardware = NX_CLF_HARDWARE, CLF_comdamping = NX_CLF_COMDAMPING, CLF_validbounds = NX_CLF_VALIDBOUNDS, CLF_fluid_collision = NX_CLF_FLUID_COLLISION, CLF_disable_dynamic_ccd = NX_CLF_DISABLE_DYNAMIC_CCD, CLF_adhere = NX_CLF_ADHERE } |
| enum | PhysxCombineMode { CM_average = NX_CM_AVERAGE, CM_min = NX_CM_MIN, CM_multiply = NX_CM_MULTIPLY, CM_max = NX_CM_MAX } |
| enum | PhysxContactPairFlag { CPF_ignore_pair = NX_IGNORE_PAIR, CPF_notify_on_start_touch = NX_NOTIFY_ON_START_TOUCH, CPF_notify_on_end_touch = NX_NOTIFY_ON_END_TOUCH, CPF_notify_on_touch = NX_NOTIFY_ON_TOUCH, CPF_notify_on_impact = NX_NOTIFY_ON_IMPACT, CPF_notify_on_roll = NX_NOTIFY_ON_ROLL, CPF_notify_on_slide = NX_NOTIFY_ON_SLIDE, CPF_notify_forces = NX_NOTIFY_FORCES, CPF_notify_on_start_touch_threshold = NX_NOTIFY_ON_START_TOUCH_FORCE_THRESHOLD, CPF_notify_on_end_touch_threshold = NX_NOTIFY_ON_END_TOUCH_FORCE_THRESHOLD, CPF_notify_on_touch_threshold = NX_NOTIFY_ON_TOUCH_FORCE_THRESHOLD, CPF_notify_contact_modifications = NX_NOTIFY_CONTACT_MODIFICATION } |
| enum | PhysxD6JointDriveType { D6_joint_drive_position = NX_D6JOINT_DRIVE_POSITION, D6_joint_drive_velocity = NX_D6JOINT_DRIVE_VELOCITY } |
| enum | PhysxD6JointFlag { D6_joint_slerp_drive = NX_D6JOINT_SLERP_DRIVE, D6_joint_gear_disabled = NX_D6JOINT_GEAR_ENABLED } |
| enum | PhysxD6JointMotion { D6_joint_motion_locked = NX_D6JOINT_MOTION_LOCKED, D6_joint_motion_limited = NX_D6JOINT_MOTION_LIMITED, D6_joint_motion_free = NX_D6JOINT_MOTION_FREE } |
| enum | PhysxDistanceJointFlag { DJF_max_distance_enabled = NX_DJF_MAX_DISTANCE_ENABLED, DJF_mix_distance_enabled = NX_DJF_MIN_DISTANCE_ENABLED, DJF_spring_enabled = NX_DJF_SPRING_ENABLED } |
| enum | PhysxFilterOp { FO_and = NX_FILTEROP_AND, FO_or = NX_FILTEROP_OR, FO_xor = NX_FILTEROP_XOR, FO_nand = NX_FILTEROP_NAND, FO_nor = NX_FILTEROP_NOR, FO_nxor = NX_FILTEROP_NXOR, FO_swap_and = NX_FILTEROP_SWAP_AND } |
| enum | PhysxForceFieldCoordinates { FFC_cartesian, FFC_spherical, FFC_cylindrical, FFC_toroidal } |
| enum | PhysxForceFieldShapeGroupFlag { FFSG_exclude_group = NX_FFSG_EXCLUDE_GROUP } |
| enum | PhysxForceMode { FM_force = NX_FORCE, FM_impulse = NX_IMPULSE, FM_velocity_change = NX_VELOCITY_CHANGE, FM_smooth_impulse = NX_SMOOTH_IMPULSE, FM_smooth_velocity_change = NX_SMOOTH_VELOCITY_CHANGE, FM_acceleration = NX_ACCELERATION } |
| enum | PhysxJointFlag { JF_collision_enabled = NX_JF_COLLISION_ENABLED, JF_visualization = NX_JF_VISUALIZATION } |
| enum | PhysxMaterialFlag { MF_anisotropic = NX_MF_ANISOTROPIC, MF_disable_friction = NX_MF_DISABLE_FRICTION, MF_disable_strong_friction = NX_MF_DISABLE_STRONG_FRICTION } |
| enum | PhysxParameter { P_penalty_force = NX_PENALTY_FORCE, P_skin_width = NX_SKIN_WIDTH, P_default_sleep_lin_vel_squared = NX_DEFAULT_SLEEP_LIN_VEL_SQUARED, P_default_sleep_ang_vel_squared = NX_DEFAULT_SLEEP_ANG_VEL_SQUARED, P_bounce_threshold = NX_BOUNCE_THRESHOLD, P_dyn_frict_scaling = NX_DYN_FRICT_SCALING, P_sta_frict_scaling = NX_STA_FRICT_SCALING, P_max_angular_velocity = NX_MAX_ANGULAR_VELOCITY, P_continuous_cd = NX_CONTINUOUS_CD, P_visualization_scale = NX_VISUALIZATION_SCALE, P_adaptive_force = NX_ADAPTIVE_FORCE, P_coll_veta_jointed = NX_COLL_VETO_JOINTED, P_trigger_trigger_callback = NX_TRIGGER_TRIGGER_CALLBACK, P_select_hw_algo = NX_SELECT_HW_ALGO, P_ccd_epsilon = NX_CCD_EPSILON, P_solver_convergence_threshold = NX_SOLVER_CONVERGENCE_THRESHOLD, P_bbox_noise_level = NX_BBOX_NOISE_LEVEL, P_implicit_sweep_cache_size = NX_IMPLICIT_SWEEP_CACHE_SIZE, P_default_sleep_energy = NX_DEFAULT_SLEEP_ENERGY, P_constant_fluid_max_packets = NX_CONSTANT_FLUID_MAX_PACKETS, P_constant_fluid_max_particles_per_step = NX_CONSTANT_FLUID_MAX_PARTICLES_PER_STEP, P_asynchronous_mesh_creation = NX_ASYNCHRONOUS_MESH_CREATION, P_force_field_custom_kernel_epsilon = NX_FORCE_FIELD_CUSTOM_KERNEL_EPSILON, P_improved_spring_solver = NX_IMPROVED_SPRING_SOLVER, P_visualize_world_axes = NX_VISUALIZE_WORLD_AXES, P_visualize_body_axes = NX_VISUALIZE_BODY_AXES, P_visualize_body_mass_axes = NX_VISUALIZE_BODY_MASS_AXES, P_visualize_body_lin_velocity = NX_VISUALIZE_BODY_LIN_VELOCITY, P_visualize_body_ang_velocity = NX_VISUALIZE_BODY_ANG_VELOCITY, P_visualize_body_joint_groups = NX_VISUALIZE_BODY_JOINT_GROUPS, P_visualize_joint_local_axes = NX_VISUALIZE_JOINT_LOCAL_AXES, P_visualize_joint_world_axes = NX_VISUALIZE_JOINT_WORLD_AXES, P_visualize_joint_limits = NX_VISUALIZE_JOINT_LIMITS, P_visualize_contact_point = NX_VISUALIZE_CONTACT_POINT, P_visualize_contact_normal = NX_VISUALIZE_CONTACT_NORMAL, P_visualize_contact_error = NX_VISUALIZE_CONTACT_ERROR, P_visualize_contact_force = NX_VISUALIZE_CONTACT_FORCE, P_visualize_actor_axes = NX_VISUALIZE_ACTOR_AXES, P_visualize_collision_aabbs = NX_VISUALIZE_COLLISION_AABBS, P_visualize_collision_shapes = NX_VISUALIZE_COLLISION_SHAPES, P_visualize_collision_axes = NX_VISUALIZE_COLLISION_AXES, P_visualize_collision_compounds = NX_VISUALIZE_COLLISION_COMPOUNDS, P_visualize_collision_vnormals = NX_VISUALIZE_COLLISION_VNORMALS, P_visualize_collision_fnormals = NX_VISUALIZE_COLLISION_FNORMALS, P_visualize_collision_edges = NX_VISUALIZE_COLLISION_EDGES, P_visualize_collision_spheres = NX_VISUALIZE_COLLISION_SPHERES, P_visualize_collision_static = NX_VISUALIZE_COLLISION_STATIC, P_visualize_collision_dynamic = NX_VISUALIZE_COLLISION_DYNAMIC, P_visualize_collision_free = NX_VISUALIZE_COLLISION_FREE, P_visualize_collision_ccd = NX_VISUALIZE_COLLISION_CCD, P_visualize_collision_skeletons = NX_VISUALIZE_COLLISION_SKELETONS, P_visualize_fluid_emitters = NX_VISUALIZE_FLUID_EMITTERS, P_visualize_fluid_position = NX_VISUALIZE_FLUID_POSITION, P_visualize_fluid_velocity = NX_VISUALIZE_FLUID_VELOCITY, P_visualize_fluid_kernel_radius = NX_VISUALIZE_FLUID_KERNEL_RADIUS, P_visualize_fluid_bounds = NX_VISUALIZE_FLUID_BOUNDS, P_visualize_fluid_packets = NX_VISUALIZE_FLUID_PACKETS, P_visualize_fluid_motion_limit = NX_VISUALIZE_FLUID_MOTION_LIMIT, P_visualize_fluid_dyn_collision = NX_VISUALIZE_FLUID_DYN_COLLISION, P_visualize_fluid_stc_collision = NX_VISUALIZE_FLUID_STC_COLLISION, P_visualize_fluid_mesh_packets = NX_VISUALIZE_FLUID_MESH_PACKETS, P_visualize_fluid_drains = NX_VISUALIZE_FLUID_DRAINS, P_visualize_fluid_packet_data = NX_VISUALIZE_FLUID_PACKET_DATA, P_visualize_cloth_mesh = NX_VISUALIZE_CLOTH_MESH, P_visualize_cloth_collisions = NX_VISUALIZE_CLOTH_COLLISIONS, P_visualize_cloth_selfcollisions = NX_VISUALIZE_CLOTH_SELFCOLLISIONS, P_visualize_cloth_workpackets = NX_VISUALIZE_CLOTH_WORKPACKETS, P_visualize_cloth_sleep = NX_VISUALIZE_CLOTH_SLEEP, P_visualize_cloth_sleep_vertex = NX_VISUALIZE_CLOTH_SLEEP_VERTEX, P_visualize_cloth_tearable_vertices = NX_VISUALIZE_CLOTH_TEARABLE_VERTICES, P_visualize_cloth_tearing = NX_VISUALIZE_CLOTH_TEARING, P_visualize_cloth_attachment = NX_VISUALIZE_CLOTH_ATTACHMENT, P_visualize_cloth_validbounds = NX_VISUALIZE_CLOTH_VALIDBOUNDS, P_visualize_softbody_mesh = NX_VISUALIZE_SOFTBODY_MESH, P_visualize_softbody_collisions = NX_VISUALIZE_SOFTBODY_COLLISIONS, P_visualize_softbody_workpackets = NX_VISUALIZE_SOFTBODY_WORKPACKETS, P_visualize_softbody_sleep = NX_VISUALIZE_SOFTBODY_SLEEP, P_visualize_softbody_sleep_vertex = NX_VISUALIZE_SOFTBODY_SLEEP_VERTEX, P_visualize_softbody_tearable_vertices = NX_VISUALIZE_SOFTBODY_TEARABLE_VERTICES, P_visualize_softbody_tearing = NX_VISUALIZE_SOFTBODY_TEARING, P_visualize_softbody_attachment = NX_VISUALIZE_SOFTBODY_ATTACHMENT, P_visualize_softbody_validbounds = NX_VISUALIZE_SOFTBODY_VALIDBOUNDS, P_visualize_active_vertices = NX_VISUALIZE_ACTIVE_VERTICES, P_visualize_force_fields = NX_VISUALIZE_FORCE_FIELDS } |
| enum | PhysxProjectionMode { PM_none = NX_JPM_NONE, PM_point_mindist = NX_JPM_POINT_MINDIST, PM_linear_mindist = NX_JPM_LINEAR_MINDIST } |
| enum | PhysxPruningStructure { PS_none = NX_PRUNING_NONE, PS_octree = NX_PRUNING_OCTREE, PS_quadtree = NX_PRUNING_QUADTREE, PS_dynamic_aabb_tree = NX_PRUNING_DYNAMIC_AABB_TREE, PS_static_aabb_tree = NX_PRUNING_STATIC_AABB_TREE } |
| enum | PhysxPulleyJointFlag { PJF_is_rigid = NX_PJF_IS_RIGID, PJF_motor_enabled = NX_PJF_MOTOR_ENABLED } |
| enum | PhysxRevoluteJointFlag { RJF_limit_enabled = NX_RJF_LIMIT_ENABLED, RJF_motor_enabled = NX_RJF_MOTOR_ENABLED, RJF_spring_enabled = NX_RJF_SPRING_ENABLED } |
| enum | PhysxSceneFlag { SF_disable_sse = NX_SF_DISABLE_SSE, SF_disable_collisions = NX_SF_DISABLE_COLLISIONS, SF_restricted_scene = NX_SF_RESTRICTED_SCENE, SF_disable_scene_mutex = NX_SF_DISABLE_SCENE_MUTEX, SF_force_cone_friction = NX_SF_FORCE_CONE_FRICTION, SF_sequential_primary = NX_SF_SEQUENTIAL_PRIMARY, SF_fluid_performance_hint = NX_SF_FLUID_PERFORMANCE_HINT } |
| enum | PhysxShapeFlag { SF_trigger_on_enter = NX_TRIGGER_ON_ENTER, SF_trigger_on_leave = NX_TRIGGER_ON_LEAVE, SF_trigger_on_stay = NX_TRIGGER_ON_STAY, SF_trigger_enable = NX_TRIGGER_ENABLE, SF_visualization = NX_SF_VISUALIZATION, SF_disable_collision = NX_SF_DISABLE_COLLISION, SF_disable_raycasting = NX_SF_DISABLE_RAYCASTING, SF_disable_response = NX_SF_DISABLE_RESPONSE, SF_disable_scene_queries = NX_SF_DISABLE_SCENE_QUERIES, SF_point_contact_force = NX_SF_POINT_CONTACT_FORCE, SF_feature_indices = NX_SF_FEATURE_INDICES, SF_dynamic_dynamic_ccd = NX_SF_DYNAMIC_DYNAMIC_CCD, SF_fluid_drain = NX_SF_FLUID_DRAIN, SF_fluid_disable_collision = NX_SF_FLUID_DISABLE_COLLISION, SF_fluid_twoway = NX_SF_FLUID_TWOWAY, SF_cloth_drain = NX_SF_CLOTH_DRAIN, SF_cloth_disable_collision = NX_SF_CLOTH_DISABLE_COLLISION, SF_cloth_twoway = NX_SF_CLOTH_TWOWAY, SF_softbody_drain = NX_SF_SOFTBODY_DRAIN, SF_softbody_disable_collision = NX_SF_SOFTBODY_DISABLE_COLLISION, SF_softbody_twoway = NX_SF_SOFTBODY_TWOWAY } |
| enum | PhysxShapesType { ST_static = NX_STATIC_SHAPES, ST_dynamic = NX_DYNAMIC_SHAPES, ST_all = NX_ALL_SHAPES } |
| enum | PhysxSoftBodyFlag { SBF_static = NX_SBF_STATIC, SBF_disable_collision = NX_SBF_DISABLE_COLLISION, SBF_selfcollision = NX_SBF_SELFCOLLISION, SBF_visualization = NX_SBF_VISUALIZATION, SBF_gravity = NX_SBF_GRAVITY, SBF_volume_conservtion = NX_SBF_VOLUME_CONSERVATION, SBF_damping = NX_SBF_DAMPING, SBF_collision_twoway = NX_SBF_COLLISION_TWOWAY, SBF_tearable = NX_SBF_TEARABLE, SBF_hardware = NX_SBF_HARDWARE, SBF_comdamping = NX_SBF_COMDAMPING, SBF_validbounds = NX_SBF_VALIDBOUNDS, SBF_fluid_collision = NX_SBF_FLUID_COLLISION, SBF_disable_dynamic_ccd = NX_SBF_DISABLE_DYNAMIC_CCD, SBF_adhere = NX_SBF_ADHERE } |
| enum | PhysxSphericalJointFlag { SJF_twist_limit_enabled = NX_SJF_TWIST_LIMIT_ENABLED, SJF_swing_limit_enabled = NX_SJF_SWING_LIMIT_ENABLED, SJF_twist_spring_enabled = NX_SJF_TWIST_SPRING_ENABLED, SJF_swing_spring_enabled = NX_SJF_SWING_SPRING_ENABLED, SJF_joint_spring_enabled = NX_SJF_JOINT_SPRING_ENABLED, SJF_perpendicular_dir_constraints = NX_SJF_PERPENDICULAR_DIR_CONSTRAINTS } |
| enum | PhysxUpAxis { X_up = NX_X, Y_up = NX_Y, Z_up = NX_Z } |
| enum | PhysxVertexAttachmentStatus { VAS_none = NX_CLOTH_VERTEX_ATTACHMENT_NONE, VAS_global = NX_CLOTH_VERTEX_ATTACHMENT_GLOBAL, VAS_shape = NX_CLOTH_VERTEX_ATTACHMENT_SHAPE } |
| enum | PhysxWheelFlag { WF_steerable_input = 1<<0, WF_steerable_auto = 1<<1, WF_affected_by_handbrake = 1<<2, WF_accelerated = 1<<3 } |
| enum | PhysxWheelShapeFlag { WSF_wheel_axis_contact_normal = NX_WF_WHEEL_AXIS_CONTACT_NORMAL, WSF_input_lat_slipvelocity = NX_WF_INPUT_LAT_SLIPVELOCITY, WSF_input_lng_slipvelocity = NX_WF_INPUT_LNG_SLIPVELOCITY, WSF_unscaled_spring_behavior = NX_WF_UNSCALED_SPRING_BEHAVIOR, WSF_axle_speed_override = NX_WF_AXLE_SPEED_OVERRIDE, WSF_emulate_legacy_wheel = NX_WF_EMULATE_LEGACY_WHEEL, WSF_clamped_friction = NX_WF_CLAMPED_FRICTION } |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
A capsule character controller.
The capsule is defined as a position, a vertical height, and a radius. The height is the same height as for PhysxCapsuleShape objects, i.e. the distance between the two sphere centers at the end of the capsule. In other words:
p = pos (returned by controller) h = height r = radius
p = center of capsule top sphere center = p.y + h*0.5 bottom sphere center = p.y - h*0.5 top capsule point = p.y + h*0.5 + r bottom capsule point = p.y - h*0.5 - r
Definition at line 37 of file physxCapsuleController.h.
Member Function Documentation
◆ get_height()
| float PhysxCapsuleController::get_height | ( | ) | const |
Returns the controller's height.
Definition at line 90 of file physxCapsuleController.cxx.
◆ get_radius()
| float PhysxCapsuleController::get_radius | ( | ) | const |
Returns the controller's radius.
Definition at line 80 of file physxCapsuleController.cxx.
◆ set_height()
| void PhysxCapsuleController::set_height | ( | float | height | ) |
Resets the controller's height.
Definition at line 70 of file physxCapsuleController.cxx.
◆ set_radius()
| void PhysxCapsuleController::set_radius | ( | float | radius | ) |
Resets the controller's radius.
Definition at line 60 of file physxCapsuleController.cxx.
The documentation for this class was generated from the following files:
- panda/src/physx/physxCapsuleController.h
- panda/src/physx/physxCapsuleController.cxx
- panda/src/physx/physxCapsuleController.I
