Cylindrical Joints permit relative translational movement between two bodies along an axis, and also relative rotation along the axis. More...
#include "physxCylindricalJoint.h"

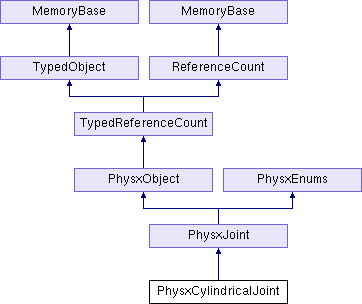

Inheritance diagram for PhysxCylindricalJoint:
Public Member Functions | |
| virtual TypeHandle | force_init_type () |
| virtual TypeHandle | get_type () const |
| void | link (NxJoint *jointPtr) |
| void | load_from_desc (const PhysxCylindricalJointDesc &jointDesc) |
| Loads the entire state of the joint from a descriptor with a single call. More... | |
| NxJoint * | ptr () const |
| void | save_to_desc (PhysxCylindricalJointDesc &jointDesc) const |
| Saves the state of the joint object to a descriptor. More... | |
| void | unlink () |
 Public Member Functions inherited from PhysxJoint | |
| void | add_limit_plane (const LVector3f &normal, const LPoint3f &pointInPlane, float restitution=0.0f) |
| Adds a limit plane. More... | |
| PhysxActor * | get_actor (unsigned int idx) const |
| Retrieves the actor which this joint is associated with. More... | |
| LPoint3f | get_global_anchor () const |
| Retrieves the joint anchor. More... | |
| LVector3f | get_global_axis () const |
| Retrieves the joint axis. More... | |
| const char * | get_name () const |
| Returns the name string. More... | |
| PhysxScene * | get_scene () const |
| Retrieves the scene which this joint is associated with. More... | |
| float | get_solver_extrapolation_factor () const |
| Retrieves the solver extrapolation factor. More... | |
| bool | get_use_acceleration_spring () const |
| Checks whether acceleration spring is used. More... | |
| void | ls () const |
| void | ls (std::ostream &out, int indent_level=0) const |
| void | purge_limit_planes () |
| Deletes all limit planes added to the joint. More... | |
| void | release () |
| void | set_breakable (float maxForce, float maxTorque) |
| Sets the maximum force magnitude that the joint is able to withstand without breaking. More... | |
| void | set_global_anchor (const LPoint3f &anchor) |
| Sets the point where the two actors are attached, specified in global coordinates. More... | |
| void | set_global_axis (const LVector3f &axis) |
| Sets the direction of the joint's primary axis, specified in global coordinates. More... | |
| void | set_limit_point (const LPoint3f &pos, bool isOnActor2=true) |
| Sets the limit point. More... | |
| void | set_name (const char *name) |
| Sets a name string for this object. More... | |
| void | set_solver_extrapolation_factor (float factor) |
| Sets the solver extrapolation factor. More... | |
| void | set_use_acceleration_spring (bool value) |
| Switch between acceleration and force based spring. More... | |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from PhysxJoint | |
| static PhysxJoint * | factory (NxJointType shapeType) |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from PhysxObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Additional Inherited Members | |
| Public Types inherited from PhysxEnums | |
| enum | PhysxActorFlag { AF_disable_collision = NX_AF_DISABLE_COLLISION, AF_disable_response = NX_AF_DISABLE_RESPONSE, AF_lock_com = NX_AF_LOCK_COM, AF_fluid_disable_collision = NX_AF_FLUID_DISABLE_COLLISION, AF_contact_modification = NX_AF_CONTACT_MODIFICATION, AF_force_cone_friction = NX_AF_FORCE_CONE_FRICTION, AF_user_actor_pair_filtering = NX_AF_USER_ACTOR_PAIR_FILTERING } |
| enum | PhysxBodyFlag { BF_disable_gravity = NX_BF_DISABLE_GRAVITY, Bf_frozen_pos_x = NX_BF_FROZEN_POS_X, BF_frozen_pos_y = NX_BF_FROZEN_POS_Y, BF_frozen_pos_z = NX_BF_FROZEN_POS_Z, BF_frozen_rot_x = NX_BF_FROZEN_ROT_X, BF_frozen_rot_y = NX_BF_FROZEN_ROT_Y, BF_frozen_rot_z = NX_BF_FROZEN_ROT_Z, BF_frozen_pos = NX_BF_FROZEN_POS, BF_frozen_rot = NX_BF_FROZEN_ROT, BF_frozen = NX_BF_FROZEN, BF_kinematic = NX_BF_KINEMATIC, BF_visualization = NX_BF_VISUALIZATION, BF_filter_sleep_vel = NX_BF_FILTER_SLEEP_VEL, BF_energy_sleep_test = NX_BF_ENERGY_SLEEP_TEST } |
| enum | PhysxBroadPhaseType { BPT_sap_single = NX_BP_TYPE_SAP_SINGLE, BPT_sap_multi = NX_BP_TYPE_SAP_MULTI } |
| enum | PhysxClothFlag { CLF_pressure = NX_CLF_PRESSURE, CLF_static = NX_CLF_STATIC, CLF_disable_collision = NX_CLF_DISABLE_COLLISION, CLF_selfcollision = NX_CLF_SELFCOLLISION, CLF_visualization = NX_CLF_VISUALIZATION, CLF_gravity = NX_CLF_GRAVITY, CLF_bending = NX_CLF_BENDING, CLF_bending_ortho = NX_CLF_BENDING_ORTHO, CLF_damping = NX_CLF_DAMPING, CLF_collision_twoway = NX_CLF_COLLISION_TWOWAY, CLF_triangle_collision = NX_CLF_TRIANGLE_COLLISION, CLF_tearable = NX_CLF_TEARABLE, CLF_hardware = NX_CLF_HARDWARE, CLF_comdamping = NX_CLF_COMDAMPING, CLF_validbounds = NX_CLF_VALIDBOUNDS, CLF_fluid_collision = NX_CLF_FLUID_COLLISION, CLF_disable_dynamic_ccd = NX_CLF_DISABLE_DYNAMIC_CCD, CLF_adhere = NX_CLF_ADHERE } |
| enum | PhysxCombineMode { CM_average = NX_CM_AVERAGE, CM_min = NX_CM_MIN, CM_multiply = NX_CM_MULTIPLY, CM_max = NX_CM_MAX } |
| enum | PhysxContactPairFlag { CPF_ignore_pair = NX_IGNORE_PAIR, CPF_notify_on_start_touch = NX_NOTIFY_ON_START_TOUCH, CPF_notify_on_end_touch = NX_NOTIFY_ON_END_TOUCH, CPF_notify_on_touch = NX_NOTIFY_ON_TOUCH, CPF_notify_on_impact = NX_NOTIFY_ON_IMPACT, CPF_notify_on_roll = NX_NOTIFY_ON_ROLL, CPF_notify_on_slide = NX_NOTIFY_ON_SLIDE, CPF_notify_forces = NX_NOTIFY_FORCES, CPF_notify_on_start_touch_threshold = NX_NOTIFY_ON_START_TOUCH_FORCE_THRESHOLD, CPF_notify_on_end_touch_threshold = NX_NOTIFY_ON_END_TOUCH_FORCE_THRESHOLD, CPF_notify_on_touch_threshold = NX_NOTIFY_ON_TOUCH_FORCE_THRESHOLD, CPF_notify_contact_modifications = NX_NOTIFY_CONTACT_MODIFICATION } |
| enum | PhysxD6JointDriveType { D6_joint_drive_position = NX_D6JOINT_DRIVE_POSITION, D6_joint_drive_velocity = NX_D6JOINT_DRIVE_VELOCITY } |
| enum | PhysxD6JointFlag { D6_joint_slerp_drive = NX_D6JOINT_SLERP_DRIVE, D6_joint_gear_disabled = NX_D6JOINT_GEAR_ENABLED } |
| enum | PhysxD6JointMotion { D6_joint_motion_locked = NX_D6JOINT_MOTION_LOCKED, D6_joint_motion_limited = NX_D6JOINT_MOTION_LIMITED, D6_joint_motion_free = NX_D6JOINT_MOTION_FREE } |
| enum | PhysxDistanceJointFlag { DJF_max_distance_enabled = NX_DJF_MAX_DISTANCE_ENABLED, DJF_mix_distance_enabled = NX_DJF_MIN_DISTANCE_ENABLED, DJF_spring_enabled = NX_DJF_SPRING_ENABLED } |
| enum | PhysxFilterOp { FO_and = NX_FILTEROP_AND, FO_or = NX_FILTEROP_OR, FO_xor = NX_FILTEROP_XOR, FO_nand = NX_FILTEROP_NAND, FO_nor = NX_FILTEROP_NOR, FO_nxor = NX_FILTEROP_NXOR, FO_swap_and = NX_FILTEROP_SWAP_AND } |
| enum | PhysxForceFieldCoordinates { FFC_cartesian, FFC_spherical, FFC_cylindrical, FFC_toroidal } |
| enum | PhysxForceFieldShapeGroupFlag { FFSG_exclude_group = NX_FFSG_EXCLUDE_GROUP } |
| enum | PhysxForceMode { FM_force = NX_FORCE, FM_impulse = NX_IMPULSE, FM_velocity_change = NX_VELOCITY_CHANGE, FM_smooth_impulse = NX_SMOOTH_IMPULSE, FM_smooth_velocity_change = NX_SMOOTH_VELOCITY_CHANGE, FM_acceleration = NX_ACCELERATION } |
| enum | PhysxJointFlag { JF_collision_enabled = NX_JF_COLLISION_ENABLED, JF_visualization = NX_JF_VISUALIZATION } |
| enum | PhysxMaterialFlag { MF_anisotropic = NX_MF_ANISOTROPIC, MF_disable_friction = NX_MF_DISABLE_FRICTION, MF_disable_strong_friction = NX_MF_DISABLE_STRONG_FRICTION } |
| enum | PhysxParameter { P_penalty_force = NX_PENALTY_FORCE, P_skin_width = NX_SKIN_WIDTH, P_default_sleep_lin_vel_squared = NX_DEFAULT_SLEEP_LIN_VEL_SQUARED, P_default_sleep_ang_vel_squared = NX_DEFAULT_SLEEP_ANG_VEL_SQUARED, P_bounce_threshold = NX_BOUNCE_THRESHOLD, P_dyn_frict_scaling = NX_DYN_FRICT_SCALING, P_sta_frict_scaling = NX_STA_FRICT_SCALING, P_max_angular_velocity = NX_MAX_ANGULAR_VELOCITY, P_continuous_cd = NX_CONTINUOUS_CD, P_visualization_scale = NX_VISUALIZATION_SCALE, P_adaptive_force = NX_ADAPTIVE_FORCE, P_coll_veta_jointed = NX_COLL_VETO_JOINTED, P_trigger_trigger_callback = NX_TRIGGER_TRIGGER_CALLBACK, P_select_hw_algo = NX_SELECT_HW_ALGO, P_ccd_epsilon = NX_CCD_EPSILON, P_solver_convergence_threshold = NX_SOLVER_CONVERGENCE_THRESHOLD, P_bbox_noise_level = NX_BBOX_NOISE_LEVEL, P_implicit_sweep_cache_size = NX_IMPLICIT_SWEEP_CACHE_SIZE, P_default_sleep_energy = NX_DEFAULT_SLEEP_ENERGY, P_constant_fluid_max_packets = NX_CONSTANT_FLUID_MAX_PACKETS, P_constant_fluid_max_particles_per_step = NX_CONSTANT_FLUID_MAX_PARTICLES_PER_STEP, P_asynchronous_mesh_creation = NX_ASYNCHRONOUS_MESH_CREATION, P_force_field_custom_kernel_epsilon = NX_FORCE_FIELD_CUSTOM_KERNEL_EPSILON, P_improved_spring_solver = NX_IMPROVED_SPRING_SOLVER, P_visualize_world_axes = NX_VISUALIZE_WORLD_AXES, P_visualize_body_axes = NX_VISUALIZE_BODY_AXES, P_visualize_body_mass_axes = NX_VISUALIZE_BODY_MASS_AXES, P_visualize_body_lin_velocity = NX_VISUALIZE_BODY_LIN_VELOCITY, P_visualize_body_ang_velocity = NX_VISUALIZE_BODY_ANG_VELOCITY, P_visualize_body_joint_groups = NX_VISUALIZE_BODY_JOINT_GROUPS, P_visualize_joint_local_axes = NX_VISUALIZE_JOINT_LOCAL_AXES, P_visualize_joint_world_axes = NX_VISUALIZE_JOINT_WORLD_AXES, P_visualize_joint_limits = NX_VISUALIZE_JOINT_LIMITS, P_visualize_contact_point = NX_VISUALIZE_CONTACT_POINT, P_visualize_contact_normal = NX_VISUALIZE_CONTACT_NORMAL, P_visualize_contact_error = NX_VISUALIZE_CONTACT_ERROR, P_visualize_contact_force = NX_VISUALIZE_CONTACT_FORCE, P_visualize_actor_axes = NX_VISUALIZE_ACTOR_AXES, P_visualize_collision_aabbs = NX_VISUALIZE_COLLISION_AABBS, P_visualize_collision_shapes = NX_VISUALIZE_COLLISION_SHAPES, P_visualize_collision_axes = NX_VISUALIZE_COLLISION_AXES, P_visualize_collision_compounds = NX_VISUALIZE_COLLISION_COMPOUNDS, P_visualize_collision_vnormals = NX_VISUALIZE_COLLISION_VNORMALS, P_visualize_collision_fnormals = NX_VISUALIZE_COLLISION_FNORMALS, P_visualize_collision_edges = NX_VISUALIZE_COLLISION_EDGES, P_visualize_collision_spheres = NX_VISUALIZE_COLLISION_SPHERES, P_visualize_collision_static = NX_VISUALIZE_COLLISION_STATIC, P_visualize_collision_dynamic = NX_VISUALIZE_COLLISION_DYNAMIC, P_visualize_collision_free = NX_VISUALIZE_COLLISION_FREE, P_visualize_collision_ccd = NX_VISUALIZE_COLLISION_CCD, P_visualize_collision_skeletons = NX_VISUALIZE_COLLISION_SKELETONS, P_visualize_fluid_emitters = NX_VISUALIZE_FLUID_EMITTERS, P_visualize_fluid_position = NX_VISUALIZE_FLUID_POSITION, P_visualize_fluid_velocity = NX_VISUALIZE_FLUID_VELOCITY, P_visualize_fluid_kernel_radius = NX_VISUALIZE_FLUID_KERNEL_RADIUS, P_visualize_fluid_bounds = NX_VISUALIZE_FLUID_BOUNDS, P_visualize_fluid_packets = NX_VISUALIZE_FLUID_PACKETS, P_visualize_fluid_motion_limit = NX_VISUALIZE_FLUID_MOTION_LIMIT, P_visualize_fluid_dyn_collision = NX_VISUALIZE_FLUID_DYN_COLLISION, P_visualize_fluid_stc_collision = NX_VISUALIZE_FLUID_STC_COLLISION, P_visualize_fluid_mesh_packets = NX_VISUALIZE_FLUID_MESH_PACKETS, P_visualize_fluid_drains = NX_VISUALIZE_FLUID_DRAINS, P_visualize_fluid_packet_data = NX_VISUALIZE_FLUID_PACKET_DATA, P_visualize_cloth_mesh = NX_VISUALIZE_CLOTH_MESH, P_visualize_cloth_collisions = NX_VISUALIZE_CLOTH_COLLISIONS, P_visualize_cloth_selfcollisions = NX_VISUALIZE_CLOTH_SELFCOLLISIONS, P_visualize_cloth_workpackets = NX_VISUALIZE_CLOTH_WORKPACKETS, P_visualize_cloth_sleep = NX_VISUALIZE_CLOTH_SLEEP, P_visualize_cloth_sleep_vertex = NX_VISUALIZE_CLOTH_SLEEP_VERTEX, P_visualize_cloth_tearable_vertices = NX_VISUALIZE_CLOTH_TEARABLE_VERTICES, P_visualize_cloth_tearing = NX_VISUALIZE_CLOTH_TEARING, P_visualize_cloth_attachment = NX_VISUALIZE_CLOTH_ATTACHMENT, P_visualize_cloth_validbounds = NX_VISUALIZE_CLOTH_VALIDBOUNDS, P_visualize_softbody_mesh = NX_VISUALIZE_SOFTBODY_MESH, P_visualize_softbody_collisions = NX_VISUALIZE_SOFTBODY_COLLISIONS, P_visualize_softbody_workpackets = NX_VISUALIZE_SOFTBODY_WORKPACKETS, P_visualize_softbody_sleep = NX_VISUALIZE_SOFTBODY_SLEEP, P_visualize_softbody_sleep_vertex = NX_VISUALIZE_SOFTBODY_SLEEP_VERTEX, P_visualize_softbody_tearable_vertices = NX_VISUALIZE_SOFTBODY_TEARABLE_VERTICES, P_visualize_softbody_tearing = NX_VISUALIZE_SOFTBODY_TEARING, P_visualize_softbody_attachment = NX_VISUALIZE_SOFTBODY_ATTACHMENT, P_visualize_softbody_validbounds = NX_VISUALIZE_SOFTBODY_VALIDBOUNDS, P_visualize_active_vertices = NX_VISUALIZE_ACTIVE_VERTICES, P_visualize_force_fields = NX_VISUALIZE_FORCE_FIELDS } |
| enum | PhysxProjectionMode { PM_none = NX_JPM_NONE, PM_point_mindist = NX_JPM_POINT_MINDIST, PM_linear_mindist = NX_JPM_LINEAR_MINDIST } |
| enum | PhysxPruningStructure { PS_none = NX_PRUNING_NONE, PS_octree = NX_PRUNING_OCTREE, PS_quadtree = NX_PRUNING_QUADTREE, PS_dynamic_aabb_tree = NX_PRUNING_DYNAMIC_AABB_TREE, PS_static_aabb_tree = NX_PRUNING_STATIC_AABB_TREE } |
| enum | PhysxPulleyJointFlag { PJF_is_rigid = NX_PJF_IS_RIGID, PJF_motor_enabled = NX_PJF_MOTOR_ENABLED } |
| enum | PhysxRevoluteJointFlag { RJF_limit_enabled = NX_RJF_LIMIT_ENABLED, RJF_motor_enabled = NX_RJF_MOTOR_ENABLED, RJF_spring_enabled = NX_RJF_SPRING_ENABLED } |
| enum | PhysxSceneFlag { SF_disable_sse = NX_SF_DISABLE_SSE, SF_disable_collisions = NX_SF_DISABLE_COLLISIONS, SF_restricted_scene = NX_SF_RESTRICTED_SCENE, SF_disable_scene_mutex = NX_SF_DISABLE_SCENE_MUTEX, SF_force_cone_friction = NX_SF_FORCE_CONE_FRICTION, SF_sequential_primary = NX_SF_SEQUENTIAL_PRIMARY, SF_fluid_performance_hint = NX_SF_FLUID_PERFORMANCE_HINT } |
| enum | PhysxShapeFlag { SF_trigger_on_enter = NX_TRIGGER_ON_ENTER, SF_trigger_on_leave = NX_TRIGGER_ON_LEAVE, SF_trigger_on_stay = NX_TRIGGER_ON_STAY, SF_trigger_enable = NX_TRIGGER_ENABLE, SF_visualization = NX_SF_VISUALIZATION, SF_disable_collision = NX_SF_DISABLE_COLLISION, SF_disable_raycasting = NX_SF_DISABLE_RAYCASTING, SF_disable_response = NX_SF_DISABLE_RESPONSE, SF_disable_scene_queries = NX_SF_DISABLE_SCENE_QUERIES, SF_point_contact_force = NX_SF_POINT_CONTACT_FORCE, SF_feature_indices = NX_SF_FEATURE_INDICES, SF_dynamic_dynamic_ccd = NX_SF_DYNAMIC_DYNAMIC_CCD, SF_fluid_drain = NX_SF_FLUID_DRAIN, SF_fluid_disable_collision = NX_SF_FLUID_DISABLE_COLLISION, SF_fluid_twoway = NX_SF_FLUID_TWOWAY, SF_cloth_drain = NX_SF_CLOTH_DRAIN, SF_cloth_disable_collision = NX_SF_CLOTH_DISABLE_COLLISION, SF_cloth_twoway = NX_SF_CLOTH_TWOWAY, SF_softbody_drain = NX_SF_SOFTBODY_DRAIN, SF_softbody_disable_collision = NX_SF_SOFTBODY_DISABLE_COLLISION, SF_softbody_twoway = NX_SF_SOFTBODY_TWOWAY } |
| enum | PhysxShapesType { ST_static = NX_STATIC_SHAPES, ST_dynamic = NX_DYNAMIC_SHAPES, ST_all = NX_ALL_SHAPES } |
| enum | PhysxSoftBodyFlag { SBF_static = NX_SBF_STATIC, SBF_disable_collision = NX_SBF_DISABLE_COLLISION, SBF_selfcollision = NX_SBF_SELFCOLLISION, SBF_visualization = NX_SBF_VISUALIZATION, SBF_gravity = NX_SBF_GRAVITY, SBF_volume_conservtion = NX_SBF_VOLUME_CONSERVATION, SBF_damping = NX_SBF_DAMPING, SBF_collision_twoway = NX_SBF_COLLISION_TWOWAY, SBF_tearable = NX_SBF_TEARABLE, SBF_hardware = NX_SBF_HARDWARE, SBF_comdamping = NX_SBF_COMDAMPING, SBF_validbounds = NX_SBF_VALIDBOUNDS, SBF_fluid_collision = NX_SBF_FLUID_COLLISION, SBF_disable_dynamic_ccd = NX_SBF_DISABLE_DYNAMIC_CCD, SBF_adhere = NX_SBF_ADHERE } |
| enum | PhysxSphericalJointFlag { SJF_twist_limit_enabled = NX_SJF_TWIST_LIMIT_ENABLED, SJF_swing_limit_enabled = NX_SJF_SWING_LIMIT_ENABLED, SJF_twist_spring_enabled = NX_SJF_TWIST_SPRING_ENABLED, SJF_swing_spring_enabled = NX_SJF_SWING_SPRING_ENABLED, SJF_joint_spring_enabled = NX_SJF_JOINT_SPRING_ENABLED, SJF_perpendicular_dir_constraints = NX_SJF_PERPENDICULAR_DIR_CONSTRAINTS } |
| enum | PhysxUpAxis { X_up = NX_X, Y_up = NX_Y, Z_up = NX_Z } |
| enum | PhysxVertexAttachmentStatus { VAS_none = NX_CLOTH_VERTEX_ATTACHMENT_NONE, VAS_global = NX_CLOTH_VERTEX_ATTACHMENT_GLOBAL, VAS_shape = NX_CLOTH_VERTEX_ATTACHMENT_SHAPE } |
| enum | PhysxWheelFlag { WF_steerable_input = 1<<0, WF_steerable_auto = 1<<1, WF_affected_by_handbrake = 1<<2, WF_accelerated = 1<<3 } |
| enum | PhysxWheelShapeFlag { WSF_wheel_axis_contact_normal = NX_WF_WHEEL_AXIS_CONTACT_NORMAL, WSF_input_lat_slipvelocity = NX_WF_INPUT_LAT_SLIPVELOCITY, WSF_input_lng_slipvelocity = NX_WF_INPUT_LNG_SLIPVELOCITY, WSF_unscaled_spring_behavior = NX_WF_UNSCALED_SPRING_BEHAVIOR, WSF_axle_speed_override = NX_WF_AXLE_SPEED_OVERRIDE, WSF_emulate_legacy_wheel = NX_WF_EMULATE_LEGACY_WHEEL, WSF_clamped_friction = NX_WF_CLAMPED_FRICTION } |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
Cylindrical Joints permit relative translational movement between two bodies along an axis, and also relative rotation along the axis.
Definition at line 28 of file physxCylindricalJoint.h.
Member Function Documentation
◆ load_from_desc()
| void PhysxCylindricalJoint::load_from_desc | ( | const PhysxCylindricalJointDesc & | jointDesc | ) |
Loads the entire state of the joint from a descriptor with a single call.
Definition at line 62 of file physxCylindricalJoint.cxx.
◆ save_to_desc()
| void PhysxCylindricalJoint::save_to_desc | ( | PhysxCylindricalJointDesc & | jointDesc | ) | const |
Saves the state of the joint object to a descriptor.
Definition at line 52 of file physxCylindricalJoint.cxx.
The documentation for this class was generated from the following files:
- panda/src/physx/physxCylindricalJoint.h
- panda/src/physx/physxCylindricalJoint.cxx
- panda/src/physx/physxCylindricalJoint.I
