Records a set of pointer events that happened recently. More...

#include "pointerEventList.h"

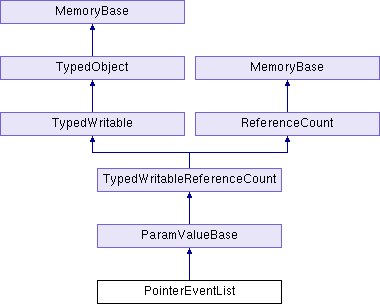

Inheritance diagram for PointerEventList:

Public Member Functions
	PointerEventList (const PointerEventList &copy)

void	add_event (const PointerData &data, int seq, double time)
	Adds a new event from the given PointerData object. More...

void	add_event (bool in_win, int xpos, int ypos, int seq, double time)
	Adds a new event to the end of the list. More...

void	add_event (bool in_win, int xpos, int ypos, double xdelta, double ydelta, int seq, double time)
	Adds a new event to the end of the list based on the given mouse movement. More...

void	clear ()
	Empties all the events from the list. More...

bool	empty () const
	Returns true if the list is empty. More...

bool	encircles (int x, int y) const
	Returns true if the trail loops around the specified point. More...

virtual TypeHandle	force_init_type ()

double	get_direction (size_t n) const
	Get the direction of the nth event. More...

double	get_dx (size_t n) const
	Get the x-delta of the nth event. More...

double	get_dy (size_t n) const
	Get the y-delta of the nth event. More...

const PointerEvent &	get_event (size_t n) const
	Returns the nth event in the list. More...

bool	get_in_window (size_t n) const
	Get the in-window flag of the nth event. More...

double	get_length (size_t n) const
	Get the length of the nth event. More...

size_t	get_num_events () const
	Returns the number of events in the list. More...

double	get_rotation (size_t n) const
	Get the rotation of the nth event. More...

int	get_sequence (size_t n) const
	Get the sequence number of the nth event. More...

double	get_time (size_t n) const
	Get the timestamp of the nth event. More...

virtual TypeHandle	get_type () const

int	get_xpos (size_t n) const
	Get the x-coordinate of the nth event. More...

int	get_ypos (size_t n) const
	Get the y-coordinate of the nth event. More...

double	match_pattern (const std::string &pattern, double rot, double seglen)
	This function is not implemented yet. More...

void	operator= (const PointerEventList &copy)

virtual void	output (std::ostream &out) const

void	pop_front ()
	Discards the first event on the list. More...

double	total_turns (double sec) const
	returns the total angular deviation that the trail has made in the specified time period. More...

void	write (std::ostream &out, int indent_level=0) const

Public Member Functions inherited from ParamValueBase
virtual TypeHandle	get_value_type () const
	Returns the type of the underlying value. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	fillin (DatagramIterator &scan, BamReader *manager)
	This internal function is intended to be called by each class's make_from_bam() method to read in all of the relevant data from the BamFile for the new object. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from ParamValueBase
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Additional Inherited Members
Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Records a set of pointer events that happened recently.

This class is usually used only in the data graph, to transmit the recent pointer presses, but it may be used anywhere a list of PointerEvents is desired.

Definition at line 33 of file pointerEventList.h.

Member Function Documentation

◆ add_event() [1/3]

void PointerEventList::add_event	(	const PointerData &	data,
		int	seq,
		double	time
	)

Adds a new event from the given PointerData object.

Definition at line 83 of file pointerEventList.cxx.

◆ add_event() [2/3]

void PointerEventList::add_event	(	bool	in_win,
		int	xpos,
		int	ypos,
		int	seq,
		double	time
	)

Adds a new event to the end of the list.

Automatically calculates the dx, dy, length, direction, and rotation for all but the first event.

Definition at line 120 of file pointerEventList.cxx.

◆ add_event() [3/3]

void PointerEventList::add_event	(	bool	in_win,
		int	xpos,
		int	ypos,
		double	xdelta,
		double	ydelta,
		int	seq,
		double	time
	)

Adds a new event to the end of the list based on the given mouse movement.

Definition at line 153 of file pointerEventList.cxx.

◆ clear()

void PointerEventList::clear ( )

inline

Empties all the events from the list.

Definition at line 156 of file pointerEventList.I.

◆ empty()

bool PointerEventList::empty ( ) const

inline

Returns true if the list is empty.

Definition at line 50 of file pointerEventList.I.

◆ encircles()

bool PointerEventList::encircles	(	int	x,
		int	y
	)		const

Returns true if the trail loops around the specified point.

Definition at line 182 of file pointerEventList.cxx.

◆ get_direction()

double PointerEventList::get_direction ( size_t n ) const

inline

Get the direction of the nth event.

Definition at line 120 of file pointerEventList.I.

◆ get_dx()

double PointerEventList::get_dx ( size_t n ) const

inline

Get the x-delta of the nth event.

Definition at line 93 of file pointerEventList.I.

◆ get_dy()

double PointerEventList::get_dy ( size_t n ) const

inline

Get the y-delta of the nth event.

Definition at line 102 of file pointerEventList.I.

◆ get_event()

const PointerEvent & PointerEventList::get_event ( size_t n ) const

inline

Returns the nth event in the list.

Definition at line 58 of file pointerEventList.I.

◆ get_in_window()

bool PointerEventList::get_in_window ( size_t n ) const

inline

Get the in-window flag of the nth event.

Definition at line 66 of file pointerEventList.I.

◆ get_length()

double PointerEventList::get_length ( size_t n ) const

inline

Get the length of the nth event.

Definition at line 111 of file pointerEventList.I.

◆ get_num_events()

size_t PointerEventList::get_num_events ( ) const

inline

Returns the number of events in the list.

Definition at line 42 of file pointerEventList.I.

◆ get_rotation()

double PointerEventList::get_rotation ( size_t n ) const

inline

Get the rotation of the nth event.

Definition at line 129 of file pointerEventList.I.

◆ get_sequence()

int PointerEventList::get_sequence ( size_t n ) const

inline

Get the sequence number of the nth event.

Definition at line 138 of file pointerEventList.I.

◆ get_time()

double PointerEventList::get_time ( size_t n ) const

inline

Get the timestamp of the nth event.

Definition at line 147 of file pointerEventList.I.

◆ get_xpos()

int PointerEventList::get_xpos ( size_t n ) const

inline

Get the x-coordinate of the nth event.

Definition at line 75 of file pointerEventList.I.

◆ get_ypos()

int PointerEventList::get_ypos ( size_t n ) const

inline

Get the y-coordinate of the nth event.

Definition at line 84 of file pointerEventList.I.

◆ match_pattern()

double PointerEventList::match_pattern	(	const std::string &	ascpat,
		double	rot,
		double	seglen
	)

This function is not implemented yet.

It is a work in progress. The intent is as follows:

Returns a nonzero value if the mouse movements match the specified pattern. The higher the value, the better the match. The pattern is a sequence of compass directions (ie, "E", "NE", etc) separated by spaces. If rot is nonzero, then the pattern is rotated counterclockwise by the specified amount before testing. Seglen is the minimum length a mouse movement needs to be in order to be considered significant.

Definition at line 240 of file pointerEventList.cxx.

◆ pop_front()

void PointerEventList::pop_front ( )

inline

Discards the first event on the list.

Definition at line 164 of file pointerEventList.I.

◆ total_turns()

double PointerEventList::total_turns ( double sec ) const

returns the total angular deviation that the trail has made in the specified time period.

A small number means that the trail is moving in a relatively straight line, a large number means that the trail is zig- zagging or spinning. The result is in degrees.

Definition at line 216 of file pointerEventList.cxx.

References ClockObject::get_frame_time, and ClockObject::get_global_clock().

The documentation for this class was generated from the following files:

panda/src/event/pointerEventList.h
panda/src/event/pointerEventList.cxx
panda/src/event/pointerEventList.I

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add_event() [1/3]

◆ add_event() [2/3]

◆ add_event() [3/3]

◆ clear()

◆ empty()

◆ encircles()

◆ get_direction()

◆ get_dx()

◆ get_dy()

◆ get_event()

◆ get_in_window()

◆ get_length()

◆ get_num_events()

◆ get_rotation()

◆ get_sequence()

◆ get_time()

◆ get_xpos()

◆ get_ypos()

◆ match_pattern()

◆ pop_front()

◆ total_turns()
