Stores the total set of VertexTransforms that the vertices in a particular GeomVertexData object might depend on. More...

#include "transformTable.h"

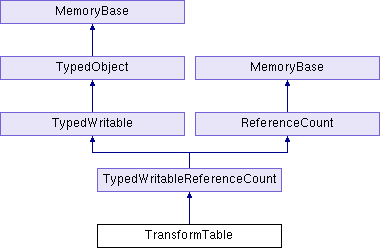

Inheritance diagram for TransformTable:

Public Member Functions
	TransformTable (const TransformTable &copy)

size_t	add_transform (const VertexTransform *transform)
	Adds a new transform to the table and returns the index number of the new transform. More...

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

virtual TypeHandle	force_init_type ()

UpdateSeq	get_modified (Thread *current_thread=Thread::get_current_thread()) const

size_t	get_num_transforms () const

const VertexTransform *	get_transform (size_t n) const

virtual TypeHandle	get_type () const

void	insert_transform (size_t n, const VertexTransform *transform)

bool	is_registered () const

void	operator= (const TransformTable &copy)

void	remove_transform (size_t n)

void	set_transform (size_t n, const VertexTransform *transform)

void	write (std::ostream &out) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static	CPT (TransformTable) register_table(const TransformTable *table)

static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type TransformTable. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_modified
	Returns a sequence number that's guaranteed to change at least when any VertexTransforms in the table change. More...

	get_num_transforms
	Returns the number of transforms in the table. More...

	get_transform
	Returns the nth transform in the table. More...

	insert_transform
	Inserts a new transform to the table at the given index position. More...

	is_registered
	Returns true if this table has been registered. More...

	remove_transform
	Removes the nth transform. More...

	set_transform
	Replaces the nth transform. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Friends
class	VertexTransform

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Stores the total set of VertexTransforms that the vertices in a particular GeomVertexData object might depend on.

This structure is used for a GeomVertexData set up to compute its dynamic vertices on the graphics card. See TransformBlendTable for one set up to compute its dynamic vertices on the CPU.

Definition at line 38 of file transformTable.h.

Member Function Documentation

◆ add_transform()

size_t TransformTable::add_transform ( const VertexTransform * transform )

Adds a new transform to the table and returns the index number of the new transform.

Only valid for unregistered tables.

This does not automatically uniquify the pointer; if the transform is already present in the table, it will be added twice.

Definition at line 103 of file transformTable.cxx.

◆ complete_pointers()

int TransformTable::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 183 of file transformTable.cxx.

◆ register_with_read_factory()

void TransformTable::register_with_read_factory ( )

static

Tells the BamReader how to create objects of type TransformTable.

Definition at line 156 of file transformTable.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

◆ write_datagram()

void TransformTable::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from TypedWritable.

Definition at line 165 of file transformTable.cxx.

References Datagram::add_uint16(), BamWriter::write_cdata(), TypedWritable::write_datagram(), and BamWriter::write_pointer().

Member Data Documentation

◆ get_modified

UpdateSeq TransformTable::get_modified

inline

Returns a sequence number that's guaranteed to change at least when any VertexTransforms in the table change.

(However, this is only true for a registered table. An unregistered table may or may not reflect an update here when a VertexTransform changes.)

Definition at line 61 of file transformTable.h.

◆ get_num_transforms

size_t TransformTable::get_num_transforms

inline

Returns the number of transforms in the table.

Definition at line 50 of file transformTable.h.

◆ get_transform

const VertexTransform * TransformTable::get_transform

inline

Returns the nth transform in the table.

Definition at line 50 of file transformTable.h.

◆ insert_transform

void TransformTable::insert_transform

Inserts a new transform to the table at the given index position.

If the index is beyond the end of the table, appends it to the end. Only valid for unregistered tables.

This does not automatically uniquify the pointer; if the transform is already present in the table, it will be added twice.

Definition at line 63 of file transformTable.h.

◆ is_registered

bool TransformTable::is_registered

inline

Returns true if this table has been registered.

Once it has been registered, the set of transforms in a TransformTable may not be further modified; but it must be registered before it can be assigned to a Geom.

Definition at line 60 of file transformTable.h.

◆ remove_transform

void TransformTable::remove_transform

Removes the nth transform.

Only valid for unregistered tables.

Definition at line 63 of file transformTable.h.

◆ set_transform

void TransformTable::set_transform

Replaces the nth transform.

Only valid for unregistered tables.

Definition at line 63 of file transformTable.h.

The documentation for this class was generated from the following files:

panda/src/gobj/transformTable.h
panda/src/gobj/transformTable.cxx
panda/src/gobj/transformTable.I
