This is a specialization on VertexTransform that allows the user to specify any arbitrary transform matrix he likes. More...
#include "userVertexTransform.h"

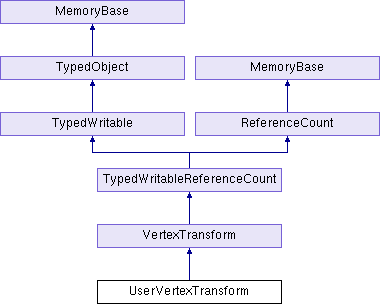

Inheritance diagram for UserVertexTransform:
Public Member Functions | |
| UserVertexTransform (const std::string &name) | |
| virtual TypeHandle | force_init_type () |
| virtual void | get_matrix (LMatrix4 &matrix) const |
| Returns the transform's matrix. More... | |
| const std::string & | get_name () const |
| Returns the name passed to the constructor. More... | |
| virtual TypeHandle | get_type () const |
| virtual void | output (std::ostream &out) const |
| void | set_matrix (const LMatrix4 &matrix) |
| Stores the indicated matrix. More... | |
| virtual void | write_datagram (BamWriter *manager, Datagram &dg) |
| Writes the contents of this object to the datagram for shipping out to a Bam file. More... | |
 Public Member Functions inherited from VertexTransform | |
| virtual void | accumulate_matrix (LMatrix4 &accum, PN_stdfloat weight) const |
| Adds the value of this transform's matrix, modified by the indicated weight, into the indicated accumulation matrix. More... | |
| UpdateSeq | get_modified (Thread *current_thread=Thread::get_current_thread()) const |
| virtual void | mult_matrix (LMatrix4 &result, const LMatrix4 &previous) const |
| Premultiplies this transform's matrix with the indicated previous matrix, so that the result is the net composition of the given transform with this transform. More... | |
| virtual void | write (std::ostream &out, int indent_level) const |
| Public Member Functions inherited from TypedWritableReferenceCount | |
| TypedWritableReferenceCount (const TypedWritableReferenceCount ©) | |
| virtual ReferenceCount * | as_reference_count () |
| Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More... | |
| void | operator= (const TypedWritableReferenceCount ©) |
| Public Member Functions inherited from TypedWritable | |
| TypedWritable (const TypedWritable ©) | |
| virtual int | complete_pointers (TypedWritable **p_list, BamReader *manager) |
| Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More... | |
| vector_uchar | encode_to_bam_stream () const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More... | |
| bool | encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More... | |
| virtual void | finalize (BamReader *manager) |
| Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More... | |
| UpdateSeq | get_bam_modified () const |
| Returns the current bam_modified counter. More... | |
| void | mark_bam_modified () |
| Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More... | |
| void | operator= (const TypedWritable ©) |
| virtual bool | require_fully_complete () const |
| Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More... | |
| virtual void | update_bam_nested (BamWriter *manager) |
| Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More... | |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static void | register_with_read_factory () |
| Tells the BamReader how to create objects of type UserVertexTransform. More... | |
| Static Public Member Functions inherited from VertexTransform | |
| static TypeHandle | get_class_type () |
| static UpdateSeq | get_global_modified (Thread *current_thread) |
| Returns the currently highest VertexTransform::get_modified() value in the world. More... | |
| static UpdateSeq | get_next_modified (Thread *current_thread) |
| Returns a monotonically increasing sequence. More... | |
| static void | init_type () |
| Static Public Member Functions inherited from TypedWritableReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data |
| Static Public Member Functions inherited from TypedWritable | |
| static bool | decode_raw_from_bam_stream (TypedWritable *&ptr, ReferenceCount *&ref_ptr, vector_uchar data, BamReader *reader=nullptr) |
| Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Additional Inherited Members | |
| Public Attributes inherited from VertexTransform | |
| get_modified | |
| Returns a sequence number that's guaranteed to change at least every time the value reported by get_matrix() changes. More... | |
| Public Attributes inherited from TypedWritableReferenceCount | |
| static BamReader * | reader = nullptr) |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
| Static Public Attributes inherited from TypedWritable | |
| static TypedWritable *const | Null = nullptr |
Detailed Description
This is a specialization on VertexTransform that allows the user to specify any arbitrary transform matrix he likes.
This is rarely used except for testing.
Definition at line 31 of file userVertexTransform.h.
Member Function Documentation
◆ get_matrix()
|
virtual |
Returns the transform's matrix.
Implements VertexTransform.
Definition at line 33 of file userVertexTransform.cxx.
◆ get_name()
|
inline |
Returns the name passed to the constructor.
Completely arbitrary.
Definition at line 18 of file userVertexTransform.I.
◆ register_with_read_factory()
|
static |
Tells the BamReader how to create objects of type UserVertexTransform.
Definition at line 58 of file userVertexTransform.cxx.
References BamReader::get_factory(), and Factory< Type >::register_factory().
◆ set_matrix()
|
inline |
Stores the indicated matrix.
Definition at line 26 of file userVertexTransform.I.
◆ write_datagram()
Writes the contents of this object to the datagram for shipping out to a Bam file.
Reimplemented from VertexTransform.
Definition at line 67 of file userVertexTransform.cxx.
References BamWriter::write_cdata(), and VertexTransform::write_datagram().
The documentation for this class was generated from the following files:
- panda/src/gobj/userVertexTransform.h
- panda/src/gobj/userVertexTransform.cxx
- panda/src/gobj/userVertexTransform.I
