This graphics pipe represents the interface for creating DirectX9 graphics windows. More...
#include "wdxGraphicsPipe9.h"

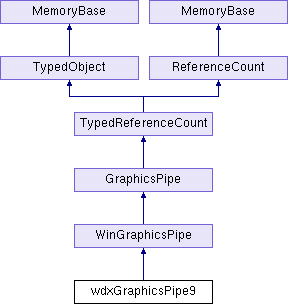

Inheritance diagram for wdxGraphicsPipe9:
Public Member Functions | |
| bool | find_best_depth_format (DXScreenData &Display, D3DDISPLAYMODE &Test_display_mode, D3DFORMAT *pBestFmt, bool bWantStencil, bool bForce16bpp, bool bVerboseMode=false) const |
| virtual TypeHandle | force_init_type () |
| virtual std::string | get_interface_name () const |
| Returns the name of the rendering interface associated with this GraphicsPipe. More... | |
| virtual TypeHandle | get_type () const |
| virtual | PT (GraphicsDevice) make_device(void *scrn) |
| void | search_for_valid_displaymode (DXScreenData &scrn, UINT RequestedX_Size, UINT RequestedY_Size, bool bWantZBuffer, bool bWantStencil, UINT *p_supported_screen_depths_mask, bool *pCouldntFindAnyValidZBuf, D3DFORMAT *pSuggestedPixFmt, bool bForce16bppZBuffer, bool bVerboseMode=false) |
| All ptr args are output parameters. More... | |
| bool | special_check_fullscreen_resolution (DXScreenData &scrn, UINT x_size, UINT y_size) |
| overrides of the general estimator for known working cases More... | |
 Public Member Functions inherited from WinGraphicsPipe | |
| virtual void | lookup_cpu_data () |
| Looks up the detailed CPU information and stores it in _display_information, if supported by the OS. More... | |
| Public Member Functions inherited from GraphicsPipe | |
| GraphicsDevice * | get_device () const |
| Returns a pointer to device object. More... | |
| int | get_display_height () const |
| DisplayInformation * | get_display_information () |
| int | get_display_width () const |
| virtual PreferredWindowThread | get_preferred_window_thread () const |
| Returns an indication of the thread in which this GraphicsPipe requires its window processing to be performed: typically either the app thread (e.g. More... | |
| int | get_supported_types () const |
| Returns the mask of bits that represents the kinds of GraphicsOutput objects this pipe might be able to successfully create. More... | |
| bool | is_valid () const |
| Returns false if this pipe is known to be invalid, meaning that an attempt to create a GraphicsWindow with the pipe will certainly fail. More... | |
| virtual | PT (GraphicsStateGuardian) make_callback_gsg(GraphicsEngine *engine) |
| bool | supports_type (int flags) const |
| A convenience function to ask if a particular type or types of GraphicsObjects are supported. More... | |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (GraphicsPipe) pipe_constructor() |
| Static Public Member Functions inherited from WinGraphicsPipe | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from GraphicsPipe | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Friends | |
| class | wdxGraphicsWindow9 |
Additional Inherited Members | |
| Public Types inherited from GraphicsPipe | |
| enum | BufferCreationFlags { BF_refuse_parasite = 0x0001, BF_require_parasite = 0x0002, BF_refuse_window = 0x0004, BF_require_window = 0x0008, BF_require_callback_window = 0x0010, BF_can_bind_color = 0x0040, BF_can_bind_every = 0x0080, BF_resizeable = 0x0100, BF_size_track_host = 0x0200, BF_rtt_cumulative = 0x0400, BF_fb_props_optional = 0x0800, BF_size_square = 0x1000, BF_size_power_2 = 0x2000, BF_can_bind_layered = 0x4000 } |
| enum | OutputTypes { OT_window = 0x0001, OT_fullscreen_window = 0x0002, OT_buffer = 0x0004, OT_texture_buffer = 0x0008 } |
| enum | PreferredWindowThread { PWT_app, PWT_draw } |
| Public Attributes inherited from GraphicsPipe | |
| get_display_height | |
| Returns the height of the entire display, if it is known. More... | |
| get_display_information | |
| Gets the pipe's DisplayInformation. More... | |
| get_display_width | |
| Returns the width of the entire display, if it is known. More... | |
| get_interface_name | |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
This graphics pipe represents the interface for creating DirectX9 graphics windows.
Definition at line 27 of file wdxGraphicsPipe9.h.
Member Function Documentation
◆ get_interface_name()
|
virtual |
Returns the name of the rendering interface associated with this GraphicsPipe.
This is used to present to the user to allow him/her to choose between several possible GraphicsPipes available on a particular platform, so the name should be meaningful and unique for a given platform.
Implements GraphicsPipe.
Definition at line 66 of file wdxGraphicsPipe9.cxx.
◆ search_for_valid_displaymode()
| void wdxGraphicsPipe9::search_for_valid_displaymode | ( | DXScreenData & | scrn, |
| UINT | RequestedX_Size, | ||
| UINT | RequestedY_Size, | ||
| bool | bWantZBuffer, | ||
| bool | bWantStencil, | ||
| UINT * | p_supported_screen_depths_mask, | ||
| bool * | pCouldntFindAnyValidZBuf, | ||
| D3DFORMAT * | pSuggestedPixFmt, | ||
| bool | bForce16bppZBuffer, | ||
| bool | bVerboseMode = false |
||
| ) |
All ptr args are output parameters.
If no valid mode found, returns *pSuggestedPixFmt = D3DFMT_UNKNOWN;
Definition at line 538 of file wdxGraphicsPipe9.cxx.
◆ special_check_fullscreen_resolution()
| bool wdxGraphicsPipe9::special_check_fullscreen_resolution | ( | DXScreenData & | scrn, |
| UINT | x_size, | ||
| UINT | y_size | ||
| ) |
overrides of the general estimator for known working cases
Definition at line 512 of file wdxGraphicsPipe9.cxx.
The documentation for this class was generated from the following files:
- panda/src/dxgsg9/wdxGraphicsPipe9.h
- panda/src/dxgsg9/wdxGraphicsPipe9.cxx
