This is the base class for AnimChannel and AnimBundle. More...

#include "animGroup.h"

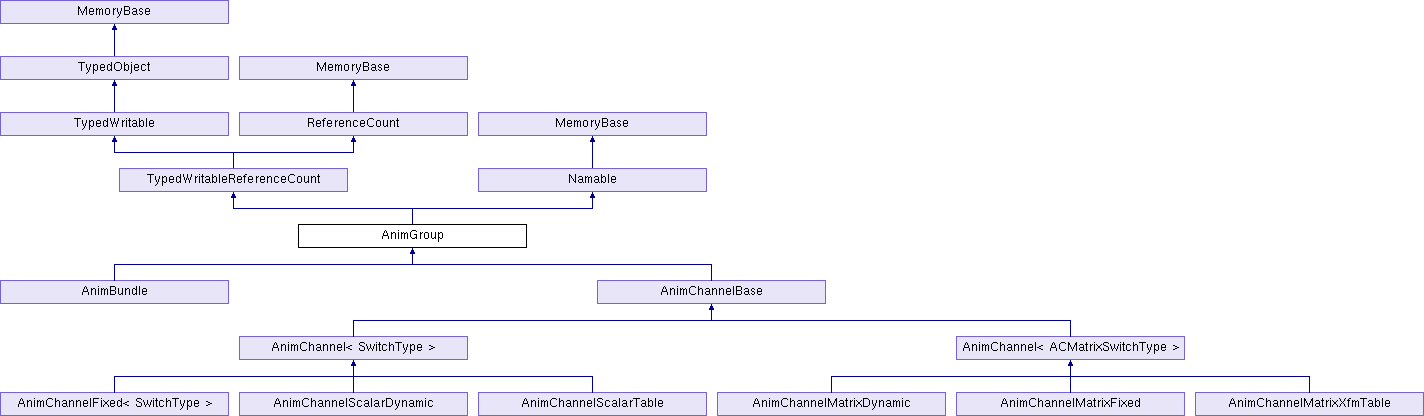

Inheritance diagram for AnimGroup:

Public Member Functions
	AnimGroup (AnimGroup *parent, const std::string &name)
	Creates the AnimGroup, and adds it to the indicated parent. More...

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Takes in a vector of pointes to TypedWritable objects that correspond to all the requests for pointers that this object made to BamReader. More...

AnimGroup *	find_child (const std::string &name) const
	Returns the first descendant found with the indicated name, or NULL if no such descendant exists. More...

virtual TypeHandle	force_init_type ()

AnimGroup *	get_child (int n) const

AnimGroup *	get_child_named (const std::string &name) const
	Returns the first child found with the indicated name, or NULL if no such child exists. More...

int	get_num_children () const

virtual TypeHandle	get_type () const

virtual TypeHandle	get_value_type () const
	Returns the TypeHandle associated with the ValueType we are concerned with. More...

virtual void	output (std::ostream &out) const
	Writes a one-line description of the group. More...

void	sort_descendants ()
	Sorts the children nodes at each level of the hierarchy into alphabetical order. More...

virtual void	write (std::ostream &out, int indent_level) const
	Writes a brief description of the group and all of its descendants. More...

virtual void	write_datagram (BamWriter *manager, Datagram &me)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static TypedWritable *	make_AnimGroup (const FactoryParams &params)
	Factory method to generate a AnimGroup object. More...

static void	register_with_read_factory ()
	Factory method to generate a AnimGroup object. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_child
	Returns the nth child of the group. More...

	get_num_children
	Returns the number of child nodes of the group. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is the base class for AnimChannel and AnimBundle.

It implements a hierarchy of AnimChannels. The root of the hierarchy must be an AnimBundle.

Definition at line 33 of file animGroup.h.

Constructor & Destructor Documentation

◆ AnimGroup()

AnimGroup::AnimGroup	(	AnimGroup *	parent,
		const std::string &	name
	)

explicit

Creates the AnimGroup, and adds it to the indicated parent.

The only way to delete it subsequently is to delete the entire hierarchy.

Definition at line 68 of file animGroup.cxx.

Member Function Documentation

◆ complete_pointers()

int AnimGroup::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Takes in a vector of pointes to TypedWritable objects that correspond to all the requests for pointers that this object made to BamReader.

Reimplemented from TypedWritable.

Reimplemented in AnimChannelMatrixDynamic, and AnimChannelScalarDynamic.

Definition at line 277 of file animGroup.cxx.

◆ find_child()

AnimGroup * AnimGroup::find_child ( const std::string & name ) const

Returns the first descendant found with the indicated name, or NULL if no such descendant exists.

This method searches the entire graph beginning at this AnimGroup; see also get_child_named().

Definition at line 129 of file animGroup.cxx.

References find_child().

Referenced by find_child().

◆ get_child_named()

AnimGroup * AnimGroup::get_child_named ( const std::string & name ) const

Returns the first child found with the indicated name, or NULL if no such child exists.

This method searches only the children of this particular AnimGroup; it does not recursively search the entire graph. See also find_child().

Definition at line 111 of file animGroup.cxx.

Referenced by PartGroup::check_hierarchy().

◆ get_value_type()

TypeHandle AnimGroup::get_value_type ( ) const

virtual

Returns the TypeHandle associated with the ValueType we are concerned with.

This is provided to allow a bit of run-time checking that joints and channels are matching properly in type.

Reimplemented in AnimChannel< SwitchType >, AnimChannel< ACMatrixSwitchType >, and AnimChannelBase.

Definition at line 176 of file animGroup.cxx.

Referenced by PartGroup::check_hierarchy().

◆ make_AnimGroup()

TypedWritable * AnimGroup::make_AnimGroup ( const FactoryParams & params )

static

Factory method to generate a AnimGroup object.

Definition at line 294 of file animGroup.cxx.

References parse_params().

Referenced by register_with_read_factory().

◆ output()

void AnimGroup::output ( std::ostream & out ) const

virtual

Writes a one-line description of the group.

Reimplemented in AnimBundle, AnimChannelFixed< SwitchType >, and AnimChannelMatrixFixed.

Definition at line 184 of file animGroup.cxx.

Referenced by AnimChannelFixed< SwitchType >::output(), and AnimChannelMatrixFixed::output().

◆ register_with_read_factory()

void AnimGroup::register_with_read_factory ( )

static

Factory method to generate a AnimGroup object.

Definition at line 308 of file animGroup.cxx.

References BamReader::get_factory(), make_AnimGroup(), and Factory< Type >::register_factory().

◆ sort_descendants()

void AnimGroup::sort_descendants ( )

Sorts the children nodes at each level of the hierarchy into alphabetical order.

This should be done after creating the hierarchy, to guarantee that the correct names will match up together when the AnimBundle is later bound to a PlayerRoot.

Definition at line 160 of file animGroup.cxx.

◆ write()

void AnimGroup::write	(	std::ostream &	out,
		int	indent_level
	)		const

virtual

Writes a brief description of the group and all of its descendants.

Reimplemented in AnimChannelMatrixXfmTable, and AnimChannelScalarTable.

Definition at line 192 of file animGroup.cxx.

References indent().

◆ write_datagram()

virtual void AnimGroup::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from TypedWritable.

Reimplemented in AnimChannelMatrixXfmTable, AnimChannelMatrixDynamic, AnimChannelScalarDynamic, AnimChannelScalarTable, AnimBundle, AnimChannelBase, and AnimChannelMatrixFixed.

Referenced by AnimChannelBase::write_datagram().

Member Data Documentation

◆ get_child

AnimGroup * AnimGroup::get_child

Returns the nth child of the group.

Definition at line 45 of file animGroup.h.

◆ get_num_children

int AnimGroup::get_num_children

Returns the number of child nodes of the group.

Definition at line 45 of file animGroup.h.

Referenced by PartGroup::check_hierarchy().

The documentation for this class was generated from the following files:

panda/src/chan/animGroup.h
panda/src/chan/animGroup.cxx
