Modern frame buffers can have 'aux' bitplanes, which are additional bitplanes above and beyond the standard depth and color. More...
#include "auxBitplaneAttrib.h"

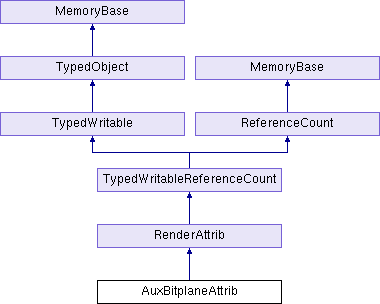

Inheritance diagram for AuxBitplaneAttrib:
Public Types | |
| enum | AuxBitplaneOutput { ABO_glow = 1, ABO_aux_normal = 2, ABO_aux_glow = 4 } |
 Public Types inherited from RenderAttrib | |
| enum | PandaCompareFunc { M_none =0, M_never, M_less, M_equal, M_less_equal, M_greater, M_not_equal, M_greater_equal, M_always } |
| enum | TexGenMode { M_off, M_eye_sphere_map, M_world_cube_map, M_eye_cube_map, M_world_normal, M_eye_normal, M_world_position, M_unused, M_eye_position, M_point_sprite, M_unused2, M_constant } |
Public Member Functions | |
| virtual TypeHandle | force_init_type () |
| int | get_outputs () const |
| virtual int | get_slot () const |
| virtual TypeHandle | get_type () const |
| virtual void | output (std::ostream &out) const |
| virtual void | write_datagram (BamWriter *manager, Datagram &dg) |
| Writes the contents of this object to the datagram for shipping out to a Bam file. More... | |
| Public Member Functions inherited from RenderAttrib | |
| RenderAttrib (const RenderAttrib ©)=delete | |
| virtual | ~RenderAttrib () |
| The destructor is responsible for removing the RenderAttrib from the global set if it is there. More... | |
| int | compare_to (const RenderAttrib &other) const |
| CPT (RenderAttrib) compose(const RenderAttrib *other) const | |
| CPT (RenderAttrib) invert_compose(const RenderAttrib *other) const | |
| CPT (RenderAttrib) get_unique() const | |
| virtual bool | cull_callback (CullTraverser *trav, const CullTraverserData &data) const |
| If has_cull_callback() returns true, this function will be called during the cull traversal to perform any additional operations that should be performed at cull time. More... | |
| virtual void | finalize (BamReader *manager) |
| Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More... | |
| size_t | get_hash () const |
| virtual bool | has_cull_callback () const |
| Should be overridden by derived classes to return true if cull_callback() has been defined. More... | |
| virtual bool | lower_attrib_can_override () const |
| Intended to be overridden by derived RenderAttrib types to specify how two consecutive RenderAttrib objects of the same type interact. More... | |
| RenderAttrib & | operator= (const RenderAttrib ©)=delete |
| virtual bool | unref () const final |
| This method overrides ReferenceCount::unref() to clear the pointer from the global object pool when its reference count goes to zero. More... | |
| virtual void | write (std::ostream &out, int indent_level) const |
| Public Member Functions inherited from TypedWritableReferenceCount | |
| TypedWritableReferenceCount (const TypedWritableReferenceCount ©) | |
| virtual ReferenceCount * | as_reference_count () |
| Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More... | |
| void | operator= (const TypedWritableReferenceCount ©) |
| Public Member Functions inherited from TypedWritable | |
| TypedWritable (const TypedWritable ©) | |
| virtual int | complete_pointers (TypedWritable **p_list, BamReader *manager) |
| Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More... | |
| vector_uchar | encode_to_bam_stream () const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More... | |
| bool | encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More... | |
| UpdateSeq | get_bam_modified () const |
| Returns the current bam_modified counter. More... | |
| void | mark_bam_modified () |
| Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More... | |
| void | operator= (const TypedWritable ©) |
| virtual bool | require_fully_complete () const |
| Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More... | |
| virtual void | update_bam_nested (BamWriter *manager) |
| Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More... | |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static | CPT (RenderAttrib) make() |
| static | CPT (RenderAttrib) make(int outputs) |
| static | CPT (RenderAttrib) make_default() |
| static int | get_class_slot () |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static void | register_with_read_factory () |
| Tells the BamReader how to create objects of type AuxBitplaneAttrib. More... | |
| Static Public Member Functions inherited from RenderAttrib | |
| static TypedWritable * | change_this (TypedWritable *old_ptr, BamReader *manager) |
| Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired. More... | |
| static int | garbage_collect () |
| Performs a garbage-collection cycle. More... | |
| static TypeHandle | get_class_type () |
| static int | get_num_attribs () |
| Returns the total number of unique RenderAttrib objects allocated in the world. More... | |
| static void | init_attribs () |
| Make sure the global _attribs map is allocated. More... | |
| static void | init_type () |
| static void | list_attribs (std::ostream &out) |
| Lists all of the RenderAttribs in the cache to the output stream, one per line. More... | |
| static int | register_slot (TypeHandle type_handle, int sort, RenderAttrib *default_attrib) |
| Adds the indicated TypeHandle to the registry, if it is not there already, and returns a unique slot number. More... | |
| static bool | validate_attribs () |
| Ensures that the cache is still stored in sorted order. More... | |
| Static Public Member Functions inherited from TypedWritableReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data |
| Static Public Member Functions inherited from TypedWritable | |
| static bool | decode_raw_from_bam_stream (TypedWritable *&ptr, ReferenceCount *&ref_ptr, vector_uchar data, BamReader *reader=nullptr) |
| Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Public Attributes | |
| get_class_slot | |
| get_outputs | |
| Returns the AuxBitplaneAttrib output bits. More... | |
| Public Attributes inherited from RenderAttrib | |
| get_slot | |
| Public Attributes inherited from TypedWritableReferenceCount | |
| static BamReader * | reader = nullptr) |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Additional Inherited Members | |
| Static Public Attributes inherited from TypedWritable | |
| static TypedWritable *const | Null = nullptr |
Detailed Description
Modern frame buffers can have 'aux' bitplanes, which are additional bitplanes above and beyond the standard depth and color.
This attrib controls what gets rendered into those additional bitplanes. It can also affect what goes into the alpha channel of the primary color buffer.
ABO_glow: copy the glow map into the alpha channel of the primary frame buffer. If there is no glow map, set it to zero. Caveat: it is not possible to write glow or depth values to the framebuffer alpha channel at the same time as using alpha blending or alpha testing. Any attempt to use transparency, blending, or alpha testing will cause this flag to be overridden.
ABO_aux_normal: put the camera-space normal into the into the R,G components of the first auxiliary bitplane.
ABO_aux_modelz: put the clip-space Z coordinate of the center of the model (after perspective divide) into the B channel of the first auxiliary bitplane.
ABO_aux_glow: put a copy of the glow map into the alpha channel of the first auxiliary bitplane. If there is no glow map, set it to zero.
AuxBitplaneAttrib is relevant only when shader generation is enabled. Otherwise, it has no effect.
Definition at line 49 of file auxBitplaneAttrib.h.
Member Function Documentation
◆ register_with_read_factory()
|
static |
Tells the BamReader how to create objects of type AuxBitplaneAttrib.
Definition at line 104 of file auxBitplaneAttrib.cxx.
References BamReader::get_factory(), and Factory< Type >::register_factory().
Referenced by init_libpgraph().
◆ write_datagram()
Writes the contents of this object to the datagram for shipping out to a Bam file.
Reimplemented from RenderAttrib.
Definition at line 113 of file auxBitplaneAttrib.cxx.
References Datagram::add_int32(), and RenderAttrib::write_datagram().
Member Data Documentation
◆ get_outputs
|
inline |
Returns the AuxBitplaneAttrib output bits.
Definition at line 67 of file auxBitplaneAttrib.h.
The documentation for this class was generated from the following files:
- panda/src/pgraph/auxBitplaneAttrib.h
- panda/src/pgraph/auxBitplaneAttrib.cxx
- panda/src/pgraph/auxBitplaneAttrib.I
