A constraint interval that will constrain the position and orientation of one node to the position and orientation of another. More...

#include "cConstrainPosHprInterval.h"

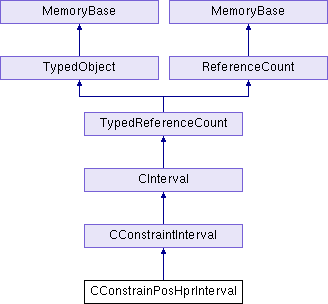

Inheritance diagram for CConstrainPosHprInterval:

Public Member Functions
	CConstrainPosHprInterval (const std::string &name, double duration, const NodePath &node, const NodePath &target, bool wrt, const LVecBase3 posOffset=LVector3::zero(), const LVecBase3 hprOffset=LVector3::zero())
	Constructs a constraint interval that will constrain the position and orientation of one node to the position and orientation of another. More...

virtual TypeHandle	force_init_type ()

const NodePath &	get_node () const
	Returns the "source" node. More...

const NodePath &	get_target () const
	Returns the "target" node. More...

virtual TypeHandle	get_type () const

virtual void	output (std::ostream &out) const

virtual void	priv_step (double t)
	Advances the time on the interval. More...

Public Member Functions inherited from CConstraintInterval
	CConstraintInterval (const std::string &name, double duration)

Public Member Functions inherited from CInterval
	CInterval (const std::string &name, double duration, bool open_ended)

bool	check_t_callback ()
	Returns true if the wants_t_callback() flag is true and the interval's t value has changed since the last call to check_t_callback(), false otherwise. More...

void	clear_to_initial ()
	Pauses the interval, if it is playing, and resets its state to its initial state, abandoning any state changes already in progress in the middle of the interval. More...

void	finish ()
	Stops the interval from playing and sets it to its final state. More...

bool	get_auto_finish () const

bool	get_auto_pause () const

const std::string &	get_done_event () const

double	get_duration () const

CIntervalManager *	get_manager () const

const std::string &	get_name () const

bool	get_open_ended () const

double	get_play_rate () const

State	get_state () const

double	get_t () const

bool	get_wants_t_callback () const
	Returns the state of the 'wants_t_callback' flag. More...

bool	is_playing () const

bool	is_stopped () const

void	loop (double start_t=0.0, double end_t=-1.0, double play_rate=1.0)
	Starts the interval playing by registering it with the current CIntervalManager. More...

void	mark_dirty ()
	Called by a derived class to indicate the interval has been changed internally and must be recomputed before its duration may be returned. More...

double	pause ()
	Stops the interval from playing but leaves it in its current state. More...

void	priv_do_event (double t, EventType event)
	Calls the appropriate event function indicated by the EventType. More...

virtual void	priv_finalize ()
	This is called to stop an interval, forcing it to whatever state it would be after it played all the way through. More...

virtual void	priv_initialize (double t)
	This replaces the first call to priv_step(), and indicates that the interval has just begun. More...

virtual void	priv_instant ()
	This is called in lieu of priv_initialize() . More...

virtual void	priv_interrupt ()
	This is called while the interval is playing to indicate that it is about to be interrupted; that is, priv_step() will not be called for a length of time. More...

virtual void	priv_reverse_finalize ()
	Called generally following a priv_reverse_initialize(), this indicates the interval should set itself to the initial state. More...

virtual void	priv_reverse_initialize (double t)
	Similar to priv_initialize(), but this is called when the interval is being played backwards; it indicates that the interval should start at the finishing state and undo any intervening intervals. More...

virtual void	priv_reverse_instant ()
	This is called in lieu of priv_reverse_initialize() . More...

void	resume ()
	Restarts the interval from its current point after a previous call to pause(). More...

void	resume (double start_t)
	Restarts the interval from the indicated point after a previous call to pause(). More...

void	resume_until (double end_t)
	Restarts the interval from the current point after a previous call to pause() (or a previous play-to-point-and-stop), to play until the indicated point and then stop. More...

void	set_auto_finish (bool auto_finish)

void	set_auto_pause (bool auto_pause)

void	set_done_event (const std::string &event)

void	set_manager (CIntervalManager *manager)

void	set_play_rate (double play_rate)

void	set_t (double t)

void	set_wants_t_callback (bool wants_t_callback)
	Changes the state of the 'wants_t_callback' flag. More...

void	setup_play (double start_time, double end_time, double play_rate, bool do_loop)
	Called to prepare the interval for automatic timed playback, e.g. More...

void	setup_resume ()
	Called to prepare the interval for restarting at the current point within the interval after an interruption. More...

void	setup_resume_until (double end_t)
	Called to prepare the interval for restarting from the current point after a previous call to pause() (or a previous play-to-point-and-stop), to play until the indicated point and then stop. More...

void	start (double start_t=0.0, double end_t=-1.0, double play_rate=1.0)
	Starts the interval playing by registering it with the current CIntervalManager. More...

bool	step_play ()
	Should be called once per frame to execute the automatic timed playback begun with setup_play(). More...

virtual void	write (std::ostream &out, int indent_level) const

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CConstraintInterval
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CInterval
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Additional Inherited Members
Public Types inherited from CInterval
enum	EventType { ET_initialize, ET_instant, ET_step, ET_finalize, ET_reverse_initialize, ET_reverse_instant, ET_reverse_finalize, ET_interrupt }

enum	State { S_initial, S_started, S_paused, S_final }

Public Attributes inherited from CConstraintInterval
bool	bogus_variable

Public Attributes inherited from CInterval
	get_auto_finish
	Returns the state of the 'auto_finish' flag. More...

	get_auto_pause
	Returns the state of the 'auto_pause' flag. More...

	get_done_event
	Returns the event that is generated whenever the interval reaches its final state, whether it is explicitly finished or whether it gets there on its own. More...

	get_duration
	Returns the duration of the interval in seconds. More...

	get_manager
	Returns the CIntervalManager object which will be responsible for playing this interval. More...

	get_name
	Returns the interval's name. More...

	get_open_ended
	Returns the state of the "open_ended" flag. More...

	get_play_rate
	Returns the play rate as set by the last call to start(), loop(), or set_play_rate(). More...

	get_state
	Indicates the state the interval believes it is in: whether it has been started, is currently in the middle, or has been finalized. More...

	get_t
	Returns the current time of the interval: the last value of t passed to priv_initialize(), priv_step(), or priv_finalize(). More...

	is_playing
	Returns true if the interval is currently playing, false otherwise. More...

	is_stopped
	Returns true if the interval is in either its initial or final states (but not in a running or paused state). More...

	set_auto_finish
	Changes the state of the 'auto_finish' flag. More...

	set_auto_pause
	Changes the state of the 'auto_pause' flag. More...

	set_done_event
	Sets the event that is generated whenever the interval reaches its final state, whether it is explicitly finished or whether it gets there on its own. More...

	set_manager
	Indicates the CIntervalManager object which will be responsible for playing this interval. More...

	set_play_rate
	Changes the play rate of the interval. More...

	set_t
	Explicitly sets the time within the interval. More...

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Detailed Description

A constraint interval that will constrain the position and orientation of one node to the position and orientation of another.

Definition at line 27 of file cConstrainPosHprInterval.h.

Constructor & Destructor Documentation

◆ CConstrainPosHprInterval()

CConstrainPosHprInterval::CConstrainPosHprInterval	(	const std::string &	name,
		double	duration,
		const NodePath &	node,
		const NodePath &	target,
		bool	wrt,
		const LVecBase3	posOffset = `LVector3::zero()`,
		const LVecBase3	hprOffset = `LVector3::zero()`
	)

explicit

Constructs a constraint interval that will constrain the position and orientation of one node to the position and orientation of another.

If wrt is true, the node's position and orientation will be transformed into the target node's parent's space before being copied. If wrt is false, the target node's local position and orientation will be copied unaltered.

Definition at line 30 of file cConstrainPosHprInterval.cxx.
