The base class for timeline components. More...

#include "cInterval.h"

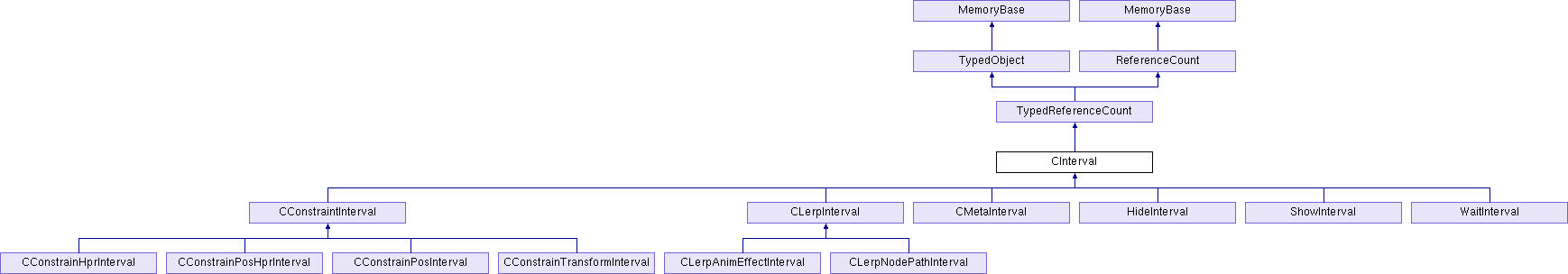

Inheritance diagram for CInterval:

Public Types
enum	EventType { ET_initialize, ET_instant, ET_step, ET_finalize, ET_reverse_initialize, ET_reverse_instant, ET_reverse_finalize, ET_interrupt }

enum	State { S_initial, S_started, S_paused, S_final }

Public Member Functions
	CInterval (const std::string &name, double duration, bool open_ended)

bool	check_t_callback ()
	Returns true if the wants_t_callback() flag is true and the interval's t value has changed since the last call to check_t_callback(), false otherwise. More...

void	clear_to_initial ()
	Pauses the interval, if it is playing, and resets its state to its initial state, abandoning any state changes already in progress in the middle of the interval. More...

void	finish ()
	Stops the interval from playing and sets it to its final state. More...

virtual TypeHandle	force_init_type ()

bool	get_auto_finish () const

bool	get_auto_pause () const

const std::string &	get_done_event () const

double	get_duration () const

CIntervalManager *	get_manager () const

const std::string &	get_name () const

bool	get_open_ended () const

double	get_play_rate () const

State	get_state () const

double	get_t () const

virtual TypeHandle	get_type () const

bool	get_wants_t_callback () const
	Returns the state of the 'wants_t_callback' flag. More...

bool	is_playing () const

bool	is_stopped () const

void	loop (double start_t=0.0, double end_t=-1.0, double play_rate=1.0)
	Starts the interval playing by registering it with the current CIntervalManager. More...

void	mark_dirty ()
	Called by a derived class to indicate the interval has been changed internally and must be recomputed before its duration may be returned. More...

virtual void	output (std::ostream &out) const

double	pause ()
	Stops the interval from playing but leaves it in its current state. More...

void	priv_do_event (double t, EventType event)
	Calls the appropriate event function indicated by the EventType. More...

virtual void	priv_finalize ()
	This is called to stop an interval, forcing it to whatever state it would be after it played all the way through. More...

virtual void	priv_initialize (double t)
	This replaces the first call to priv_step(), and indicates that the interval has just begun. More...

virtual void	priv_instant ()
	This is called in lieu of priv_initialize() . More...

virtual void	priv_interrupt ()
	This is called while the interval is playing to indicate that it is about to be interrupted; that is, priv_step() will not be called for a length of time. More...

virtual void	priv_reverse_finalize ()
	Called generally following a priv_reverse_initialize(), this indicates the interval should set itself to the initial state. More...

virtual void	priv_reverse_initialize (double t)
	Similar to priv_initialize(), but this is called when the interval is being played backwards; it indicates that the interval should start at the finishing state and undo any intervening intervals. More...

virtual void	priv_reverse_instant ()
	This is called in lieu of priv_reverse_initialize() . More...

virtual void	priv_step (double t)
	Advances the time on the interval. More...

void	resume ()
	Restarts the interval from its current point after a previous call to pause(). More...

void	resume (double start_t)
	Restarts the interval from the indicated point after a previous call to pause(). More...

void	resume_until (double end_t)
	Restarts the interval from the current point after a previous call to pause() (or a previous play-to-point-and-stop), to play until the indicated point and then stop. More...

void	set_auto_finish (bool auto_finish)

void	set_auto_pause (bool auto_pause)

void	set_done_event (const std::string &event)

void	set_manager (CIntervalManager *manager)

void	set_play_rate (double play_rate)

void	set_t (double t)

void	set_wants_t_callback (bool wants_t_callback)
	Changes the state of the 'wants_t_callback' flag. More...

void	setup_play (double start_time, double end_time, double play_rate, bool do_loop)
	Called to prepare the interval for automatic timed playback, e.g. More...

void	setup_resume ()
	Called to prepare the interval for restarting at the current point within the interval after an interruption. More...

void	setup_resume_until (double end_t)
	Called to prepare the interval for restarting from the current point after a previous call to pause() (or a previous play-to-point-and-stop), to play until the indicated point and then stop. More...

void	start (double start_t=0.0, double end_t=-1.0, double play_rate=1.0)
	Starts the interval playing by registering it with the current CIntervalManager. More...

bool	step_play ()
	Should be called once per frame to execute the automatic timed playback begun with setup_play(). More...

virtual void	write (std::ostream &out, int indent_level) const

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_auto_finish
	Returns the state of the 'auto_finish' flag. More...

	get_auto_pause
	Returns the state of the 'auto_pause' flag. More...

	get_done_event
	Returns the event that is generated whenever the interval reaches its final state, whether it is explicitly finished or whether it gets there on its own. More...

	get_duration
	Returns the duration of the interval in seconds. More...

	get_manager
	Returns the CIntervalManager object which will be responsible for playing this interval. More...

	get_name
	Returns the interval's name. More...

	get_open_ended
	Returns the state of the "open_ended" flag. More...

	get_play_rate
	Returns the play rate as set by the last call to start(), loop(), or set_play_rate(). More...

	get_state
	Indicates the state the interval believes it is in: whether it has been started, is currently in the middle, or has been finalized. More...

	get_t
	Returns the current time of the interval: the last value of t passed to priv_initialize(), priv_step(), or priv_finalize(). More...

	is_playing
	Returns true if the interval is currently playing, false otherwise. More...

	is_stopped
	Returns true if the interval is in either its initial or final states (but not in a running or paused state). More...

	set_auto_finish
	Changes the state of the 'auto_finish' flag. More...

	set_auto_pause
	Changes the state of the 'auto_pause' flag. More...

	set_done_event
	Sets the event that is generated whenever the interval reaches its final state, whether it is explicitly finished or whether it gets there on its own. More...

	set_manager
	Indicates the CIntervalManager object which will be responsible for playing this interval. More...

	set_play_rate
	Changes the play rate of the interval. More...

	set_t
	Explicitly sets the time within the interval. More...

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Friends
class	CMetaInterval

Detailed Description

The base class for timeline components.

A CInterval represents a single action, event, or collection of nested intervals that will be performed at some specific time or over a period of time.

This is essentially similar to the Python "Interval" class, but it is implemented in C++ (hence the name). Intervals that may be implemented in C++ will inherit from this class; Intervals that must be implemented in Python will inherit from the similar Python class.

Definition at line 35 of file cInterval.h.

Member Function Documentation

◆ check_t_callback()

bool CInterval::check_t_callback ( )

inline

Returns true if the wants_t_callback() flag is true and the interval's t value has changed since the last call to check_t_callback(), false otherwise.

Definition at line 178 of file cInterval.I.

References get_t, and get_wants_t_callback().

◆ clear_to_initial()

void CInterval::clear_to_initial ( )

Pauses the interval, if it is playing, and resets its state to its initial state, abandoning any state changes already in progress in the middle of the interval.

Calling this is like pausing the interval and discarding it, creating a new one in its place.

Definition at line 237 of file cInterval.cxx.

References pause().

◆ finish()

void CInterval::finish ( )

Stops the interval from playing and sets it to its final state.

Definition at line 211 of file cInterval.cxx.

References CIntervalManager::find_c_interval(), get_name, get_state, priv_finalize(), priv_instant(), and CIntervalManager::remove_c_interval().

◆ get_wants_t_callback()

bool CInterval::get_wants_t_callback ( ) const

inline

Returns the state of the 'wants_t_callback' flag.

See set_wants_t_callback().

Definition at line 145 of file cInterval.I.

Referenced by check_t_callback().

◆ loop()

void CInterval::loop	(	double	start_t = `0.0`,
		double	end_t = `-1.0`,
		double	play_rate = `1.0`
	)

Starts the interval playing by registering it with the current CIntervalManager.

The interval will play until it is interrupted with finish() or pause(), looping back to start_t when it reaches end_t.

If end_t is less than zero, it indicates the end of the interval.

Definition at line 154 of file cInterval.cxx.

References CIntervalManager::add_c_interval(), and setup_play().

◆ mark_dirty()

void CInterval::mark_dirty ( )

Called by a derived class to indicate the interval has been changed internally and must be recomputed before its duration may be returned.

Definition at line 654 of file cInterval.cxx.

Referenced by CMetaInterval::set_precision().

◆ pause()

double CInterval::pause ( )

Stops the interval from playing but leaves it in its current state.

It may later be resumed from this point by calling resume().

Definition at line 164 of file cInterval.cxx.

References CIntervalManager::find_c_interval(), get_name, get_state, get_t, priv_interrupt(), and CIntervalManager::remove_c_interval().

Referenced by clear_to_initial().

◆ priv_do_event()

void CInterval::priv_do_event	(	double	t,
		EventType	event
	)

Calls the appropriate event function indicated by the EventType.

Definition at line 283 of file cInterval.cxx.

References priv_finalize(), priv_initialize(), priv_instant(), priv_interrupt(), priv_reverse_finalize(), priv_reverse_initialize(), priv_reverse_instant(), and priv_step().

◆ priv_finalize()

void CInterval::priv_finalize ( )

virtual

This is called to stop an interval, forcing it to whatever state it would be after it played all the way through.

It's generally invoked by set_final_t().

Reimplemented in CMetaInterval.

Definition at line 369 of file cInterval.cxx.

References get_duration, and priv_step().

Referenced by finish(), priv_do_event(), and step_play().

◆ priv_initialize()

void CInterval::priv_initialize ( double t )

virtual

This replaces the first call to priv_step(), and indicates that the interval has just begun.

This may be overridden by derived classes that need to do some explicit initialization on the first call.

Reimplemented in CMetaInterval, and CLerpNodePathInterval.

Definition at line 329 of file cInterval.cxx.

References priv_step().

Referenced by priv_do_event(), and step_play().

◆ priv_instant()

void CInterval::priv_instant ( )

virtual

This is called in lieu of priv_initialize() .

. priv_step() .. priv_finalize(), when everything is to happen within one frame. The interval should initialize itself, then leave itself in the final state.

Reimplemented in CMetaInterval, CLerpNodePathInterval, HideInterval, and ShowInterval.

Definition at line 342 of file cInterval.cxx.

References get_duration, and priv_step().

Referenced by finish(), priv_do_event(), and step_play().

◆ priv_interrupt()

void CInterval::priv_interrupt ( )

virtual

This is called while the interval is playing to indicate that it is about to be interrupted; that is, priv_step() will not be called for a length of time.

But the interval should remain in its current state in anticipation of being eventually restarted when the calls to priv_step() eventually resume.

The purpose of this function is to allow self-running intervals like sound intervals to stop the actual sound playback during the pause.

Reimplemented in CMetaInterval.

Definition at line 427 of file cInterval.cxx.

Referenced by pause(), priv_do_event(), and step_play().

◆ priv_reverse_finalize()

void CInterval::priv_reverse_finalize ( )

virtual

Called generally following a priv_reverse_initialize(), this indicates the interval should set itself to the initial state.

Reimplemented in CMetaInterval.

Definition at line 410 of file cInterval.cxx.

References priv_step().

Referenced by priv_do_event(), and step_play().

◆ priv_reverse_initialize()

void CInterval::priv_reverse_initialize ( double t )

virtual

Similar to priv_initialize(), but this is called when the interval is being played backwards; it indicates that the interval should start at the finishing state and undo any intervening intervals.

Reimplemented in CMetaInterval, and CLerpNodePathInterval.

Definition at line 383 of file cInterval.cxx.

References priv_step().

Referenced by priv_do_event(), and step_play().

◆ priv_reverse_instant()

void CInterval::priv_reverse_instant ( )

virtual

This is called in lieu of priv_reverse_initialize() .

. priv_step() .. priv_reverse_finalize(), when everything is to happen within one frame. The interval should initialize itself, then leave itself in the initial state.

Reimplemented in CMetaInterval, CLerpNodePathInterval, HideInterval, and ShowInterval.

Definition at line 397 of file cInterval.cxx.

References priv_step().

Referenced by priv_do_event(), and step_play().

◆ priv_step()

void CInterval::priv_step ( double t )

virtual

Advances the time on the interval.

The time may either increase (the normal case) or decrease (e.g. if the interval is being played by a slider).

Reimplemented in CMetaInterval, CLerpNodePathInterval, CLerpAnimEffectInterval, CConstrainPosHprInterval, CConstrainHprInterval, CConstrainPosInterval, CConstrainTransformInterval, and WaitInterval.

Definition at line 357 of file cInterval.cxx.

Referenced by priv_do_event(), priv_finalize(), priv_initialize(), priv_instant(), priv_reverse_finalize(), priv_reverse_initialize(), priv_reverse_instant(), and step_play().

◆ resume() [1/2]

void CInterval::resume ( )

Restarts the interval from its current point after a previous call to pause().

Definition at line 180 of file cInterval.cxx.

References CIntervalManager::add_c_interval(), and setup_resume().

◆ resume() [2/2]

void CInterval::resume ( double start_t )

Restarts the interval from the indicated point after a previous call to pause().

Definition at line 190 of file cInterval.cxx.

References CIntervalManager::add_c_interval(), set_t, and setup_resume().

◆ resume_until()

void CInterval::resume_until ( double end_t )

Restarts the interval from the current point after a previous call to pause() (or a previous play-to-point-and-stop), to play until the indicated point and then stop.

Definition at line 202 of file cInterval.cxx.

References CIntervalManager::add_c_interval(), and setup_resume_until().

◆ set_wants_t_callback()

void CInterval::set_wants_t_callback ( bool wants_t_callback )

inline

Changes the state of the 'wants_t_callback' flag.

If this is true, the interval will be returned by CIntervalManager::get_event() each time the interval's time value has been changed, regardless of whether it has any external events.

Definition at line 135 of file cInterval.I.

◆ setup_play()

void CInterval::setup_play	(	double	start_t,
		double	end_t,
		double	play_rate,
		bool	do_loop
	)

Called to prepare the interval for automatic timed playback, e.g.

via a Python task. The interval will be played from start_t to end_t, at a time factor specified by play_rate. start_t must always be less than end_t (except for the exception for end_t == -1, below), but if play_rate is negative the interval will be played backwards.

Specify end_t of -1 to play the entire interval from start_t.

Call step_play() repeatedly to execute the interval.

Definition at line 463 of file cInterval.cxx.

Referenced by loop(), and start().

◆ setup_resume()

void CInterval::setup_resume ( )

Called to prepare the interval for restarting at the current point within the interval after an interruption.

Definition at line 499 of file cInterval.cxx.

References ClockObject::get_frame_time, ClockObject::get_global_clock(), and get_t.

Referenced by resume(), and setup_resume_until().

◆ setup_resume_until()

void CInterval::setup_resume_until ( double end_t )

Called to prepare the interval for restarting from the current point after a previous call to pause() (or a previous play-to-point-and-stop), to play until the indicated point and then stop.

Definition at line 516 of file cInterval.cxx.

References get_duration, and setup_resume().

Referenced by resume_until().

◆ start()

void CInterval::start	(	double	start_t = `0.0`,
		double	end_t = `-1.0`,
		double	play_rate = `1.0`
	)

Starts the interval playing by registering it with the current CIntervalManager.

The interval will play to the end and stop.

If end_t is less than zero, it indicates the end of the interval.

Definition at line 141 of file cInterval.cxx.

References CIntervalManager::add_c_interval(), and setup_play().

◆ step_play()

bool CInterval::step_play ( )

Should be called once per frame to execute the automatic timed playback begun with setup_play().

Returns true if the interval should continue, false if it is done and should stop.

Definition at line 538 of file cInterval.cxx.

References get_duration, ClockObject::get_frame_time, ClockObject::get_global_clock(), get_open_ended, is_stopped, priv_finalize(), priv_initialize(), priv_instant(), priv_interrupt(), priv_reverse_finalize(), priv_reverse_initialize(), priv_reverse_instant(), and priv_step().

Member Data Documentation

◆ get_auto_finish

bool CInterval::get_auto_finish

inline

Returns the state of the 'auto_finish' flag.

See set_auto_finish().

Definition at line 131 of file cInterval.h.

◆ get_auto_pause

bool CInterval::get_auto_pause

inline

Returns the state of the 'auto_pause' flag.

See set_auto_pause().

Definition at line 130 of file cInterval.h.

◆ get_done_event

const std::string & CInterval::get_done_event

inline

Returns the event that is generated whenever the interval reaches its final state, whether it is explicitly finished or whether it gets there on its own.

Definition at line 128 of file cInterval.h.

◆ get_duration

double CInterval::get_duration

inline

Returns the duration of the interval in seconds.

Definition at line 124 of file cInterval.h.

Referenced by CMetaInterval::priv_finalize(), priv_finalize(), CLerpNodePathInterval::priv_instant(), CMetaInterval::priv_instant(), priv_instant(), setup_resume_until(), and step_play().

◆ get_manager

CIntervalManager * CInterval::get_manager

inline

Returns the CIntervalManager object which will be responsible for playing this interval.

Note that this can only return a C++ object; if the particular CIntervalManager object has been extended in the scripting language, this will return the encapsulated C++ object, not the full extended object.

Definition at line 132 of file cInterval.h.

◆ get_name

const std::string & CInterval::get_name

inline

Returns the interval's name.

Definition at line 123 of file cInterval.h.

Referenced by CIntervalManager::add_c_interval(), finish(), and pause().

◆ get_open_ended

bool CInterval::get_open_ended

inline

Returns the state of the "open_ended" flag.

This is primarily intended for instantaneous intervals like FunctionIntervals; it indicates true if the interval has some lasting effect that should be applied even if the interval doesn't get started until after its finish time, or false if the interval is a transitive thing that doesn't need to be called late.

Definition at line 125 of file cInterval.h.

Referenced by step_play().

◆ get_play_rate

double CInterval::get_play_rate

Returns the play rate as set by the last call to start(), loop(), or set_play_rate().

Definition at line 133 of file cInterval.h.

◆ get_state

CInterval::State CInterval::get_state

inline

Indicates the state the interval believes it is in: whether it has been started, is currently in the middle, or has been finalized.

Definition at line 126 of file cInterval.h.

Referenced by finish(), and pause().

◆ get_t

double CInterval::get_t

inline

Returns the current time of the interval: the last value of t passed to priv_initialize(), priv_step(), or priv_finalize().

Definition at line 129 of file cInterval.h.

Referenced by check_t_callback(), pause(), and setup_resume().

◆ is_playing

bool CInterval::is_playing

Returns true if the interval is currently playing, false otherwise.

Definition at line 134 of file cInterval.h.

◆ is_stopped

bool CInterval::is_stopped

inline

Returns true if the interval is in either its initial or final states (but not in a running or paused state).

Definition at line 127 of file cInterval.h.

Referenced by step_play().

◆ set_auto_finish

void CInterval::set_auto_finish

inline

Changes the state of the 'auto_finish' flag.

If this is true, the interval may be arbitrarily finished when the system needs to reset due to some external event by calling CIntervalManager::interrupt(). If this is false (the default), the interval must always be explicitly finished or paused.

Definition at line 131 of file cInterval.h.

◆ set_auto_pause

void CInterval::set_auto_pause

inline

Changes the state of the 'auto_pause' flag.

If this is true, the interval may be arbitrarily interrupted when the system needs to reset due to some external event by calling CIntervalManager::interrupt(). If this is false (the default), the interval must always be explicitly finished or paused.

Definition at line 130 of file cInterval.h.

◆ set_done_event

void CInterval::set_done_event

inline

Sets the event that is generated whenever the interval reaches its final state, whether it is explicitly finished or whether it gets there on its own.

Definition at line 128 of file cInterval.h.

◆ set_manager

void CInterval::set_manager

inline

Indicates the CIntervalManager object which will be responsible for playing this interval.

This defaults to the global CIntervalManager; you should need to change this only if you have special requirements for playing this interval.

Definition at line 132 of file cInterval.h.

◆ set_play_rate

void CInterval::set_play_rate

Changes the play rate of the interval.

If the interval is already started, this changes its speed on-the-fly. Note that since play_rate is a parameter to start() and loop(), the next call to start() or loop() will reset this parameter.

Definition at line 133 of file cInterval.h.

◆ set_t

void CInterval::set_t

Explicitly sets the time within the interval.

Normally, you would use start() .. finish() to let the time play normally, but this may be used to set the time to some particular value.

Definition at line 129 of file cInterval.h.

Referenced by resume().

The documentation for this class was generated from the following files:

direct/src/interval/cInterval.h
direct/src/interval/cInterval.cxx
direct/src/interval/cInterval.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Detailed Description

Member Function Documentation

◆ check_t_callback()

◆ clear_to_initial()

◆ finish()

◆ get_wants_t_callback()

◆ loop()

◆ mark_dirty()

◆ pause()

◆ priv_do_event()

◆ priv_finalize()

◆ priv_initialize()

◆ priv_instant()

◆ priv_interrupt()

◆ priv_reverse_finalize()

◆ priv_reverse_initialize()

◆ priv_reverse_instant()

◆ priv_step()

◆ resume() [1/2]

◆ resume() [2/2]

◆ resume_until()

◆ set_wants_t_callback()

◆ setup_play()

◆ setup_resume()

◆ setup_resume_until()

◆ start()

◆ step_play()

Member Data Documentation

◆ get_auto_finish

◆ get_auto_pause

◆ get_done_event

◆ get_duration

◆ get_manager

◆ get_name

◆ get_open_ended

◆ get_play_rate

◆ get_state

◆ get_t

◆ is_playing

◆ is_stopped

◆ set_auto_finish

◆ set_auto_pause

◆ set_done_event

◆ set_manager

◆ set_play_rate

◆ set_t
