This class supervises the construction of an EggData structure from a DXF file. More...
#include "dxfToEggConverter.h"

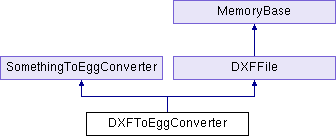

Inheritance diagram for DXFToEggConverter:
Public Member Functions | |
| DXFToEggConverter (const DXFToEggConverter ©) | |
| virtual bool | convert_file (const Filename &filename) |
| Handles the reading of the input file and converting it to egg. More... | |
| virtual std::string | get_extension () const |
| Returns the common extension of the file type this converter supports. More... | |
| virtual std::string | get_name () const |
| Returns the English name of the file type this converter supports. More... | |
| virtual SomethingToEggConverter * | make_copy () |
| Allocates and returns a new copy of the converter. More... | |
| virtual bool | supports_compressed () const |
| Returns true if this file type can transparently load compressed files (with a .pz extension), false otherwise. More... | |
 Public Member Functions inherited from SomethingToEggConverter | |
| SomethingToEggConverter (const SomethingToEggConverter ©) | |
| void | clear_egg_data () |
| Sets the EggData to NULL and makes the converter invalid. More... | |
| void | clear_end_frame () |
| Removes the value previously set by set_end_frame(). More... | |
| void | clear_error () |
| Resets the error flag to the no-error state. More... | |
| void | clear_frame_inc () |
| Removes the value previously set by set_frame_inc(). More... | |
| void | clear_input_frame_rate () |
| Removes the value previously set by set_input_frame_rate(). More... | |
| void | clear_neutral_frame () |
| Removes the value previously set by set_neutral_frame(). More... | |
| void | clear_output_frame_rate () |
| Removes the value previously set by set_output_frame_rate(). More... | |
| void | clear_start_frame () |
| Removes the value previously set by set_start_frame(). More... | |
| Filename | convert_model_path (const Filename &orig_filename) |
| Converts the indicated model filename to a relative or absolute or whatever filename, according to _path_replace. More... | |
| virtual std::string | get_additional_extensions () const |
| Returns a space-separated list of extension, in addition to the one returned by get_extension(), that are recognized by this converter. More... | |
| AnimationConvert | get_animation_convert () const |
| Returns how source animation will be converted into egg structures. More... | |
| const std::string & | get_character_name () const |
| Returns the name of the character generated. More... | |
| EggData * | get_egg_data () |
| Returns the EggData structure. More... | |
| double | get_end_frame () const |
| Returns the value set by a previous call to set_end_frame(). More... | |
| double | get_frame_inc () const |
| Returns the value set by a previous call to set_frame_inc(). More... | |
| double | get_input_frame_rate () const |
| Returns the value set by a previous call to set_input_frame_rate(). More... | |
| virtual DistanceUnit | get_input_units () |
| This may be called after convert_file() has been called and returned true, indicating a successful conversion. More... | |
| bool | get_merge_externals () const |
| Returns the current state of the merge_externals flag. More... | |
| double | get_neutral_frame () const |
| Returns the value set by a previous call to set_neutral_frame(). More... | |
| double | get_output_frame_rate () const |
| Returns the value set by a previous call to set_output_frame_rate(). More... | |
| PathReplace * | get_path_replace () |
| Returns a pointer to the PathReplace object associated with this converter. More... | |
| const PathReplace * | get_path_replace () const |
| Returns a pointer to the PathReplace object associated with this converter. More... | |
| double | get_start_frame () const |
| Returns the value set by a previous call to set_start_frame(). More... | |
| bool | had_error () const |
| Returns true if an error was detected during the conversion process (unless _allow_errors is true), false otherwise. More... | |
| bool | handle_external_reference (EggGroupNode *egg_parent, const Filename &ref_filename) |
| Handles an external reference in the source file. More... | |
| bool | has_end_frame () const |
| Returns true if the ending frame has been explicitly specified via set_end_frame(), or false if the ending frame should be implicit based on the source. More... | |
| bool | has_frame_inc () const |
| Returns true if the frame increment has been explicitly specified via set_frame_inc(), or false if the ending frame should be implicit based on the source. More... | |
| bool | has_input_frame_rate () const |
| Returns true if the frame rate has been explicitly specified via set_input_frame_rate(), or false otherwise. More... | |
| bool | has_neutral_frame () const |
| Returns true if the neutral frame has been explicitly specified via set_neutral_frame(), or false otherwise. More... | |
| bool | has_output_frame_rate () const |
| Returns true if the frame rate has been explicitly specified via set_output_frame_rate(), or false otherwise. More... | |
| bool | has_start_frame () const |
| Returns true if the starting frame has been explicitly specified via set_start_frame(), or false if the starting frame should be implicit based on the source. More... | |
| virtual | PT (PandaNode) convert_to_node(const LoaderOptions &options |
| void | set_animation_convert (AnimationConvert animation_convert) |
| Specifies how source animation will be converted into egg structures. More... | |
| void | set_character_name (const std::string &character_name) |
| Specifies the name of the character generated. More... | |
| void | set_egg_data (EggData *egg_data) |
| Sets the egg data that will be filled in when convert_file() is called. More... | |
| void | set_end_frame (double end_frame) |
| Specifies the ending frame of the animation to convert, in the units specified by set_input_frame_rate(). More... | |
| void | set_frame_inc (double frame_inc) |
| Specifies the increment between frames to extract. More... | |
| void | set_input_frame_rate (double input_frame_rate) |
| Specifies the number of frames per second that is represented by the "frame" unit in the animation package. More... | |
| void | set_merge_externals (bool merge_externals) |
| Sets the merge_externals flag. More... | |
| void | set_neutral_frame (double neutral_frame) |
| Specifies the frame of animation to represent the neutral pose of the model. More... | |
| void | set_output_frame_rate (double output_frame_rate) |
| Specifies the number of frames per second that the resulting animation should be played at. More... | |
| void | set_path_replace (PathReplace *path_replace) |
| Replaces the PathReplace object (which specifies how to mangle paths from the source to the destination egg file) with a new one. More... | |
| void | set_start_frame (double start_frame) |
| Specifies the starting frame of the animation to convert, in the units specified by set_input_frame_rate(). More... | |
| virtual bool | supports_convert_to_node (const LoaderOptions &options) const |
| Returns true if this converter can directly convert the model type to internal Panda memory structures, given the indicated options, or false otherwise. More... | |
| Public Member Functions inherited from DXFFile | |
| virtual void | begin_file () |
| A hook for user code, if desired. More... | |
| virtual void | begin_section () |
| A hook for user code, if desired. More... | |
| virtual void | done_vertex () |
| A hook for user code, if desired. More... | |
| virtual void | end_file () |
| A hook for user code, if desired. More... | |
| virtual void | end_section () |
| A hook for user code, if desired. More... | |
| const Color & | get_color () const |
| This is a convenience function to return the r,g,b color of the current entity (at the time of done_entity()). More... | |
| void | ocs_2_wcs () |
| Assuming the current entity is a planar-based entity, for instance, a 2-d polygon (as opposed to a 3-d polygon), this converts the coordinates from the funny planar coordinate system to the world coordinates. More... | |
| void | process (Filename filename) |
| Opens the indicated filename and reads it as a DXF file. More... | |
| void | process (std::istream *in, bool owns_in) |
| Reads the indicated stream as a DXF file. More... | |
Additional Inherited Members | |
| Public Types inherited from DXFFile | |
| enum | Entity { EN_unknown, EN_3dface, EN_point, EN_insert, EN_vertex, EN_polyline } |
| enum | PolylineFlags { PF_closed = 0x01, PF_curve_fit = 0x02, PF_spline_fit = 0x04, PF_3d = 0x08, PF_3d_mesh = 0x10, PF_closed_n = 0x20, PF_polyface = 0x40, PF_continuous_linetype = 0x80 } |
| enum | Section { SE_unknown, SE_header, SE_tables, SE_blocks, SE_entities, SE_objects } |
| enum | State { ST_top, ST_section, ST_entity, ST_verts, ST_error, ST_done } |
| Static Public Member Functions inherited from SomethingToEggConverter | |
| static double | get_default_frame_rate () |
| Returns the default frame rate if nothing is specified for input_frame_rate or output_frame_rate, and the animation package does not have an implicit frame rate. More... | |
| Static Public Member Functions inherited from DXFFile | |
| static int | find_color (double r, double g, double b) |
| Returns the index of the closest matching AutoCAD color to the indicated r, g, b. More... | |
| Public Attributes inherited from SomethingToEggConverter | |
| bool | _allow_errors |
| virtual const Filename & | filename |
| Public Attributes inherited from DXFFile | |
| int | _color_index |
| Entity | _entity |
| int | _flags |
| DXFLayer * | _layer |
| DXFLayerMap | _layers |
| LPoint3d | _p |
| LPoint3d | _q |
| LPoint3d | _r |
| LPoint3d | _s |
| Section | _section |
| DXFVertices | _verts |
| LVector3d | _z |
| Static Public Attributes inherited from DXFFile | |
| static Color | _colors [DXF_num_colors] |
Detailed Description
This class supervises the construction of an EggData structure from a DXF file.
Definition at line 26 of file dxfToEggConverter.h.
Member Function Documentation
◆ convert_file()
|
virtual |
Handles the reading of the input file and converting it to egg.
Returns true if successful, false otherwise.
Implements SomethingToEggConverter.
Definition at line 80 of file dxfToEggConverter.cxx.
References SomethingToEggConverter::clear_error().
◆ get_extension()
|
virtual |
Returns the common extension of the file type this converter supports.
Implements SomethingToEggConverter.
Definition at line 62 of file dxfToEggConverter.cxx.
◆ get_name()
|
virtual |
Returns the English name of the file type this converter supports.
Implements SomethingToEggConverter.
Definition at line 54 of file dxfToEggConverter.cxx.
◆ make_copy()
|
virtual |
Allocates and returns a new copy of the converter.
Implements SomethingToEggConverter.
Definition at line 45 of file dxfToEggConverter.cxx.
◆ supports_compressed()
|
virtual |
Returns true if this file type can transparently load compressed files (with a .pz extension), false otherwise.
Reimplemented from SomethingToEggConverter.
Definition at line 71 of file dxfToEggConverter.cxx.
The documentation for this class was generated from the following files:
- pandatool/src/dxfegg/dxfToEggConverter.h
- pandatool/src/dxfegg/dxfToEggConverter.cxx
