EggGroupNode Class Reference

A base class for nodes in the hierarchy that are not leaf nodes. More...

#include "eggGroupNode.h"

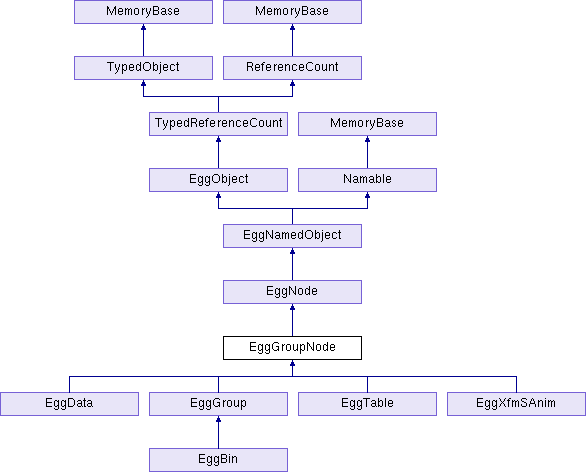

Inheritance diagram for EggGroupNode:
EggNode EggNamedObject EggObject Namable TypedReferenceCount MemoryBase TypedObject ReferenceCount MemoryBase MemoryBase EggData EggGroup EggTable EggXfmSAnim EggBin

Public Types

typedef Children::const_iterator const_iterator

typedef Children::const_pointer const_pointer

typedef Children::const_reference const_reference

typedef Children::const_reverse_iterator const_reverse_iterator

typedef Children::difference_type difference_type

typedef Children::const_iterator iterator

typedef Children::const_pointer pointer

typedef Children::const_reference reference

typedef Children::const_reverse_iterator reverse_iterator

typedef Children::size_type size_type

enum  TriangulateFlags {
  T_polygon = 0x001, T_convex = 0x002, T_composite = 0x004, T_recurse = 0x008,
  T_flat_shaded = 0x010
}


Public Member Functions

 EggGroupNode (const std::string &name="")

 EggGroupNode (const EggGroupNode &copy)

EggNodeadd_child (EggNode *node)
 Adds the indicated child to the group and returns it. More...

void apply_first_attribute (bool recurse)
 Sets the first vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded. More...

void apply_last_attribute (bool recurse)
 Sets the last vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded. More...

iterator begin () const

void clear ()

void clear_connected_shading ()
 Resets the connected_shading information on all primitives at this node and below, so that it may be accurately rederived by the next call to get_connected_shading(). More...

bool empty () const

iterator end () const

iterator erase (iterator position)

iterator erase (iterator first, iterator last)

EggNodefind_child (const std::string &name) const
 Returns the child of this node whose name is the indicated string, or NULL if there is no child of this node by that name. More...

void force_filenames (const Filename &directory)
 Similar to resolve_filenames, but each non-absolute filename encountered is arbitrarily taken to be in the indicated directory, whether or not the so- named filename exists. More...

virtual TypeHandle force_init_type ()

void get_connected_shading ()
 Queries the connected_shading information on all primitives at this node and below, to ensure that it has been completely filled in before we start mucking around with vertices. More...

EggNodeget_first_child ()
 Returns the first child in the group's list of children, or NULL if the list of children is empty. More...

EggNodeget_next_child ()
 Returns the next child in the group's list of children since the last call to get_first_child() or get_next_child(), or NULL if the last child has been returned. More...

virtual TypeHandle get_type () const

bool has_absolute_pathnames () const
 Returns true if any nodes at this level and below include a reference to a file via an absolute pathname, or false if all references are relative. More...

virtual bool has_normals () const
 Returns true if any of the primitives (e.g. More...

virtual bool has_primitives () const
 Returns true if there are any primitives (e.g. More...

iterator insert (iterator position, PT(EggNode) x)

virtual bool joint_has_primitives () const
 Returns true if there are any primitives (e.g. More...

void make_point_primitives ()
 Creates PointLight primitives to reference any otherwise unreferences vertices discovered in this group or below. More...

void mesh_triangles (int flags)
 Combine triangles together into triangle strips, at this group and below. More...

EggGroupNodeoperator= (const EggGroupNode &copy)

void post_apply_flat_attribute (bool recurse)
 Intended as a followup to apply_last_attribute(), this also sets an attribute on the first vertices of the primitive, if they don't already have an attribute set, just so they end up with *something*. More...

 PT (EggNode) remove_child(EggNode *node)

reverse_iterator rbegin () const

void rebuild_vertex_pools (EggVertexPools &vertex_pools, unsigned int max_vertices, bool recurse)
 Copies vertices used by the primitives at this group node (and below, if recurse is true) into one or more new vertex pools, and updates the primitives to reference these pools. More...

void recompute_polygon_normals (CoordinateSystem cs=CS_default)
 Recomputes all the polygon normals for polygon geometry at this group node and below so that they accurately reflect the vertex positions. More...

bool recompute_tangent_binormal (const GlobPattern &uv_name)
 This function recomputes the tangent and binormal for the named texture coordinate set for all vertices at this level and below. More...

bool recompute_tangent_binormal (const vector_string &names)
 This function recomputes the tangent and binormal for the named texture coordinate sets. More...

bool recompute_tangent_binormal_auto ()
 This function recomputes the tangent and binormal for any texture coordinate set that affects a normal map. More...

void recompute_vertex_normals (double threshold, CoordinateSystem cs=CS_default)
 Recomputes all the vertex normals for polygon geometry at this group node and below so that they accurately reflect the vertex positions. More...

int remove_invalid_primitives (bool recurse)
 Removes primitives at this level and below which appear to be degenerate; e.g. More...

int remove_unused_vertices (bool recurse)
 Removes all vertices from VertexPools within this group or below that are not referenced by at least one primitive. More...

int rename_nodes (vector_string strip_prefix, bool recurse)
 Rename by stripping out the prefix. More...

reverse_iterator rend () const

void replace (iterator position, PT(EggNode) x)
 Replaces the node at the indicated position with the indicated node. More...

void resolve_filenames (const DSearchPath &searchpath)
 Walks the tree and attempts to resolve any filenames encountered. More...

void reverse_vertex_ordering ()
 Reverses the vertex ordering of all polygons defined at this node and below. More...

size_type size () const

void steal_children (EggGroupNode &other)
 Moves all the children from the other node to this one. More...

void strip_normals ()
 Removes all normals from primitives, and the vertices they reference, at this node and below. More...

int triangulate_polygons (int flags)
 Replace all higher-order polygons at this point in the scene graph and below with triangles. More...

void unify_attributes (bool use_connected_shading, bool allow_per_primitive, bool recurse)
 Applies per-vertex normal and color to all vertices, if they are in fact per-vertex (and different for each vertex), or moves them to the primitive if they are all the same. More...

virtual void write (std::ostream &out, int indent_level) const
 Writes the group and all of its children to the indicated output stream in Egg format. More...

- Public Member Functions inherited from EggNode
 EggNode (const std::string &name="")

 EggNode (const EggNode &copy)

void apply_texmats ()
 Applies the texture matrices to the UV's of the vertices that reference them, and then removes the texture matrices from the textures themselves. More...

virtual EggRenderModedetermine_alpha_mode ()
 Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has an alpha_mode other than AM_unspecified. More...

virtual EggRenderModedetermine_bin ()
 Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a bin specified. More...

virtual bool determine_decal ()
 Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "decal" flag set. More...

virtual EggRenderModedetermine_depth_offset ()
 Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a depth_offset specified. More...

virtual EggRenderModedetermine_depth_test_mode ()
 Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a depth_test_mode other than DTM_unspecified. More...

virtual EggRenderModedetermine_depth_write_mode ()
 Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a depth_write_mode other than DWM_unspecified. More...

virtual EggRenderModedetermine_draw_order ()
 Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a draw_order specified. More...

virtual bool determine_indexed ()
 Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "indexed" scalar set. More...

virtual EggRenderModedetermine_visibility_mode ()
 Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a visibility_mode other than VM_unspecified. More...

void flatten_transforms ()
 Removes any transform and instance records from this node in the scene graph and below. More...

int get_depth () const

const LMatrix4d & get_node_frame () const
 Returns the coordinate frame of the node itself. More...

const LMatrix4d & get_node_frame_inv () const
 Returns the inverse of the matrix returned by get_node_frame(). More...

const LMatrix4d * get_node_frame_inv_ptr () const
 Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_frame_inv() matrix. More...

const LMatrix4d * get_node_frame_ptr () const
 Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_frame() matrix. More...

const LMatrix4d & get_node_to_vertex () const
 Returns the transformation matrix suitable for converting vertices in the coordinate space of the node to the appropriate coordinate space for storing in the egg file. More...

const LMatrix4d * get_node_to_vertex_ptr () const
 Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_to_vertex() matrix. More...

EggGroupNodeget_parent () const

const LMatrix4d & get_vertex_frame () const
 Returns the coordinate frame of the vertices referenced by primitives at or under this node. More...

const LMatrix4d & get_vertex_frame_inv () const
 Returns the inverse of the matrix returned by get_vertex_frame(). More...

const LMatrix4d * get_vertex_frame_inv_ptr () const
 Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_frame_inv() matrix. More...

const LMatrix4d * get_vertex_frame_ptr () const
 Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_frame() matrix. More...

const LMatrix4d & get_vertex_to_node () const
 Returns the transformation matrix suitable for converting the vertices as read from the egg file into the coordinate space of the node. More...

const LMatrix4d * get_vertex_to_node_ptr () const
 Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_to_node() matrix. More...

virtual bool is_anim_matrix () const
 Returns true if this node represents a table of animation transformation data, false otherwise. More...

virtual bool is_joint () const
 Returns true if this particular node represents a <Joint> entry or not. More...

bool is_local_coord () const
 Returns true if this node's vertices are not in the global coordinate space. More...

bool is_under_instance () const
 Returns true if there is an <Instance> node somewhere in the egg tree at or above this node, false otherwise. More...

bool is_under_transform () const
 Returns true if there is a <Transform> entry somewhere in the egg tree at or above this node, false otherwise. More...

EggNodeoperator= (const EggNode &copy)

bool parse_egg (const std::string &egg_syntax)
 Parses the egg syntax given in the indicate string as if it had been read from the egg file within this object's definition. More...

int rename_node (vector_string strip_prefix)
 Rename by stripping out the prefix. More...

void test_under_integrity () const

void transform (const LMatrix4d &mat)
 Applies the indicated transformation to the node and all of its descendants. More...

void transform_vertices_only (const LMatrix4d &mat)
 Applies the indicated transformation only to vertices that appear in global space within vertex pools at this node and below. More...

- Public Member Functions inherited from EggNamedObject
 EggNamedObject (const std::string &name="")

 EggNamedObject (const EggNamedObject &copy)

EggNamedObjectoperator= (const EggNamedObject &copy)

void output (std::ostream &out) const

void write_header (std::ostream &out, int indent_level, const char *egg_keyword) const
 Writes the first line of the egg object, e.g. More...

- Public Member Functions inherited from EggObject
 EggObject (const EggObject &copy)

virtual EggTransformas_transform ()
 Returns this object cross-cast to an EggTransform pointer, if it inherits from EggTransform, or NULL if it does not. More...

void clear_user_data ()
 Removes *all* user data pointers from the node. More...

void clear_user_data (TypeHandle type)
 Removes the user data pointer of the indicated type. More...

EggUserDataget_user_data () const
 Returns the user data pointer most recently stored on this object, or NULL if nothing was previously stored. More...

EggUserDataget_user_data (TypeHandle type) const
 Returns the user data pointer of the indicated type, if it exists, or NULL if it does not. More...

bool has_user_data () const
 Returns true if a generic user data pointer has recently been set and not yet cleared, false otherwise. More...

bool has_user_data (TypeHandle type) const
 Returns true if the user data pointer of the indicated type has been set, false otherwise. More...

EggObjectoperator= (const EggObject &copy)

void set_user_data (EggUserData *user_data)
 Sets the user data associated with this object. More...

- Public Member Functions inherited from TypedReferenceCount
 TypedReferenceCount (const TypedReferenceCount &copy)

void operator= (const TypedReferenceCount &copy)

- Public Member Functions inherited from TypedObject
 TypedObject (const TypedObject &copy)=default

TypedObjectas_typed_object ()
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObjectas_typed_object () const
 Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int get_best_parent_from_Set (const std::set< int > &) const

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly. More...

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type. More...

TypedObjectoperator= (const TypedObject &copy)=default

- Public Member Functions inherited from ReferenceCount
int get_ref_count () const

WeakReferenceListget_weak_list () const
 Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool has_weak_list () const
 Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void local_object ()
 This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void ref () const
 Explicitly increments the reference count. More...

bool ref_if_nonzero () const
 Atomically increases the reference count of this object if it is not zero. More...

bool test_ref_count_integrity () const
 Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool test_ref_count_nonzero () const
 Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool unref () const
 Explicitly decrements the reference count. More...

WeakReferenceListweak_ref ()
 Adds the indicated PointerToVoid as a weak reference to this object. More...

void weak_unref ()
 Removes the indicated PointerToVoid as a weak reference to this object. More...

- Public Member Functions inherited from Namable
 Namable (const std::string &initial_name="")

void clear_name ()
 Resets the Namable's name to empty. More...

const std::string & get_name () const

bool has_name () const
 Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void output (std::ostream &out) const
 Outputs the Namable. More...

void set_name (const std::string &name)


Static Public Member Functions

static TypeHandle get_class_type ()

static void init_type ()

static bool is_right (const LVector2d &v1, const LVector2d &v2)
 Returns true if the 2-d v1 is to the right of v2. More...

- Static Public Member Functions inherited from EggNode
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from EggNamedObject
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from EggObject
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from TypedObject
static TypeHandle get_class_type ()

static void init_type ()
 This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

- Static Public Member Functions inherited from ReferenceCount
static TypeHandle get_class_type ()

static void init_type ()

- Static Public Member Functions inherited from Namable
static TypeHandle get_class_type ()

static void init_type ()


Public Attributes

 get_children

- Public Attributes inherited from EggNode
 get_depth
 Returns the number of nodes above this node in the egg hierarchy. More...

 get_parent

- Public Attributes inherited from TypedObject
 get_type

- Public Attributes inherited from ReferenceCount
 get_ref_count
 Returns the current reference count. More...

- Public Attributes inherited from Namable
 get_name

 set_name


Friends

class EggMaterialCollection

class EggTextureCollection


Detailed Description

A base class for nodes in the hierarchy that are not leaf nodes.

(See also EggGroup, which is specifically the "<Group>" node in egg.)

An EggGroupNode is an STL-style container of pointers to EggNodes, like a vector. Functions push_back()/pop_back() and insert()/erase() are provided to manipulate the list. The list may also be operated on (read-only) via iterators and begin()/end().

Definition at line 46 of file eggGroupNode.h.

Member Function Documentation

◆ add_child()

EggNode * EggGroupNode::add_child ( EggNode node)

Adds the indicated child to the group and returns it.

If the child node is already a child of some other node, removes it first.

Definition at line 243 of file eggGroupNode.cxx.

References ReferenceCount::test_ref_count_integrity().

Referenced by EggXfmSAnim::add_component_data(), XFileAnimationSet::create_hierarchy(), EggXfmSAnim::EggXfmSAnim(), and XFileMesh::set_egg_parent().

◆ apply_first_attribute()

void EggGroupNode::apply_first_attribute ( bool  recurse)

Sets the first vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded.

This reflects the DirectX convention of storing flat-shaded properties on the first vertex, although it is not usually a convention in Egg.

This may create redundant vertices in the vertex pool, so it may be a good idea to follow this up with remove_unused_vertices().

Definition at line 1039 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ apply_last_attribute()

void EggGroupNode::apply_last_attribute ( bool  recurse)

Sets the last vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded.

This reflects the OpenGL convention of storing flat-shaded properties on the last vertex, although it is not usually a convention in Egg.

This may create redundant vertices in the vertex pool, so it may be a good idea to follow this up with remove_unused_vertices().

Definition at line 1013 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ clear_connected_shading()

void EggGroupNode::clear_connected_shading ( )

Resets the connected_shading information on all primitives at this node and below, so that it may be accurately rederived by the next call to get_connected_shading().

It may be a good idea to call remove_unused_vertices() as well, to establish the correct connectivity between common vertices.

Definition at line 917 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ find_child()

EggNode * EggGroupNode::find_child ( const std::string &  name) const

Returns the child of this node whose name is the indicated string, or NULL if there is no child of this node by that name.

Does not search recursively.

Definition at line 296 of file eggGroupNode.cxx.

Referenced by EggXfmSAnim::add_component_data().

◆ force_filenames()

void EggGroupNode::force_filenames ( const Filename directory)

Similar to resolve_filenames, but each non-absolute filename encountered is arbitrarily taken to be in the indicated directory, whether or not the so- named filename exists.

Definition at line 406 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ get_connected_shading()

void EggGroupNode::get_connected_shading ( )

Queries the connected_shading information on all primitives at this node and below, to ensure that it has been completely filled in before we start mucking around with vertices.

Definition at line 937 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ get_first_child()

EggNode * EggGroupNode::get_first_child ( )

Returns the first child in the group's list of children, or NULL if the list of children is empty.

Can be used with get_next_child() to return the complete list of children without using the iterator class; however, this is non-thread-safe, and so is not recommended except for languages other than C++ which cannot use the iterators.

Definition at line 215 of file eggGroupNode.cxx.

References get_next_child().

◆ get_next_child()

EggNode * EggGroupNode::get_next_child ( )

Returns the next child in the group's list of children since the last call to get_first_child() or get_next_child(), or NULL if the last child has been returned.

Can be used with get_first_child() to return the complete list of children without using the iterator class; however, this is non- thread-safe, and so is not recommended except for languages other than C++ which cannot use the iterators.

It is an error to call this without previously calling get_first_child().

Definition at line 231 of file eggGroupNode.cxx.

Referenced by get_first_child().

◆ has_absolute_pathnames()

bool EggGroupNode::has_absolute_pathnames ( ) const

Returns true if any nodes at this level and below include a reference to a file via an absolute pathname, or false if all references are relative.

Definition at line 313 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ has_normals()

bool EggGroupNode::has_normals ( ) const
virtual

Returns true if any of the primitives (e.g.

polygons) defined within this group or below have either face or vertex normals defined, false otherwise.

Reimplemented from EggNode.

Definition at line 1122 of file eggGroupNode.cxx.

◆ has_primitives()

bool EggGroupNode::has_primitives ( ) const
virtual

Returns true if there are any primitives (e.g.

polygons) defined within this group or below, false otherwise.

Reimplemented from EggNode.

Definition at line 1082 of file eggGroupNode.cxx.

◆ is_right()

bool EggGroupNode::is_right ( const LVector2d &  v1,
const LVector2d &  v2
)
inlinestatic

Returns true if the 2-d v1 is to the right of v2.

Definition at line 18 of file eggGroupNode.I.

◆ joint_has_primitives()

bool EggGroupNode::joint_has_primitives ( ) const
virtual

Returns true if there are any primitives (e.g.

polygons) defined within this group or below, but the search does not include nested joints.

Reimplemented from EggNode.

Definition at line 1100 of file eggGroupNode.cxx.

References EggNode::is_joint().

◆ make_point_primitives()

void EggGroupNode::make_point_primitives ( )

Creates PointLight primitives to reference any otherwise unreferences vertices discovered in this group or below.

Definition at line 771 of file eggGroupNode.cxx.

◆ mesh_triangles()

void EggGroupNode::mesh_triangles ( int  flags)

Combine triangles together into triangle strips, at this group and below.

Definition at line 751 of file eggGroupNode.cxx.

References EggMesher::mesh().

◆ post_apply_flat_attribute()

void EggGroupNode::post_apply_flat_attribute ( bool  recurse)

Intended as a followup to apply_last_attribute(), this also sets an attribute on the first vertices of the primitive, if they don't already have an attribute set, just so they end up with *something*.

Definition at line 1061 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ rebuild_vertex_pools()

void EggGroupNode::rebuild_vertex_pools ( EggVertexPools vertex_pools,
unsigned int  max_vertices,
bool  recurse
)

Copies vertices used by the primitives at this group node (and below, if recurse is true) into one or more new vertex pools, and updates the primitives to reference these pools.

It is up to the caller to parent the newly-created vertex pools somewhere appropriate in the egg hierarchy.

No more than max_vertices will be placed into any one vertex pool. This is the sole criteria for splitting vertex pools.

Definition at line 1145 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ recompute_polygon_normals()

void EggGroupNode::recompute_polygon_normals ( CoordinateSystem  cs = CS_default)

Recomputes all the polygon normals for polygon geometry at this group node and below so that they accurately reflect the vertex positions.

Normals are removed from the vertices and defined only on polygons, giving the geometry a faceted appearance.

This function also removes degenerate polygons that do not have enough vertices to define a normal. It does not affect normals for other kinds of primitives like Nurbs or Points.

This function does not remove or adjust vertices in the vertex pool; it only adds new vertices with the normals removed. Thus, it is a good idea to call remove_unused_vertices() after calling this.

Definition at line 541 of file eggGroupNode.cxx.

Referenced by EggData::recompute_polygon_normals().

◆ recompute_tangent_binormal() [1/2]

bool EggGroupNode::recompute_tangent_binormal ( const GlobPattern uv_name)

This function recomputes the tangent and binormal for the named texture coordinate set for all vertices at this level and below.

Use the empty string for the default texture coordinate set.

It is necessary for each vertex to already have a normal (or at least a polygon normal), as well as a texture coordinate in the named texture coordinate set, before calling this function. You might precede this with recompute_vertex_normals() to ensure that the normals exist.

Like recompute_vertex_normals(), this function does not remove or adjust vertices in the vertex pool; it only adds new vertices with the new tangents and binormals computed. Thus, it is a good idea to call remove_unused_vertices() after calling this.

Definition at line 639 of file eggGroupNode.cxx.

Referenced by recompute_tangent_binormal_auto().

◆ recompute_tangent_binormal() [2/2]

bool EggGroupNode::recompute_tangent_binormal ( const vector_string &  names)

This function recomputes the tangent and binormal for the named texture coordinate sets.

Returns true if anything was done.

Definition at line 662 of file eggGroupNode.cxx.

◆ recompute_tangent_binormal_auto()

bool EggGroupNode::recompute_tangent_binormal_auto ( )

This function recomputes the tangent and binormal for any texture coordinate set that affects a normal map.

Returns true if anything was done.

Definition at line 683 of file eggGroupNode.cxx.

References EggTextureCollection::find_used_textures(), EggTexture::get_uv_name, and recompute_tangent_binormal().

◆ recompute_vertex_normals()

void EggGroupNode::recompute_vertex_normals ( double  threshold,
CoordinateSystem  cs = CS_default
)

Recomputes all the vertex normals for polygon geometry at this group node and below so that they accurately reflect the vertex positions.

A shared edge between two polygons (even in different groups) is considered smooth if the angle between the two edges is less than threshold degrees.

This function also removes degenerate polygons that do not have enough vertices to define a normal. It does not affect normals for other kinds of primitives like Nurbs or Points.

This function does not remove or adjust vertices in the vertex pool; it only adds new vertices with the correct normals. Thus, it is a good idea to call remove_unused_vertices() after calling this.

Definition at line 475 of file eggGroupNode.cxx.

Referenced by EggData::recompute_vertex_normals().

◆ remove_invalid_primitives()

int EggGroupNode::remove_invalid_primitives ( bool  recurse)

Removes primitives at this level and below which appear to be degenerate; e.g.

polygons with fewer than 3 vertices, etc. Returns the number of primitives removed.

Definition at line 879 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ remove_unused_vertices()

int EggGroupNode::remove_unused_vertices ( bool  recurse)

Removes all vertices from VertexPools within this group or below that are not referenced by at least one primitive.

Also collapses together equivalent vertices, and renumbers all vertices after the operation so their indices are consecutive, beginning at zero. Returns the total number of vertices removed.

Note that this operates on the VertexPools within this group level, without respect to primitives that reference these vertices (unlike other functions like strip_normals()). It is therefore most useful to call this on the EggData root, rather than on a subgroup within the hierarchy, since a VertexPool may appear anywhere in the hierarchy.

Definition at line 841 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ rename_nodes()

int EggGroupNode::rename_nodes ( vector_string  strip_prefix,
bool  recurse
)

Rename by stripping out the prefix.

Definition at line 800 of file eggGroupNode.cxx.

◆ replace()

void EggGroupNode::replace ( iterator  position,
PT(EggNode x
)

Replaces the node at the indicated position with the indicated node.

It is an error to call this with an invalid position iterator (e.g. end()).

Definition at line 175 of file eggGroupNode.cxx.

◆ resolve_filenames()

void EggGroupNode::resolve_filenames ( const DSearchPath searchpath)

Walks the tree and attempts to resolve any filenames encountered.

This looks up filenames along the specified search path; it does not automatically search the model_path for missing files.

Definition at line 368 of file eggGroupNode.cxx.

◆ reverse_vertex_ordering()

void EggGroupNode::reverse_vertex_ordering ( )

Reverses the vertex ordering of all polygons defined at this node and below.

Does not change the surface normals, if any.

Definition at line 444 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ steal_children()

void EggGroupNode::steal_children ( EggGroupNode other)

Moves all the children from the other node to this one.

This is especially useful because the group node copy assignment operator does not copy children.

Definition at line 278 of file eggGroupNode.cxx.

Referenced by EggJointNodePointer::do_finish_reparent().

◆ strip_normals()

void EggGroupNode::strip_normals ( )

Removes all normals from primitives, and the vertices they reference, at this node and below.

This function does not remove or adjust vertices in the vertex pool; it only adds new vertices with the normal removed. Thus, it is a good idea to call remove_unused_vertices() after calling this.

Definition at line 592 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

Referenced by EggData::strip_normals().

◆ triangulate_polygons()

int EggGroupNode::triangulate_polygons ( int  flags)

Replace all higher-order polygons at this point in the scene graph and below with triangles.

Returns the total number of new triangles produced, less degenerate polygons removed.

If flags contains T_polygon and T_convex, both concave and convex polygons will be subdivided into triangles; with only T_polygon, only concave polygons will be subdivided, and convex polygons will be largely unchanged.

Definition at line 713 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ unify_attributes()

void EggGroupNode::unify_attributes ( bool  use_connected_shading,
bool  allow_per_primitive,
bool  recurse
)

Applies per-vertex normal and color to all vertices, if they are in fact per-vertex (and different for each vertex), or moves them to the primitive if they are all the same.

After this call, either the primitive will have normals or its vertices will, but not both. Ditto for colors.

If use_connected_shading is true, each polygon is considered in conjunction with all connected polygons; otherwise, each polygon is considered individually.

If allow_per_primitive is false, S_per_face or S_overall will treated like S_per_vertex: normals and colors will always be assigned to the vertices. In this case, there will never be per-primitive colors or normals after this call returns. On the other hand, if allow_per_primitive is true, then S_per_face means that normals and colors should be assigned to the primitives, and removed from the vertices, as described above.

This may create redundant vertices in the vertex pool, so it may be a good idea to follow this up with remove_unused_vertices().

Definition at line 974 of file eggGroupNode.cxx.

References TypedObject::is_of_type().

◆ write()

void EggGroupNode::write ( std::ostream &  out,
int  indent_level
) const
virtual

Writes the group and all of its children to the indicated output stream in Egg format.

Implements EggNode.

Reimplemented in EggGroup, EggXfmSAnim, and EggTable.

Definition at line 84 of file eggGroupNode.cxx.


The documentation for this class was generated from the following files:
