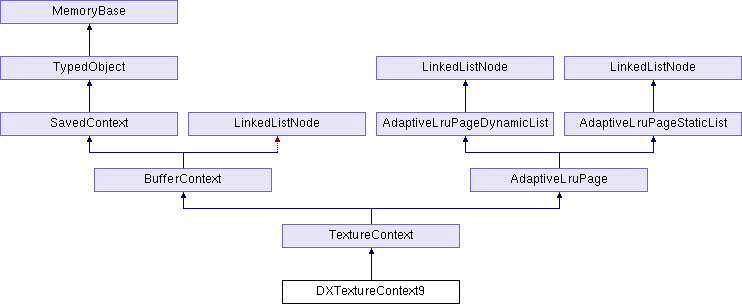

Inheritance diagram for DXTextureContext9:

Public Member Functions
	DXTextureContext9 (PreparedGraphicsObjects pgo, Texture tex, int view)

bool	create_simple_texture (DXScreenData &scrn)

bool	create_texture (DXScreenData &scrn)
	Use panda texture's pixelbuffer to create a texture for the specified device. More...

void	delete_texture ()
	Release the surface used to store the texture. More...

virtual void	evict_lru ()
	Evicts the page from the LRU. More...

bool	extract_texture_data (DXScreenData &scrn)
	This method will be called in the draw thread to download the texture memory's image into its ram_image value. More...

virtual TypeHandle	force_init_type ()

IDirect3DTexture9 *	get_d3d_2d_texture () const
	Returns the Direct3D object that represents the texture, in the case of a 1-d or 2-d texture. More...

IDirect3DCubeTexture9 *	get_d3d_cube_texture () const
	Returns the Direct3D object that represents the texture, in the case of a cube map texture. More...

IDirect3DBaseTexture9 *	get_d3d_texture () const
	Returns the Direct3D object that represents the texture, whatever kind of texture it is. More...

IDirect3DVolumeTexture9 *	get_d3d_volume_texture () const
	Returns the Direct3D object that represents the texture, in the case of a 3-d texture. More...

virtual TypeHandle	get_type () const

bool	has_mipmaps () const
	Returns true if the texture was created with mipmaps, false otherwise. More...

Public Member Functions inherited from TextureContext
	TextureContext (PreparedGraphicsObjects pgo, Texture tex, int view)

UpdateSeq	get_image_modified () const
	Returns a sequence number which is guaranteed to change at least every time the texture image data (including mipmap levels) are modified. More...

virtual uint64_t	get_native_buffer_id () const
	Similar to get_native_id, but some implementations use a separate identifier for the buffer object associated with buffer textures. More...

virtual uint64_t	get_native_id () const
	Returns an implementation-defined handle or pointer that can be used to interface directly with the underlying API. More...

UpdateSeq	get_properties_modified () const
	Returns a sequence number which is guaranteed to change at least every time the texture properties (unrelated to the image) are modified. More...

UpdateSeq	get_simple_image_modified () const
	Returns a sequence number which is guaranteed to change at least every time the texture's "simple" image data is modified. More...

Texture *	get_texture () const
	Returns the pointer to the associated Texture object. More...

int	get_view () const
	Returns the specific view of a multiview texture this context represents. More...

void	mark_loaded ()
	Should be called after the texture has been loaded into graphics memory, this updates the internal flags for changed_size() and modified(). More...

void	mark_needs_reload ()
	Should be called to indicate the texture should be reloaded at the nearest opportunity. More...

void	mark_simple_loaded ()
	Should be called after the texture's "simple" image has been loaded into graphics memory. More...

void	mark_unloaded ()
	Should be called after the texture has been forced out of texture memory. More...

virtual void	output (std::ostream &out) const

void	update_data_size_bytes (size_t new_data_size_bytes)
	Should be called (usually by a derived class) when the on-card size of this object has changed. More...

bool	was_image_modified () const
	Returns true if the texture image has been modified since the last time mark_loaded() was called. More...

bool	was_modified () const
	Returns true if the texture properties or image have been modified since the last time mark_loaded() was called. More...

bool	was_properties_modified () const
	Returns true if the texture properties (unrelated to the image) have been modified since the last time mark_loaded() was called. More...

bool	was_simple_image_modified () const
	Returns true if the texture's "simple" image has been modified since the last time mark_simple_loaded() was called. More...

virtual void	write (std::ostream &out, int indent_level) const

Public Member Functions inherited from BufferContext
	BufferContext (BufferResidencyTracker residency, TypedWritableReferenceCount object)

bool	get_active () const

size_t	get_data_size_bytes () const

UpdateSeq	get_modified () const

BufferContext *	get_next () const
	This can be used along with BufferContextChain::get_first() to walk through the list of objects stored on a tracker. More...

TypedWritableReferenceCount *	get_object () const

bool	get_resident () const

void	set_active (bool flag)
	Changes the active flag associated with this object. More...

void	set_resident (bool flag)
	Changes the resident flag associated with this object. More...

void	update_data_size_bytes (size_t new_data_size_bytes)
	Should be called (usually by a derived class) when the on-card size of this object has changed. More...

void	update_modified (UpdateSeq new_modified)
	Should be called (usually by a derived class) when the modified counter for this object has changed. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from AdaptiveLruPage
	AdaptiveLruPage (size_t lru_size)

	AdaptiveLruPage (const AdaptiveLruPage &copy)

void	dequeue_lru ()
	Removes the page from its AdaptiveLru. More...

void	enqueue_lru (AdaptiveLru *lru)
	Adds the page to the LRU for the first time, or marks it recently-accessed if it has already been added. More...

AdaptiveLru *	get_lru () const
	Returns the LRU that manages this page, or NULL if it is not currently managed by any LRU. More...

size_t	get_lru_size () const
	Returns the size of this page as reported to the LRU, presumably in bytes. More...

unsigned int	get_num_frames () const
	Returns the number of frames since the page was first added to its LRU. More...

unsigned int	get_num_inactive_frames () const
	Returns the number of frames since the page was last accessed on its LRU. More...

void	mark_used_lru () const
	To be called when the page is used; this will move it to the tail of the AdaptiveLru queue it is already on. More...

void	mark_used_lru (AdaptiveLru *lru)
	To be called when the page is used; this will move it to the tail of the specified AdaptiveLru queue. More...

void	operator= (const AdaptiveLruPage &copy)

void	set_lru_size (size_t lru_size)
	Specifies the size of this page, presumably in bytes, although any unit is possible. More...

Static Public Member Functions
static HRESULT	d3d_surface_to_texture (RECT &source_rect, IDirect3DSurface9 d3d_surface, bool inverted, Texture result, int view, int z)
	copies source_rect in pD3DSurf to upper left of texture More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TextureContext
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from BufferContext
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from SavedContext
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Friends
class	wdxGraphicsBuffer9

Additional Inherited Members
Public Attributes inherited from BufferContext
	get_active
	Returns the active flag associated with this object. More...

	get_data_size_bytes
	Returns the number of bytes previously reported for the data object. More...

	get_modified
	Returns the UpdateSeq that was recorded the last time mark_loaded() was called. More...

	get_object
	Returns the associated object. More...

	get_resident
	Returns the resident flag associated with this object. More...

Public Attributes inherited from TypedObject
	get_type

Detailed Description

Definition at line 24 of file dxTextureContext9.h.

Member Function Documentation

◆ create_texture()

bool DXTextureContext9::create_texture ( DXScreenData & scrn )

Use panda texture's pixelbuffer to create a texture for the specified device.

This code gets the attributes of the texture from the bitmap, creates the texture, and then copies the bitmap into the texture. The return value is true if the texture is successfully created, false otherwise.

Definition at line 101 of file dxTextureContext9.cxx.

References TextureContext::get_texture().

Referenced by DXGraphicsStateGuardian9::upload_texture().

◆ d3d_surface_to_texture()

HRESULT DXTextureContext9::d3d_surface_to_texture	(	RECT &	source_rect,
		IDirect3DSurface9 *	d3d_surface,
		bool	inverted,
		Texture *	result,
		int	view,
		int	z
	)

static

copies source_rect in pD3DSurf to upper left of texture

Definition at line 1431 of file dxTextureContext9.cxx.

References Texture::get_num_components.

◆ delete_texture()

void DXTextureContext9::delete_texture ( )

Release the surface used to store the texture.

Definition at line 1173 of file dxTextureContext9.cxx.

Referenced by evict_lru(), and DXGraphicsStateGuardian9::upload_texture().

◆ evict_lru()

void DXTextureContext9::evict_lru ( )

virtual

Evicts the page from the LRU.

Called internally when the LRU determines that it is full. May also be called externally when necessary to explicitly evict the page.

It is legal for this method to either evict the page as requested, do nothing (in which case the eviction will be requested again at the next epoch), or requeue itself on the tail of the queue (in which case the eviction will be requested again much later).

Reimplemented from AdaptiveLruPage.

Definition at line 75 of file dxTextureContext9.cxx.

References delete_texture(), AdaptiveLruPage::dequeue_lru(), TextureContext::get_texture(), TextureContext::mark_unloaded(), AdaptiveLruPage::mark_used_lru(), and TextureContext::update_data_size_bytes().

◆ extract_texture_data()

bool DXTextureContext9::extract_texture_data ( DXScreenData & screen )

This method will be called in the draw thread to download the texture memory's image into its ram_image value.

It returns true on success, false otherwise.

Definition at line 1192 of file dxTextureContext9.cxx.

References TextureContext::get_texture(), and Texture::get_texture_type.

◆ get_d3d_2d_texture()

IDirect3DTexture9 * DXTextureContext9::get_d3d_2d_texture ( ) const

inline

Returns the Direct3D object that represents the texture, in the case of a 1-d or 2-d texture.

Definition at line 36 of file dxTextureContext9.I.

◆ get_d3d_cube_texture()

IDirect3DCubeTexture9 * DXTextureContext9::get_d3d_cube_texture ( ) const

inline

Returns the Direct3D object that represents the texture, in the case of a cube map texture.

Definition at line 54 of file dxTextureContext9.I.

◆ get_d3d_texture()

IDirect3DBaseTexture9 * DXTextureContext9::get_d3d_texture ( ) const

inline

Returns the Direct3D object that represents the texture, whatever kind of texture it is.

Definition at line 27 of file dxTextureContext9.I.

◆ get_d3d_volume_texture()

IDirect3DVolumeTexture9 * DXTextureContext9::get_d3d_volume_texture ( ) const

inline

Returns the Direct3D object that represents the texture, in the case of a 3-d texture.

Definition at line 45 of file dxTextureContext9.I.

◆ has_mipmaps()

bool DXTextureContext9::has_mipmaps ( ) const

inline

Returns true if the texture was created with mipmaps, false otherwise.

Definition at line 18 of file dxTextureContext9.I.

The documentation for this class was generated from the following files:

panda/src/dxgsg9/dxTextureContext9.h
panda/src/dxgsg9/dxTextureContext9.cxx
panda/src/dxgsg9/dxTextureContext9.I
