This class stores miscellaneous rendering properties that is associated with geometry, and which may be set on the geometry primitive level, on the group above it, or indirectly via a texture. More...

#include "eggRenderMode.h"

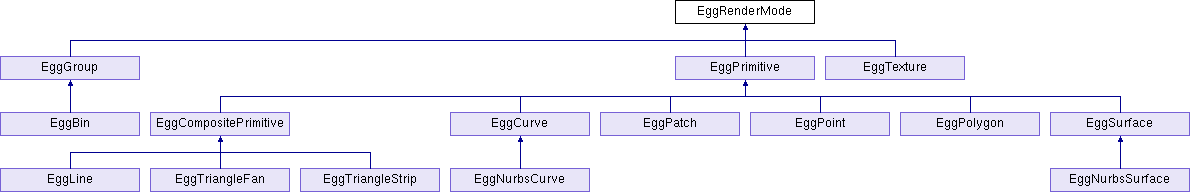

Inheritance diagram for EggRenderMode:

Public Types
enum	AlphaMode { AM_unspecified, AM_off, AM_on, AM_blend, AM_blend_no_occlude, AM_ms, AM_ms_mask, AM_binary, AM_dual, AM_premultiplied }

enum	DepthTestMode { DTM_unspecified, DTM_off, DTM_on }

enum	DepthWriteMode { DWM_unspecified, DWM_off, DWM_on }

enum	VisibilityMode { VM_unspecified, VM_hidden, VM_normal }

Public Member Functions
	EggRenderMode (const EggRenderMode &copy)

void	clear_bin ()
	Removes the bin name that was set for this particular object. More...

void	clear_depth_offset ()
	Removes the depth-offset flag from this particular object. More...

void	clear_draw_order ()
	Removes the draw-order flag from this particular object. More...

AlphaMode	get_alpha_mode () const
	Returns the alpha mode that was set, or AM_unspecified if nothing was set. More...

std::string	get_bin () const
	Returns the bin name that has been set for this particular object, if any. More...

int	get_depth_offset () const
	Returns the "depth-offset" flag as set for this particular object. More...

DepthTestMode	get_depth_test_mode () const
	Returns the depth_test mode that was set, or DTM_unspecified if nothing was set. More...

DepthWriteMode	get_depth_write_mode () const
	Returns the depth_write mode that was set, or DWM_unspecified if nothing was set. More...

int	get_draw_order () const
	Returns the "draw-order" flag as set for this particular object. More...

VisibilityMode	get_visibility_mode () const
	Returns the visibility mode that was set, or VM_unspecified if nothing was set. More...

bool	has_bin () const
	Returns true if a bin name has been set for this particular object. More...

bool	has_depth_offset () const
	Returns true if the depth-offset flag has been set for this particular object. More...

bool	has_draw_order () const
	Returns true if the draw-order flag has been set for this particular object. More...

bool	operator != (const EggRenderMode &other) const

bool	operator< (const EggRenderMode &other) const

EggRenderMode &	operator= (const EggRenderMode &copy)

bool	operator== (const EggRenderMode &other) const

void	set_alpha_mode (AlphaMode mode)
	Specifies precisely how the transparency for this geometry should be achieved, or if it should be used. More...

void	set_bin (const std::string &bin)
	Sets the "bin" string for this particular object. More...

void	set_depth_offset (int bias)
	Sets the "depth-offset" flag associated with this object. More...

void	set_depth_test_mode (DepthTestMode mode)
	Specifies whether this geometry should be tested against the depth buffer when it is drawn (assuming the rendering backend provides a depth buffer). More...

void	set_depth_write_mode (DepthWriteMode mode)
	Specifies whether writes should be made to the depth buffer (assuming the rendering backend provides a depth buffer) when rendering this geometry. More...

void	set_draw_order (int order)
	Sets the "draw-order" flag associated with this object. More...

void	set_visibility_mode (VisibilityMode mode)
	Specifies whether this geometry is to be considered normally visible, or hidden. More...

void	write (std::ostream &out, int indent_level) const
	Writes the attributes to the indicated output stream in Egg format. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static AlphaMode	string_alpha_mode (const std::string &string)
	Returns the AlphaMode value associated with the given string representation, or AM_unspecified if the string does not match any known AlphaMode value. More...

static DepthTestMode	string_depth_test_mode (const std::string &string)
	Returns the DepthTestMode value associated with the given string representation, or DTM_unspecified if the string does not match any known DepthTestMode value. More...

static DepthWriteMode	string_depth_write_mode (const std::string &string)
	Returns the DepthWriteMode value associated with the given string representation, or DWM_unspecified if the string does not match any known DepthWriteMode value. More...

static VisibilityMode	string_visibility_mode (const std::string &string)
	Returns the HiddenMode value associated with the given string representation, or VM_unspecified if the string does not match any known HiddenMode value. More...

Detailed Description

This class stores miscellaneous rendering properties that is associated with geometry, and which may be set on the geometry primitive level, on the group above it, or indirectly via a texture.

It's intended to be a base class for egg objects that can have these properties set.

This class cannot inherit from EggObject, because it causes problems at the EggPolygon level with multiple appearances of the EggObject base class. And making EggObject a virtual base class is just no fun.

Definition at line 31 of file eggRenderMode.h.

Member Function Documentation

◆ clear_bin()

void EggRenderMode::clear_bin ( )

inline

Removes the bin name that was set for this particular object.

See set_bin().

Definition at line 216 of file eggRenderMode.I.

◆ clear_depth_offset()

void EggRenderMode::clear_depth_offset ( )

inline

Removes the depth-offset flag from this particular object.

See set_depth_offset().

Definition at line 137 of file eggRenderMode.I.

◆ clear_draw_order()

void EggRenderMode::clear_draw_order ( )

inline

Removes the draw-order flag from this particular object.

See set_draw_order().

Definition at line 177 of file eggRenderMode.I.

◆ get_alpha_mode()

EggRenderMode::AlphaMode EggRenderMode::get_alpha_mode ( ) const

inline

Returns the alpha mode that was set, or AM_unspecified if nothing was set.

See set_alpha_mode().

Definition at line 98 of file eggRenderMode.I.

Referenced by EggPrimitive::determine_alpha_mode(), EggGroup::determine_alpha_mode(), EggRenderState::fill_state(), and write().

◆ get_bin()

std::string EggRenderMode::get_bin ( ) const

inline

Returns the bin name that has been set for this particular object, if any.

See set_bin().

Definition at line 198 of file eggRenderMode.I.

Referenced by EggRenderState::fill_state(), and write().

◆ get_depth_offset()

int EggRenderMode::get_depth_offset ( ) const

inline

Returns the "depth-offset" flag as set for this particular object.

See set_depth_offset().

Definition at line 119 of file eggRenderMode.I.

Referenced by EggRenderState::fill_state(), and write().

◆ get_depth_test_mode()

EggRenderMode::DepthTestMode EggRenderMode::get_depth_test_mode ( ) const

inline

Returns the depth_test mode that was set, or DTM_unspecified if nothing was set.

See set_depth_test_mode().

Definition at line 55 of file eggRenderMode.I.

Referenced by EggPrimitive::determine_depth_test_mode(), EggGroup::determine_depth_test_mode(), EggRenderState::fill_state(), and write().

◆ get_depth_write_mode()

EggRenderMode::DepthWriteMode EggRenderMode::get_depth_write_mode ( ) const

inline

Returns the depth_write mode that was set, or DWM_unspecified if nothing was set.

See set_depth_write_mode().

Definition at line 36 of file eggRenderMode.I.

Referenced by EggPrimitive::determine_depth_write_mode(), EggGroup::determine_depth_write_mode(), EggRenderState::fill_state(), and write().

◆ get_draw_order()

int EggRenderMode::get_draw_order ( ) const

inline

Returns the "draw-order" flag as set for this particular object.

See set_draw_order().

Definition at line 159 of file eggRenderMode.I.

Referenced by EggRenderState::fill_state(), and write().

◆ get_visibility_mode()

EggRenderMode::VisibilityMode EggRenderMode::get_visibility_mode ( ) const

inline

Returns the visibility mode that was set, or VM_unspecified if nothing was set.

See set_visibility_mode().

Definition at line 75 of file eggRenderMode.I.

Referenced by EggPrimitive::determine_visibility_mode(), EggGroup::determine_visibility_mode(), EggRenderState::fill_state(), and write().

◆ has_bin()

bool EggRenderMode::has_bin ( ) const

inline

Returns true if a bin name has been set for this particular object.

See set_bin().

Definition at line 207 of file eggRenderMode.I.

Referenced by EggPrimitive::determine_bin(), EggGroup::determine_bin(), and write().

◆ has_depth_offset()

bool EggRenderMode::has_depth_offset ( ) const

inline

Returns true if the depth-offset flag has been set for this particular object.

See set_depth_offset().

Definition at line 128 of file eggRenderMode.I.

Referenced by EggPrimitive::determine_depth_offset(), EggGroup::determine_depth_offset(), and write().

◆ has_draw_order()

bool EggRenderMode::has_draw_order ( ) const

inline

Returns true if the draw-order flag has been set for this particular object.

See set_draw_order().

Definition at line 168 of file eggRenderMode.I.

Referenced by EggPrimitive::determine_draw_order(), EggGroup::determine_draw_order(), and write().

◆ set_alpha_mode()

void EggRenderMode::set_alpha_mode ( AlphaMode mode )

inline

Specifies precisely how the transparency for this geometry should be achieved, or if it should be used.

The default, AM_unspecified, is to use transparency if the geometry has a color whose alpha value is non-1, or if it has a four-channel texture applied; otherwise, AM_on forces transparency on, and AM_off forces it off. The other flavors of transparency are specific ways to turn on transparency, which may or may not be supported by a particular rendering backend.

Definition at line 89 of file eggRenderMode.I.

Referenced by TextureReference::update_egg().

◆ set_bin()

void EggRenderMode::set_bin ( const std::string & bin )

inline

Sets the "bin" string for this particular object.

This names a particular bin in which the object should be rendered. The exact meaning of a bin is implementation defined, but generally a GeomBin matching each bin name must also be specifically added to the rendering engine (e.g. the CullTraverser) in use for this to work. See also set_draw_order().

Definition at line 189 of file eggRenderMode.I.

◆ set_depth_offset()

void EggRenderMode::set_depth_offset ( int order )

inline

Sets the "depth-offset" flag associated with this object.

This adds or subtracts an offset bias into the depth buffer. See also DepthOffsetAttrib and NodePath::set_depth_offset().

Definition at line 108 of file eggRenderMode.I.

◆ set_depth_test_mode()

void EggRenderMode::set_depth_test_mode ( DepthTestMode mode )

inline

Specifies whether this geometry should be tested against the depth buffer when it is drawn (assuming the rendering backend provides a depth buffer).

Note that this is different, and independent from, the depth_write mode.

Definition at line 46 of file eggRenderMode.I.

◆ set_depth_write_mode()

void EggRenderMode::set_depth_write_mode ( DepthWriteMode mode )

inline

Specifies whether writes should be made to the depth buffer (assuming the rendering backend provides a depth buffer) when rendering this geometry.

Definition at line 27 of file eggRenderMode.I.

◆ set_draw_order()

void EggRenderMode::set_draw_order ( int order )

inline

Sets the "draw-order" flag associated with this object.

This specifies a particular order in which objects of this type should be drawn, within the specified bin. If a bin is not explicitly specified, "fixed" is used. See also set_bin().

Definition at line 149 of file eggRenderMode.I.

◆ set_visibility_mode()

void EggRenderMode::set_visibility_mode ( VisibilityMode mode )

inline

Specifies whether this geometry is to be considered normally visible, or hidden.

If it is hidden, it is either not loaded into the scene graph at all, or loaded as a "stashed" node, according to the setting of egg- suppress-hidden.

Definition at line 66 of file eggRenderMode.I.

◆ string_alpha_mode()

EggRenderMode::AlphaMode EggRenderMode::string_alpha_mode ( const std::string & string )

static

Returns the AlphaMode value associated with the given string representation, or AM_unspecified if the string does not match any known AlphaMode value.

Definition at line 173 of file eggRenderMode.cxx.

◆ string_depth_test_mode()

EggRenderMode::DepthTestMode EggRenderMode::string_depth_test_mode ( const std::string & string )

static

Returns the DepthTestMode value associated with the given string representation, or DTM_unspecified if the string does not match any known DepthTestMode value.

Definition at line 219 of file eggRenderMode.cxx.

◆ string_depth_write_mode()

EggRenderMode::DepthWriteMode EggRenderMode::string_depth_write_mode ( const std::string & string )

static

Returns the DepthWriteMode value associated with the given string representation, or DWM_unspecified if the string does not match any known DepthWriteMode value.

Definition at line 203 of file eggRenderMode.cxx.

◆ string_visibility_mode()

EggRenderMode::VisibilityMode EggRenderMode::string_visibility_mode ( const std::string & string )

static

Returns the HiddenMode value associated with the given string representation, or VM_unspecified if the string does not match any known HiddenMode value.

Definition at line 235 of file eggRenderMode.cxx.

◆ write()

void EggRenderMode::write	(	std::ostream &	out,
		int	indent_level
	)		const

Writes the attributes to the indicated output stream in Egg format.

Definition at line 60 of file eggRenderMode.cxx.

References get_alpha_mode(), get_bin(), get_depth_offset(), get_depth_test_mode(), get_depth_write_mode(), get_draw_order(), get_visibility_mode(), has_bin(), has_depth_offset(), has_draw_order(), and indent().

Referenced by EggGroup::write_render_mode().

The documentation for this class was generated from the following files:

panda/src/egg/eggRenderMode.h
panda/src/egg/eggRenderMode.cxx
panda/src/egg/eggRenderMode.I

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Function Documentation

◆ clear_bin()

◆ clear_depth_offset()

◆ clear_draw_order()

◆ get_alpha_mode()

◆ get_bin()

◆ get_depth_offset()

◆ get_depth_test_mode()

◆ get_depth_write_mode()

◆ get_draw_order()

◆ get_visibility_mode()

◆ has_bin()

◆ has_depth_offset()

◆ has_draw_order()

◆ set_alpha_mode()

◆ set_bin()

◆ set_depth_offset()

◆ set_depth_test_mode()

◆ set_depth_write_mode()

◆ set_draw_order()

◆ set_visibility_mode()

◆ string_alpha_mode()

◆ string_depth_test_mode()

◆ string_depth_write_mode()

◆ string_visibility_mode()

◆ write()
