This data object is returned by GeomVertexArrayData::get_handle() or modify_handle(). More...

#include "geomVertexArrayData.h"

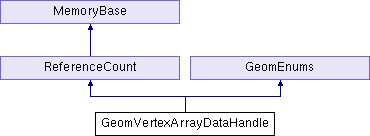

Inheritance diagram for GeomVertexArrayDataHandle:

Public Member Functions
	GeomVertexArrayDataHandle (const GeomVertexArrayDataHandle &)=delete

	ALLOC_DELETED_CHAIN_DECL (GeomVertexArrayDataHandle)

void	clear_rows ()

void	copy_data_from (const GeomVertexArrayDataHandle *other)
	Copies the entire data array from the other object. More...

void	copy_data_from (const unsigned char *source, size_t size)
	Copies the entire data array from the buffer. More...

void	copy_subdata_from (size_t to_start, size_t to_size, const GeomVertexArrayDataHandle *other, size_t from_start, size_t from_size)
	Copies a portion of the data array from the other object into a portion of the data array of this object. More...

void	copy_subdata_from (size_t to_start, size_t to_size, const unsigned char *source, size_t from_start, size_t from_size)
	Copies a portion of the data array from the buffer into a portion of the data array of this object. More...

const GeomVertexArrayFormat *	get_array_format () const

Thread *	get_current_thread () const

vector_uchar	get_data () const
	Returns the entire raw data of the GeomVertexArrayData object, formatted as a string. More...

size_t	get_data_size_bytes () const

UpdateSeq	get_modified () const

int	get_num_rows () const

const GeomVertexArrayData *	get_object () const

GeomVertexArrayData *	get_object ()

const unsigned char *	get_read_pointer (bool force) const
	Returns a readable pointer to the beginning of the actual data stream, or NULL if the data is not currently resident. More...

vector_uchar	get_subdata (size_t start, size_t size) const
	Returns a subset of the raw data of the GeomVertexArrayData object, formatted as a string. More...

UsageHint	get_usage_hint () const

unsigned char *	get_write_pointer ()
	Returns a writable pointer to the beginning of the actual data stream. More...

void	mark_used () const
	Marks the array data recently-used. More...

GeomVertexArrayDataHandle &	operator= (const GeomVertexArrayDataHandle &)=delete

VertexBufferContext *	prepare_now (PreparedGraphicsObjects prepared_objects, GraphicsStateGuardianBase gsg) const
	Creates a context for the data on the particular GSG, if it does not already exist. More...

bool	request_resident () const
	Returns true if the vertex data is currently resident in memory. More...

bool	reserve_num_rows (int n)

void	set_data (const vector_uchar &data)
	Replaces the entire raw data array with the contents of the indicated string. More...

bool	set_num_rows (int n)

void	set_subdata (size_t start, size_t size, const vector_uchar &data)
	Replaces a portion of the data array from the indicated string. More...

bool	unclean_set_num_rows (int n)

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_array_format

	get_data_size_bytes

	get_modified

	get_object

	get_usage_hint

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Friends
class	Geom

class	GeomPrimitive

class	GeomVertexArrayData

class	GeomVertexData

class	GeomVertexDataPipelineReader

class	GeomVertexDataPipelineWriter

Additional Inherited Members
Public Types inherited from GeomEnums
enum	AnimationType { AT_none, AT_panda, AT_hardware }

enum	Contents { C_other, C_point, C_clip_point, C_vector, C_texcoord, C_color, C_index, C_morph_delta, C_matrix, C_normal }

enum	GeomRendering { GR_indexed_point = 0x00001, GR_indexed_other = 0x10000, GR_indexed_bits = 0x10001, GR_point = 0x00002, GR_point_uniform_size = 0x00004, GR_per_point_size = 0x00008, GR_point_perspective = 0x00010, GR_point_aspect_ratio = 0x00020, GR_point_scale = 0x00040, GR_point_rotate = 0x00080, GR_point_sprite = 0x00100, GR_point_sprite_tex_matrix = 0x00200, GR_point_bits = 0x003fe, GR_triangle_strip = 0x00400, GR_triangle_fan = 0x00800, GR_line_strip = 0x01000, GR_composite_bits = 0x01c00, GR_strip_cut_index = 0x20000, GR_flat_first_vertex = 0x02000, GR_flat_last_vertex = 0x04000, GR_shade_model_bits = 0x06000, GR_render_mode_wireframe = 0x40000, GR_render_mode_point = 0x80000, GR_adjacency = 0x100000 }

enum	NumericType { NT_uint8, NT_uint16, NT_uint32, NT_packed_dcba, NT_packed_dabc, NT_float32, NT_float64, NT_stdfloat, NT_int8, NT_int16, NT_int32, NT_packed_ufloat }

enum	PrimitiveType { PT_none, PT_polygons, PT_lines, PT_points, PT_patches }

enum	ShadeModel { SM_uniform, SM_smooth, SM_flat_first_vertex, SM_flat_last_vertex }

enum	UsageHint { UH_client, UH_stream, UH_dynamic, UH_static, UH_unspecified }

Detailed Description

This data object is returned by GeomVertexArrayData::get_handle() or modify_handle().

As long as it exists, the data is locked; when the last of these destructs, the data is unlocked.

Only one thread at a time may lock the data; other threads attempting to lock the data will block. A given thread may simultaneously lock the data multiple times.

This class serves in lieu of a pair of GeomVertexArrayDataPipelineReader and GeomVertexArrayDataPipelineWriter classes

Definition at line 250 of file geomVertexArrayData.h.

Member Function Documentation

◆ copy_data_from() [1/2]

void GeomVertexArrayDataHandle::copy_data_from ( const GeomVertexArrayDataHandle * other )

Copies the entire data array from the other object.

Definition at line 739 of file geomVertexArrayData.cxx.

◆ copy_data_from() [2/2]

void GeomVertexArrayDataHandle::copy_data_from	(	const unsigned char *	source,
		size_t	size
	)

Copies the entire data array from the buffer.

Definition at line 774 of file geomVertexArrayData.cxx.

◆ copy_subdata_from() [1/2]

void GeomVertexArrayDataHandle::copy_subdata_from	(	size_t	to_start,
		size_t	to_size,
		const GeomVertexArrayDataHandle *	other,
		size_t	from_start,
		size_t	from_size
	)

Copies a portion of the data array from the other object into a portion of the data array of this object.

If to_size != from_size, the size of this data array is adjusted accordingly.

Definition at line 755 of file geomVertexArrayData.cxx.

References get_read_pointer(), VertexDataBuffer::get_size(), and mark_used().

◆ copy_subdata_from() [2/2]

void GeomVertexArrayDataHandle::copy_subdata_from	(	size_t	to_start,
		size_t	to_size,
		const unsigned char *	source,
		size_t	from_start,
		size_t	from_size
	)

Copies a portion of the data array from the buffer into a portion of the data array of this object.

If to_size != from_size, the size of this data array is adjusted accordingly.

Definition at line 797 of file geomVertexArrayData.cxx.

◆ get_data()

vector_uchar GeomVertexArrayDataHandle::get_data ( ) const

inline

Returns the entire raw data of the GeomVertexArrayData object, formatted as a string.

This is primarily for the benefit of high-level languages such as Python.

Definition at line 524 of file geomVertexArrayData.I.

References mark_used().

◆ get_read_pointer()

const unsigned char * GeomVertexArrayDataHandle::get_read_pointer ( bool force ) const

inline

Returns a readable pointer to the beginning of the actual data stream, or NULL if the data is not currently resident.

If the data is not currently resident, this will implicitly request it to become resident soon.

If force is true, this method will never return NULL, but may block until the data is available.

Definition at line 420 of file geomVertexArrayData.I.

References mark_used().

Referenced by copy_subdata_from(), and request_resident().

◆ get_subdata()

vector_uchar GeomVertexArrayDataHandle::get_subdata	(	size_t	start,
		size_t	size
	)		const

inline

Returns a subset of the raw data of the GeomVertexArrayData object, formatted as a string.

This is primarily for the benefit of high-level languages such as Python.

Definition at line 536 of file geomVertexArrayData.I.

References mark_used().

◆ get_write_pointer()

unsigned char * GeomVertexArrayDataHandle::get_write_pointer ( )

Returns a writable pointer to the beginning of the actual data stream.

Definition at line 605 of file geomVertexArrayData.cxx.

◆ mark_used()

void GeomVertexArrayDataHandle::mark_used ( ) const

inline

Marks the array data recently-used.

Definition at line 548 of file geomVertexArrayData.I.

Referenced by copy_subdata_from(), get_data(), get_read_pointer(), and get_subdata().

◆ prepare_now()

VertexBufferContext * GeomVertexArrayDataHandle::prepare_now	(	PreparedGraphicsObjects *	prepared_objects,
		GraphicsStateGuardianBase *	gsg
	)		const

inline

Creates a context for the data on the particular GSG, if it does not already exist.

Returns the new (or old) VertexBufferContext. This assumes that the GraphicsStateGuardian is the currently active rendering context and that it is ready to accept new datas. If this is not necessarily the case, you should use prepare() instead.

Normally, this is not called directly except by the GraphicsStateGuardian; a data does not need to be explicitly prepared by the user before it may be rendered.

Definition at line 513 of file geomVertexArrayData.I.

◆ request_resident()

bool GeomVertexArrayDataHandle::request_resident ( ) const

inline

Returns true if the vertex data is currently resident in memory.

If this returns true, the next call to get_handle()->get_read_pointer() will probably not block. If this returns false, the vertex data will be brought back into memory shortly; try again later.

Definition at line 497 of file geomVertexArrayData.I.

References get_read_pointer().

◆ set_data()

void GeomVertexArrayDataHandle::set_data ( const vector_uchar & data )

Replaces the entire raw data array with the contents of the indicated string.

This is primarily for the benefit of high-level languages like Python.

Definition at line 848 of file geomVertexArrayData.cxx.

◆ set_subdata()

void GeomVertexArrayDataHandle::set_subdata	(	size_t	start,
		size_t	size,
		const vector_uchar &	data
	)

Replaces a portion of the data array from the indicated string.

If size != data.size(), the size of this data array is adjusted accordingly.

This is primarily for the benefit of high-level languages like Python.

Definition at line 870 of file geomVertexArrayData.cxx.

The documentation for this class was generated from the following files:

panda/src/gobj/geomVertexArrayData.h
panda/src/gobj/geomVertexArrayData.cxx
panda/src/gobj/geomVertexArrayData.I
