This is the data for one array of a GeomVertexData structure. More...

#include "geomVertexArrayData.h"

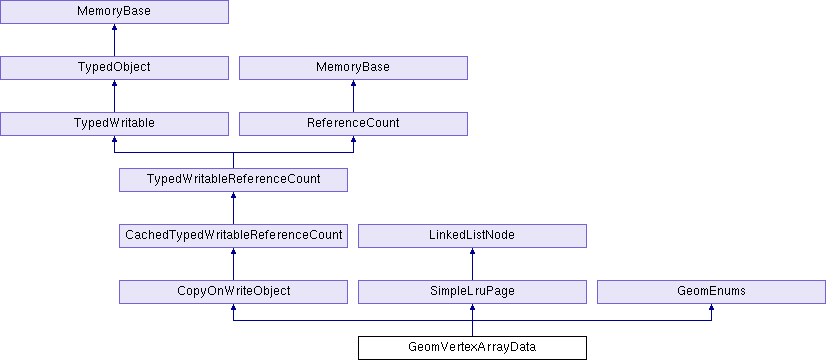

Inheritance diagram for GeomVertexArrayData:

Public Member Functions
	GeomVertexArrayData (const GeomVertexArrayFormat *array_format, UsageHint usage_hint)

	GeomVertexArrayData (const GeomVertexArrayData &copy)

void	clear_rows ()
	Removes all of the rows in the array. More...

int	compare_to (const GeomVertexArrayData &other) const
	Returns 0 if the two arrays are equivalent, even if they are not the same pointer. More...

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

	CPT (GeomVertexArrayDataHandle) get_handle(Thread *current_thread

virtual void	evict_lru ()
	Evicts the page from the LRU. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

virtual TypeHandle	force_init_type ()

const GeomVertexArrayFormat *	get_array_format () const

size_t	get_data_size_bytes () const

UpdateSeq	get_modified () const

int	get_num_rows () const
	Returns the number of rows stored in the array, based on the number of bytes and the stride. More...

virtual TypeHandle	get_type () const

UsageHint	get_usage_hint () const

bool	has_column (const InternalName *name) const
	Returns true if the array has the named column, false otherwise. More...

bool	is_prepared (PreparedGraphicsObjects *prepared_objects) const
	Returns true if the data has already been prepared or enqueued for preparation on the indicated GSG, false otherwise. More...

void	operator= (const GeomVertexArrayData &copy)
	The copy assignment operator is not pipeline-safe. More...

void	output (std::ostream &out) const

void	prepare (PreparedGraphicsObjects *prepared_objects)
	Indicates that the data should be enqueued to be prepared in the indicated prepared_objects at the beginning of the next frame. More...

VertexBufferContext *	prepare_now (PreparedGraphicsObjects prepared_objects, GraphicsStateGuardianBase gsg)
	Creates a context for the data on the particular GSG, if it does not already exist. More...

	PT (GeomVertexArrayDataHandle) modify_handle(Thread *current_thread

PTA_uchar	read_raw_data (BamReader *manager, DatagramIterator &source)
	Called by CData::fillin to read the raw data of the array from the indicated datagram. More...

bool	release (PreparedGraphicsObjects *prepared_objects)
	Frees the data context only on the indicated object, if it exists there. More...

int	release_all ()
	Frees the context allocated on all objects for which the data has been declared. More...

bool	request_resident (Thread *current_thread=Thread::get_current_thread()) const
	Returns true if the vertex data is currently resident in memory. More...

bool	reserve_num_rows (int n)
	This ensures that enough memory space for n rows is allocated, so that you may increase the number of rows to n without causing a new memory allocation. More...

bool	set_num_rows (int n)
	Sets the length of the array to n rows. More...

void	set_usage_hint (UsageHint usage_hint)

bool	unclean_set_num_rows (int n)
	This method behaves like set_num_rows(), except the new data is not initialized. More...

void	write (std::ostream &out, int indent_level=0) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from CopyOnWriteObject
	CopyOnWriteObject (const CopyOnWriteObject &copy)

void	operator= (const CopyOnWriteObject &copy)

Public Member Functions inherited from CachedTypedWritableReferenceCount
void	cache_ref () const
	Explicitly increments the cache reference count and the normal reference count simultaneously. More...

void	cache_ref_only () const
	Decrements the cache reference count without affecting the normal reference count. More...

bool	cache_unref () const
	Explicitly decrements the cache reference count and the normal reference count simultaneously. More...

int	get_cache_ref_count () const

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from SimpleLruPage
	SimpleLruPage (size_t lru_size)

	SimpleLruPage (const SimpleLruPage &copy)

void	dequeue_lru ()
	Removes the page from its SimpleLru. More...

void	enqueue_lru (SimpleLru *lru)
	Adds the page to the LRU for the first time, or marks it recently-accessed if it has already been added. More...

SimpleLru *	get_lru () const
	Returns the LRU that manages this page, or NULL if it is not currently managed by any LRU. More...

size_t	get_lru_size () const
	Returns the size of this page as reported to the LRU, presumably in bytes. More...

void	mark_used_lru () const
	To be called when the page is used; this will move it to the tail of the SimpleLru queue it is already on. More...

void	mark_used_lru (SimpleLru *lru)
	To be called when the page is used; this will move it to the tail of the specified SimpleLru queue. More...

void	operator= (const SimpleLruPage &copy)

void	set_lru_size (size_t lru_size)
	Specifies the size of this page, presumably in bytes, although any unit is possible. More...

Static Public Member Functions
static VertexDataBook &	get_book ()
	Returns the global VertexDataBook that will be used to allocate vertex data buffers. More...

static TypeHandle	get_class_type ()

static SimpleLru *	get_independent_lru ()
	Returns a pointer to the global LRU object that manages the GeomVertexArrayData's that have not (yet) been paged out. More...

static SimpleLru *	get_small_lru ()
	Returns a pointer to the global LRU object that manages the GeomVertexArrayData's that are deemed too small to be paged out. More...

static void	init_type ()

static void	lru_epoch ()
	Marks that an epoch has passed in each LRU. More...

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type GeomVertexArrayData. More...

Static Public Member Functions inherited from CopyOnWriteObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CachedTypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_array_format
	Returns the format object that describes this array. More...

	get_data_size_bytes
	Returns the number of bytes stored in the array. More...

	get_modified
	Returns a sequence number which is guaranteed to change at least every time the array vertex data is modified. More...

	get_usage_hint
	Returns the usage hint that describes to the rendering backend how often the vertex data will be modified and/or rendered. More...

	set_usage_hint
	Changes the UsageHint hint for this array. More...

Public Attributes inherited from CachedTypedWritableReferenceCount
	get_cache_ref_count
	Returns the current reference count. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Friends
class	GeomCacheManager

class	GeomPrimitivePipelineReader

class	GeomVertexArrayDataHandle

class	GeomVertexData

class	PreparedGraphicsObjects

Additional Inherited Members
Public Types inherited from GeomEnums
enum	AnimationType { AT_none, AT_panda, AT_hardware }

enum	Contents { C_other, C_point, C_clip_point, C_vector, C_texcoord, C_color, C_index, C_morph_delta, C_matrix, C_normal }

enum	GeomRendering { GR_indexed_point = 0x00001, GR_indexed_other = 0x10000, GR_indexed_bits = 0x10001, GR_point = 0x00002, GR_point_uniform_size = 0x00004, GR_per_point_size = 0x00008, GR_point_perspective = 0x00010, GR_point_aspect_ratio = 0x00020, GR_point_scale = 0x00040, GR_point_rotate = 0x00080, GR_point_sprite = 0x00100, GR_point_sprite_tex_matrix = 0x00200, GR_point_bits = 0x003fe, GR_triangle_strip = 0x00400, GR_triangle_fan = 0x00800, GR_line_strip = 0x01000, GR_composite_bits = 0x01c00, GR_strip_cut_index = 0x20000, GR_flat_first_vertex = 0x02000, GR_flat_last_vertex = 0x04000, GR_shade_model_bits = 0x06000, GR_render_mode_wireframe = 0x40000, GR_render_mode_point = 0x80000, GR_adjacency = 0x100000 }

enum	NumericType { NT_uint8, NT_uint16, NT_uint32, NT_packed_dcba, NT_packed_dabc, NT_float32, NT_float64, NT_stdfloat, NT_int8, NT_int16, NT_int32, NT_packed_ufloat }

enum	PrimitiveType { PT_none, PT_polygons, PT_lines, PT_points, PT_patches }

enum	ShadeModel { SM_uniform, SM_smooth, SM_flat_first_vertex, SM_flat_last_vertex }

enum	UsageHint { UH_client, UH_stream, UH_dynamic, UH_static, UH_unspecified }

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is the data for one array of a GeomVertexData structure.

Many GeomVertexData structures will only define one array, with all data elements interleaved (DirectX 8.0 and before insisted on this format); some will define multiple arrays.

DirectX calls this concept of one array a "stream". It also closely correlates with the concept of a vertex buffer.

This object is just a block of data. In general, you should not be directly messing with this object from application code. See GeomVertexData for the organizing structure, and see GeomVertexReader/Writer/Rewriter for high-level tools to manipulate the actual vertex data.

Definition at line 58 of file geomVertexArrayData.h.

Member Function Documentation

◆ clear_rows()

void GeomVertexArrayData::clear_rows ( )

inline

Removes all of the rows in the array.

Functionally equivalent to set_num_rows(0).

Definition at line 105 of file geomVertexArrayData.I.

◆ compare_to()

int GeomVertexArrayData::compare_to ( const GeomVertexArrayData & other ) const

Returns 0 if the two arrays are equivalent, even if they are not the same pointer.

Definition at line 145 of file geomVertexArrayData.cxx.

References get_usage_hint.

◆ complete_pointers()

int GeomVertexArrayData::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 432 of file geomVertexArrayData.cxx.

◆ evict_lru()

void GeomVertexArrayData::evict_lru ( )

virtual

Evicts the page from the LRU.

Called internally when the LRU determines that it is full. May also be called externally when necessary to explicitly evict the page.

It is legal for this method to either evict the page as requested, do nothing (in which case the eviction will be requested again at the next epoch), or requeue itself on the tail of the queue (in which case the eviction will be requested again much later).

Reimplemented from SimpleLruPage.

Definition at line 327 of file geomVertexArrayData.cxx.

References SimpleLruPage::dequeue_lru().

◆ finalize()

void GeomVertexArrayData::finalize ( BamReader * manager )

virtual

Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed.

Reimplemented from TypedWritable.

Definition at line 446 of file geomVertexArrayData.cxx.

References BamReader::change_pointer(), and BamReader::get_aux_data().

◆ get_book()

VertexDataBook & GeomVertexArrayData::get_book ( )

inlinestatic

Returns the global VertexDataBook that will be used to allocate vertex data buffers.

Definition at line 201 of file geomVertexArrayData.I.

◆ get_independent_lru()

SimpleLru * GeomVertexArrayData::get_independent_lru ( )

inlinestatic

Returns a pointer to the global LRU object that manages the GeomVertexArrayData's that have not (yet) been paged out.

Definition at line 183 of file geomVertexArrayData.I.

◆ get_num_rows()

int GeomVertexArrayData::get_num_rows ( ) const

inline

Returns the number of rows stored in the array, based on the number of bytes and the stride.

This should be the same for all arrays within a given GeomVertexData object.

Definition at line 47 of file geomVertexArrayData.I.

◆ get_small_lru()

SimpleLru * GeomVertexArrayData::get_small_lru ( )

inlinestatic

Returns a pointer to the global LRU object that manages the GeomVertexArrayData's that are deemed too small to be paged out.

Definition at line 192 of file geomVertexArrayData.I.

◆ has_column()

bool GeomVertexArrayData::has_column ( const InternalName * name ) const

inline

Returns true if the array has the named column, false otherwise.

This is really just a shortcut for asking the same thing from the format.

Definition at line 37 of file geomVertexArrayData.I.

◆ is_prepared()

bool GeomVertexArrayData::is_prepared ( PreparedGraphicsObjects * prepared_objects ) const

Returns true if the data has already been prepared or enqueued for preparation on the indicated GSG, false otherwise.

Definition at line 212 of file geomVertexArrayData.cxx.

References PreparedGraphicsObjects::is_vertex_buffer_queued().

◆ lru_epoch()

void GeomVertexArrayData::lru_epoch ( )

static

Marks that an epoch has passed in each LRU.

Asks the LRU's to consider whether they should perform evictions.

Definition at line 310 of file geomVertexArrayData.cxx.

References SimpleLru::begin_epoch(), and VertexDataPage::get_global_lru().

◆ operator=()

void GeomVertexArrayData::operator= ( const GeomVertexArrayData & copy )

The copy assignment operator is not pipeline-safe.

This will completely obliterate all stages of the pipeline, so don't do it for a GeomVertexArrayData that is actively being used for rendering.

Definition at line 114 of file geomVertexArrayData.cxx.

References SimpleLruPage::mark_used_lru().

◆ prepare()

void GeomVertexArrayData::prepare ( PreparedGraphicsObjects * prepared_objects )

Indicates that the data should be enqueued to be prepared in the indicated prepared_objects at the beginning of the next frame.

This will ensure the data is already loaded into the GSG if it is expected to be rendered soon.

Use this function instead of prepare_now() to preload datas from a user interface standpoint.

Definition at line 203 of file geomVertexArrayData.cxx.

References PreparedGraphicsObjects::enqueue_vertex_buffer().

◆ prepare_now()

VertexBufferContext * GeomVertexArrayData::prepare_now	(	PreparedGraphicsObjects *	prepared_objects,
		GraphicsStateGuardianBase *	gsg
	)

Creates a context for the data on the particular GSG, if it does not already exist.

Returns the new (or old) VertexBufferContext. This assumes that the GraphicsStateGuardian is the currently active rendering context and that it is ready to accept new datas. If this is not necessarily the case, you should use prepare() instead.

Normally, this is not called directly except by the GraphicsStateGuardian; a data does not need to be explicitly prepared by the user before it may be rendered.

Definition at line 236 of file geomVertexArrayData.cxx.

References PreparedGraphicsObjects::prepare_vertex_buffer_now().

◆ read_raw_data()

PTA_uchar GeomVertexArrayData::read_raw_data	(	BamReader *	manager,
		DatagramIterator &	source
	)

Called by CData::fillin to read the raw data of the array from the indicated datagram.

Definition at line 416 of file geomVertexArrayData.cxx.

References DatagramIterator::get_uint32().

◆ register_with_read_factory()

void GeomVertexArrayData::register_with_read_factory ( )

static

Tells the BamReader how to create objects of type GeomVertexArrayData.

Definition at line 395 of file geomVertexArrayData.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

◆ release()

bool GeomVertexArrayData::release ( PreparedGraphicsObjects * prepared_objects )

Frees the data context only on the indicated object, if it exists there.

Returns true if it was released, false if it had not been prepared.

Definition at line 259 of file geomVertexArrayData.cxx.

References PreparedGraphicsObjects::dequeue_vertex_buffer(), and PreparedGraphicsObjects::release_vertex_buffer().

◆ release_all()

int GeomVertexArrayData::release_all ( )

Frees the context allocated on all objects for which the data has been declared.

Returns the number of contexts which have been freed.

Definition at line 279 of file geomVertexArrayData.cxx.

References PreparedGraphicsObjects::release_vertex_buffer().

◆ request_resident()

bool GeomVertexArrayData::request_resident ( Thread * current_thread = Thread::get_current_thread() ) const

inline

Returns true if the vertex data is currently resident in memory.

If this returns true, the next call to get_handle()->get_read_pointer() will probably not block. If this returns false, the vertex data will be brought back into memory shortly; try again later.

Definition at line 135 of file geomVertexArrayData.I.

References PipelineCycler< CycleDataType >::read_unlocked(), and unref_delete().

◆ reserve_num_rows()

bool GeomVertexArrayData::reserve_num_rows ( int n )

inline

This ensures that enough memory space for n rows is allocated, so that you may increase the number of rows to n without causing a new memory allocation.

This is a performance optimization only; it is especially useful when you know ahead of time that you will be adding n rows to the data.

Definition at line 96 of file geomVertexArrayData.I.

◆ set_num_rows()

bool GeomVertexArrayData::set_num_rows ( int n )

inline

Sets the length of the array to n rows.

Normally, you would not call this directly, since all of the arrays in a particular GeomVertexData must have the same number of rows; instead, call GeomVertexData::set_num_rows().

The return value is true if the number of rows was changed, false if the object already contained n rows (or if there was some error).

The new vertex data is initialized to 0, including the "color" column (but see GeomVertexData::set_num_rows()).

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

Definition at line 70 of file geomVertexArrayData.I.

◆ unclean_set_num_rows()

bool GeomVertexArrayData::unclean_set_num_rows ( int n )

inline

This method behaves like set_num_rows(), except the new data is not initialized.

Furthermore, after this call, *any* of the data in the GeomVertexArrayData may be uninitialized, including the earlier rows.

Normally, you would not call this directly, since all of the arrays in a particular GeomVertexData must have the same number of rows; instead, call GeomVertexData::unclean_set_num_rows().

Definition at line 84 of file geomVertexArrayData.I.

◆ write_datagram()

void GeomVertexArrayData::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from TypedWritable.

Definition at line 404 of file geomVertexArrayData.cxx.

References BamWriter::write_cdata(), TypedWritable::write_datagram(), and BamWriter::write_pointer().

Member Data Documentation

◆ get_array_format

const GeomVertexArrayFormat * GeomVertexArrayData::get_array_format

inline

Returns the format object that describes this array.

Definition at line 76 of file geomVertexArrayData.h.

Referenced by GeomPrimitive::set_vertices().

◆ get_data_size_bytes

size_t GeomVertexArrayData::get_data_size_bytes

inline

Returns the number of bytes stored in the array.

Definition at line 92 of file geomVertexArrayData.h.

Referenced by PreparedGraphicsObjects::release_vertex_buffer().

◆ get_modified

UpdateSeq GeomVertexArrayData::get_modified

inline

Returns a sequence number which is guaranteed to change at least every time the array vertex data is modified.

Definition at line 93 of file geomVertexArrayData.h.

◆ get_usage_hint

GeomVertexArrayData::UsageHint GeomVertexArrayData::get_usage_hint

inline

Returns the usage hint that describes to the rendering backend how often the vertex data will be modified and/or rendered.

See geomEnums.h.

Definition at line 80 of file geomVertexArrayData.h.

Referenced by compare_to(), GeomPrimitive::finalize(), and PreparedGraphicsObjects::release_vertex_buffer().

◆ set_usage_hint

void GeomVertexArrayData::set_usage_hint

Changes the UsageHint hint for this array.

See get_usage_hint().

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

Definition at line 80 of file geomVertexArrayData.h.

The documentation for this class was generated from the following files:

panda/src/gobj/geomVertexArrayData.h
panda/src/gobj/geomVertexArrayData.cxx
panda/src/gobj/geomVertexArrayData.I

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ clear_rows()

◆ compare_to()

◆ complete_pointers()

◆ evict_lru()

◆ finalize()

◆ get_book()

◆ get_independent_lru()

◆ get_num_rows()

◆ get_small_lru()

◆ has_column()

◆ is_prepared()

◆ lru_epoch()

◆ operator=()

◆ prepare()

◆ prepare_now()

◆ read_raw_data()

◆ register_with_read_factory()

◆ release()

◆ release_all()

◆ request_resident()

◆ reserve_num_rows()

◆ set_num_rows()

◆ unclean_set_num_rows()

◆ write_datagram()

Member Data Documentation

◆ get_array_format

◆ get_data_size_bytes

◆ get_modified

◆ get_usage_hint

◆ set_usage_hint
