This is a structure representing a single input device. More...

#include "inputDevice.h"

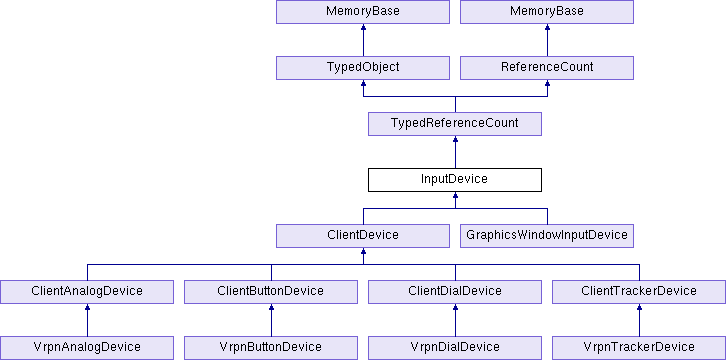

Inheritance diagram for InputDevice:

Classes
class	AxisState

class	BatteryData

class	ButtonState

Public Types
typedef pvector< AxisState >	Axes

enum	Axis { none, x, y, z, yaw, pitch, roll, left_x, left_y, left_trigger, right_x, right_y, right_trigger, throttle, rudder, wheel, accelerator, brake }

typedef pvector< ButtonState >	Buttons

enum	DeviceClass { unknown, virtual_device, keyboard, mouse, touch, gamepad, flight_stick, steering_wheel, dance_pad, hmd, spatial_mouse }

enum	Feature { pointer, keyboard, tracker, vibration, battery }

enum	State { S_unknown, S_up, S_down }

Public Member Functions
	InputDevice (const InputDevice &copy)=delete

void	disable_pointer_events ()
	Disables the generation of mouse-movement events. More...

void	enable_pointer_events ()
	Enables the generation of mouse-movement events. More...

AxisState	find_axis (Axis axis) const
	Returns the first AnalogAxis found with the given axis, or throw an assert if the axis was not found in the list. More...

ButtonState	find_button (ButtonHandle handle) const
	Returns the first ButtonState found with the given axis, or throw an assert if the button handle was not found in the list. More...

virtual TypeHandle	force_init_type ()

AxisState	get_axis (size_t index) const

double	get_axis_value (size_t index) const
	Returns the current position of indicated analog axis (identified by its index number), or 0.0 if the axis is unknown. More...

BatteryData	get_battery () const

ButtonState	get_button (size_t index) const

ButtonHandle	get_button_map (size_t index) const
	Returns the ButtonHandle that was previously associated with the given index number by a call to map_button(), or ButtonHandle::none() if no button was associated. More...

DeviceClass	get_device_class () const

std::string	get_manufacturer () const

std::string	get_name () const

size_t	get_num_axes () const

size_t	get_num_buttons () const

unsigned short	get_product_id () const

std::string	get_serial_number () const

TrackerData	get_tracker () const

virtual TypeHandle	get_type () const

unsigned short	get_vendor_id () const

bool	has_battery () const

bool	has_button_event () const
	Returns true if this device has a pending button event (a mouse button or keyboard button down/up), false otherwise. More...

bool	has_feature (Feature feature) const
	Returns true if the device supports the indicated feature. More...

bool	has_keyboard () const
	Returns true if the device has a physical keyboard designed for text entry. More...

bool	has_pointer () const
	Returns true if this is a pointing device. More...

bool	has_pointer_event () const
	Returns true if this device has a pending pointer event (a mouse movement), or false otherwise. More...

bool	has_tracker () const

bool	has_vibration () const
	Returns true if the device has vibration motors that can be controlled by calling set_vibration(). More...

bool	is_axis_known (size_t index) const
	Returns true if the state of the indicated analog axis is known, or false if we have never heard anything about this particular axis. More...

bool	is_button_known (size_t index) const
	Returns true if the state of the indicated button is known, or false if we have never heard anything about this particular button. More...

bool	is_button_pressed (size_t index) const
	Returns true if the indicated button (identified by its index number) is currently known to be down, or false if it is up or unknown. More...

bool	is_connected () const

void	map_axis (size_t index, Axis axis)
	Associates the indicated Axis with the axis of the indicated index number. More...

void	map_button (size_t index, ButtonHandle handle)
	Associates the indicated ButtonHandle with the button of the indicated index number. More...

InputDevice &	operator= (const InputDevice &copy)=delete

virtual void	output (std::ostream &out) const
	Writes a one-line string describing the device. More...

void	output_buttons (std::ostream &out) const
	Writes a one-line string of all of the current button states. More...

void	poll ()
	Polls the input device for new activity, to ensure it contains the latest events. More...

	PT (ButtonEventList) get_button_events()

	PT (PointerEventList) get_pointer_events()

void	set_connected (bool connected)
	Called to indicate that the device has been disconnected or connected from its host. More...

void	set_vibration (double strong, double weak)
	Sets the strength of the vibration effect, if supported. More...

void	write_axes (std::ostream &out, int indent_level) const
	Writes a multi-line description of the current analog axis states. More...

void	write_buttons (std::ostream &out, int indent_level) const
	Writes a multi-line description of the current button states. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static std::string	format_axis (Axis axis)
	Returns a string describing the given axis enumerant. More...

static std::string	format_device_class (DeviceClass dc)
	Returns a string describing the given device class enumerant. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
Axes	_axes

BatteryData	_battery_data

Buttons	_buttons

PointerData	_pointer_data

TrackerData	_tracker_data

	get_axis
	Returns the axis state that is set at the given index, or throw an assert if the index was not found in the list. More...

	get_battery
	Returns a rough indication of the battery level, ranging from 0 (completely empty battery) to the indicated max_level value. More...

	get_button
	Returns the ButtonState that is set at the given index, or throw an assert if the index was not found in the list. More...

	get_device_class
	Returns an identification of the general type of device. More...

	get_manufacturer
	Returns a string containing the manufacturer of the device, if this information is known. More...

	get_name
	Returns a human-readable name for the device. More...

	get_num_axes
	Returns the number of analog axes known to the InputDevice. More...

	get_num_buttons
	Returns the number of buttons known to the device. More...

	get_product_id
	Returns a string containing the USB product ID of the device, if this information is known. More...

	get_serial_number
	Returns a string containing the serial number of the device, if this information is known. More...

	get_tracker
	Returns the TrackerData associated with the input device's tracker. More...

	get_vendor_id
	Returns a string containing the USB vendor ID of the device, if this information is known. More...

	has_battery
	Returns true if the device may be able to provide information about its battery life. More...

	has_tracker
	Returns true if the device features a tracker that can track position and/or orientation in 3D space. More...

	is_connected
	Returns true if the device is still connected and able to receive data, false otherwise. More...

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Detailed Description

This is a structure representing a single input device.

Input devices may have zero or more buttons, pointers, or axes associated with them, and optionally a motion tracker.

These devices are brought under a common interface because there is such a large range of devices out there that may support any number of these types of axes, we couldn't even begin to cover them with type-specific subclasses.

Use the various has_() and get_num_() methods to determine information about the device capabilities. For instance, has_keyboard() will give an indication that you can receive keystroke events from this device, and get_num_buttons() will tell you that the device may send button events.

There is the DeviceType enumeration, however, which will (if known) contain identification of the general category of devices this fits in, such as keyboard, mouse, gamepad, or flight stick.

Since: 1.10.0

Definition at line 53 of file inputDevice.h.

Member Function Documentation

◆ disable_pointer_events()

void InputDevice::disable_pointer_events ( )

inline

Disables the generation of mouse-movement events.

Definition at line 363 of file inputDevice.I.

◆ enable_pointer_events()

void InputDevice::enable_pointer_events ( )

inline

Enables the generation of mouse-movement events.

Definition at line 354 of file inputDevice.I.

◆ find_axis()

InputDevice::AxisState InputDevice::find_axis ( InputDevice::Axis axis ) const

inline

Returns the first AnalogAxis found with the given axis, or throw an assert if the axis was not found in the list.

Definition at line 317 of file inputDevice.I.

◆ find_button()

InputDevice::ButtonState InputDevice::find_button ( ButtonHandle handle ) const

inline

Returns the first ButtonState found with the given axis, or throw an assert if the button handle was not found in the list.

Definition at line 253 of file inputDevice.I.

◆ format_axis()

std::string InputDevice::format_axis ( Axis axis )

static

Returns a string describing the given axis enumerant.

Definition at line 589 of file inputDevice.cxx.

◆ format_device_class()

std::string InputDevice::format_device_class ( DeviceClass dc )

static

Returns a string describing the given device class enumerant.

Definition at line 547 of file inputDevice.cxx.

◆ get_axis_value()

double InputDevice::get_axis_value ( size_t index ) const

inline

Returns the current position of indicated analog axis (identified by its index number), or 0.0 if the axis is unknown.

The normal range of a single axis is -1.0 to 1.0.

Definition at line 294 of file inputDevice.I.

◆ get_button_map()

ButtonHandle InputDevice::get_button_map ( size_t index ) const

inline

Returns the ButtonHandle that was previously associated with the given index number by a call to map_button(), or ButtonHandle::none() if no button was associated.

Definition at line 204 of file inputDevice.I.

◆ has_button_event()

bool InputDevice::has_button_event ( ) const

Returns true if this device has a pending button event (a mouse button or keyboard button down/up), false otherwise.

If this returns true, the particular event may be extracted via get_button_event().

Definition at line 59 of file inputDevice.cxx.

◆ has_feature()

bool InputDevice::has_feature ( Feature feature ) const

inline

Returns true if the device supports the indicated feature.

Definition at line 98 of file inputDevice.I.

Referenced by has_keyboard(), has_pointer(), and has_vibration().

◆ has_keyboard()

bool InputDevice::has_keyboard ( ) const

inline

Returns true if the device has a physical keyboard designed for text entry.

Definition at line 115 of file inputDevice.I.

References has_feature().

◆ has_pointer()

bool InputDevice::has_pointer ( ) const

inline

Returns true if this is a pointing device.

Definition at line 107 of file inputDevice.I.

References has_feature().

◆ has_pointer_event()

bool InputDevice::has_pointer_event ( ) const

Returns true if this device has a pending pointer event (a mouse movement), or false otherwise.

If this returns true, the particular event may be extracted via get_pointer_event().

Definition at line 82 of file inputDevice.cxx.

◆ has_vibration()

bool InputDevice::has_vibration ( ) const

inline

Returns true if the device has vibration motors that can be controlled by calling set_vibration().

Definition at line 133 of file inputDevice.I.

References has_feature().

◆ is_axis_known()

bool InputDevice::is_axis_known ( size_t index ) const

inline

Returns true if the state of the indicated analog axis is known, or false if we have never heard anything about this particular axis.

Definition at line 331 of file inputDevice.I.

◆ is_button_known()

bool InputDevice::is_button_known ( size_t index ) const

inline

Returns true if the state of the indicated button is known, or false if we have never heard anything about this particular button.

Definition at line 230 of file inputDevice.I.

◆ is_button_pressed()

bool InputDevice::is_button_pressed ( size_t index ) const

inline

Returns true if the indicated button (identified by its index number) is currently known to be down, or false if it is up or unknown.

Definition at line 217 of file inputDevice.I.

◆ map_axis()

void InputDevice::map_axis	(	size_t	index,
		InputDevice::Axis	axis
	)

inline

Associates the indicated Axis with the axis of the indicated index number.

Pass Axis::none to turn off any association.

It is not necessary to call this if you simply want to query the state of the various axes by index number.

Definition at line 279 of file inputDevice.I.

◆ map_button()

void InputDevice::map_button	(	size_t	index,
		ButtonHandle	button
	)

inline

Associates the indicated ButtonHandle with the button of the indicated index number.

When the given button index changes state, a corresponding ButtonEvent will be generated with the given ButtonHandle. Pass ButtonHandle::none() to turn off any association.

It is not necessary to call this if you simply want to query the state of the various buttons by index number; this is only necessary in order to generate ButtonEvents when the buttons change state.

Definition at line 189 of file inputDevice.I.

◆ output()

void InputDevice::output ( std::ostream & out ) const

virtual

Writes a one-line string describing the device.

Reimplemented in ClientDevice, and ClientButtonDevice.

Definition at line 380 of file inputDevice.cxx.

◆ output_buttons()

void InputDevice::output_buttons ( std::ostream & out ) const

Writes a one-line string of all of the current button states.

Definition at line 440 of file inputDevice.cxx.

References InputDevice::ButtonState::is_known.

Referenced by ClientButtonDevice::output().

◆ poll()

void InputDevice::poll ( )

Polls the input device for new activity, to ensure it contains the latest events.

This will only have any effect for some types of input devices; others may be updated automatically, and this method will be a no-op.

Definition at line 48 of file inputDevice.cxx.

◆ set_connected()

void InputDevice::set_connected ( bool connected )

inline

Called to indicate that the device has been disconnected or connected from its host.

Definition at line 383 of file inputDevice.I.

Referenced by ClientDevice::disconnect().

◆ set_vibration()

void InputDevice::set_vibration	(	double	strong,
		double	weak
	)

inline

Sets the strength of the vibration effect, if supported.

The values are clamped to 0-1 range. The first value axes the low-frequency rumble motor, whereas the second axes the high-frequency motor, if present.

Definition at line 345 of file inputDevice.I.

◆ write_axes()

void InputDevice::write_axes	(	std::ostream &	out,
		int	indent_level
	)		const

Writes a multi-line description of the current analog axis states.

Definition at line 504 of file inputDevice.cxx.

References indent().

◆ write_buttons()

void InputDevice::write_buttons	(	std::ostream &	out,
		int	indent_level
	)		const

Writes a multi-line description of the current button states.

Definition at line 470 of file inputDevice.cxx.

References indent(), and InputDevice::ButtonState::is_known.

Member Data Documentation

◆ get_axis

InputDevice::AxisState InputDevice::get_axis

inline

Returns the axis state that is set at the given index, or throw an assert if the index was not found in the list.

Definition at line 253 of file inputDevice.h.

◆ get_battery

InputDevice::BatteryData InputDevice::get_battery

inline

Returns a rough indication of the battery level, ranging from 0 (completely empty battery) to the indicated max_level value.

Definition at line 249 of file inputDevice.h.

◆ get_button

InputDevice::ButtonState InputDevice::get_button

inline

Returns the ButtonState that is set at the given index, or throw an assert if the index was not found in the list.

Definition at line 252 of file inputDevice.h.

◆ get_device_class

InputDevice::DeviceClass InputDevice::get_device_class

inline

Returns an identification of the general type of device.

If this could not be determined, returns DeviceClass.unknown.

Definition at line 242 of file inputDevice.h.

◆ get_manufacturer

std::string InputDevice::get_manufacturer

inline

Returns a string containing the manufacturer of the device, if this information is known.

Definition at line 225 of file inputDevice.h.

◆ get_name

std::string InputDevice::get_name

inline

Returns a human-readable name for the device.

Not necessarily unique.

Definition at line 222 of file inputDevice.h.

Referenced by ClientDevice::disconnect(), ClientButtonDevice::output(), and ClientDevice::output().

◆ get_num_axes

size_t InputDevice::get_num_axes

inline

Returns the number of analog axes known to the InputDevice.

This number may change as more axes are discovered.

Definition at line 253 of file inputDevice.h.

◆ get_num_buttons

size_t InputDevice::get_num_buttons

inline

Returns the number of buttons known to the device.

This includes those buttons whose state has been seen, as well as buttons that have been associated with a ButtonHandle even if their state is unknown. This number may change as more buttons are discovered.

Definition at line 252 of file inputDevice.h.

◆ get_product_id

unsigned short InputDevice::get_product_id

inline

Returns a string containing the USB product ID of the device, if this information is known.

Definition at line 234 of file inputDevice.h.

◆ get_serial_number

std::string InputDevice::get_serial_number

inline

Returns a string containing the serial number of the device, if this information is known.

Definition at line 228 of file inputDevice.h.

◆ get_tracker

TrackerData InputDevice::get_tracker

inline

Returns the TrackerData associated with the input device's tracker.

This only makes sense if has_tracker() also returns true.

Definition at line 248 of file inputDevice.h.

◆ get_vendor_id

unsigned short InputDevice::get_vendor_id

inline

Returns a string containing the USB vendor ID of the device, if this information is known.

Definition at line 231 of file inputDevice.h.

◆ has_battery

bool InputDevice::has_battery

inline

Returns true if the device may be able to provide information about its battery life.

Definition at line 249 of file inputDevice.h.

◆ has_tracker

bool InputDevice::has_tracker

inline

Returns true if the device features a tracker that can track position and/or orientation in 3D space.

Definition at line 248 of file inputDevice.h.

◆ is_connected

bool InputDevice::is_connected

inline

Returns true if the device is still connected and able to receive data, false otherwise.

May return false positives.

Definition at line 238 of file inputDevice.h.

Referenced by ClientDevice::disconnect().

The documentation for this class was generated from the following files:

panda/src/device/inputDevice.h
panda/src/device/inputDevice.cxx
panda/src/device/inputDevice.I

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Member Function Documentation

◆ disable_pointer_events()

◆ enable_pointer_events()

◆ find_axis()

◆ find_button()

◆ format_axis()

◆ format_device_class()

◆ get_axis_value()

◆ get_button_map()

◆ has_button_event()

◆ has_feature()

◆ has_keyboard()

◆ has_pointer()

◆ has_pointer_event()

◆ has_vibration()

◆ is_axis_known()

◆ is_button_known()

◆ is_button_pressed()

◆ map_axis()

◆ map_button()

◆ output()

◆ output_buttons()

◆ poll()

◆ set_connected()

◆ set_vibration()

◆ write_axes()

◆ write_buttons()

Member Data Documentation

◆ get_axis

◆ get_battery

◆ get_button

◆ get_device_class

◆ get_manufacturer

◆ get_name

◆ get_num_axes

◆ get_num_buttons

◆ get_product_id

◆ get_serial_number

◆ get_tracker

◆ get_vendor_id

◆ has_battery

◆ has_tracker

◆ is_connected
