Defines the way an object appears in the presence of lighting. More...

#include "material.h"

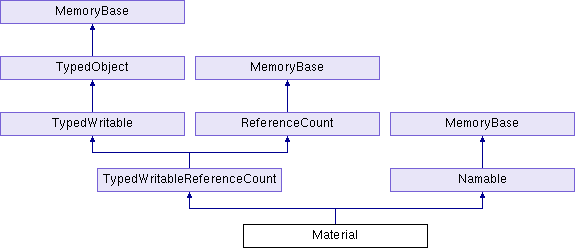

Inheritance diagram for Material:

Public Types
enum	Flags { F_ambient = 0x001, F_diffuse = 0x002, F_specular = 0x004, F_emission = 0x008, F_local = 0x010, F_twoside = 0x020, F_attrib_lock = 0x040, F_roughness = 0x080, F_metallic = 0x100, F_base_color = 0x200, F_refractive_index = 0x400, F_used_by_auto_shader = 0x800 }

Public Member Functions
	Material (const std::string &name="")

	Material (const Material &copy)

void	clear_ambient ()

void	clear_base_color ()

void	clear_diffuse ()

void	clear_emission ()

void	clear_metallic ()
	Removes the explicit metallic setting from the material. More...

void	clear_specular ()

int	compare_to (const Material &other) const
	Returns a number less than zero if this material sorts before the other one, greater than zero if it sorts after, or zero if they are equivalent. More...

virtual TypeHandle	force_init_type ()

const LColor &	get_ambient () const

const LColor &	get_base_color () const

const LColor &	get_diffuse () const

const LColor &	get_emission () const

int	get_flags () const

bool	get_local () const

PN_stdfloat	get_metallic () const

PN_stdfloat	get_refractive_index () const

PN_stdfloat	get_roughness () const

PN_stdfloat	get_shininess () const

const LColor &	get_specular () const

bool	get_twoside () const

virtual TypeHandle	get_type () const

bool	has_ambient () const

bool	has_base_color () const

bool	has_diffuse () const

bool	has_emission () const

bool	has_metallic () const
	Returns true if the metallic has been explicitly set for this material, false otherwise. More...

bool	has_refractive_index () const
	Returns true if a refractive index has explicitly been specified for this material. More...

bool	has_roughness () const
	Returns true if the roughness has been explicitly set for this material, false otherwise. More...

bool	has_specular () const

bool	is_attrib_locked () const

void	mark_used_by_auto_shader ()
	Called by the shader generator to indicate that a shader has been generated that uses this material. More...

bool	operator != (const Material &other) const

bool	operator< (const Material &other) const

void	operator= (const Material &copy)

bool	operator== (const Material &other) const

void	output (std::ostream &out) const

void	set_ambient (const LColor &color)

void	set_attrib_lock ()

void	set_base_color (const LColor &color)

void	set_diffuse (const LColor &color)

void	set_emission (const LColor &color)

void	set_local (bool local)

void	set_metallic (PN_stdfloat metallic)

void	set_refractive_index (PN_stdfloat refractive_index)

void	set_roughness (PN_stdfloat roughness)

void	set_shininess (PN_stdfloat shininess)

void	set_specular (const LColor &color)

void	set_twoside (bool twoside)

void	write (std::ostream &out, int indent) const

virtual void	write_datagram (BamWriter *manager, Datagram &me)
	Function to write the important information in the particular object to a Datagram. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static Material *	get_default ()
	Returns the default material. More...

static void	init_type ()

static void	register_with_read_factory ()
	Factory method to generate a Material object. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	clear_ambient
	Removes the explicit ambient color from the material. More...

	clear_base_color
	Removes the explicit base_color color from the material. More...

	clear_diffuse
	Removes the explicit diffuse color from the material. More...

	clear_emission
	Removes the explicit emission color from the material. More...

	clear_specular
	Removes the explicit specular color from the material. More...

	get_ambient
	Returns the ambient color setting, if it has been set. More...

	get_base_color
	Returns the base_color color setting, if it has been set. More...

	get_diffuse
	Returns the diffuse color setting, if it has been set. More...

	get_emission
	Returns the emission color setting, if it has been set. More...

	get_local
	Returns the local viewer flag. More...

	get_metallic
	Returns the metallic setting, if it has been set. More...

	get_refractive_index
	Returns the index of refraction, or 1 if none has been set for this material. More...

	get_roughness
	Returns the roughness previously specified by set_roughness. More...

	get_shininess
	Returns the shininess exponent of the material. More...

	get_specular
	Returns the specular color setting, if it has been set. More...

	get_twoside
	Returns the state of the two-sided lighting flag. More...

	has_ambient
	Returns true if the ambient color has been explicitly set for this material, false otherwise. More...

	has_base_color
	Returns true if the base color has been explicitly set for this material, false otherwise. More...

	has_diffuse
	Returns true if the diffuse color has been explicitly set for this material, false otherwise. More...

	has_emission
	Returns true if the emission color has been explicitly set for this material, false otherwise. More...

	has_specular
	Returns true if the specular color has been explicitly set for this material, false otherwise. More...

	set_ambient
	Specifies the ambient color setting of the material. More...

	set_base_color
	Specifies the base color of the material. More...

	set_diffuse
	Specifies the diffuse color setting of the material. More...

	set_emission
	Specifies the emission color setting of the material. More...

	set_local
	Sets the local viewer flag. More...

	set_metallic
	Sets the metallic setting of the material, which is is used for physically- based rendering models. More...

	set_refractive_index
	Sets the index of refraction of the material, which is used to determine the specular color in absence of an explicit specular color assignment. More...

	set_roughness
	Sets the roughness exponent of the material, where 0 is completely shiny (infinite shininess), and 1 is a completely dull object (0 shininess). More...

	set_shininess
	Sets the shininess exponent of the material. More...

	set_specular
	Specifies the specular color setting of the material. More...

	set_twoside
	Set this true to enable two-sided lighting. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Defines the way an object appears in the presence of lighting.

A material is only necessary if lighting is to be enabled; otherwise, the material isn't used.

There are two workflows that are supported: the "classic" workflow of providing separate ambient, diffuse and specular colors, and the "metalness" workflow, in which a base color is specified along with a "metallic" value that indicates whether the material is a metal or a dielectric.

The size of the specular highlight can be specified by either specifying the specular exponent (shininess) or by specifying a roughness value that in perceptually linear in the range of 0-1.

Definition at line 43 of file material.h.

Member Function Documentation

◆ clear_metallic()

void Material::clear_metallic ( )

Removes the explicit metallic setting from the material.

Definition at line 297 of file material.cxx.

◆ compare_to()

int Material::compare_to ( const Material & other ) const

Returns a number less than zero if this material sorts before the other one, greater than zero if it sorts after, or zero if they are equivalent.

The sorting order is arbitrary and largely meaningless, except to differentiate different materials.

Definition at line 349 of file material.cxx.

References get_ambient, get_base_color, get_diffuse, get_emission, get_metallic, get_refractive_index, get_shininess, get_specular, has_ambient, has_base_color, has_diffuse, has_emission, and has_specular.

◆ get_default()

Material * Material::get_default ( )

inlinestatic

Returns the default material.

Definition at line 60 of file material.I.

◆ has_metallic()

bool Material::has_metallic ( ) const

inline

Returns true if the metallic has been explicitly set for this material, false otherwise.

Definition at line 219 of file material.I.

◆ has_refractive_index()

bool Material::has_refractive_index ( ) const

inline

Returns true if a refractive index has explicitly been specified for this material.

Definition at line 237 of file material.I.

◆ has_roughness()

bool Material::has_roughness ( ) const

inline

Returns true if the roughness has been explicitly set for this material, false otherwise.

Definition at line 210 of file material.I.

◆ is_attrib_locked()

bool Material::is_attrib_locked ( ) const

inline

Definition at line 329 of file material.I.

◆ mark_used_by_auto_shader()

void Material::mark_used_by_auto_shader ( )

inline

Called by the shader generator to indicate that a shader has been generated that uses this material.

Definition at line 354 of file material.I.

◆ register_with_read_factory()

void Material::register_with_read_factory ( )

static

Factory method to generate a Material object.

Definition at line 459 of file material.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

◆ set_attrib_lock()

void Material::set_attrib_lock ( )

inline

Definition at line 337 of file material.I.

Referenced by CPT().

◆ write_datagram()

void Material::write_datagram	(	BamWriter *	manager,
		Datagram &	me
	)

virtual

Function to write the important information in the particular object to a Datagram.

Reimplemented from TypedWritable.

Definition at line 468 of file material.cxx.

References Datagram::add_int32(), Datagram::add_stdfloat(), Datagram::add_string(), and BamWriter::get_file_minor_ver().

Member Data Documentation

◆ clear_ambient

void Material::clear_ambient

inline

Removes the explicit ambient color from the material.

Definition at line 114 of file material.h.

◆ clear_base_color

void Material::clear_base_color

Removes the explicit base_color color from the material.

Definition at line 112 of file material.h.

◆ clear_diffuse

void Material::clear_diffuse

inline

Removes the explicit diffuse color from the material.

Definition at line 116 of file material.h.

◆ clear_emission

void Material::clear_emission

inline

Removes the explicit emission color from the material.

Definition at line 120 of file material.h.

◆ clear_specular

void Material::clear_specular

Removes the explicit specular color from the material.

Definition at line 118 of file material.h.

◆ get_ambient

const LColor & Material::get_ambient

inline

Returns the ambient color setting, if it has been set.

Returns (0,0,0,0) if the ambient color has not been set.

Definition at line 114 of file material.h.

Referenced by compare_to().

◆ get_base_color

const LColor & Material::get_base_color

inline

Returns the base_color color setting, if it has been set.

If neither the base color nor the metallic have been set, this returns the diffuse color.

Definition at line 112 of file material.h.

Referenced by compare_to().

◆ get_diffuse

const LColor & Material::get_diffuse

inline

Returns the diffuse color setting, if it has been set.

Returns (1,1,1,1) if the diffuse color has not been set.

Definition at line 116 of file material.h.

Referenced by compare_to().

◆ get_emission

const LColor & Material::get_emission

inline

Returns the emission color setting, if it has been set.

Returns (0,0,0,0) if the emission color has not been set.

Definition at line 120 of file material.h.

Referenced by compare_to().

◆ get_local

bool Material::get_local

inline

Returns the local viewer flag.

Set set_local().

Definition at line 128 of file material.h.

◆ get_metallic

PN_stdfloat Material::get_metallic

inline

Returns the metallic setting, if it has been set.

Returns 0 if it has not been set.

Definition at line 124 of file material.h.

Referenced by compare_to().

◆ get_refractive_index

PN_stdfloat Material::get_refractive_index

inline

Returns the index of refraction, or 1 if none has been set for this material.

Definition at line 126 of file material.h.

Referenced by compare_to().

◆ get_roughness

PN_stdfloat Material::get_roughness

Returns the roughness previously specified by set_roughness.

If none was previously set, this value is computed from the shininess value.

Definition at line 123 of file material.h.

◆ get_shininess

PN_stdfloat Material::get_shininess

inline

Returns the shininess exponent of the material.

Definition at line 122 of file material.h.

Referenced by compare_to().

◆ get_specular

const LColor & Material::get_specular

inline

Returns the specular color setting, if it has been set.

Returns (0,0,0,0) if the specular color has not been set.

Definition at line 118 of file material.h.

Referenced by compare_to().

◆ get_twoside

bool Material::get_twoside

inline

Returns the state of the two-sided lighting flag.

See set_twoside().

Definition at line 129 of file material.h.

◆ has_ambient

bool Material::has_ambient

inline

Returns true if the ambient color has been explicitly set for this material, false otherwise.

Definition at line 114 of file material.h.

Referenced by compare_to().

◆ has_base_color

bool Material::has_base_color

inline

Returns true if the base color has been explicitly set for this material, false otherwise.

Definition at line 112 of file material.h.

Referenced by compare_to().

◆ has_diffuse

bool Material::has_diffuse

inline

Returns true if the diffuse color has been explicitly set for this material, false otherwise.

Definition at line 116 of file material.h.

Referenced by compare_to().

◆ has_emission

bool Material::has_emission

inline

Returns true if the emission color has been explicitly set for this material, false otherwise.

Definition at line 120 of file material.h.

Referenced by compare_to().

◆ has_specular

bool Material::has_specular

inline

Returns true if the specular color has been explicitly set for this material, false otherwise.

Definition at line 118 of file material.h.

Referenced by compare_to().

◆ set_ambient

void Material::set_ambient

Specifies the ambient color setting of the material.

This will be the multiplied by any ambient lights in effect on the material to set its base color.

This is the color of the object as it appears in the absence of direct light.

If this is not set, the object color will be used.

Definition at line 114 of file material.h.

◆ set_base_color

void Material::set_base_color

Specifies the base color of the material.

In conjunction with set_metallic, this is an alternate way to specify the color of a material. For dielectrics, this will determine the value of the diffuse color, and for metals, this will determine the value of the specular color.

Setting this will clear an explicit specular, diffuse or ambient color assignment.

If this is not set, the object color will be used.

Definition at line 112 of file material.h.

◆ set_diffuse

void Material::set_diffuse

Specifies the diffuse color setting of the material.

This will be multiplied by any lights in effect on the material to get the color in the parts of the object illuminated by the lights.

This is the primary color of an object; the color of the object as it appears in direct light, in the absence of highlights.

If this is not set, the object color will be used.

Definition at line 116 of file material.h.

◆ set_emission

void Material::set_emission

Specifies the emission color setting of the material.

This is the color of the object as it appears in the absence of any light whatsover, including ambient light. It is as if the object is glowing by this color (although of course it will not illuminate neighboring objects).

If this is not set, the object will not glow by its own light and will only appear visible in the presence of one or more lights.

Definition at line 120 of file material.h.

◆ set_local

void Material::set_local

inline

Sets the local viewer flag.

Set this true to enable camera-relative specular highlights, or false to use orthogonal specular highlights. The default value is true. Applications that use orthogonal projection should specify false.

Definition at line 128 of file material.h.

◆ set_metallic

void Material::set_metallic

Sets the metallic setting of the material, which is is used for physically- based rendering models.

This is usually 0 for dielectric materials and 1 for metals. It really does not make sense to set this to a value other than 0 or 1, but it is nonetheless a float for compatibility with tools that allow setting this to values other than 0 or 1.

Definition at line 124 of file material.h.

◆ set_refractive_index

void Material::set_refractive_index

Sets the index of refraction of the material, which is used to determine the specular color in absence of an explicit specular color assignment.

This is usually 1.5 for dielectric materials. It is not very useful for metals, since they cannot be described as easily with a single number.

Should be 1 or higher. The default is 1.

Definition at line 126 of file material.h.

◆ set_roughness

void Material::set_roughness

Sets the roughness exponent of the material, where 0 is completely shiny (infinite shininess), and 1 is a completely dull object (0 shininess).

This is a different, more perceptually intuitive way of controlling the size of the specular spot, and more commonly used in physically-based rendering.

Setting a roughness recalculates the shininess value.

Definition at line 123 of file material.h.

◆ set_shininess

void Material::set_shininess

Sets the shininess exponent of the material.

This controls the size of the specular highlight spot. In general, larger number produce a smaller specular highlight, which makes the object appear shinier. Smaller numbers produce a larger highlight, which makes the object appear less shiny.

This is usually in the range 0..128.

Setting a shininess value removes any previous roughness assignment.

Definition at line 122 of file material.h.

◆ set_specular

void Material::set_specular

Specifies the specular color setting of the material.

This will be multiplied by any lights in effect on the material to compute the color of specular highlights on the object.

This is the highlight color of an object: the color of small highlight reflections.

If this is not set, the specular color is taken from the index of refraction, which is 1 by default (meaning no specular reflections are generated).

Definition at line 118 of file material.h.

◆ set_twoside

void Material::set_twoside

inline

Set this true to enable two-sided lighting.

When two-sided lighting is on, both sides of a polygon will be lit by this material. The default is for two-sided lighting to be off, in which case only the front surface is lit.

Definition at line 129 of file material.h.

The documentation for this class was generated from the following files:

panda/src/gobj/material.h
panda/src/gobj/material.cxx
panda/src/gobj/material.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ clear_metallic()

◆ compare_to()

◆ get_default()

◆ has_metallic()

◆ has_refractive_index()

◆ has_roughness()

◆ is_attrib_locked()

◆ mark_used_by_auto_shader()

◆ register_with_read_factory()

◆ set_attrib_lock()

◆ write_datagram()

Member Data Documentation

◆ clear_ambient

◆ clear_base_color

◆ clear_diffuse

◆ clear_emission

◆ clear_specular

◆ get_ambient

◆ get_base_color

◆ get_diffuse

◆ get_emission

◆ get_local

◆ get_metallic

◆ get_refractive_index

◆ get_roughness

◆ get_shininess

◆ get_specular

◆ get_twoside

◆ has_ambient

◆ has_base_color

◆ has_diffuse

◆ has_emission

◆ has_specular

◆ set_ambient

◆ set_base_color

◆ set_diffuse

◆ set_emission

◆ set_local

◆ set_metallic

◆ set_refractive_index

◆ set_roughness

◆ set_shininess

◆ set_specular

◆ set_twoside
