This is the class that defines a rectangular region on the screen for the MouseWatcher. More...

#include "mouseWatcherRegion.h"

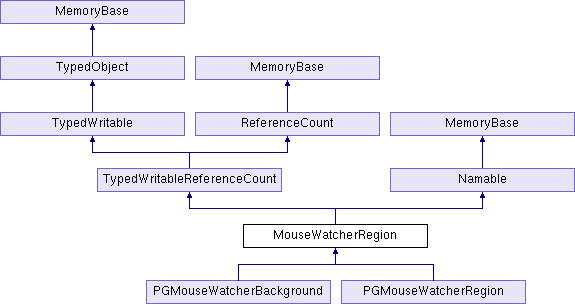

Inheritance diagram for MouseWatcherRegion:

Public Types
enum	SuppressFlags { SF_mouse_button = 0x001, SF_other_button = 0x002, SF_any_button = 0x003, SF_mouse_position = 0x004 }

Public Member Functions
	MouseWatcherRegion (const std::string &name, PN_stdfloat left, PN_stdfloat right, PN_stdfloat bottom, PN_stdfloat top)

	MouseWatcherRegion (const std::string &name, const LVecBase4 &frame)

virtual void	candidate (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever an IME candidate is highlighted by the user. More...

virtual void	enter_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse enters the region. More...

virtual void	exit_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse exits the region. More...

virtual TypeHandle	force_init_type ()

bool	get_active () const

PN_stdfloat	get_area () const

const LVecBase4 &	get_frame () const

bool	get_keyboard () const

int	get_sort () const

int	get_suppress_flags () const

virtual TypeHandle	get_type () const

virtual void	keystroke (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever a keystroke is generated by the user. More...

virtual void	move (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever a mouse is moved within the region. More...

bool	operator< (const MouseWatcherRegion &other) const
	Returns true if this region should be preferred over the other region when they overlap, false otherwise. More...

void	output (std::ostream &out) const

virtual void	press (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever a mouse or keyboard button is depressed while the mouse is within the region. More...

virtual void	release (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever a mouse or keyboard button previously depressed with press() is released. More...

void	set_active (bool active)

void	set_frame (PN_stdfloat left, PN_stdfloat right, PN_stdfloat bottom, PN_stdfloat top)

void	set_frame (const LVecBase4 &frame)

void	set_keyboard (bool keyboard)

void	set_sort (int sort)

void	set_suppress_flags (int suppress_flags)

virtual void	within_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse moves within the boundaries of the region, even if it is also within the boundaries of a nested region. More...

virtual void	without_region (const MouseWatcherParameter &param)
	This is a callback hook function, called whenever the mouse moves completely outside the boundaries of the region. More...

void	write (std::ostream &out, int indent_level=0) const

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	fillin (DatagramIterator &scan, BamReader *manager)
	This internal function is intended to be called by each class's make_from_bam() method to read in all of the relevant data from the BamFile for the new object. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_active
	Returns whether the region is active or not. More...

	get_area
	Returns the area of the rectangular region. More...

	get_frame

	get_keyboard
	Returns whether the region is interested in global keyboard events; see set_keyboard(). More...

	get_sort
	Returns the current sorting order of this region. More...

	get_suppress_flags
	Returns the current suppress_flags. More...

	set_active
	Sets whether the region is active or not. More...

	set_frame

	set_keyboard
	Sets whether the region is interested in global keyboard events. More...

	set_sort
	Changes the sorting order of this particular region. More...

	set_suppress_flags
	Sets which events are suppressed when the mouse is over the region. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is the class that defines a rectangular region on the screen for the MouseWatcher.

Definition at line 31 of file mouseWatcherRegion.h.

Member Function Documentation

◆ candidate()

void MouseWatcherRegion::candidate ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever an IME candidate is highlighted by the user.

Reimplemented in PGMouseWatcherRegion, and PGMouseWatcherBackground.

Definition at line 106 of file mouseWatcherRegion.cxx.

◆ enter_region()

void MouseWatcherRegion::enter_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse enters the region.

The mouse is only considered to be "entered" in one region at a time; in the case of nested regions, it exits the outer region before entering the inner one.

Reimplemented in PGMouseWatcherRegion.

Definition at line 46 of file mouseWatcherRegion.cxx.

◆ exit_region()

void MouseWatcherRegion::exit_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse exits the region.

The mouse is only considered to be "entered" in one region at a time; in the case of nested regions, it exits the outer region before entering the inner one.

Reimplemented in PGMouseWatcherRegion.

Definition at line 56 of file mouseWatcherRegion.cxx.

◆ keystroke()

void MouseWatcherRegion::keystroke ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever a keystroke is generated by the user.

Reimplemented in PGMouseWatcherRegion, and PGMouseWatcherBackground.

Definition at line 98 of file mouseWatcherRegion.cxx.

◆ move()

void MouseWatcherRegion::move ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever a mouse is moved within the region.

Reimplemented in PGMouseWatcherRegion.

Definition at line 114 of file mouseWatcherRegion.cxx.

◆ operator<()

bool MouseWatcherRegion::operator< ( const MouseWatcherRegion & other ) const

inline

Returns true if this region should be preferred over the other region when they overlap, false otherwise.

Definition at line 166 of file mouseWatcherRegion.I.

◆ press()

void MouseWatcherRegion::press ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever a mouse or keyboard button is depressed while the mouse is within the region.

Reimplemented in PGMouseWatcherRegion, and PGMouseWatcherBackground.

Definition at line 82 of file mouseWatcherRegion.cxx.

◆ release()

void MouseWatcherRegion::release ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever a mouse or keyboard button previously depressed with press() is released.

Reimplemented in PGMouseWatcherRegion, and PGMouseWatcherBackground.

Definition at line 90 of file mouseWatcherRegion.cxx.

◆ within_region()

void MouseWatcherRegion::within_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse moves within the boundaries of the region, even if it is also within the boundaries of a nested region.

This is different from "enter", which is only called whenever the mouse is within only that region.

Reimplemented in PGMouseWatcherRegion.

Definition at line 66 of file mouseWatcherRegion.cxx.

◆ without_region()

void MouseWatcherRegion::without_region ( const MouseWatcherParameter & param )

virtual

This is a callback hook function, called whenever the mouse moves completely outside the boundaries of the region.

See within_region().

Reimplemented in PGMouseWatcherRegion.

Definition at line 74 of file mouseWatcherRegion.cxx.

Member Data Documentation

◆ get_active

bool MouseWatcherRegion::get_active

inline

Returns whether the region is active or not.

See set_active().

Definition at line 69 of file mouseWatcherRegion.h.

◆ get_area

PN_stdfloat MouseWatcherRegion::get_area

inline

Returns the area of the rectangular region.

Definition at line 66 of file mouseWatcherRegion.h.

◆ get_keyboard

bool MouseWatcherRegion::get_keyboard

inline

Returns whether the region is interested in global keyboard events; see set_keyboard().

Definition at line 70 of file mouseWatcherRegion.h.

◆ get_sort

int MouseWatcherRegion::get_sort

inline

Returns the current sorting order of this region.

See set_sort().

Definition at line 68 of file mouseWatcherRegion.h.

◆ get_suppress_flags

int MouseWatcherRegion::get_suppress_flags

inline

Returns the current suppress_flags.

See set_suppress_flags().

Definition at line 71 of file mouseWatcherRegion.h.

◆ set_active

void MouseWatcherRegion::set_active

inline

Sets whether the region is active or not.

If it is not active, the MouseWatcher will never consider the mouse to be over the region. The region might still receive keypress events if its set_keyboard() flag is true.

Definition at line 69 of file mouseWatcherRegion.h.

◆ set_keyboard

void MouseWatcherRegion::set_keyboard

inline

Sets whether the region is interested in global keyboard events.

If this is true, then any keyboard button events will be passed to press() and release() regardless of the position of the mouse onscreen; otherwise, these events will only be passed if the mouse is over the region.

Definition at line 70 of file mouseWatcherRegion.h.

◆ set_sort

void MouseWatcherRegion::set_sort

inline

Changes the sorting order of this particular region.

The sorting order is used to resolve conflicts in the case of overlapping region; the region with the highest sort value will be preferred, and between regions of the same sort value, the smallest region will be preferred. The default sorting order, if none is explicitly specified, is 0.

Definition at line 68 of file mouseWatcherRegion.h.

◆ set_suppress_flags

void MouseWatcherRegion::set_suppress_flags

inline

Sets which events are suppressed when the mouse is over the region.

This is the union of zero or more various SF_* values. Normally, this is 0, indicating that no events are suppressed.

If you set this to a non-zero value, for instance SF_mouse_position, then the mouse position will not be sent along the data graph when the mouse is over this particular region.

Definition at line 71 of file mouseWatcherRegion.h.

The documentation for this class was generated from the following files:

panda/src/tform/mouseWatcherRegion.h
panda/src/tform/mouseWatcherRegion.cxx
panda/src/tform/mouseWatcherRegion.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ candidate()

◆ enter_region()

◆ exit_region()

◆ keystroke()

◆ move()

◆ operator<()

◆ press()

◆ release()

◆ within_region()

◆ without_region()

Member Data Documentation

◆ get_active

◆ get_area

◆ get_keyboard

◆ get_sort

◆ get_suppress_flags

◆ set_active

◆ set_keyboard

◆ set_sort

◆ set_suppress_flags
