This class further specializes CachedTypedWritableReferenceCount to also add a node_ref_count, for the purposes of counting the number of times the object is referenced by a "node", presumably a PandaNode. More...

#include "nodeCachedReferenceCount.h"

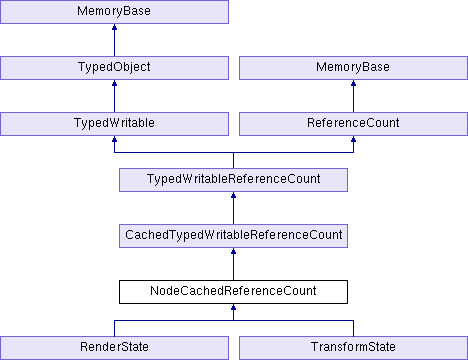

Inheritance diagram for NodeCachedReferenceCount:

Public Types
enum	Referenced { R_node = 0x001, R_cache = 0x002 }

Public Member Functions
int	get_node_ref_count () const
	Returns the current reference count. More...

int	get_referenced_bits () const
	Returns the union of the values defined in the Referenced enum that represents the various things that appear to be holding a pointer to this object. More...

void	node_ref () const
	Explicitly increments the reference count. More...

bool	node_unref () const
	Explicitly decrements the node reference count and the normal reference count simultaneously. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

Public Member Functions inherited from CachedTypedWritableReferenceCount
void	cache_ref () const
	Explicitly increments the cache reference count and the normal reference count simultaneously. More...

void	cache_ref_only () const
	Decrements the cache reference count without affecting the normal reference count. More...

bool	cache_unref () const
	Explicitly decrements the cache reference count and the normal reference count simultaneously. More...

int	get_cache_ref_count () const

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

virtual TypeHandle	force_init_type ()

virtual TypeHandle	get_type () const

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	fillin (DatagramIterator &scan, BamReader *manager)
	This internal function is intended to be called by each class's make_from_bam() method to read in all of the relevant data from the BamFile for the new object. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CachedTypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Additional Inherited Members
Public Attributes inherited from CachedTypedWritableReferenceCount
	get_cache_ref_count
	Returns the current reference count. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This class further specializes CachedTypedWritableReferenceCount to also add a node_ref_count, for the purposes of counting the number of times the object is referenced by a "node", presumably a PandaNode.

This essentially combines the functionality of NodeReferenceCount and CachedTypedWritableReferenceCount, so that a derivative of this object actually has three counters: the standard reference count, the "cache" reference count, and the "node" reference count. Rather than multiply inheriting from the two reference count classes, we inherit only from CachedTypedWritableReferenceCount and simply duplicate the functionality of NodeReferenceCount, to avoid all of the problems associated with multiple inheritance.

The intended design is to use this as a base class for RenderState and TransformState, both of which are held by PandaNodes, and also have caches which are independently maintained. By keeping track of how many nodes hold a pointer to a particular object, we can classify each object into node-referenced, cache-referenced, or other, which is primarily useful for PStats reporting.

As with CachedTypedWritableReferenceCount's cache_ref() and cache_unref(), the new methods node_ref() and node_unref() automatically increment and decrement the primary reference count as well. In this case, however, there does exist a NodePointerTo<> class to maintain the node_ref counters automatically.

Definition at line 49 of file nodeCachedReferenceCount.h.

Member Function Documentation

◆ get_node_ref_count()

int NodeCachedReferenceCount::get_node_ref_count ( ) const

inline

Returns the current reference count.

Definition at line 107 of file nodeCachedReferenceCount.I.

References AtomicAdjustDummyImpl::get(), and test_ref_count_integrity().

Referenced by get_referenced_bits().

◆ get_referenced_bits()

int NodeCachedReferenceCount::get_referenced_bits ( ) const

inline

Returns the union of the values defined in the Referenced enum that represents the various things that appear to be holding a pointer to this object.

If R_node is included, at least one node is holding a pointer; if R_cache is included, at least one cache element is.

Definition at line 167 of file nodeCachedReferenceCount.I.

References CachedTypedWritableReferenceCount::get_cache_ref_count, and get_node_ref_count().

◆ node_ref()

void NodeCachedReferenceCount::node_ref ( ) const

inline

Explicitly increments the reference count.

This function is const, even though it changes the object, because generally fiddling with an object's reference count isn't considered part of fiddling with the object. An object might be const in other ways, but we still need to accurately count the number of references to it.

Definition at line 123 of file nodeCachedReferenceCount.I.
