This represents a unique collection of RenderAttrib objects that correspond to a particular renderable state. More...

#include "renderState.h"

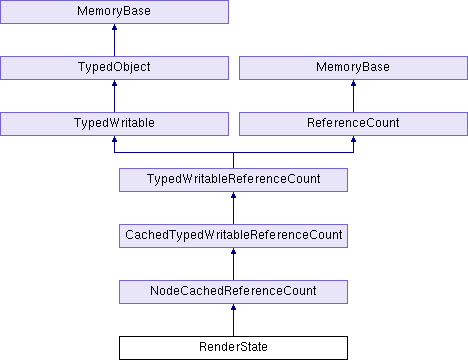

Inheritance diagram for RenderState:

Public Types
typedef RenderAttribRegistry::SlotMask	SlotMask

Public Types inherited from NodeCachedReferenceCount
enum	Referenced { R_node = 0x001, R_cache = 0x002 }

Public Member Functions
virtual	~RenderState ()
	The destructor is responsible for removing the RenderState from the global set if it is there. More...

void	cache_ref () const

bool	cache_unref () const

int	compare_mask (const RenderState &other, SlotMask compare_mask) const
	This version of compare_to takes a slot mask that indicates which attributes to include in the comparison. More...

int	compare_sort (const RenderState &other) const
	Returns -1, 0, or 1 according to the relative sorting of these two RenderStates, with regards to rendering performance, so that "heavier" RenderAttribs (as defined by RenderAttribRegistry::get_slot_sort()) are more likely to be grouped together. More...

int	compare_to (const RenderState &other) const
	Provides an arbitrary ordering among all unique RenderStates, so we can store the essentially different ones in a big set and throw away the rest. More...

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

	CPT (RenderState) compose(const RenderState *other) const

	CPT (RenderState) invert_compose(const RenderState *other) const

	CPT (RenderState) add_attrib(const RenderAttrib *attrib

	CPT (RenderState) set_attrib(const RenderAttrib *attrib) const

	CPT (RenderState) set_attrib(const RenderAttrib *attrib

	CPT (RenderState) remove_attrib(TypeHandle type) const

	CPT (RenderState) remove_attrib(int slot) const

	CPT (RenderState) adjust_all_priorities(int adjustment) const

	CPT (RenderState) get_unique() const

	CPT (RenderAttrib) _generated_shader

bool	cull_callback (CullTraverser *trav, const CullTraverserData &data) const
	Calls cull_callback() on each attrib. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

virtual TypeHandle	force_init_type ()

const RenderAttrib *	get_attrib (TypeHandle type) const

const RenderAttrib *	get_attrib (int slot) const

template<class AttribType >
bool	get_attrib (const AttribType *&attrib) const
	Handy templated version of get_attrib that casts to the right type. More...

template<class AttribType >
bool	get_attrib (CPT(AttribType) &attrib) const

const RenderAttrib *	get_attrib_def (int slot) const

template<class AttribType >
void	get_attrib_def (const AttribType *&attrib) const
	Handy templated version of get_attrib_def that casts to the right type. More...

template<class AttribType >
void	get_attrib_def (CPT(AttribType) &attrib) const

int	get_bin_index () const

size_t	get_composition_cache_num_entries () const

const RenderState *	get_composition_cache_result (size_t n) const

size_t	get_composition_cache_size () const

const RenderState *	get_composition_cache_source (size_t n) const

int	get_draw_order () const

int	get_geom_rendering (int geom_rendering) const
	Returns the union of the Geom::GeomRendering bits that will be required once this RenderState is applied to a geom which includes the indicated geom_rendering bits. More...

size_t	get_hash () const
	Returns a suitable hash value for phash_map. More...

size_t	get_invert_composition_cache_num_entries () const

const RenderState *	get_invert_composition_cache_result (size_t n) const

size_t	get_invert_composition_cache_size () const

const RenderState *	get_invert_composition_cache_source (size_t n) const

int	get_override (TypeHandle type) const

int	get_override (int slot) const

virtual TypeHandle	get_type () const

bool	has_attrib (TypeHandle type) const

bool	has_attrib (int slot) const

bool	has_cull_callback () const
	Returns true if any of the RenderAttribs in this state request a cull_callback(), false if none of them do. More...

bool	is_empty () const
	Returns true if the state is empty, false otherwise. More...

void	node_ref () const

bool	node_unref () const

RenderState &	operator= (const RenderState &copy)=delete

void	output (std::ostream &out) const

virtual bool	unref () const
	Explicitly decrements the reference count. More...

void	write (std::ostream &out, int indent_level) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from NodeCachedReferenceCount
int	get_node_ref_count () const
	Returns the current reference count. More...

int	get_referenced_bits () const
	Returns the union of the values defined in the Referenced enum that represents the various things that appear to be holding a pointer to this object. More...

void	node_ref () const
	Explicitly increments the reference count. More...

bool	node_unref () const
	Explicitly decrements the node reference count and the normal reference count simultaneously. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

Public Member Functions inherited from CachedTypedWritableReferenceCount
void	cache_ref () const
	Explicitly increments the cache reference count and the normal reference count simultaneously. More...

void	cache_ref_only () const
	Decrements the cache reference count without affecting the normal reference count. More...

bool	cache_unref () const
	Explicitly decrements the cache reference count and the normal reference count simultaneously. More...

int	get_cache_ref_count () const

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static void	bin_removed (int bin_index)
	Intended to be called by CullBinManager::remove_bin(), this informs all the RenderStates in the world to remove the indicated bin_index from their cache if it has been cached. More...

static TypedWritable *	change_this (TypedWritable old_ptr, BamReader manager)
	Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired. More...

static int	clear_cache ()
	Empties the cache of composed RenderStates. More...

static void	clear_munger_cache ()
	Completely empties the cache of state + gsg -> munger, for all states and all gsg's. More...

static	CPT (RenderState) make_empty()

static	CPT (RenderState) make(const RenderAttrib *attrib

static	CPT (RenderState) make(const RenderAttrib *attrib1

static	CPT (RenderState) make(const RenderAttrib *attrib1

static	CPT (RenderState) make(const RenderAttrib *attrib1

static	CPT (RenderState) make(const RenderAttrib *attrib1

static	CPT (RenderState) make(const RenderAttrib const attrib

static void	flush_level ()
	Flushes the PStatCollectors used during traversal. More...

static int	garbage_collect ()
	Performs a garbage-collection cycle. More...

static TypeHandle	get_class_type ()

static int	get_max_priority ()

static int	get_num_states ()
	Returns the total number of unique RenderState objects allocated in the world. More...

static int	get_num_unused_states ()
	Returns the total number of RenderState objects that have been allocated but have no references outside of the internal RenderState cache. More...

static void	init_states ()
	Make sure the global _states map is allocated. More...

static void	init_type ()

static void	list_cycles (std::ostream &out)
	Detects all of the reference-count cycles in the cache and reports them to standard output. More...

static void	list_states (std::ostream &out)
	Lists all of the RenderStates in the cache to the output stream, one per line. More...

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type RenderState. More...

static bool	validate_states ()
	Ensures that the cache is still stored in sorted order, and that none of the cache elements have been inadvertently deleted. More...

Static Public Member Functions inherited from NodeCachedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CachedTypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
UpdateSeq	_generated_shader_seq

static const RenderAttrib *	attrib2

static const RenderAttrib const RenderAttrib *	attrib3

static const RenderAttrib const RenderAttrib const RenderAttrib *	attrib4

static const RenderAttrib const RenderAttrib const RenderAttrib const RenderAttrib *	attrib5

int override	const

	get_attrib

	has_attrib

static int	num_attribs

static int	override = 0)

static const RenderAttrib int	override = 0)

static const RenderAttrib const RenderAttrib int	override = 0)

static const RenderAttrib const RenderAttrib const RenderAttrib int	override = 0)

static const RenderAttrib const RenderAttrib const RenderAttrib const RenderAttrib int	override = 0)

static int int	override = 0)

int	override = 0) const

Public Attributes inherited from CachedTypedWritableReferenceCount
	get_cache_ref_count
	Returns the current reference count. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Friends
class	Extension< RenderState >

class	GraphicsStateGuardian

class	RenderAttribRegistry

class	ShaderGenerator

class	StateMunger

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This represents a unique collection of RenderAttrib objects that correspond to a particular renderable state.

You should not attempt to create or modify a RenderState object directly. Instead, call one of the make() functions to create one for you. And instead of modifying a RenderState object, create a new one.

Definition at line 47 of file renderState.h.

Constructor & Destructor Documentation

◆ ~RenderState()

RenderState::~RenderState ( )

virtual

The destructor is responsible for removing the RenderState from the global set if it is there.

Definition at line 115 of file renderState.cxx.

Member Function Documentation

◆ bin_removed()

void RenderState::bin_removed ( int bin_index )

static

Intended to be called by CullBinManager::remove_bin(), this informs all the RenderStates in the world to remove the indicated bin_index from their cache if it has been cached.

Definition at line 1185 of file renderState.cxx.

◆ change_this()

TypedWritable * RenderState::change_this	(	TypedWritable *	old_ptr,
		BamReader *	manager
	)

static

Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired.

Most objects don't change pointers after completion, but some need to.

Once this function has been called, the old pointer will no longer be accessed.

Definition at line 1945 of file renderState.cxx.

◆ clear_cache()

int RenderState::clear_cache ( )

static

Empties the cache of composed RenderStates.

This makes every RenderState forget what results when it is composed with other RenderStates.

This will eliminate any RenderState objects that have been allocated but have no references outside of the internal RenderState map. It will not eliminate RenderState objects that are still in use.

Nowadays, this method should not be necessary, as reference-count cycles in the composition cache should be automatically detected and broken.

The return value is the number of RenderStates freed by this operation.

Definition at line 823 of file renderState.cxx.

References SimpleHashMap< Key, Value, Compare >::get_key(), and SimpleHashMap< Key, Value, Compare >::get_num_entries().

◆ clear_munger_cache()

void RenderState::clear_munger_cache ( )

static

Completely empties the cache of state + gsg -> munger, for all states and all gsg's.

Normally there is no need to empty this cache.

Definition at line 980 of file renderState.cxx.

References SimpleHashMap< Key, Value, Compare >::clear(), SimpleHashMap< Key, Value, Compare >::get_key(), and SimpleHashMap< Key, Value, Compare >::get_num_entries().

◆ compare_mask()

int RenderState::compare_mask	(	const RenderState &	other,
		SlotMask	compare_mask
	)		const

This version of compare_to takes a slot mask that indicates which attributes to include in the comparison.

Unlike compare_to, this method compares the attributes by pointer.

Definition at line 192 of file renderState.cxx.

References BitMask< WType, nbits >::clear_bit(), and BitMask< WType, nbits >::get_lowest_on_bit().

◆ compare_sort()

int RenderState::compare_sort ( const RenderState & other ) const

Returns -1, 0, or 1 according to the relative sorting of these two RenderStates, with regards to rendering performance, so that "heavier" RenderAttribs (as defined by RenderAttribRegistry::get_slot_sort()) are more likely to be grouped together.

This is not related to the sorting order defined by compare_to.

Definition at line 164 of file renderState.cxx.

References RenderAttribRegistry::get_num_sorted_slots(), RenderAttribRegistry::get_sorted_slot(), and RenderAttribRegistry::quick_get_global_ptr().

◆ compare_to()

int RenderState::compare_to ( const RenderState & other ) const

Provides an arbitrary ordering among all unique RenderStates, so we can store the essentially different ones in a big set and throw away the rest.

This method is not needed outside of the RenderState class because all equivalent RenderState objects are guaranteed to share the same pointer; thus, a pointer comparison is always sufficient.

Definition at line 141 of file renderState.cxx.

References BitMask< WType, nbits >::clear_bit(), and BitMask< WType, nbits >::get_lowest_on_bit().

◆ complete_pointers()

int RenderState::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 1910 of file renderState.cxx.

◆ cull_callback()

bool RenderState::cull_callback	(	CullTraverser *	trav,
		const CullTraverserData &	data
	)		const

Calls cull_callback() on each attrib.

If any attrib returns false, interrupts the list and returns false immediately; otherwise, completes the list and returns true.

Definition at line 214 of file renderState.cxx.

◆ finalize()

void RenderState::finalize ( BamReader * manager )

virtual

Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed.

Reimplemented from TypedWritable.

Definition at line 1970 of file renderState.cxx.

References unref().

◆ flush_level()

void RenderState::flush_level ( )

inlinestatic

Flushes the PStatCollectors used during traversal.

Definition at line 479 of file renderState.I.

◆ garbage_collect()

int RenderState::garbage_collect ( )

static

Performs a garbage-collection cycle.

This must be called periodically if garbage-collect-states is true to ensure that RenderStates get cleaned up appropriately. It does no harm to call it even if this variable is not true, but there is probably no advantage in that case.

This automatically calls RenderAttrib::garbage_collect() as well.

Definition at line 895 of file renderState.cxx.

References RenderAttrib::garbage_collect().

◆ get_attrib()

template<class AttribType >

bool RenderState::get_attrib ( const AttribType *& attrib ) const

inline

Handy templated version of get_attrib that casts to the right type.

Returns true if the attribute was present, false otherwise.

Definition at line 491 of file renderState.I.

◆ get_attrib_def()

template<class AttribType >

void RenderState::get_attrib_def ( const AttribType *& attrib ) const

inline

Handy templated version of get_attrib_def that casts to the right type.

Definition at line 507 of file renderState.I.

◆ get_geom_rendering()

int RenderState::get_geom_rendering ( int geom_rendering ) const

Returns the union of the Geom::GeomRendering bits that will be required once this RenderState is applied to a geom which includes the indicated geom_rendering bits.

Definition at line 1161 of file renderState.cxx.

References TexMatrixAttrib::get_geom_rendering(), TexGenAttrib::get_geom_rendering(), and RenderModeAttrib::get_geom_rendering().

◆ get_hash()

size_t RenderState::get_hash ( ) const

inline

Returns a suitable hash value for phash_map.

Definition at line 18 of file renderState.I.

◆ get_num_states()

int RenderState::get_num_states ( )

static

Returns the total number of unique RenderState objects allocated in the world.

This will go up and down during normal operations.

Definition at line 718 of file renderState.cxx.

References SimpleHashMap< Key, Value, Compare >::get_num_entries().

◆ get_num_unused_states()

int RenderState::get_num_unused_states ( )

static

Returns the total number of RenderState objects that have been allocated but have no references outside of the internal RenderState cache.

A nonzero return value is not necessarily indicative of leaked references; it is normal for two RenderState objects, both of which have references held outside the cache, to have to result of their composition stored within the cache. This result will be retained within the cache until one of the base RenderStates is released.

Use list_cycles() to get an idea of the number of actual "leaked" RenderState objects.

Definition at line 740 of file renderState.cxx.

References SimpleHashMap< Key, Value, Compare >::get_key(), and SimpleHashMap< Key, Value, Compare >::get_num_entries().

◆ has_cull_callback()

bool RenderState::has_cull_callback ( ) const

inline

Returns true if any of the RenderAttribs in this state request a cull_callback(), false if none of them do.

Definition at line 36 of file renderState.I.

◆ init_states()

void RenderState::init_states ( )

static

Make sure the global _states map is allocated.

This only has to be done once. We could make this map static, but then we run into problems if anyone creates a RenderState object at static init time; it also seems to cause problems when the Panda shared library is unloaded at application exit time.

Definition at line 1851 of file renderState.cxx.

References CacheStats::init().

Referenced by init_libpgraph().

◆ is_empty()

bool RenderState::is_empty ( ) const

inline

Returns true if the state is empty, false otherwise.

Definition at line 27 of file renderState.I.

References BitMask< WType, nbits >::is_zero().

◆ list_cycles()

void RenderState::list_cycles ( std::ostream & out )

static

Detects all of the reference-count cycles in the cache and reports them to standard output.

These cycles may be inadvertently created when state compositions cycle back to a starting point. Nowadays, these cycles should be automatically detected and broken, so this method should never list any cycles unless there is a bug in that detection logic.

The cycles listed here are not leaks in the strictest sense of the word, since they can be reclaimed by a call to clear_cache(); but they will not be reclaimed automatically.

Definition at line 1006 of file renderState.cxx.

References SimpleHashMap< Key, Value, Compare >::get_key(), SimpleHashMap< Key, Value, Compare >::get_num_entries(), and ReferenceCount::get_ref_count.

◆ list_states()

void RenderState::list_states ( std::ostream & out )

static

Lists all of the RenderStates in the cache to the output stream, one per line.

This can be quite a lot of output if the cache is large, so be prepared.

Definition at line 1083 of file renderState.cxx.

References SimpleHashMap< Key, Value, Compare >::get_key(), and SimpleHashMap< Key, Value, Compare >::get_num_entries().

◆ register_with_read_factory()

void RenderState::register_with_read_factory ( )

static

Tells the BamReader how to create objects of type RenderState.

Definition at line 1874 of file renderState.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

Referenced by init_libpgraph().

◆ unref()

virtual bool RenderState::unref ( ) const

virtual

Explicitly decrements the reference count.

Note that the object will not be implicitly deleted by unref() simply because the reference count drops to zero. (Having a member function delete itself is problematic.) However, see the helper function unref_delete().

User code should avoid using ref() and unref() directly, which can result in missed reference counts. Instead, let a PointerTo object manage the reference counting automatically.

This function is const, even though it changes the object, because generally fiddling with an object's reference count isn't considered part of fiddling with the object. An object might be const in other ways, but we still need to accurately count the number of references to it.

The return value is true if the new reference count is nonzero, false if it is zero.

Reimplemented from ReferenceCount.

Referenced by finalize().

◆ validate_states()

bool RenderState::validate_states ( )

static

Ensures that the cache is still stored in sorted order, and that none of the cache elements have been inadvertently deleted.

Returns true if so, false if there is a problem (which implies someone has modified one of the supposedly-const RenderState objects).

Definition at line 1105 of file renderState.cxx.

References SimpleHashMap< Key, Value, Compare >::get_num_entries(), SimpleHashMap< Key, Value, Compare >::is_empty(), and SimpleHashMap< Key, Value, Compare >::validate().

◆ write_datagram()

void RenderState::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from TypedWritable.

Definition at line 1883 of file renderState.cxx.

References BitMask< WType, nbits >::get_num_on_bits(), and TypedWritable::write_datagram().

The documentation for this class was generated from the following files:

panda/src/pgraph/renderState.h
panda/src/pgraph/renderState.cxx
panda/src/pgraph/renderState.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~RenderState()

Member Function Documentation

◆ bin_removed()

◆ change_this()

◆ clear_cache()

◆ clear_munger_cache()

◆ compare_mask()

◆ compare_sort()

◆ compare_to()

◆ complete_pointers()

◆ cull_callback()

◆ finalize()

◆ flush_level()

◆ garbage_collect()

◆ get_attrib()

◆ get_attrib_def()

◆ get_geom_rendering()

◆ get_hash()

◆ get_num_states()

◆ get_num_unused_states()

◆ has_cull_callback()

◆ init_states()

◆ is_empty()

◆ list_cycles()

◆ list_states()

◆ register_with_read_factory()

◆ unref()

◆ validate_states()

◆ write_datagram()
