This is a generic buffer object that lives in graphics memory. More...

#include "shaderBuffer.h"

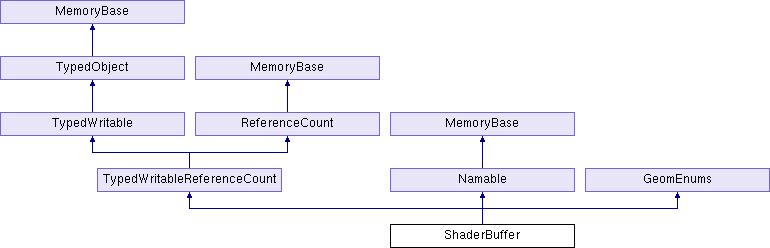

Inheritance diagram for ShaderBuffer:

Public Member Functions
	ShaderBuffer (const std::string &name, uint64_t size, UsageHint usage_hint)
	Creates an uninitialized buffer object with the given size. More...

	ShaderBuffer (const std::string &name, vector_uchar initial_data, UsageHint usage_hint)
	Creates a buffer object initialized with the given data. More...

	~ShaderBuffer ()
	Destructor. More...

virtual TypeHandle	force_init_type ()

uint64_t	get_data_size_bytes () const

const unsigned char *	get_initial_data () const
	Returns a pointer to the initial buffer data, or NULL if not specified. More...

virtual TypeHandle	get_type () const

UsageHint	get_usage_hint () const

bool	is_prepared (PreparedGraphicsObjects *prepared_objects) const
	Returns true if the data has already been prepared or enqueued for preparation on the indicated GSG, false otherwise. More...

virtual void	output (std::ostream &out) const

void	prepare (PreparedGraphicsObjects *prepared_objects)
	Indicates that the data should be enqueued to be prepared in the indicated prepared_objects at the beginning of the next frame. More...

BufferContext *	prepare_now (PreparedGraphicsObjects prepared_objects, GraphicsStateGuardianBase gsg)
	Creates a context for the data on the particular GSG, if it does not already exist. More...

bool	release (PreparedGraphicsObjects *prepared_objects)
	Frees the data context only on the indicated object, if it exists there. More...

int	release_all ()
	Frees the context allocated on all objects for which the data has been declared. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type ParamValue. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_data_size_bytes
	Returns the buffer size in bytes. More...

	get_usage_hint
	Returns the buffer usage hint. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Friends
class	PreparedGraphicsObjects

Additional Inherited Members
Public Types inherited from GeomEnums
enum	AnimationType { AT_none, AT_panda, AT_hardware }

enum	Contents { C_other, C_point, C_clip_point, C_vector, C_texcoord, C_color, C_index, C_morph_delta, C_matrix, C_normal }

enum	GeomRendering { GR_indexed_point = 0x00001, GR_indexed_other = 0x10000, GR_indexed_bits = 0x10001, GR_point = 0x00002, GR_point_uniform_size = 0x00004, GR_per_point_size = 0x00008, GR_point_perspective = 0x00010, GR_point_aspect_ratio = 0x00020, GR_point_scale = 0x00040, GR_point_rotate = 0x00080, GR_point_sprite = 0x00100, GR_point_sprite_tex_matrix = 0x00200, GR_point_bits = 0x003fe, GR_triangle_strip = 0x00400, GR_triangle_fan = 0x00800, GR_line_strip = 0x01000, GR_composite_bits = 0x01c00, GR_strip_cut_index = 0x20000, GR_flat_first_vertex = 0x02000, GR_flat_last_vertex = 0x04000, GR_shade_model_bits = 0x06000, GR_render_mode_wireframe = 0x40000, GR_render_mode_point = 0x80000, GR_adjacency = 0x100000 }

enum	NumericType { NT_uint8, NT_uint16, NT_uint32, NT_packed_dcba, NT_packed_dabc, NT_float32, NT_float64, NT_stdfloat, NT_int8, NT_int16, NT_int32, NT_packed_ufloat }

enum	PrimitiveType { PT_none, PT_polygons, PT_lines, PT_points, PT_patches }

enum	ShadeModel { SM_uniform, SM_smooth, SM_flat_first_vertex, SM_flat_last_vertex }

enum	UsageHint { UH_client, UH_stream, UH_dynamic, UH_static, UH_unspecified }

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is a generic buffer object that lives in graphics memory.

Since: 1.10.0

Definition at line 33 of file shaderBuffer.h.

Constructor & Destructor Documentation

◆ ~ShaderBuffer()

ShaderBuffer::~ShaderBuffer ( )

Destructor.

Definition at line 23 of file shaderBuffer.cxx.

References release_all().

◆ ShaderBuffer() [1/2]

ShaderBuffer::ShaderBuffer	(	const std::string &	name,
		uint64_t	size,
		UsageHint	usage_hint
	)

inlineexplicit

Creates an uninitialized buffer object with the given size.

For now, these parameters cannot be modified, but this may change in the future.

Definition at line 19 of file shaderBuffer.I.

◆ ShaderBuffer() [2/2]

ShaderBuffer::ShaderBuffer	(	const std::string &	name,
		vector_uchar	initial_data,
		UsageHint	usage_hint
	)

inlineexplicit

Creates a buffer object initialized with the given data.

For now, these parameters cannot be modified, but this may change in the future.

Definition at line 30 of file shaderBuffer.I.

Member Function Documentation

◆ get_initial_data()

const unsigned char * ShaderBuffer::get_initial_data ( ) const

inline

Returns a pointer to the initial buffer data, or NULL if not specified.

Definition at line 63 of file shaderBuffer.I.

◆ is_prepared()

bool ShaderBuffer::is_prepared ( PreparedGraphicsObjects * prepared_objects ) const

Returns true if the data has already been prepared or enqueued for preparation on the indicated GSG, false otherwise.

Definition at line 53 of file shaderBuffer.cxx.

References PreparedGraphicsObjects::is_shader_buffer_queued().

◆ prepare()

void ShaderBuffer::prepare ( PreparedGraphicsObjects * prepared_objects )

Indicates that the data should be enqueued to be prepared in the indicated prepared_objects at the beginning of the next frame.

This will ensure the data is already loaded into the GSG if it is expected to be rendered soon.

Use this function instead of prepare_now() to preload datas from a user interface standpoint.

Definition at line 44 of file shaderBuffer.cxx.

References PreparedGraphicsObjects::enqueue_shader_buffer().

◆ prepare_now()

BufferContext * ShaderBuffer::prepare_now	(	PreparedGraphicsObjects *	prepared_objects,
		GraphicsStateGuardianBase *	gsg
	)

Creates a context for the data on the particular GSG, if it does not already exist.

Returns the new (or old) BufferContext. This assumes that the GraphicsStateGuardian is the currently active rendering context and that it is ready to accept new datas. If this is not necessarily the case, you should use prepare() instead.

Normally, this is not called directly except by the GraphicsStateGuardian; a data does not need to be explicitly prepared by the user before it may be rendered.

Definition at line 77 of file shaderBuffer.cxx.

References PreparedGraphicsObjects::prepare_shader_buffer_now().

◆ register_with_read_factory()

void ShaderBuffer::register_with_read_factory ( )

static

Tells the BamReader how to create objects of type ParamValue.

Definition at line 175 of file shaderBuffer.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

◆ release()

bool ShaderBuffer::release ( PreparedGraphicsObjects * prepared_objects )

Frees the data context only on the indicated object, if it exists there.

Returns true if it was released, false if it had not been prepared.

Definition at line 100 of file shaderBuffer.cxx.

References PreparedGraphicsObjects::dequeue_shader_buffer(), and PreparedGraphicsObjects::release_shader_buffer().

◆ release_all()

int ShaderBuffer::release_all ( )

Frees the context allocated on all objects for which the data has been declared.

Returns the number of contexts which have been freed.

Definition at line 120 of file shaderBuffer.cxx.

References PreparedGraphicsObjects::release_shader_buffer().

Referenced by ~ShaderBuffer().

◆ write_datagram()

void ShaderBuffer::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from TypedWritable.

Definition at line 184 of file shaderBuffer.cxx.

References Datagram::add_bool(), Datagram::add_string(), Datagram::add_uint64(), Datagram::add_uint8(), Datagram::append_data(), and PreparedGraphicsObjects::get_name().

Member Data Documentation

◆ get_data_size_bytes

uint64_t ShaderBuffer::get_data_size_bytes

inline

Returns the buffer size in bytes.

Definition at line 51 of file shaderBuffer.h.

◆ get_usage_hint

GeomEnums::UsageHint ShaderBuffer::get_usage_hint

inline

Returns the buffer usage hint.

Definition at line 52 of file shaderBuffer.h.

The documentation for this class was generated from the following files:

panda/src/gobj/shaderBuffer.h
panda/src/gobj/shaderBuffer.cxx
panda/src/gobj/shaderBuffer.I

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~ShaderBuffer()

◆ ShaderBuffer() [1/2]

◆ ShaderBuffer() [2/2]

Member Function Documentation

◆ get_initial_data()

◆ is_prepared()

◆ prepare()

◆ prepare_now()

◆ register_with_read_factory()

◆ release()

◆ release_all()

◆ write_datagram()

Member Data Documentation

◆ get_data_size_bytes

◆ get_usage_hint
