SimpleLruPage Class Reference

One atomic piece that may be managed by a SimpleLru chain. More...

#include "simpleLru.h"

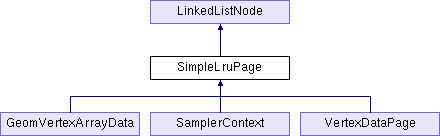

Inheritance diagram for SimpleLruPage:

Public Member Functions
	SimpleLruPage (size_t lru_size)
	SimpleLruPage (const SimpleLruPage &copy)
void	dequeue_lru ()
	Removes the page from its SimpleLru. More...
void	enqueue_lru (SimpleLru *lru)
	Adds the page to the LRU for the first time, or marks it recently-accessed if it has already been added. More...
virtual void	evict_lru ()
	Evicts the page from the LRU. More...
SimpleLru *	get_lru () const
	Returns the LRU that manages this page, or NULL if it is not currently managed by any LRU. More...
size_t	get_lru_size () const
	Returns the size of this page as reported to the LRU, presumably in bytes. More...
void	mark_used_lru () const
	To be called when the page is used; this will move it to the tail of the SimpleLru queue it is already on. More...
void	mark_used_lru (SimpleLru *lru)
	To be called when the page is used; this will move it to the tail of the specified SimpleLru queue. More...
void	operator= (const SimpleLruPage &copy)
virtual void	output (std::ostream &out) const
void	set_lru_size (size_t lru_size)
	Specifies the size of this page, presumably in bytes, although any unit is possible. More...
virtual void	write (std::ostream &out, int indent_level) const

Friends
class	SimpleLru

Detailed Description

One atomic piece that may be managed by a SimpleLru chain.

To use this class, inherit from it and override evict_lru().

Definition at line 65 of file simpleLru.h.

Member Function Documentation

dequeue_lru()

void SimpleLruPage::dequeue_lru ( )

inline

Removes the page from its SimpleLru.

Definition at line 134 of file simpleLru.I.

Referenced by evict_lru(), and GeomVertexArrayData::evict_lru().

enqueue_lru()

void SimpleLruPage::enqueue_lru

(

SimpleLru *

lru

)

Adds the page to the LRU for the first time, or marks it recently-accessed if it has already been added.

If lru is NULL, it means to remove this page from its LRU.

Definition at line 64 of file simpleLru.cxx.

Referenced by SimpleLru::begin_epoch(), and mark_used_lru().

evict_lru()

void SimpleLruPage::evict_lru ( )

virtual

Evicts the page from the LRU.

Called internally when the LRU determines that it is full. May also be called externally when necessary to explicitly evict the page.

It is legal for this method to either evict the page as requested, do nothing (in which case the eviction will be requested again at the next epoch), or requeue itself on the tail of the queue (in which case the eviction will be requested again much later).

Reimplemented in GeomVertexArrayData.

Definition at line 229 of file simpleLru.cxx.

References dequeue_lru().

get_lru()

SimpleLru * SimpleLruPage::get_lru ( ) const

inline

Returns the LRU that manages this page, or NULL if it is not currently managed by any LRU.

Definition at line 125 of file simpleLru.I.

get_lru_size()

size_t SimpleLruPage::get_lru_size ( ) const

inline

Returns the size of this page as reported to the LRU, presumably in bytes.

Definition at line 171 of file simpleLru.I.

mark_used_lru() [1/2]

void SimpleLruPage::mark_used_lru ( ) const

inline

To be called when the page is used; this will move it to the tail of the SimpleLru queue it is already on.

This method is const because it's not technically modifying the contents of the page itself.

Definition at line 152 of file simpleLru.I.

Referenced by VertexDataPage::get_page_data(), and GeomVertexArrayData::operator=().

mark_used_lru() [2/2]

void SimpleLruPage::mark_used_lru ( SimpleLru *  lru )

inline

To be called when the page is used; this will move it to the tail of the specified SimpleLru queue.

Definition at line 163 of file simpleLru.I.

References enqueue_lru().

set_lru_size()

void SimpleLruPage::set_lru_size ( size_t  lru_size )

inline

Specifies the size of this page, presumably in bytes, although any unit is possible.

Definition at line 180 of file simpleLru.I.

---

The documentation for this class was generated from the following files:

• panda/src/gobj/simpleLru.h
• panda/src/gobj/simpleLru.cxx
• panda/src/gobj/simpleLru.I
