Stores the total set of VertexSliders that the vertices in a particular GeomVertexData object might depend on. More...

#include "sliderTable.h"

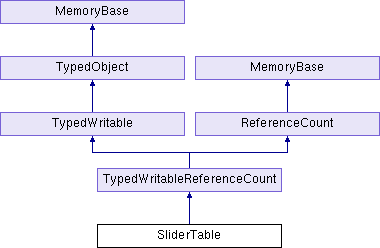

Inheritance diagram for SliderTable:

Public Member Functions
	SliderTable (const SliderTable &copy)

size_t	add_slider (const VertexSlider *slider, const SparseArray &rows)
	Adds a new slider to the table, and returns the index number of the new slider. More...

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

const SparseArray &	find_sliders (const InternalName *name) const
	Returns a list of slider indices that represent the list of sliders with the indicated name, or an empty SparseArray if no slider in the table has that name. More...

virtual TypeHandle	force_init_type ()

UpdateSeq	get_modified (Thread *current_thread=Thread::get_current_thread()) const

size_t	get_num_sliders () const

const VertexSlider *	get_slider (size_t n) const

const SparseArray &	get_slider_rows (size_t n) const
	Returns the set of rows (vertices) governed by the nth slider in the table. More...

virtual TypeHandle	get_type () const

bool	has_slider (const InternalName *name) const
	Returns true if the table has at least one slider by the indicated name, false otherwise. More...

bool	is_empty () const
	Returns true if the table has no sliders, false if it has at least one. More...

bool	is_registered () const
	Returns true if this table has been registered. More...

void	operator= (const SliderTable &copy)

void	remove_slider (size_t n)
	Removes the nth slider. More...

void	set_slider (size_t n, const VertexSlider *slider)
	Replaces the nth slider. More...

void	set_slider_rows (size_t n, const SparseArray &rows)
	Replaces the rows affected by the nth slider. More...

void	write (std::ostream &out) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static	CPT (SliderTable) register_table(const SliderTable *table)

static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type SliderTable. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_modified
	Returns a sequence number that's guaranteed to change at least when any VertexSliders in the table change. More...

	get_num_sliders
	Returns the number of sliders in the table. More...

	get_slider
	Returns the nth slider in the table. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Friends
class	VertexSlider

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Stores the total set of VertexSliders that the vertices in a particular GeomVertexData object might depend on.

This is similar to a TransformTable, but it stores VertexSliders instead of VertexTransforms, and it stores them by name instead of by index number. Also, it is only used when animating vertices on the CPU, since GPU's don't support morphs at this point in time.

Definition at line 37 of file sliderTable.h.

Member Function Documentation

◆ add_slider()

size_t SliderTable::add_slider	(	const VertexSlider *	slider,
		const SparseArray &	rows
	)

Adds a new slider to the table, and returns the index number of the new slider.

Only valid for unregistered tables.

Definition at line 109 of file sliderTable.cxx.

◆ complete_pointers()

int SliderTable::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 198 of file sliderTable.cxx.

◆ find_sliders()

const SparseArray & SliderTable::find_sliders ( const InternalName * name ) const

inline

Returns a list of slider indices that represent the list of sliders with the indicated name, or an empty SparseArray if no slider in the table has that name.

Definition at line 81 of file sliderTable.I.

Referenced by has_slider().

◆ get_slider_rows()

const SparseArray & SliderTable::get_slider_rows ( size_t n ) const

inline

Returns the set of rows (vertices) governed by the nth slider in the table.

Definition at line 70 of file sliderTable.I.

◆ has_slider()

bool SliderTable::has_slider ( const InternalName * name ) const

inline

Returns true if the table has at least one slider by the indicated name, false otherwise.

Definition at line 95 of file sliderTable.I.

References find_sliders().

◆ is_empty()

bool SliderTable::is_empty ( ) const

inline

Returns true if the table has no sliders, false if it has at least one.

Definition at line 103 of file sliderTable.I.

◆ is_registered()

bool SliderTable::is_registered ( ) const

inline

Returns true if this table has been registered.

Once it has been registered, the set of sliders in a SliderTable may not be further modified; but it must be registered before it can be assigned to a Geom.

Definition at line 20 of file sliderTable.I.

◆ register_with_read_factory()

void SliderTable::register_with_read_factory ( )

static

Tells the BamReader how to create objects of type SliderTable.

Definition at line 170 of file sliderTable.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

◆ remove_slider()

void SliderTable::remove_slider ( size_t n )

Removes the nth slider.

Only valid for unregistered tables.

Definition at line 96 of file sliderTable.cxx.

◆ set_slider()

void SliderTable::set_slider	(	size_t	n,
		const VertexSlider *	slider
	)

Replaces the nth slider.

Only valid for unregistered tables.

Definition at line 66 of file sliderTable.cxx.

◆ set_slider_rows()

void SliderTable::set_slider_rows	(	size_t	n,
		const SparseArray &	rows
	)

Replaces the rows affected by the nth slider.

Only valid for unregistered tables.

Definition at line 83 of file sliderTable.cxx.

◆ write_datagram()

void SliderTable::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from TypedWritable.

Definition at line 179 of file sliderTable.cxx.

References Datagram::add_uint16(), BamWriter::write_cdata(), TypedWritable::write_datagram(), and BamWriter::write_pointer().

Member Data Documentation

◆ get_modified

UpdateSeq SliderTable::get_modified

inline

Returns a sequence number that's guaranteed to change at least when any VertexSliders in the table change.

(However, this is only true for a registered table. An unregistered table may or may not reflect an update here when a VertexSlider changes.)

Definition at line 56 of file sliderTable.h.

◆ get_num_sliders

size_t SliderTable::get_num_sliders

inline

Returns the number of sliders in the table.

Definition at line 49 of file sliderTable.h.

◆ get_slider

const VertexSlider * SliderTable::get_slider

inline

Returns the nth slider in the table.

Definition at line 49 of file sliderTable.h.

The documentation for this class was generated from the following files:

panda/src/gobj/sliderTable.h
panda/src/gobj/sliderTable.cxx
panda/src/gobj/sliderTable.I
