This special bounding volume is the union of all of its constituent bounding volumes. More...
#include "unionBoundingVolume.h"

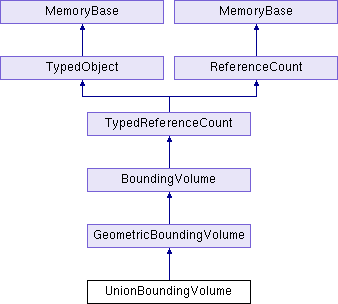

Inheritance diagram for UnionBoundingVolume:
Public Member Functions | |
| UnionBoundingVolume () | |
| Constructs an empty union. More... | |
| UnionBoundingVolume (const UnionBoundingVolume ©) | |
| void | add_component (const GeometricBoundingVolume *component) |
| Adds a new component to the volume. More... | |
| void | clear_components () |
| Removes all components from the volume. More... | |
| void | filter_intersection (const BoundingVolume *volume) |
| Removes from the union any components that have no intersection with the indicated volume. More... | |
| virtual TypeHandle | force_init_type () |
| virtual LPoint3 | get_approx_center () const |
| const GeometricBoundingVolume * | get_component (int n) const |
| int | get_num_components () const |
| virtual TypeHandle | get_type () const |
| virtual BoundingVolume * | make_copy () const |
| virtual void | output (std::ostream &out) const |
| virtual void | write (std::ostream &out, int indent_level) const |
| virtual void | xform (const LMatrix4 &mat) |
 Public Member Functions inherited from GeometricBoundingVolume | |
| bool | around (const GeometricBoundingVolume **first, const GeometricBoundingVolume **last) |
| Resets the volume to enclose only the volumes indicated. More... | |
| bool | around (const LPoint3 *first, const LPoint3 *last) |
| Resets the volume to enclose only the points indicated. More... | |
| virtual GeometricBoundingVolume * | as_geometric_bounding_volume () final |
| Virtual downcast method. More... | |
| virtual const GeometricBoundingVolume * | as_geometric_bounding_volume () const final |
| Virtual downcast method. More... | |
| int | contains (const GeometricBoundingVolume *vol) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated volume. More... | |
| int | contains (const LPoint3 &point) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated point. More... | |
| int | contains (const LPoint3 &a, const LPoint3 &b) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated line segment. More... | |
| bool | extend_by (const GeometricBoundingVolume *vol) |
| Increases the size of the volume to include the given volume. More... | |
| bool | extend_by (const LPoint3 &point) |
| Increases the size of the volume to include the given point. More... | |
| Public Member Functions inherited from BoundingVolume | |
| bool | around (const BoundingVolume **first, const BoundingVolume **last) |
| Resets the volume to enclose only the volumes indicated. More... | |
| virtual const BoundingBox * | as_bounding_box () const |
| Virtual downcast method. More... | |
| virtual const BoundingHexahedron * | as_bounding_hexahedron () const |
| Virtual downcast method. More... | |
| virtual const BoundingLine * | as_bounding_line () const |
| Virtual downcast method. More... | |
| virtual const BoundingPlane * | as_bounding_plane () const |
| Virtual downcast method. More... | |
| virtual const BoundingSphere * | as_bounding_sphere () const |
| Virtual downcast method. More... | |
| virtual const FiniteBoundingVolume * | as_finite_bounding_volume () const |
| Virtual downcast method. More... | |
| int | contains (const BoundingVolume *vol) const |
| Returns the appropriate set of IntersectionFlags to indicate the amount of intersection with the indicated volume. More... | |
| bool | extend_by (const BoundingVolume *vol) |
| Increases the size of the volume to include the given volume. More... | |
| bool | is_empty () const |
| Any kind of volume might be empty. More... | |
| bool | is_infinite () const |
| The other side of the empty coin is an infinite volume. More... | |
| void | set_infinite () |
| Marks the volume as infinite, even if it is normally finite. More... | |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from GeometricBoundingVolume | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from BoundingVolume | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static BoundsType | string_bounds_type (const std::string &str) |
| Returns the BoundsType corresponding to the indicated string. More... | |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Public Attributes | |
| get_component | |
| Returns the nth component in the union. More... | |
| get_num_components | |
| Returns the number of components in the union. More... | |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Friends | |
| class | BoundingVolume |
Additional Inherited Members | |
| Public Types inherited from BoundingVolume | |
| enum | BoundsType { BT_default, BT_best, BT_sphere, BT_box, BT_fastest } |
| enum | IntersectionFlags { IF_no_intersection = 0, IF_possible = 0x01, IF_some = 0x02, IF_all = 0x04, IF_dont_understand = 0x08 } |
Detailed Description
This special bounding volume is the union of all of its constituent bounding volumes.
A point is defined to be within a UnionBoundingVolume if it is within any one or more of its component bounding volumes.
Definition at line 29 of file unionBoundingVolume.h.
Constructor & Destructor Documentation
◆ UnionBoundingVolume()
|
inline |
Constructs an empty union.
Definition at line 18 of file unionBoundingVolume.I.
Member Function Documentation
◆ add_component()
| void UnionBoundingVolume::add_component | ( | const GeometricBoundingVolume * | component | ) |
Adds a new component to the volume.
This does not necessarily increase the total number of components by one, and you may or may not be able to find this component in the volume by a subsequent call to get_component(); certain optimizations may prevent the component from being added, or have other unexpected effects on the total set of components.
Definition at line 130 of file unionBoundingVolume.cxx.
References BoundingVolume::is_empty(), and BoundingVolume::is_infinite().
◆ clear_components()
| void UnionBoundingVolume::clear_components | ( | ) |
Removes all components from the volume.
Definition at line 117 of file unionBoundingVolume.cxx.
◆ filter_intersection()
| void UnionBoundingVolume::filter_intersection | ( | const BoundingVolume * | volume | ) |
Removes from the union any components that have no intersection with the indicated volume.
Definition at line 170 of file unionBoundingVolume.cxx.
Member Data Documentation
◆ get_component
|
inline |
Returns the nth component in the union.
Definition at line 48 of file unionBoundingVolume.h.
◆ get_num_components
|
inline |
Returns the number of components in the union.
Definition at line 48 of file unionBoundingVolume.h.
The documentation for this class was generated from the following files:
- panda/src/mathutil/unionBoundingVolume.h
- panda/src/mathutil/unionBoundingVolume.cxx
- panda/src/mathutil/unionBoundingVolume.I
