A single node of an X file. More...

#include "xFileNode.h"

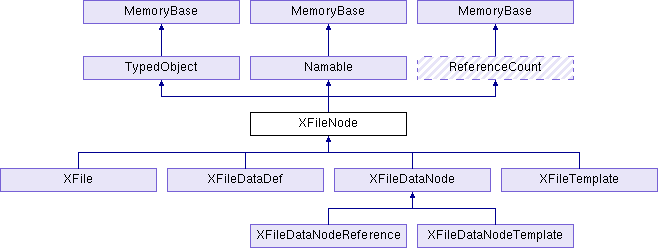

Inheritance diagram for XFileNode:

Public Types
typedef pmap< const XFileDataDef , XFileDataObject >	PrevData

Public Member Functions
	XFileNode (XFile *x_file, const std::string &name)

void	add_child (XFileNode *node)
	Adds the indicated node as a child of this node. More...

XFileDataNode *	add_Frame (const std::string &name)
	Creates a new Frame instance, as a child of this node. More...

XFileDataNode *	add_FrameTransformMatrix (const LMatrix4d &mat)
	Creates a new FrameTransformMatrix instance, as a child of this node. More...

XFileDataNode *	add_Material (const std::string &name, const LColor &face_color, double power, const LRGBColor &specular_color, const LRGBColor &emissive_color)
	Creates a new Material instance, as a child of this node. More...

XFileDataNode *	add_Mesh (const std::string &name)
	Creates a new Mesh instance, as a child of this node. More...

XFileDataNode *	add_MeshMaterialList (const std::string &name)
	Creates a new MeshMaterialList instance, as a child of this node. More...

XFileDataNode *	add_MeshNormals (const std::string &name)
	Creates a new MeshNormals instance, as a child of this node. More...

XFileDataNode *	add_MeshTextureCoords (const std::string &name)
	Creates a new MeshTextureCoords instance, as a child of this node. More...

XFileDataNode *	add_MeshVertexColors (const std::string &name)
	Creates a new MeshVertexColors instance, as a child of this node. More...

XFileDataNode *	add_TextureFilename (const std::string &name, const Filename &filename)
	Creates a new TextureFilename instance, as a child of this node. More...

virtual void	clear ()
	Removes all children from the node, and otherwise resets it to its initial state. More...

virtual bool	fill_zero_data (XFileDataObject *object) const
	This is similar to repack_data(), except it is used to fill the initial values for a newly-created template object to zero. More...

XFileNode *	find_child (const std::string &name) const
	Returns the child with the indicated name, if any, or NULL if none. More...

int	find_child_index (const std::string &name) const
	Returns the index number of the child with the indicated name, if any, or -1 if none. More...

int	find_child_index (const XFileNode *child) const
	Returns the index number of the indicated child, or -1 if none. More...

XFileNode *	find_descendent (const std::string &name) const
	Returns the first child or descendent found with the indicated name after a depth-first search, if any, or NULL if none. More...

virtual TypeHandle	force_init_type ()

XFileNode *	get_child (int n) const
	Returns the nth child of this node. More...

virtual const WindowsGuid &	get_guid () const
	If has_guid() returned true, returns the particular GUID associated with this node. More...

int	get_num_children () const
	Returns the list of children of this node. More...

int	get_num_objects () const
	Returns the list of child objects of this node. More...

XFileDataNode *	get_object (int n) const
	Returns the nth child object of this node. More...

virtual TypeHandle	get_type () const

XFile *	get_x_file () const

virtual bool	has_guid () const
	Returns true if this node has a GUID associated. More...

virtual bool	is_object () const
	Returns true if this node represents a data object that is the instance of some template, or false otherwise. More...

virtual bool	is_reference () const
	Returns true if this node represents an indirect reference to an object defined previously in the file. More...

virtual bool	is_standard_object (const std::string &template_name) const
	Returns true if this node represents an instance of the standard template with the indicated name, or false otherwise. More...

virtual bool	is_template_def () const
	Returns true if this node represents the definition of some template. More...

virtual bool	matches (const XFileNode *other) const
	Returns true if the node, particularly a template node, is structurally equivalent to the other node (which must be of the same type). More...

virtual bool	repack_data (XFileDataObject *object, const XFileParseDataList &parse_data_list, PrevData &prev_data, size_t &index, size_t &sub_index) const
	This is called on the template that defines an object, once the data for the object has been parsed. More...

virtual void	write_text (std::ostream &out, int indent_level) const
	Writes a suitable representation of this node to an .x file in text mode. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static std::string	make_nice_name (const std::string &str)
	Transforms the indicated egg name to a name that is acceptable for a node in the X File format. More...

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Friends
class	XFileDataNodeReference

Additional Inherited Members
Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from Namable
	get_name

	set_name

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Detailed Description

A single node of an X file.

This may be either a template or a data node.

Definition at line 39 of file xFileNode.h.

Member Function Documentation

◆ add_child()

void XFileNode::add_child ( XFileNode * node )

Adds the indicated node as a child of this node.

Definition at line 191 of file xFileNode.cxx.

References downcase(), get_guid(), has_guid(), Namable::has_name(), and TypedObject::is_of_type().

◆ add_Frame()

XFileDataNode * XFileNode::add_Frame ( const std::string & name )

Creates a new Frame instance, as a child of this node.

Definition at line 421 of file xFileNode.cxx.

References XFile::find_standard_template().

◆ add_FrameTransformMatrix()

XFileDataNode * XFileNode::add_FrameTransformMatrix ( const LMatrix4d & mat )

Creates a new FrameTransformMatrix instance, as a child of this node.

Definition at line 436 of file xFileNode.cxx.

◆ add_Material()

XFileDataNode * XFileNode::add_Material	(	const std::string &	name,
		const LColor &	face_color,
		double	power,
		const LRGBColor &	specular_color,
		const LRGBColor &	emissive_color
	)

Creates a new Material instance, as a child of this node.

Definition at line 375 of file xFileNode.cxx.

References XFile::find_standard_template().

Referenced by XFileMaterial::make_x_material().

◆ add_Mesh()

XFileDataNode * XFileNode::add_Mesh ( const std::string & name )

Creates a new Mesh instance, as a child of this node.

Definition at line 300 of file xFileNode.cxx.

References XFile::find_standard_template().

Referenced by XFileMesh::make_x_mesh().

◆ add_MeshMaterialList()

XFileDataNode * XFileNode::add_MeshMaterialList ( const std::string & name )

Creates a new MeshMaterialList instance, as a child of this node.

Definition at line 360 of file xFileNode.cxx.

References XFile::find_standard_template().

Referenced by XFileMesh::make_x_material_list().

◆ add_MeshNormals()

XFileDataNode * XFileNode::add_MeshNormals ( const std::string & name )

Creates a new MeshNormals instance, as a child of this node.

Definition at line 315 of file xFileNode.cxx.

References XFile::find_standard_template().

Referenced by XFileMesh::make_x_normals().

◆ add_MeshTextureCoords()

XFileDataNode * XFileNode::add_MeshTextureCoords ( const std::string & name )

Creates a new MeshTextureCoords instance, as a child of this node.

Definition at line 345 of file xFileNode.cxx.

References XFile::find_standard_template().

Referenced by XFileMesh::make_x_uvs().

◆ add_MeshVertexColors()

XFileDataNode * XFileNode::add_MeshVertexColors ( const std::string & name )

Creates a new MeshVertexColors instance, as a child of this node.

Definition at line 330 of file xFileNode.cxx.

References XFile::find_standard_template().

Referenced by XFileMesh::make_x_colors().

◆ add_TextureFilename()

XFileDataNode * XFileNode::add_TextureFilename	(	const std::string &	name,
		const Filename &	filename
	)

Creates a new TextureFilename instance, as a child of this node.

Definition at line 404 of file xFileNode.cxx.

References XFile::find_standard_template().

Referenced by XFileMaterial::make_x_material().

◆ clear()

void XFileNode::clear ( )

virtual

Removes all children from the node, and otherwise resets it to its initial state.

Reimplemented in XFileDataDef, XFile, and XFileTemplate.

Definition at line 209 of file xFileNode.cxx.

Referenced by XFile::clear(), XFileTemplate::clear(), and XFileDataDef::clear().

◆ fill_zero_data()

bool XFileNode::fill_zero_data ( XFileDataObject * object ) const

virtual

This is similar to repack_data(), except it is used to fill the initial values for a newly-created template object to zero.

Reimplemented in XFileDataDef.

Definition at line 261 of file xFileNode.cxx.

Referenced by XFileDataDef::fill_zero_data().

◆ find_child()

XFileNode * XFileNode::find_child ( const std::string & name ) const

Returns the child with the indicated name, if any, or NULL if none.

Definition at line 55 of file xFileNode.cxx.

References downcase(), and get_child().

Referenced by find_descendent(), and XFile::find_template().

◆ find_child_index() [1/2]

int XFileNode::find_child_index ( const std::string & name ) const

Returns the index number of the child with the indicated name, if any, or -1 if none.

Definition at line 70 of file xFileNode.cxx.

References downcase().

Referenced by XFileArrayDef::matches().

◆ find_child_index() [2/2]

int XFileNode::find_child_index ( const XFileNode * child ) const

Returns the index number of the indicated child, or -1 if none.

Definition at line 84 of file xFileNode.cxx.

◆ find_descendent()

XFileNode * XFileNode::find_descendent ( const std::string & name ) const

Returns the first child or descendent found with the indicated name after a depth-first search, if any, or NULL if none.

Definition at line 99 of file xFileNode.cxx.

References find_child(), and find_descendent().

Referenced by XFile::find_data_object(), and find_descendent().

◆ get_child()

XFileNode * XFileNode::get_child ( int n ) const

inline

Returns the nth child of this node.

This list includes templates as well as data objects.

Definition at line 36 of file xFileNode.I.

Referenced by find_child().

◆ get_guid()

const WindowsGuid & XFileNode::get_guid ( ) const

virtual

If has_guid() returned true, returns the particular GUID associated with this node.

Reimplemented in XFileTemplate.

Definition at line 129 of file xFileNode.cxx.

Referenced by add_child().

◆ get_num_children()

int XFileNode::get_num_children ( ) const

inline

Returns the list of children of this node.

This list includes templates as well as data objects.

Definition at line 27 of file xFileNode.I.

Referenced by matches().

◆ get_num_objects()

int XFileNode::get_num_objects ( ) const

inline

Returns the list of child objects of this node.

This list does not include template definitions; it is strictly the list of children that are also data objects (instances of templates).

Definition at line 47 of file xFileNode.I.

◆ get_object()

XFileDataNode * XFileNode::get_object ( int n ) const

inline

Returns the nth child object of this node.

This list does not include template definitions; it is strictly the list of children that are also data objects (instances of templates).

Definition at line 57 of file xFileNode.I.

◆ has_guid()

bool XFileNode::has_guid ( ) const

virtual

Returns true if this node has a GUID associated.

Reimplemented in XFileTemplate.

Definition at line 120 of file xFileNode.cxx.

Referenced by add_child().

◆ is_object()

bool XFileNode::is_object ( ) const

virtual

Returns true if this node represents a data object that is the instance of some template, or false otherwise.

This also returns true for references to objects (which are generally treated just like the objects themselves).

If this returns true, the node must be of type XFileDataNode (it is either an XFileDataNodeTemplate or an XFileDataNodeReference).

Reimplemented in XFileDataNode.

Definition at line 170 of file xFileNode.cxx.

◆ is_reference()

bool XFileNode::is_reference ( ) const

virtual

Returns true if this node represents an indirect reference to an object defined previously in the file.

References are generally transparent, so in most cases you never need to call this, unless you actually need to differentiate between references and instances; you can simply use the reference node as if it were itself the object it references.

If this returns true, the node must be of type XFileDataNodeReference.

Reimplemented in XFileDataNodeReference.

Definition at line 157 of file xFileNode.cxx.

◆ is_standard_object()

bool XFileNode::is_standard_object ( const std::string & template_name ) const

virtual

Returns true if this node represents an instance of the standard template with the indicated name, or false otherwise.

This returns also returns true for references to standard objects.

If this returns true, the node must be of type XFileDataNode (it is either an XFileDataNodeTemplate or an XFileDataNodeReference).

Reimplemented in XFileDataNode.

Definition at line 183 of file xFileNode.cxx.

◆ is_template_def()

bool XFileNode::is_template_def ( ) const

virtual

Returns true if this node represents the definition of some template.

This is the template definition, not an actual data object that represents an instance of the template. If the file strictly uses standard templates, the presence of template definitions is optional.

If this returns true, the node must be of type XFileTemplate.

Reimplemented in XFileTemplate.

Definition at line 143 of file xFileNode.cxx.

◆ make_nice_name()

string XFileNode::make_nice_name ( const std::string & str )

static

Transforms the indicated egg name to a name that is acceptable for a node in the X File format.

Definition at line 474 of file xFileNode.cxx.

◆ matches()

bool XFileNode::matches ( const XFileNode * other ) const

virtual

Returns true if the node, particularly a template node, is structurally equivalent to the other node (which must be of the same type).

This checks data element types, but does not compare data element names.

Reimplemented in XFileDataDef, and XFileTemplate.

Definition at line 278 of file xFileNode.cxx.

References get_num_children().

Referenced by XFileTemplate::matches(), and XFileDataDef::matches().

◆ repack_data()

bool XFileNode::repack_data	(	XFileDataObject *	object,
		const XFileParseDataList &	parse_data_list,
		XFileNode::PrevData &	prev_data,
		size_t &	index,
		size_t &	sub_index
	)		const

virtual

This is called on the template that defines an object, once the data for the object has been parsed.

It is responsible for identifying which component of the template owns each data element, and packing the data elements appropriately back into the object.

It returns true on success, or false on an error (e.g. not enough data elements, mismatched data type).

Reimplemented in XFileDataDef.

Definition at line 236 of file xFileNode.cxx.

Referenced by XFileDataDef::repack_data().

◆ write_text()

void XFileNode::write_text	(	std::ostream &	out,
		int	indent_level
	)		const

virtual

Writes a suitable representation of this node to an .x file in text mode.

Reimplemented in XFileDataDef, XFile, XFileDataNodeTemplate, XFileDataNodeReference, and XFileTemplate.

Definition at line 219 of file xFileNode.cxx.

Referenced by XFileTemplate::write_text(), and XFileDataNodeTemplate::write_text().

The documentation for this class was generated from the following files:

pandatool/src/xfile/xFileNode.h
pandatool/src/xfile/xFileNode.cxx
pandatool/src/xfile/xFileNode.I

Public Types

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ add_child()

◆ add_Frame()

◆ add_FrameTransformMatrix()

◆ add_Material()

◆ add_Mesh()

◆ add_MeshMaterialList()

◆ add_MeshNormals()

◆ add_MeshTextureCoords()

◆ add_MeshVertexColors()

◆ add_TextureFilename()

◆ clear()

◆ fill_zero_data()

◆ find_child()

◆ find_child_index() [1/2]

◆ find_child_index() [2/2]

◆ find_descendent()

◆ get_child()

◆ get_guid()

◆ get_num_children()

◆ get_num_objects()

◆ get_object()

◆ has_guid()

◆ is_object()

◆ is_reference()

◆ is_standard_object()

◆ is_template_def()

◆ make_nice_name()

◆ matches()

◆ repack_data()

◆ write_text()
