Controls the timing of a character animation. More...

#include "animControl.h"

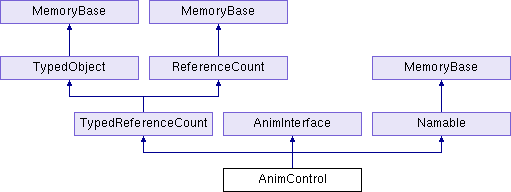

Inheritance diagram for AnimControl:

Public Member Functions
	AnimControl (const std::string &name, PartBundle *part, double frame_rate, int num_frames)
	This constructor is used to create a temporarily uninitialized AnimControl that will serve as a placeholder for an animation while the animation is being loaded during an asynchronous load-and-bind operation. More...

	AnimControl (const AnimControl &copy)=delete

bool	channel_has_changed (AnimChannelBase *channel, bool frame_blend_flag) const
	Returns true if the indicated channel value has changed since the last call to mark_channels(). More...

void	fail_anim (PartBundle *part)
	This can only be called once for a given AnimControl. More...

virtual TypeHandle	force_init_type ()

AnimBundle *	get_anim () const
	Returns the AnimBundle bound in with this AnimControl. More...

PandaNode *	get_anim_model () const
	Retrieves the pointer set via set_anim_model(). More...

const BitArray &	get_bound_joints () const
	Returns the subset of joints controlled by this AnimControl. More...

int	get_channel_index () const
	Returns the particular channel index associated with this AnimControl. More...

PartBundle *	get_part () const
	Returns the PartBundle bound in with this AnimControl. More...

std::string	get_pending_done_event () const
	Returns the event name that will be thrown when the AnimControl is finished binding asynchronously. More...

virtual TypeHandle	get_type () const

bool	has_anim () const
	Returns true if the AnimControl was successfully loaded, or false if there was a problem. More...

bool	is_pending () const
	Returns true if the AnimControl is being bound asynchronously, and has not yet finished. More...

void	mark_channels (bool frame_blend_flag)
	Marks this point as the point of reference for the next call to channel_has_changed(). More...

virtual void	output (std::ostream &out) const

void	set_anim_model (PandaNode *model)
	Associates the indicated PandaNode with the AnimControl. More...

void	set_bound_joints (const BitArray &bound_joints)
	Called to initialize the AnimControl with its array of bound_joints, before setup_anim() has completed. More...

void	set_pending_done_event (const std::string &done_event)
	Specifies an event name that will be thrown when the AnimControl is finished binding asynchronously. More...

void	setup_anim (PartBundle part, AnimBundle anim, int channel_index, const BitArray &bound_joints)
	This can only be called once for a given AnimControl. More...

void	wait_pending ()
	Blocks the current thread until the AnimControl has finished loading and is fully bound. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from AnimInterface
double	get_frac () const

int	get_frame () const

double	get_frame_rate () const

double	get_full_fframe () const

int	get_full_frame () const

int	get_next_frame () const

virtual int	get_num_frames () const

double	get_play_rate () const

bool	is_playing () const

void	loop (bool restart)
	Starts the entire animation looping. More...

void	loop (bool restart, double from, double to)
	Loops the animation from the frame "from" to and including the frame "to", indefinitely. More...

void	pingpong (bool restart)
	Starts the entire animation bouncing back and forth between its first frame and last frame. More...

void	pingpong (bool restart, double from, double to)
	Loops the animation from the frame "from" to and including the frame "to", and then back in the opposite direction, indefinitely. More...

void	play ()
	Runs the entire animation from beginning to end and stops. More...

void	play (double from, double to)
	Runs the animation from the frame "from" to and including the frame "to", at which point the animation is stopped. More...

void	pose (double frame)
	Sets the animation to the indicated frame and holds it there. More...

void	set_play_rate (double play_rate)

void	stop ()
	Stops a currently playing or looping animation right where it is. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from AnimInterface
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Additional Inherited Members
Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from AnimInterface
	get_frac
	Returns the fractional part of the current frame. More...

	get_frame
	Returns the current integer frame number. More...

	get_frame_rate
	Returns the native frame rate of the animation. More...

	get_full_fframe
	Returns the current floating-point frame number. More...

	get_full_frame
	Returns the current integer frame number. More...

	get_next_frame
	Returns the current integer frame number + 1, constrained to the range 0 <= f < get_num_frames(). More...

	get_num_frames
	Returns the number of frames in the animation. More...

	get_play_rate
	Returns the rate at which the animation plays. More...

	is_playing
	Returns true if the animation is currently playing, false if it is stopped (e.g. More...

	set_play_rate
	Changes the rate at which the animation plays. More...

Public Attributes inherited from Namable
	get_name

	set_name

Detailed Description

Controls the timing of a character animation.

An AnimControl object is created for each character/bundle binding and manages the state of the animation: whether started, stopped, or looping, and the current frame number and play rate.

Definition at line 38 of file animControl.h.

Constructor & Destructor Documentation

◆ AnimControl()

AnimControl::AnimControl	(	const std::string &	name,
		PartBundle *	part,
		double	frame_rate,
		int	num_frames
	)

This constructor is used to create a temporarily uninitialized AnimControl that will serve as a placeholder for an animation while the animation is being loaded during an asynchronous load-and-bind operation.

Definition at line 30 of file animControl.cxx.

References MemoryUsage::update_type().

Member Function Documentation

◆ channel_has_changed()

bool AnimControl::channel_has_changed	(	AnimChannelBase *	channel,
		bool	frame_blend_flag
	)		const

Returns true if the indicated channel value has changed since the last call to mark_channels().

Definition at line 182 of file animControl.cxx.

References AnimInterface::get_frac, AnimInterface::get_frame, and AnimChannelBase::has_changed().

Referenced by MovingPartBase::do_update().

◆ fail_anim()

void AnimControl::fail_anim ( PartBundle * part )

This can only be called once for a given AnimControl.

It indicates the attempt to bind it asynchronously has failed.

Definition at line 91 of file animControl.cxx.

◆ get_anim()

AnimBundle * AnimControl::get_anim ( ) const

inline

Returns the AnimBundle bound in with this AnimControl.

Definition at line 38 of file animControl.I.

◆ get_anim_model()

PandaNode * AnimControl::get_anim_model ( ) const

inline

Retrieves the pointer set via set_anim_model().

See set_anim_model().

Definition at line 87 of file animControl.I.

◆ get_bound_joints()

const BitArray & AnimControl::get_bound_joints ( ) const

inline

Returns the subset of joints controlled by this AnimControl.

Most of the time, this will be BitArray::all_on(), for a normal full-body animation. For a subset animation, however, this will be just a subset of those bits, corresponding to the set of joints and sliders actually bound (as enumerated by bind_hierarchy() in depth-first LIFO order).

Definition at line 64 of file animControl.I.

◆ get_channel_index()

int AnimControl::get_channel_index ( ) const

inline

Returns the particular channel index associated with this AnimControl.

This channel index is the slot on which each AnimGroup is bound to its associated PartGroup, for each joint in the animation.

It will be true that get_part()->find_child("n")->get_bound(get_channel_index()) == get_anim()->find_child("n"), for each joint "n".

Definition at line 52 of file animControl.I.

Referenced by MovingPartBase::do_update().

◆ get_part()

PartBundle * AnimControl::get_part ( ) const

Returns the PartBundle bound in with this AnimControl.

Definition at line 156 of file animControl.cxx.

◆ get_pending_done_event()

std::string AnimControl::get_pending_done_event ( ) const

Returns the event name that will be thrown when the AnimControl is finished binding asynchronously.

Definition at line 147 of file animControl.cxx.

◆ has_anim()

bool AnimControl::has_anim ( ) const

inline

Returns true if the AnimControl was successfully loaded, or false if there was a problem.

This may return false while is_pending() is true.

Definition at line 30 of file animControl.I.

◆ is_pending()

bool AnimControl::is_pending ( ) const

inline

Returns true if the AnimControl is being bound asynchronously, and has not yet finished.

If this is true, the AnimControl's interface is still available and will be perfectly useful (though get_anim() might return NULL), but nothing visible will happen immediately.

Definition at line 21 of file animControl.I.

◆ mark_channels()

void AnimControl::mark_channels ( bool frame_blend_flag )

Marks this point as the point of reference for the next call to channel_has_changed().

Definition at line 201 of file animControl.cxx.

References AnimInterface::get_frac, and AnimInterface::get_frame.

Referenced by PartBundle::force_update(), and PartBundle::update().

◆ set_anim_model()

void AnimControl::set_anim_model ( PandaNode * model )

inline

Associates the indicated PandaNode with the AnimControl.

By convention, this node represents the root node of the model file that corresponds to this AnimControl's animation file, though nothing in this code makes this assumption or indeed does anything with this node.

The purpose of this is simply to allow the AnimControl to keep a reference count on the ModelRoot node that generated it, so that the model will not disappear from the model pool until it is no longer referenced.

Definition at line 79 of file animControl.I.

◆ set_bound_joints()

void AnimControl::set_bound_joints ( const BitArray & bound_joints )

Called to initialize the AnimControl with its array of bound_joints, before setup_anim() has completed.

Definition at line 81 of file animControl.cxx.

◆ set_pending_done_event()

void AnimControl::set_pending_done_event ( const std::string & done_event )

Specifies an event name that will be thrown when the AnimControl is finished binding asynchronously.

If the AnimControl has already finished binding, the event will be thrown immediately.

Definition at line 134 of file animControl.cxx.

◆ setup_anim()

void AnimControl::setup_anim	(	PartBundle *	part,
		AnimBundle *	anim,
		int	channel_index,
		const BitArray &	bound_joints
	)

This can only be called once for a given AnimControl.

It is used to supply the AnimBundle and related information.

Definition at line 56 of file animControl.cxx.

◆ wait_pending()

void AnimControl::wait_pending ( )

Blocks the current thread until the AnimControl has finished loading and is fully bound.

Definition at line 114 of file animControl.cxx.

References ConditionVarFullDirect::wait().

Referenced by PartBundle::wait_pending().

The documentation for this class was generated from the following files:

panda/src/chan/animControl.h
panda/src/chan/animControl.cxx
panda/src/chan/animControl.I

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AnimControl()

Member Function Documentation

◆ channel_has_changed()

◆ fail_anim()

◆ get_anim()

◆ get_anim_model()

◆ get_bound_joints()

◆ get_channel_index()

◆ get_part()

◆ get_pending_done_event()

◆ has_anim()

◆ is_pending()

◆ mark_channels()

◆ set_anim_model()

◆ set_bound_joints()

◆ set_pending_done_event()

◆ setup_anim()

◆ wait_pending()
