This is the root of a MovingPart hierarchy. More...

#include "partBundle.h"

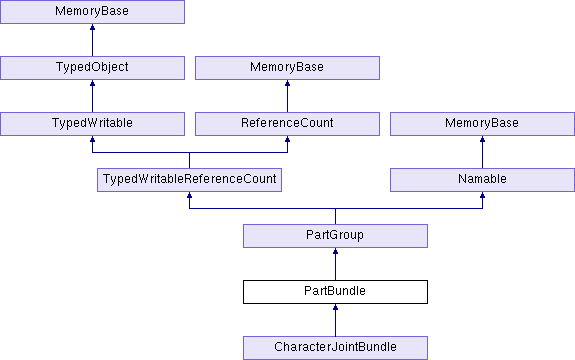

Inheritance diagram for PartBundle:

Public Types
enum	BlendType { BT_linear, BT_normalized_linear, BT_componentwise, BT_componentwise_quat }

typedef pmap< AnimControl *, PN_stdfloat >	ChannelBlend

Public Types inherited from PartGroup
enum	HierarchyMatchFlags { HMF_ok_part_extra = 0x01, HMF_ok_anim_extra = 0x02, HMF_ok_wrong_root_name = 0x04 }

Public Member Functions
	PartBundle (const std::string &name="")
	Normally, a PartBundle constructor should not be called directly–it will get created when a PartBundleNode is created. More...

void	clear_anim_preload ()
	Removes any AnimPreloadTable associated with the PartBundle. More...

void	clear_control_effects ()
	Sets the control effect of all AnimControls to zero (but does not "stop" the AnimControls). More...

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Takes in a vector of pointers to TypedWritable objects that correspond to all the requests for pointers that this object made to BamReader. More...

virtual void	control_activated (AnimControl *control)
	Called by the AnimControl whenever it starts an animation. More...

bool	control_joint (const std::string &joint_name, PandaNode *node)
	Specifies that the joint with the indicated name should be animated with the transform on the indicated node. More...

void	control_removed (AnimControl *control)
	Called by the AnimControl when it destructs. More...

	CPT (AnimPreloadTable) get_anim_preload() const

bool	do_bind_anim (AnimControl control, AnimBundle anim, int hierarchy_match_flags, const PartSubset &subset)
	The internal implementation of bind_anim(), this receives a pointer to an uninitialized AnimControl and fills it in if the bind is successful. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

virtual TypeHandle	force_init_type ()

bool	force_update ()
	Updates all the parts in the bundle to reflect the data for the current frame, whether we believe it needs it or not. More...

bool	freeze_joint (const std::string &joint_name, const TransformState *transform)
	Specifies that the joint with the indicated name should be frozen with the specified transform. More...

bool	freeze_joint (const std::string &joint_name, const LVecBase3 &pos, const LVecBase3 &hpr, const LVecBase3 &scale)
	Specifies that the joint with the indicated name should be frozen with the specified transform. More...

bool	freeze_joint (const std::string &joint_name, PN_stdfloat value)
	Specifies that the joint with the indicated name should be frozen with the specified transform. More...

bool	get_anim_blend_flag () const

BlendType	get_blend_type () const

PN_stdfloat	get_control_effect (AnimControl *control) const
	Returns the amount by which the character is affected by the indicated AnimControl and its associated animation. More...

bool	get_frame_blend_flag () const

PartBundleNode *	get_node (int n) const

int	get_num_nodes () const

const LMatrix4 &	get_root_xform () const

virtual TypeHandle	get_type () const

virtual PartGroup *	make_copy () const
	Allocates and returns a new copy of the node. More...

void	merge_anim_preloads (const PartBundle *other)
	Copies the contents of the other PartBundle's preload table into this one. More...

virtual void	output (std::ostream &out) const
	Writes a one-line description of the bundle. More...

	PT (AnimPreloadTable) modify_anim_preload()

	PT (PartBundle) apply_transform(const TransformState *transform)

	PT (AnimControl) bind_anim(AnimBundle *anim

	PT (AnimControl) load_bind_anim(Loader *loader

bool	release_joint (const std::string &joint_name)
	Releases the named joint from the effects of a previous call to freeze_joint() or control_joint(). More...

void	set_anim_blend_flag (bool anim_blend_flag)

void	set_anim_preload (AnimPreloadTable *table)
	Replaces the AnimPreloadTable associated with the PartBundle. More...

void	set_blend_type (BlendType bt)

void	set_control_effect (AnimControl *control, PN_stdfloat effect)
	Sets the amount by which the character is affected by the indicated AnimControl (and its associated animation). More...

void	set_frame_blend_flag (bool frame_blend_flag)

void	set_root_xform (const LMatrix4 &root_xform)

void	set_update_delay (double delay)
	Specifies the minimum amount of time, in seconds, that should elapse between any two consecutive updates. More...

bool	update ()
	Updates all the parts in the bundle to reflect the data for the current frame (as set in each of the AnimControls). More...

void	wait_pending ()
	Blocks the current thread until all currently-pending AnimControls, with a nonzero control effect, have been loaded and are properly bound. More...

virtual void	write (std::ostream &out, int indent_level) const
	Writes a brief description of the bundle and all of its descendants. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

void	xform (const LMatrix4 &mat)
	Applies the indicated transform to the root of the animated hierarchy. More...

Public Member Functions inherited from PartGroup
	PartGroup (PartGroup *parent, const std::string &name)
	Creates the PartGroup, and adds it to the indicated parent. More...

virtual bool	apply_control (PandaNode *node)
	Specifies a node to influence this particular joint so that it will always hold the node's transform. More...

bool	apply_freeze (const TransformState *transform)
	Freezes this particular joint so that it will always hold the specified transform. More...

virtual bool	apply_freeze_matrix (const LVecBase3 &pos, const LVecBase3 &hpr, const LVecBase3 &scale)
	Freezes this particular joint so that it will always hold the specified transform. More...

virtual bool	apply_freeze_scalar (PN_stdfloat value)
	Freezes this particular joint so that it will always hold the specified transform. More...

bool	check_hierarchy (const AnimGroup anim, const PartGroup parent, int hierarchy_match_flags=0) const
	Walks the part hierarchy in tandem with the indicated anim hierarchy, and returns true if the hierarchies match, false otherwise. More...

virtual bool	clear_forced_channel ()
	Undoes the effect of a previous call to apply_freeze() or apply_control(). More...

PartGroup *	copy_subgraph () const
	Allocates and returns a new copy of this node and of all of its children. More...

virtual void	determine_effective_channels (const CycleData *root_cdata)
	Should be called whenever the ChannelBlend values have changed, this recursively updates the _effective_channel member in each part. More...

virtual bool	do_update (PartBundle root, const CycleData root_cdata, PartGroup parent, bool parent_changed, bool anim_changed, Thread current_thread)
	Recursively update this particular part and all of its descendents for the current frame. More...

virtual void	do_xform (const LMatrix4 &mat, const LMatrix4 &inv_mat)
	Called by PartBundle::xform(), this indicates the indicated transform is being applied to the root joint. More...

PartGroup *	find_child (const std::string &name) const
	Returns the first descendant found with the indicated name, or NULL if no such descendant exists. More...

PartGroup *	get_child (int n) const

PartGroup *	get_child_named (const std::string &name) const
	Returns the first child found with the indicated name, or NULL if no such child exists. More...

virtual AnimChannelBase *	get_forced_channel () const
	Returns the AnimChannelBase that has been forced to this joint by a previous call to apply_freeze() or apply_control(), or NULL if no such channel has been applied. More...

int	get_num_children () const

virtual TypeHandle	get_value_type () const
	Returns the TypeHandle associated with the ValueType we are concerned with. More...

virtual bool	is_character_joint () const
	Returns true if this part is a CharacterJoint, false otherwise. More...

void	sort_descendants ()
	Sorts the children nodes at each level of the hierarchy into alphabetical order. More...

virtual void	write_with_value (std::ostream &out, int indent_level) const
	Writes a brief description of the group, showing its current value, and that of all of its descendants. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()
	Factory method to generate a PartBundle object. More...

Static Public Member Functions inherited from PartGroup
static TypeHandle	get_class_type ()

static void	init_type ()

static TypedWritable *	make_PartGroup (const FactoryParams &params)
	Factory method to generate a PartGroup object. More...

static void	register_with_read_factory ()
	Factory method to generate a PartGroup object. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
const Filename int const PartSubset bool	allow_async

const Filename &	filename

	get_anim_blend_flag
	Returns whether the character allows multiple different animations to be bound simultaneously. More...

	get_blend_type
	Returns the algorithm that is used when blending multiple frames or multiple animations together, when either anim_blend_flag or frame_blend_flag is set to true. More...

	get_frame_blend_flag
	Returns whether the character interpolates (blends) between two sequential animation frames, or whether it holds the current frame until the next one is ready. More...

	get_node
	Returns the nth PartBundleNode associated with this PartBundle. More...

	get_num_nodes
	Returns the number of PartBundleNodes that contain a pointer to this PartBundle. More...

	get_root_xform
	Returns the transform matrix which is implicitly applied at the root of the animated hierarchy. More...

int	hierarchy_match_flags = 0

const Filename int	hierarchy_match_flags

	set_anim_blend_flag
	Defines the way the character responds to multiple calls to set_control_effect()). More...

	set_blend_type
	Defines the algorithm that is used when blending multiple frames or multiple animations together, when either anim_blend_flag or frame_blend_flag is set to true. More...

	set_frame_blend_flag
	Specifies whether the character interpolates (blends) between two sequential frames of an active animation, showing a smooth intra-frame motion, or whether it holds each frame until the next frame is ready, showing precisely the specified animation. More...

	set_root_xform
	Specifies the transform matrix which is implicitly applied at the root of the animated hierarchy. More...

int const PartSubset &	subset = PartSubset())

const Filename int const PartSubset &	subset

Public Attributes inherited from PartGroup
	get_child
	Returns the nth child of the group. More...

	get_num_children
	Returns the number of child nodes of the group. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Friends
class	Character

class	MovingPartBase

class	MovingPartMatrix

class	MovingPartScalar

class	PartBundleNode

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This is the root of a MovingPart hierarchy.

It defines the hierarchy of moving parts that make up an animatable object.

Definition at line 46 of file partBundle.h.

Constructor & Destructor Documentation

◆ PartBundle()

PartBundle::PartBundle ( const std::string & name = "" )

explicit

Normally, a PartBundle constructor should not be called directly–it will get created when a PartBundleNode is created.

Definition at line 72 of file partBundle.cxx.

Member Function Documentation

◆ clear_anim_preload()

void PartBundle::clear_anim_preload ( )

inline

Removes any AnimPreloadTable associated with the PartBundle.

Definition at line 45 of file partBundle.I.

◆ clear_control_effects()

void PartBundle::clear_control_effects ( )

Sets the control effect of all AnimControls to zero (but does not "stop" the AnimControls).

The character will no longer be affected by any animation, and will return to its default pose (unless restore-initial-pose is false).

The AnimControls which are no longer associated will not be using any CPU cycles, but they may still be in the "playing" state; if they are later reassociated with the PartBundle they will resume at their current frame as if they'd been running all along.

Definition at line 197 of file partBundle.cxx.

◆ complete_pointers()

int PartBundle::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Takes in a vector of pointers to TypedWritable objects that correspond to all the requests for pointers that this object made to BamReader.

Reimplemented from PartGroup.

Definition at line 781 of file partBundle.cxx.

◆ control_activated()

void PartBundle::control_activated ( AnimControl * control )

virtual

Called by the AnimControl whenever it starts an animation.

This is just a hook so the bundle can do something, if necessary, before the animation starts.

Definition at line 533 of file partBundle.cxx.

◆ control_joint()

bool PartBundle::control_joint	(	const std::string &	joint_name,
		PandaNode *	node
	)

Specifies that the joint with the indicated name should be animated with the transform on the indicated node.

It will henceforth always follow the node's transform, regardless of any animations that may subsequently be bound to the joint.

Returns true if the joint is successfully controlled, or false if the named child is not a joint (or slider) or does not exist.

Definition at line 436 of file partBundle.cxx.

References PartGroup::apply_control(), and PartGroup::find_child().

◆ control_removed()

void PartBundle::control_removed ( AnimControl * control )

Called by the AnimControl when it destructs.

This needs to remove the AnimControl pointer from all pipeline stages.

Definition at line 552 of file partBundle.cxx.

◆ do_bind_anim()

bool PartBundle::do_bind_anim	(	AnimControl *	control,
		AnimBundle *	anim,
		int	hierarchy_match_flags,
		const PartSubset &	subset
	)

The internal implementation of bind_anim(), this receives a pointer to an uninitialized AnimControl and fills it in if the bind is successful.

Returns true if successful, false otherwise.

Definition at line 579 of file partBundle.cxx.

Referenced by PT().

◆ finalize()

void PartBundle::finalize ( BamReader * manager )

virtual

Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed.

Reimplemented from TypedWritable.

Definition at line 759 of file partBundle.cxx.

References PartGroup::do_update().

◆ force_update()

bool PartBundle::force_update ( )

Updates all the parts in the bundle to reflect the data for the current frame, whether we believe it needs it or not.

Definition at line 509 of file partBundle.cxx.

References PartGroup::do_update(), and AnimControl::mark_channels().

◆ freeze_joint() [1/3]

bool PartBundle::freeze_joint	(	const std::string &	joint_name,
		const TransformState *	transform
	)

Specifies that the joint with the indicated name should be frozen with the specified transform.

It will henceforth always hold this fixed transform, regardless of any animations that may subsequently be bound to the joint.

Returns true if the joint is successfully frozen, or false if the named child is not a joint (or slider) or does not exist.

Definition at line 372 of file partBundle.cxx.

References PartGroup::apply_freeze(), and PartGroup::find_child().

◆ freeze_joint() [2/3]

bool PartBundle::freeze_joint	(	const std::string &	joint_name,
		const LVecBase3 &	pos,
		const LVecBase3 &	hpr,
		const LVecBase3 &	scale
	)

Specifies that the joint with the indicated name should be frozen with the specified transform.

It will henceforth always hold this fixed transform, regardless of any animations that may subsequently be bound to the joint.

Returns true if the joint is successfully frozen, or false if the named child is not a joint (or slider) or does not exist.

Definition at line 393 of file partBundle.cxx.

◆ freeze_joint() [3/3]

bool PartBundle::freeze_joint	(	const std::string &	joint_name,
		PN_stdfloat	value
	)

Specifies that the joint with the indicated name should be frozen with the specified transform.

It will henceforth always hold this fixed transform, regardless of any animations that may subsequently be bound to the joint.

Returns true if the joint is successfully frozen, or false if the named child is not a joint (or slider) or does not exist.

Definition at line 414 of file partBundle.cxx.

References PartGroup::apply_freeze_scalar(), and PartGroup::find_child().

◆ get_control_effect()

PN_stdfloat PartBundle::get_control_effect ( AnimControl * control ) const

inline

Returns the amount by which the character is affected by the indicated AnimControl and its associated animation.

See set_control_effect().

Definition at line 197 of file partBundle.I.

◆ make_copy()

PartGroup * PartBundle::make_copy ( ) const

virtual

Allocates and returns a new copy of the node.

Children are not copied, but see copy_subgraph().

Reimplemented from PartGroup.

Definition at line 83 of file partBundle.cxx.

◆ merge_anim_preloads()

void PartBundle::merge_anim_preloads ( const PartBundle * other )

Copies the contents of the other PartBundle's preload table into this one.

Definition at line 91 of file partBundle.cxx.

Referenced by Character::merge_bundles().

◆ output()

void PartBundle::output ( std::ostream & out ) const

virtual

Writes a one-line description of the bundle.

Definition at line 214 of file partBundle.cxx.

◆ register_with_read_factory()

void PartBundle::register_with_read_factory ( )

static

Factory method to generate a PartBundle object.

Definition at line 829 of file partBundle.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

◆ release_joint()

bool PartBundle::release_joint ( const std::string & joint_name )

Releases the named joint from the effects of a previous call to freeze_joint() or control_joint().

It will henceforth once again follow whatever transforms are dictated by the animation.

Returns true if the joint is released, or false if the named child was not previously controlled or frozen, or it does not exist.

Definition at line 457 of file partBundle.cxx.

References PartGroup::clear_forced_channel(), and PartGroup::find_child().

◆ set_anim_preload()

void PartBundle::set_anim_preload ( AnimPreloadTable * table )

inline

Replaces the AnimPreloadTable associated with the PartBundle.

Definition at line 37 of file partBundle.I.

◆ set_control_effect()

void PartBundle::set_control_effect	(	AnimControl *	control,
		PN_stdfloat	effect
	)

inline

Sets the amount by which the character is affected by the indicated AnimControl (and its associated animation).

Normally, this will only be zero or one. Zero indicates the animation does not affect the character, and one means it does.

If the _anim_blend_flag is not false (see set_anim_blend_flag()), it is possible to have multiple AnimControls in effect simultaneously. In this case, the effect is a weight that indicates the relative importance of each AnimControl to the final animation.

Definition at line 185 of file partBundle.I.

◆ set_update_delay()

void PartBundle::set_update_delay ( double delay )

inline

Specifies the minimum amount of time, in seconds, that should elapse between any two consecutive updates.

This is normally used by Character::set_lod_animation(), and should not be called directly.

Definition at line 208 of file partBundle.I.

◆ update()

bool PartBundle::update ( )

Updates all the parts in the bundle to reflect the data for the current frame (as set in each of the AnimControls).

Returns true if any part has changed as a result of this, or false otherwise.

Definition at line 477 of file partBundle.cxx.

References PartGroup::do_update(), ClockObject::get_frame_time, ClockObject::get_global_clock(), and AnimControl::mark_channels().

◆ wait_pending()

void PartBundle::wait_pending ( )

Blocks the current thread until all currently-pending AnimControls, with a nonzero control effect, have been loaded and are properly bound.

Definition at line 349 of file partBundle.cxx.

References AnimControl::wait_pending().

◆ write()

void PartBundle::write	(	std::ostream &	out,
		int	indent_level
	)		const

virtual

Writes a brief description of the bundle and all of its descendants.

Reimplemented from PartGroup.

Definition at line 222 of file partBundle.cxx.

References indent().

◆ write_datagram()

void PartBundle::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from PartGroup.

Definition at line 770 of file partBundle.cxx.

References BamWriter::write_cdata(), PartGroup::write_datagram(), and BamWriter::write_pointer().

◆ xform()

void PartBundle::xform ( const LMatrix4 & mat )

inline

Applies the indicated transform to the root of the animated hierarchy.

Definition at line 136 of file partBundle.I.

Member Data Documentation

◆ get_anim_blend_flag

bool PartBundle::get_anim_blend_flag

inline

Returns whether the character allows multiple different animations to be bound simultaneously.

See set_anim_blend_flag().

Definition at line 117 of file partBundle.h.

◆ get_blend_type

PartBundle::BlendType PartBundle::get_blend_type

inline

Returns the algorithm that is used when blending multiple frames or multiple animations together, when either anim_blend_flag or frame_blend_flag is set to true.

Definition at line 116 of file partBundle.h.

◆ get_frame_blend_flag

bool PartBundle::get_frame_blend_flag

inline

Returns whether the character interpolates (blends) between two sequential animation frames, or whether it holds the current frame until the next one is ready.

See set_frame_blend_flag().

Definition at line 118 of file partBundle.h.

◆ get_node

PartBundleNode * PartBundle::get_node

inline

Returns the nth PartBundleNode associated with this PartBundle.

Definition at line 114 of file partBundle.h.

◆ get_num_nodes

int PartBundle::get_num_nodes

inline

Returns the number of PartBundleNodes that contain a pointer to this PartBundle.

Definition at line 114 of file partBundle.h.

◆ get_root_xform

const LMatrix4 & PartBundle::get_root_xform

inline

Returns the transform matrix which is implicitly applied at the root of the animated hierarchy.

Definition at line 119 of file partBundle.h.

◆ set_anim_blend_flag

void PartBundle::set_anim_blend_flag

Defines the way the character responds to multiple calls to set_control_effect()).

By default, this flag is set false, which disallows multiple animations. When this flag is false, it is not necessary to explicitly set the control_effect when starting an animation; starting the animation will implicitly remove the control_effect from the previous animation and set it on the current one.

However, if this flag is set true, the control_effect must be explicitly set via set_control_effect() whenever an animation is to affect the character.

Definition at line 117 of file partBundle.h.

◆ set_blend_type

void PartBundle::set_blend_type

inline

Defines the algorithm that is used when blending multiple frames or multiple animations together, when either anim_blend_flag or frame_blend_flag is set to true.

See partBundle.h for a description of the meaning of each of the BlendType values.

Definition at line 116 of file partBundle.h.

◆ set_frame_blend_flag

void PartBundle::set_frame_blend_flag

inline

Specifies whether the character interpolates (blends) between two sequential frames of an active animation, showing a smooth intra-frame motion, or whether it holds each frame until the next frame is ready, showing precisely the specified animation.

When this value is false, the character holds each frame until the next is ready. When this is true, the character will interpolate between two consecutive frames of animation for each frame the animation is onscreen, according to the amount of time elapsed between the frames.

The default value of this flag is determined by the interpolate-frames Config.prc variable.

Use set_blend_type() to change the algorithm that the character uses to interpolate matrix positions.

Definition at line 118 of file partBundle.h.

◆ set_root_xform

void PartBundle::set_root_xform

inline

Specifies the transform matrix which is implicitly applied at the root of the animated hierarchy.

Definition at line 119 of file partBundle.h.

The documentation for this class was generated from the following files:

panda/src/chan/partBundle.h
panda/src/chan/partBundle.cxx
panda/src/chan/partBundle.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PartBundle()

Member Function Documentation

◆ clear_anim_preload()

◆ clear_control_effects()

◆ complete_pointers()

◆ control_activated()

◆ control_joint()

◆ control_removed()

◆ do_bind_anim()

◆ finalize()

◆ force_update()

◆ freeze_joint() [1/3]

◆ freeze_joint() [2/3]

◆ freeze_joint() [3/3]

◆ get_control_effect()

◆ make_copy()

◆ merge_anim_preloads()

◆ output()

◆ register_with_read_factory()

◆ release_joint()

◆ set_anim_preload()

◆ set_control_effect()

◆ set_update_delay()

◆ update()

◆ wait_pending()

◆ write()

◆ write_datagram()

◆ xform()

Member Data Documentation

◆ get_anim_blend_flag

◆ get_blend_type

◆ get_frame_blend_flag

◆ get_node

◆ get_num_nodes

◆ get_root_xform

◆ set_anim_blend_flag

◆ set_blend_type

◆ set_frame_blend_flag

◆ set_root_xform
