A device, attached to the ClientBase by a TrackerNode, that records the data from a single tracker device. More...
#include "clientTrackerDevice.h"

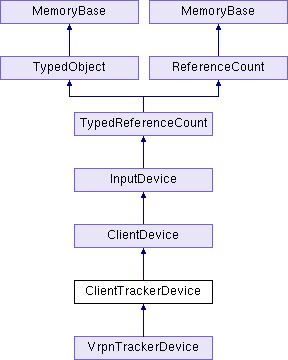

Inheritance diagram for ClientTrackerDevice:
Public Member Functions | |
| virtual TypeHandle | force_init_type () |
| virtual TypeHandle | get_type () const |
 Public Member Functions inherited from ClientDevice | |
| virtual | ~ClientDevice () |
| We don't actually call disconnect() at the ClientDevice level destructor, because by the time we get here we're already partly destructed. More... | |
| void | disconnect () |
| Disconnects the ClientDevice from its ClientBase object. More... | |
| virtual void | do_poll () final |
| Causes the connected ClientBase to poll all of its clients, if necessary. More... | |
| ClientBase * | get_client () const |
| Returns the ClientBase this device is associated with. More... | |
| TypeHandle | get_device_type () const |
| Returns the type of device this is considered to be to the ClientBase: a ClientTrackerDevice, ClientAnalogDevice, or what have you. More... | |
| virtual void | output (std::ostream &out) const |
| Writes a one-line string describing the device. More... | |
| virtual void | write (std::ostream &out, int indent_level=0) const |
| Public Member Functions inherited from InputDevice | |
| InputDevice (const InputDevice ©)=delete | |
| void | disable_pointer_events () |
| Disables the generation of mouse-movement events. More... | |
| void | enable_pointer_events () |
| Enables the generation of mouse-movement events. More... | |
| AxisState | find_axis (Axis axis) const |
| Returns the first AnalogAxis found with the given axis, or throw an assert if the axis was not found in the list. More... | |
| ButtonState | find_button (ButtonHandle handle) const |
| Returns the first ButtonState found with the given axis, or throw an assert if the button handle was not found in the list. More... | |
| AxisState | get_axis (size_t index) const |
| double | get_axis_value (size_t index) const |
| Returns the current position of indicated analog axis (identified by its index number), or 0.0 if the axis is unknown. More... | |
| BatteryData | get_battery () const |
| ButtonState | get_button (size_t index) const |
| ButtonHandle | get_button_map (size_t index) const |
| Returns the ButtonHandle that was previously associated with the given index number by a call to map_button(), or ButtonHandle::none() if no button was associated. More... | |
| DeviceClass | get_device_class () const |
| std::string | get_manufacturer () const |
| std::string | get_name () const |
| size_t | get_num_axes () const |
| size_t | get_num_buttons () const |
| unsigned short | get_product_id () const |
| std::string | get_serial_number () const |
| TrackerData | get_tracker () const |
| unsigned short | get_vendor_id () const |
| bool | has_battery () const |
| bool | has_button_event () const |
| Returns true if this device has a pending button event (a mouse button or keyboard button down/up), false otherwise. More... | |
| bool | has_feature (Feature feature) const |
| Returns true if the device supports the indicated feature. More... | |
| bool | has_keyboard () const |
| Returns true if the device has a physical keyboard designed for text entry. More... | |
| bool | has_pointer () const |
| Returns true if this is a pointing device. More... | |
| bool | has_pointer_event () const |
| Returns true if this device has a pending pointer event (a mouse movement), or false otherwise. More... | |
| bool | has_tracker () const |
| bool | has_vibration () const |
| Returns true if the device has vibration motors that can be controlled by calling set_vibration(). More... | |
| bool | is_axis_known (size_t index) const |
| Returns true if the state of the indicated analog axis is known, or false if we have never heard anything about this particular axis. More... | |
| bool | is_button_known (size_t index) const |
| Returns true if the state of the indicated button is known, or false if we have never heard anything about this particular button. More... | |
| bool | is_button_pressed (size_t index) const |
| Returns true if the indicated button (identified by its index number) is currently known to be down, or false if it is up or unknown. More... | |
| bool | is_connected () const |
| void | map_axis (size_t index, Axis axis) |
| Associates the indicated Axis with the axis of the indicated index number. More... | |
| void | map_button (size_t index, ButtonHandle handle) |
| Associates the indicated ButtonHandle with the button of the indicated index number. More... | |
| InputDevice & | operator= (const InputDevice ©)=delete |
| void | output_buttons (std::ostream &out) const |
| Writes a one-line string of all of the current button states. More... | |
| void | poll () |
| Polls the input device for new activity, to ensure it contains the latest events. More... | |
| PT (ButtonEventList) get_button_events() | |
| PT (PointerEventList) get_pointer_events() | |
| void | set_connected (bool connected) |
| Called to indicate that the device has been disconnected or connected from its host. More... | |
| void | set_vibration (double strong, double weak) |
| Sets the strength of the vibration effect, if supported. More... | |
| void | write_axes (std::ostream &out, int indent_level) const |
| Writes a multi-line description of the current analog axis states. More... | |
| void | write_buttons (std::ostream &out, int indent_level) const |
| Writes a multi-line description of the current button states. More... | |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from ClientDevice | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from InputDevice | |
| static std::string | format_axis (Axis axis) |
| Returns a string describing the given axis enumerant. More... | |
| static std::string | format_device_class (DeviceClass dc) |
| Returns a string describing the given device class enumerant. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Additional Inherited Members | |
| Public Types inherited from InputDevice | |
| typedef pvector< AxisState > | Axes |
| enum | Axis { none, x, y, z, yaw, pitch, roll, left_x, left_y, left_trigger, right_x, right_y, right_trigger, throttle, rudder, wheel, accelerator, brake } |
| typedef pvector< ButtonState > | Buttons |
| enum | DeviceClass { unknown, virtual_device, keyboard, mouse, touch, gamepad, flight_stick, steering_wheel, dance_pad, hmd, spatial_mouse } |
| enum | Feature { pointer, keyboard, tracker, vibration, battery } |
| enum | State { S_unknown, S_up, S_down } |
| Public Attributes inherited from InputDevice | |
| Axes | _axes |
| BatteryData | _battery_data |
| Buttons | _buttons |
| PointerData | _pointer_data |
| TrackerData | _tracker_data |
| get_axis | |
| Returns the axis state that is set at the given index, or throw an assert if the index was not found in the list. More... | |
| get_battery | |
| Returns a rough indication of the battery level, ranging from 0 (completely empty battery) to the indicated max_level value. More... | |
| get_button | |
| Returns the ButtonState that is set at the given index, or throw an assert if the index was not found in the list. More... | |
| get_device_class | |
| Returns an identification of the general type of device. More... | |
| get_manufacturer | |
| Returns a string containing the manufacturer of the device, if this information is known. More... | |
| get_name | |
| Returns a human-readable name for the device. More... | |
| get_num_axes | |
| Returns the number of analog axes known to the InputDevice. More... | |
| get_num_buttons | |
| Returns the number of buttons known to the device. More... | |
| get_product_id | |
| Returns a string containing the USB product ID of the device, if this information is known. More... | |
| get_serial_number | |
| Returns a string containing the serial number of the device, if this information is known. More... | |
| get_tracker | |
| Returns the TrackerData associated with the input device's tracker. More... | |
| get_vendor_id | |
| Returns a string containing the USB vendor ID of the device, if this information is known. More... | |
| has_battery | |
| Returns true if the device may be able to provide information about its battery life. More... | |
| has_tracker | |
| Returns true if the device features a tracker that can track position and/or orientation in 3D space. More... | |
| is_connected | |
| Returns true if the device is still connected and able to receive data, false otherwise. More... | |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
A device, attached to the ClientBase by a TrackerNode, that records the data from a single tracker device.
Definition at line 26 of file clientTrackerDevice.h.
The documentation for this class was generated from the following files:
- panda/src/device/clientTrackerDevice.h
- panda/src/device/clientTrackerDevice.cxx
- panda/src/device/clientTrackerDevice.I
