This defines a parabolic arc, or subset of an arc, similar to the path of a projectile or falling object. More...

#include "collisionParabola.h"

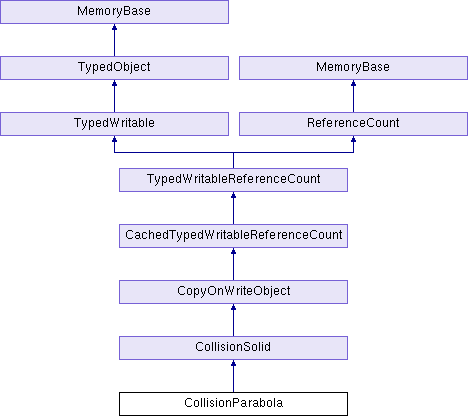

Inheritance diagram for CollisionParabola:

Public Member Functions
	CollisionParabola ()
	Creates an invalid parabola. More...

	CollisionParabola (const LParabola &parabola, PN_stdfloat t1, PN_stdfloat t2)
	Creates a parabola with the endpoints between t1 and t2 in the parametric space of the parabola. More...

	CollisionParabola (const CollisionParabola &copy)

virtual TypeHandle	force_init_type ()

virtual LPoint3	get_collision_origin () const
	Returns the point in space deemed to be the "origin" of the solid for collision purposes. More...

const LParabola &	get_parabola () const

PN_stdfloat	get_t1 () const

PN_stdfloat	get_t2 () const

virtual PStatCollector &	get_test_pcollector ()
	Returns a PStatCollector that is used to count the number of intersection tests made against a solid of this type in a given frame. More...

virtual TypeHandle	get_type () const

virtual PStatCollector &	get_volume_pcollector ()
	Returns a PStatCollector that is used to count the number of bounding volume tests made against a solid of this type in a given frame. More...

virtual CollisionSolid *	make_copy ()

virtual void	output (std::ostream &out) const

virtual	PT (CollisionEntry) test_intersection(const CollisionEntry &entry) const

void	set_parabola (const LParabola &parabola)

void	set_t1 (PN_stdfloat t1)

void	set_t2 (PN_stdfloat t2)

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Function to write the important information in the particular object to a Datagram. More...

virtual void	xform (const LMatrix4 &mat)

Public Member Functions inherited from CollisionSolid
	CollisionSolid (const CollisionSolid &copy)

void	clear_effective_normal ()
	Removes the normal previously set by set_effective_normal(). More...

	CPT (BoundingVolume) get_bounds() const

const LVector3 &	get_effective_normal () const
	Returns the normal that was set by set_effective_normal(). More...

bool	get_respect_effective_normal () const

bool	has_effective_normal () const
	Returns true if a special normal was set by set_effective_normal(), false otherwise. More...

bool	is_tangible () const

virtual	PT (PandaNode) get_viz(const CullTraverser *trav

void	set_bounds (const BoundingVolume &bounding_volume)

void	set_effective_normal (const LVector3 &effective_normal)
	Records a false normal for this CollisionSolid that will be reported by the collision system with all collisions into it, instead of its actual normal. More...

void	set_respect_effective_normal (bool respect_effective_normal)

void	set_tangible (bool tangible)

virtual void	write (std::ostream &out, int indent_level=0) const

Public Member Functions inherited from CopyOnWriteObject
	CopyOnWriteObject (const CopyOnWriteObject &copy)

void	operator= (const CopyOnWriteObject &copy)

Public Member Functions inherited from CachedTypedWritableReferenceCount
void	cache_ref () const
	Explicitly increments the cache reference count and the normal reference count simultaneously. More...

void	cache_ref_only () const
	Decrements the cache reference count without affecting the normal reference count. More...

bool	cache_unref () const
	Explicitly decrements the cache reference count and the normal reference count simultaneously. More...

int	get_cache_ref_count () const

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

virtual int	complete_pointers (TypedWritable *p_list, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()
	Factory method to generate a CollisionParabola object. More...

Static Public Member Functions inherited from CollisionSolid
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CopyOnWriteObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CachedTypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_parabola
	Returns the parabola specified by this solid. More...

	get_t1
	Returns the starting point on the parabola. More...

	get_t2
	Returns the ending point on the parabola. More...

	set_parabola
	Replaces the parabola specified by this solid. More...

	set_t1
	Changes the starting point on the parabola. More...

	set_t2
	Changes the ending point on the parabola. More...

Public Attributes inherited from CollisionSolid
virtual const CullTraverserData bool bounds_only	const

virtual const CullTraverserData &	data

	get_bounds

	get_collision_origin

	get_respect_effective_normal
	See set_respect_effective_normal(). More...

	is_tangible
	Returns whether the solid is considered 'tangible' or not. More...

	set_bounds

	set_respect_effective_normal
	This is only meaningful for CollisionSolids that will be added to a traverser as colliders. More...

	set_tangible
	Sets the current state of the 'tangible' flag. More...

Public Attributes inherited from CachedTypedWritableReferenceCount
	get_cache_ref_count
	Returns the current reference count. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This defines a parabolic arc, or subset of an arc, similar to the path of a projectile or falling object.

It is finite, having a specific beginning and end, but it is infinitely thin.

Think of it as a wire bending from point t1 to point t2 along the path of a pre-defined parabola.

Definition at line 32 of file collisionParabola.h.

Constructor & Destructor Documentation

◆ CollisionParabola() [1/2]

CollisionParabola::CollisionParabola ( )

inline

Creates an invalid parabola.

Definition at line 18 of file collisionParabola.I.

◆ CollisionParabola() [2/2]

CollisionParabola::CollisionParabola	(	const LParabola &	parabola,
		PN_stdfloat	t1,
		PN_stdfloat	t2
	)

inlineexplicit

Creates a parabola with the endpoints between t1 and t2 in the parametric space of the parabola.

Definition at line 28 of file collisionParabola.I.

Member Function Documentation

◆ get_collision_origin()

LPoint3 CollisionParabola::get_collision_origin ( ) const

virtual

Returns the point in space deemed to be the "origin" of the solid for collision purposes.

The closest intersection point to this origin point is considered to be the most significant.

Implements CollisionSolid.

Definition at line 39 of file collisionParabola.cxx.

◆ get_test_pcollector()

PStatCollector & CollisionParabola::get_test_pcollector ( )

virtual

Returns a PStatCollector that is used to count the number of intersection tests made against a solid of this type in a given frame.

Reimplemented from CollisionSolid.

Definition at line 85 of file collisionParabola.cxx.

◆ get_volume_pcollector()

PStatCollector & CollisionParabola::get_volume_pcollector ( )

virtual

Returns a PStatCollector that is used to count the number of bounding volume tests made against a solid of this type in a given frame.

Reimplemented from CollisionSolid.

Definition at line 76 of file collisionParabola.cxx.

◆ register_with_read_factory()

void CollisionParabola::register_with_read_factory ( )

static

Factory method to generate a CollisionParabola object.

Definition at line 205 of file collisionParabola.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

Referenced by init_libcollide().

◆ write_datagram()

void CollisionParabola::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Function to write the important information in the particular object to a Datagram.

Reimplemented from CollisionSolid.

Definition at line 214 of file collisionParabola.cxx.

References Datagram::add_stdfloat(), and CollisionSolid::write_datagram().

Member Data Documentation

◆ get_parabola

const LParabola & CollisionParabola::get_parabola

inline

Returns the parabola specified by this solid.

Definition at line 64 of file collisionParabola.h.

◆ get_t1

PN_stdfloat CollisionParabola::get_t1

inline

Returns the starting point on the parabola.

Definition at line 65 of file collisionParabola.h.

◆ get_t2

PN_stdfloat CollisionParabola::get_t2

inline

Returns the ending point on the parabola.

Definition at line 66 of file collisionParabola.h.

◆ set_parabola

void CollisionParabola::set_parabola

inline

Replaces the parabola specified by this solid.

Definition at line 64 of file collisionParabola.h.

◆ set_t1

void CollisionParabola::set_t1

inline

Changes the starting point on the parabola.

Definition at line 65 of file collisionParabola.h.

◆ set_t2

void CollisionParabola::set_t2

inline

Changes the ending point on the parabola.

Definition at line 66 of file collisionParabola.h.

The documentation for this class was generated from the following files:

panda/src/collide/collisionParabola.h
panda/src/collide/collisionParabola.cxx
panda/src/collide/collisionParabola.I

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CollisionParabola() [1/2]

◆ CollisionParabola() [2/2]

Member Function Documentation

◆ get_collision_origin()

◆ get_test_pcollector()

◆ get_volume_pcollector()

◆ register_with_read_factory()

◆ write_datagram()

Member Data Documentation

◆ get_parabola

◆ get_t1

◆ get_t2

◆ set_parabola

◆ set_t1

◆ set_t2
