A single primitive of a mesh, like a triangle strip or fan. More...
#include "fltMeshPrimitive.h"

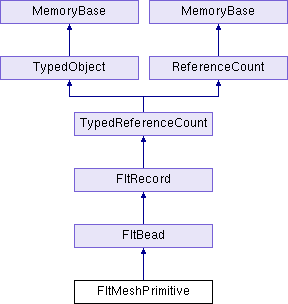

Inheritance diagram for FltMeshPrimitive:
Public Types | |
| enum | PrimitiveType { PT_tristrip = 1, PT_trifan = 2, PT_quadstrip = 3, PT_polygon = 4 } |
| typedef vector_int | Vertices |
Public Member Functions | |
| FltMeshPrimitive (FltHeader *header) | |
| virtual TypeHandle | force_init_type () |
| virtual TypeHandle | get_type () const |
 Public Member Functions inherited from FltBead | |
| FltBead (FltHeader *header) | |
| void | add_transform_step (FltTransformRecord *record) |
| Applies the indicated transform step to the net transformation applied to the bead. More... | |
| void | clear_transform () |
| Removes any transform matrix and all transform steps on this bead. More... | |
| int | get_num_transform_steps () const |
| Returns the number of individual steps that define the net transform on this bead as returned by set_transform(). More... | |
| int | get_replicate_count () const |
| Returns the replicate count of this bead. More... | |
| const LMatrix4d & | get_transform () const |
| Returns the single-precision 4x4 matrix that represents the transform applied to this bead, or the identity matrix if the bead has not been transformed. More... | |
| FltTransformRecord * | get_transform_step (int n) |
| Returns the nth individual step that defines the net transform on this bead. More... | |
| const FltTransformRecord * | get_transform_step (int n) const |
| Returns the nth individual step that defines the net transform on this bead. More... | |
| bool | has_transform () const |
| Returns true if the bead has been transformed, false otherwise. More... | |
| void | set_replicate_count (int count) |
| Changes the replicate count of this bead. More... | |
| void | set_transform (const LMatrix4d &mat) |
| Replaces the transform matrix on this bead. More... | |
| Public Member Functions inherited from FltRecord | |
| FltRecord (FltHeader *header) | |
| void | add_ancillary (FltRecord *ancillary) |
| Adds a new unsupported ancillary record to the end of the list of ancillary records for this record. More... | |
| void | add_child (FltRecord *child) |
| Adds a new child to the end of the list of children for this record. More... | |
| void | add_extension (FltRecord *extension) |
| Adds a new extension to the end of the list of extensions for this record. More... | |
| void | add_subface (FltRecord *subface) |
| Adds a new subface to the end of the list of subfaces for this record. More... | |
| virtual void | apply_converted_filenames () |
| Walks the hierarchy at this record and below and copies the _converted_filename record into the _orig_filename record, so the flt file will be written out with the converted filename instead of what was originally read in. More... | |
| void | check_remaining_size (const DatagramIterator &di, const std::string &name=std::string()) const |
| Checks that the iterator has no bytes left, as it should at the end of a successfully read record. More... | |
| void | clear_ancillary () |
| Removes all unsupported ancillary records from this record. More... | |
| void | clear_children () |
| Removes all children from this record. More... | |
| void | clear_comment () |
| Removes the comment for this record. More... | |
| void | clear_extensions () |
| Removes all extensions from this record. More... | |
| void | clear_subfaces () |
| Removes all subfaces from this record. More... | |
| FltRecord * | get_ancillary (int n) const |
| Returns the nth unsupported ancillary record of this record. More... | |
| FltRecord * | get_child (int n) const |
| Returns the nth child of this record. More... | |
| const std::string & | get_comment () const |
| Retrieves the comment for this record, or empty string if the record has no comment. More... | |
| FltRecord * | get_extension (int n) const |
| Returns the nth extension of this record. More... | |
| int | get_num_ancillary () const |
| Returns the number of unsupported ancillary records of this record. More... | |
| int | get_num_children () const |
| Returns the number of child records of this record. More... | |
| int | get_num_extensions () const |
| Returns the number of extension attribute records for this object. More... | |
| int | get_num_subfaces () const |
| Returns the number of subface records of this record. More... | |
| FltRecord * | get_subface (int n) const |
| Returns the nth subface of this record. More... | |
| bool | has_comment () const |
| Returns true if this record has a nonempty comment, false otherwise. More... | |
| virtual void | output (std::ostream &out) const |
| Writes a quick one-line description of the record, but not its children. More... | |
| void | set_comment (const std::string &comment) |
| Changes the comment for this record. More... | |
| virtual void | write (std::ostream &out, int indent_level=0) const |
| Writes a multiple-line description of the record and all of its children. More... | |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from FltBead | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from FltRecord | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Public Attributes | |
| PrimitiveType | _primitive_type |
| Vertices | _vertices |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
A single primitive of a mesh, like a triangle strip or fan.
Definition at line 28 of file fltMeshPrimitive.h.
The documentation for this class was generated from the following files:
- pandatool/src/flt/fltMeshPrimitive.h
- pandatool/src/flt/fltMeshPrimitive.cxx
