A box shaped collision detection primitive. More...
#include "physxBoxShape.h"

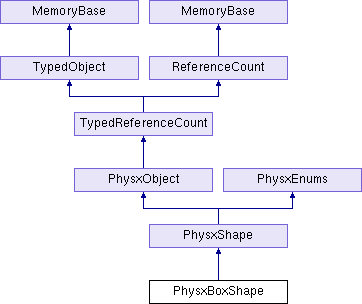

Inheritance diagram for PhysxBoxShape:
Public Member Functions | |
| virtual TypeHandle | force_init_type () |
| LVector3f | get_dimensions () const |
| Retrieves the dimensions of the box. More... | |
| virtual TypeHandle | get_type () const |
| void | link (NxShape *shapePtr) |
| NxShape * | ptr () const |
| void | save_to_desc (PhysxBoxShapeDesc &shapeDesc) const |
| Saves the state of the shape object to a descriptor. More... | |
| void | set_dimensions (const LVector3f &dimensions) |
| Sets the box dimensions. More... | |
| void | unlink () |
 Public Member Functions inherited from PhysxShape | |
| bool | check_overlap_aabb (const PhysxBounds3 &world_bounds) const |
| Checks whether the shape overlaps a world-space AABB or not. More... | |
| bool | check_overlap_capsule (const PhysxCapsule &world_capsule) const |
| Checks whether the shape overlaps a world-space capsule or not. More... | |
| bool | check_overlap_obb (const PhysxBox &world_box) const |
| Checks whether the shape overlaps a world-space OBB or not. More... | |
| bool | check_overlap_sphere (const PhysxSphere &world_sphere) const |
| Checks whether the shape overlaps a world-space sphere or not. More... | |
| PhysxActor * | get_actor () const |
| Retrieves the actor which this shape is associated with. More... | |
| PhysxCcdSkeleton * | get_ccd_skeleton () const |
| bool | get_flag (const PhysxShapeFlag flag) const |
| Returns the specified shape flag. More... | |
| unsigned short | get_group () const |
| Retrieves the collision group set for this shape. More... | |
| PhysxGroupsMask | get_groups_mask () const |
| Gets 128-bit mask used for collision filtering. More... | |
| LMatrix4f | get_local_mat () const |
| Retrieve the transform of the shape in actor space, i.e. More... | |
| LPoint3f | get_local_pos () const |
| Retrieve the position of the shape in actor space, i.e. More... | |
| unsigned short | get_material_index () const |
| Returns the material index currently assigned to the shape. More... | |
| const char * | get_name () const |
| Returns the name string. More... | |
| float | get_skin_width () const |
| Returns the skin width. More... | |
| PhysxBounds3 | get_world_bounds () const |
| Returns a world space AABB enclosing this shape. More... | |
| void | ls () const |
| void | ls (std::ostream &out, int indent_level=0) const |
| PhysxRaycastHit | raycast (const PhysxRay &worldRay, bool firstHit, bool smoothNormal) const |
| void | release () |
| void | set_ccd_skeleton (PhysxCcdSkeleton *skel) |
| void | set_flag (const PhysxShapeFlag flag, bool value) |
| Sets the specified shape flag. More... | |
| void | set_group (unsigned short group) |
| Sets which collision group this shape is part of. More... | |
| void | set_groups_mask (const PhysxGroupsMask &mask) |
| Sets 128-bit mask used for collision filtering. More... | |
| void | set_local_mat (const LMatrix4f &mat) |
| Set the transform of the shape in actor space, i.e. More... | |
| void | set_local_pos (const LPoint3f &pos) |
| Set the position of the shape in actor space, i.e. More... | |
| void | set_material (const PhysxMaterial &material) |
| Assigns a material to the shape. More... | |
| void | set_material_index (unsigned short idx) |
| Assigns a material index to the shape. More... | |
| void | set_name (const char *name) |
| Sets a name string for this object. More... | |
| void | set_skin_width (float skinWidth) |
| Sets the skin width. More... | |
| Public Member Functions inherited from TypedReferenceCount | |
| TypedReferenceCount (const TypedReferenceCount ©) | |
| void | operator= (const TypedReferenceCount ©) |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from PhysxShape | |
| static PhysxShape * | factory (NxShapeType shapeType) |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from PhysxObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Additional Inherited Members | |
| Public Types inherited from PhysxEnums | |
| enum | PhysxActorFlag { AF_disable_collision = NX_AF_DISABLE_COLLISION, AF_disable_response = NX_AF_DISABLE_RESPONSE, AF_lock_com = NX_AF_LOCK_COM, AF_fluid_disable_collision = NX_AF_FLUID_DISABLE_COLLISION, AF_contact_modification = NX_AF_CONTACT_MODIFICATION, AF_force_cone_friction = NX_AF_FORCE_CONE_FRICTION, AF_user_actor_pair_filtering = NX_AF_USER_ACTOR_PAIR_FILTERING } |
| enum | PhysxBodyFlag { BF_disable_gravity = NX_BF_DISABLE_GRAVITY, Bf_frozen_pos_x = NX_BF_FROZEN_POS_X, BF_frozen_pos_y = NX_BF_FROZEN_POS_Y, BF_frozen_pos_z = NX_BF_FROZEN_POS_Z, BF_frozen_rot_x = NX_BF_FROZEN_ROT_X, BF_frozen_rot_y = NX_BF_FROZEN_ROT_Y, BF_frozen_rot_z = NX_BF_FROZEN_ROT_Z, BF_frozen_pos = NX_BF_FROZEN_POS, BF_frozen_rot = NX_BF_FROZEN_ROT, BF_frozen = NX_BF_FROZEN, BF_kinematic = NX_BF_KINEMATIC, BF_visualization = NX_BF_VISUALIZATION, BF_filter_sleep_vel = NX_BF_FILTER_SLEEP_VEL, BF_energy_sleep_test = NX_BF_ENERGY_SLEEP_TEST } |
| enum | PhysxBroadPhaseType { BPT_sap_single = NX_BP_TYPE_SAP_SINGLE, BPT_sap_multi = NX_BP_TYPE_SAP_MULTI } |
| enum | PhysxClothFlag { CLF_pressure = NX_CLF_PRESSURE, CLF_static = NX_CLF_STATIC, CLF_disable_collision = NX_CLF_DISABLE_COLLISION, CLF_selfcollision = NX_CLF_SELFCOLLISION, CLF_visualization = NX_CLF_VISUALIZATION, CLF_gravity = NX_CLF_GRAVITY, CLF_bending = NX_CLF_BENDING, CLF_bending_ortho = NX_CLF_BENDING_ORTHO, CLF_damping = NX_CLF_DAMPING, CLF_collision_twoway = NX_CLF_COLLISION_TWOWAY, CLF_triangle_collision = NX_CLF_TRIANGLE_COLLISION, CLF_tearable = NX_CLF_TEARABLE, CLF_hardware = NX_CLF_HARDWARE, CLF_comdamping = NX_CLF_COMDAMPING, CLF_validbounds = NX_CLF_VALIDBOUNDS, CLF_fluid_collision = NX_CLF_FLUID_COLLISION, CLF_disable_dynamic_ccd = NX_CLF_DISABLE_DYNAMIC_CCD, CLF_adhere = NX_CLF_ADHERE } |
| enum | PhysxCombineMode { CM_average = NX_CM_AVERAGE, CM_min = NX_CM_MIN, CM_multiply = NX_CM_MULTIPLY, CM_max = NX_CM_MAX } |
| enum | PhysxContactPairFlag { CPF_ignore_pair = NX_IGNORE_PAIR, CPF_notify_on_start_touch = NX_NOTIFY_ON_START_TOUCH, CPF_notify_on_end_touch = NX_NOTIFY_ON_END_TOUCH, CPF_notify_on_touch = NX_NOTIFY_ON_TOUCH, CPF_notify_on_impact = NX_NOTIFY_ON_IMPACT, CPF_notify_on_roll = NX_NOTIFY_ON_ROLL, CPF_notify_on_slide = NX_NOTIFY_ON_SLIDE, CPF_notify_forces = NX_NOTIFY_FORCES, CPF_notify_on_start_touch_threshold = NX_NOTIFY_ON_START_TOUCH_FORCE_THRESHOLD, CPF_notify_on_end_touch_threshold = NX_NOTIFY_ON_END_TOUCH_FORCE_THRESHOLD, CPF_notify_on_touch_threshold = NX_NOTIFY_ON_TOUCH_FORCE_THRESHOLD, CPF_notify_contact_modifications = NX_NOTIFY_CONTACT_MODIFICATION } |
| enum | PhysxD6JointDriveType { D6_joint_drive_position = NX_D6JOINT_DRIVE_POSITION, D6_joint_drive_velocity = NX_D6JOINT_DRIVE_VELOCITY } |
| enum | PhysxD6JointFlag { D6_joint_slerp_drive = NX_D6JOINT_SLERP_DRIVE, D6_joint_gear_disabled = NX_D6JOINT_GEAR_ENABLED } |
| enum | PhysxD6JointMotion { D6_joint_motion_locked = NX_D6JOINT_MOTION_LOCKED, D6_joint_motion_limited = NX_D6JOINT_MOTION_LIMITED, D6_joint_motion_free = NX_D6JOINT_MOTION_FREE } |
| enum | PhysxDistanceJointFlag { DJF_max_distance_enabled = NX_DJF_MAX_DISTANCE_ENABLED, DJF_mix_distance_enabled = NX_DJF_MIN_DISTANCE_ENABLED, DJF_spring_enabled = NX_DJF_SPRING_ENABLED } |
| enum | PhysxFilterOp { FO_and = NX_FILTEROP_AND, FO_or = NX_FILTEROP_OR, FO_xor = NX_FILTEROP_XOR, FO_nand = NX_FILTEROP_NAND, FO_nor = NX_FILTEROP_NOR, FO_nxor = NX_FILTEROP_NXOR, FO_swap_and = NX_FILTEROP_SWAP_AND } |
| enum | PhysxForceFieldCoordinates { FFC_cartesian, FFC_spherical, FFC_cylindrical, FFC_toroidal } |
| enum | PhysxForceFieldShapeGroupFlag { FFSG_exclude_group = NX_FFSG_EXCLUDE_GROUP } |
| enum | PhysxForceMode { FM_force = NX_FORCE, FM_impulse = NX_IMPULSE, FM_velocity_change = NX_VELOCITY_CHANGE, FM_smooth_impulse = NX_SMOOTH_IMPULSE, FM_smooth_velocity_change = NX_SMOOTH_VELOCITY_CHANGE, FM_acceleration = NX_ACCELERATION } |
| enum | PhysxJointFlag { JF_collision_enabled = NX_JF_COLLISION_ENABLED, JF_visualization = NX_JF_VISUALIZATION } |
| enum | PhysxMaterialFlag { MF_anisotropic = NX_MF_ANISOTROPIC, MF_disable_friction = NX_MF_DISABLE_FRICTION, MF_disable_strong_friction = NX_MF_DISABLE_STRONG_FRICTION } |
| enum | PhysxParameter { P_penalty_force = NX_PENALTY_FORCE, P_skin_width = NX_SKIN_WIDTH, P_default_sleep_lin_vel_squared = NX_DEFAULT_SLEEP_LIN_VEL_SQUARED, P_default_sleep_ang_vel_squared = NX_DEFAULT_SLEEP_ANG_VEL_SQUARED, P_bounce_threshold = NX_BOUNCE_THRESHOLD, P_dyn_frict_scaling = NX_DYN_FRICT_SCALING, P_sta_frict_scaling = NX_STA_FRICT_SCALING, P_max_angular_velocity = NX_MAX_ANGULAR_VELOCITY, P_continuous_cd = NX_CONTINUOUS_CD, P_visualization_scale = NX_VISUALIZATION_SCALE, P_adaptive_force = NX_ADAPTIVE_FORCE, P_coll_veta_jointed = NX_COLL_VETO_JOINTED, P_trigger_trigger_callback = NX_TRIGGER_TRIGGER_CALLBACK, P_select_hw_algo = NX_SELECT_HW_ALGO, P_ccd_epsilon = NX_CCD_EPSILON, P_solver_convergence_threshold = NX_SOLVER_CONVERGENCE_THRESHOLD, P_bbox_noise_level = NX_BBOX_NOISE_LEVEL, P_implicit_sweep_cache_size = NX_IMPLICIT_SWEEP_CACHE_SIZE, P_default_sleep_energy = NX_DEFAULT_SLEEP_ENERGY, P_constant_fluid_max_packets = NX_CONSTANT_FLUID_MAX_PACKETS, P_constant_fluid_max_particles_per_step = NX_CONSTANT_FLUID_MAX_PARTICLES_PER_STEP, P_asynchronous_mesh_creation = NX_ASYNCHRONOUS_MESH_CREATION, P_force_field_custom_kernel_epsilon = NX_FORCE_FIELD_CUSTOM_KERNEL_EPSILON, P_improved_spring_solver = NX_IMPROVED_SPRING_SOLVER, P_visualize_world_axes = NX_VISUALIZE_WORLD_AXES, P_visualize_body_axes = NX_VISUALIZE_BODY_AXES, P_visualize_body_mass_axes = NX_VISUALIZE_BODY_MASS_AXES, P_visualize_body_lin_velocity = NX_VISUALIZE_BODY_LIN_VELOCITY, P_visualize_body_ang_velocity = NX_VISUALIZE_BODY_ANG_VELOCITY, P_visualize_body_joint_groups = NX_VISUALIZE_BODY_JOINT_GROUPS, P_visualize_joint_local_axes = NX_VISUALIZE_JOINT_LOCAL_AXES, P_visualize_joint_world_axes = NX_VISUALIZE_JOINT_WORLD_AXES, P_visualize_joint_limits = NX_VISUALIZE_JOINT_LIMITS, P_visualize_contact_point = NX_VISUALIZE_CONTACT_POINT, P_visualize_contact_normal = NX_VISUALIZE_CONTACT_NORMAL, P_visualize_contact_error = NX_VISUALIZE_CONTACT_ERROR, P_visualize_contact_force = NX_VISUALIZE_CONTACT_FORCE, P_visualize_actor_axes = NX_VISUALIZE_ACTOR_AXES, P_visualize_collision_aabbs = NX_VISUALIZE_COLLISION_AABBS, P_visualize_collision_shapes = NX_VISUALIZE_COLLISION_SHAPES, P_visualize_collision_axes = NX_VISUALIZE_COLLISION_AXES, P_visualize_collision_compounds = NX_VISUALIZE_COLLISION_COMPOUNDS, P_visualize_collision_vnormals = NX_VISUALIZE_COLLISION_VNORMALS, P_visualize_collision_fnormals = NX_VISUALIZE_COLLISION_FNORMALS, P_visualize_collision_edges = NX_VISUALIZE_COLLISION_EDGES, P_visualize_collision_spheres = NX_VISUALIZE_COLLISION_SPHERES, P_visualize_collision_static = NX_VISUALIZE_COLLISION_STATIC, P_visualize_collision_dynamic = NX_VISUALIZE_COLLISION_DYNAMIC, P_visualize_collision_free = NX_VISUALIZE_COLLISION_FREE, P_visualize_collision_ccd = NX_VISUALIZE_COLLISION_CCD, P_visualize_collision_skeletons = NX_VISUALIZE_COLLISION_SKELETONS, P_visualize_fluid_emitters = NX_VISUALIZE_FLUID_EMITTERS, P_visualize_fluid_position = NX_VISUALIZE_FLUID_POSITION, P_visualize_fluid_velocity = NX_VISUALIZE_FLUID_VELOCITY, P_visualize_fluid_kernel_radius = NX_VISUALIZE_FLUID_KERNEL_RADIUS, P_visualize_fluid_bounds = NX_VISUALIZE_FLUID_BOUNDS, P_visualize_fluid_packets = NX_VISUALIZE_FLUID_PACKETS, P_visualize_fluid_motion_limit = NX_VISUALIZE_FLUID_MOTION_LIMIT, P_visualize_fluid_dyn_collision = NX_VISUALIZE_FLUID_DYN_COLLISION, P_visualize_fluid_stc_collision = NX_VISUALIZE_FLUID_STC_COLLISION, P_visualize_fluid_mesh_packets = NX_VISUALIZE_FLUID_MESH_PACKETS, P_visualize_fluid_drains = NX_VISUALIZE_FLUID_DRAINS, P_visualize_fluid_packet_data = NX_VISUALIZE_FLUID_PACKET_DATA, P_visualize_cloth_mesh = NX_VISUALIZE_CLOTH_MESH, P_visualize_cloth_collisions = NX_VISUALIZE_CLOTH_COLLISIONS, P_visualize_cloth_selfcollisions = NX_VISUALIZE_CLOTH_SELFCOLLISIONS, P_visualize_cloth_workpackets = NX_VISUALIZE_CLOTH_WORKPACKETS, P_visualize_cloth_sleep = NX_VISUALIZE_CLOTH_SLEEP, P_visualize_cloth_sleep_vertex = NX_VISUALIZE_CLOTH_SLEEP_VERTEX, P_visualize_cloth_tearable_vertices = NX_VISUALIZE_CLOTH_TEARABLE_VERTICES, P_visualize_cloth_tearing = NX_VISUALIZE_CLOTH_TEARING, P_visualize_cloth_attachment = NX_VISUALIZE_CLOTH_ATTACHMENT, P_visualize_cloth_validbounds = NX_VISUALIZE_CLOTH_VALIDBOUNDS, P_visualize_softbody_mesh = NX_VISUALIZE_SOFTBODY_MESH, P_visualize_softbody_collisions = NX_VISUALIZE_SOFTBODY_COLLISIONS, P_visualize_softbody_workpackets = NX_VISUALIZE_SOFTBODY_WORKPACKETS, P_visualize_softbody_sleep = NX_VISUALIZE_SOFTBODY_SLEEP, P_visualize_softbody_sleep_vertex = NX_VISUALIZE_SOFTBODY_SLEEP_VERTEX, P_visualize_softbody_tearable_vertices = NX_VISUALIZE_SOFTBODY_TEARABLE_VERTICES, P_visualize_softbody_tearing = NX_VISUALIZE_SOFTBODY_TEARING, P_visualize_softbody_attachment = NX_VISUALIZE_SOFTBODY_ATTACHMENT, P_visualize_softbody_validbounds = NX_VISUALIZE_SOFTBODY_VALIDBOUNDS, P_visualize_active_vertices = NX_VISUALIZE_ACTIVE_VERTICES, P_visualize_force_fields = NX_VISUALIZE_FORCE_FIELDS } |
| enum | PhysxProjectionMode { PM_none = NX_JPM_NONE, PM_point_mindist = NX_JPM_POINT_MINDIST, PM_linear_mindist = NX_JPM_LINEAR_MINDIST } |
| enum | PhysxPruningStructure { PS_none = NX_PRUNING_NONE, PS_octree = NX_PRUNING_OCTREE, PS_quadtree = NX_PRUNING_QUADTREE, PS_dynamic_aabb_tree = NX_PRUNING_DYNAMIC_AABB_TREE, PS_static_aabb_tree = NX_PRUNING_STATIC_AABB_TREE } |
| enum | PhysxPulleyJointFlag { PJF_is_rigid = NX_PJF_IS_RIGID, PJF_motor_enabled = NX_PJF_MOTOR_ENABLED } |
| enum | PhysxRevoluteJointFlag { RJF_limit_enabled = NX_RJF_LIMIT_ENABLED, RJF_motor_enabled = NX_RJF_MOTOR_ENABLED, RJF_spring_enabled = NX_RJF_SPRING_ENABLED } |
| enum | PhysxSceneFlag { SF_disable_sse = NX_SF_DISABLE_SSE, SF_disable_collisions = NX_SF_DISABLE_COLLISIONS, SF_restricted_scene = NX_SF_RESTRICTED_SCENE, SF_disable_scene_mutex = NX_SF_DISABLE_SCENE_MUTEX, SF_force_cone_friction = NX_SF_FORCE_CONE_FRICTION, SF_sequential_primary = NX_SF_SEQUENTIAL_PRIMARY, SF_fluid_performance_hint = NX_SF_FLUID_PERFORMANCE_HINT } |
| enum | PhysxShapeFlag { SF_trigger_on_enter = NX_TRIGGER_ON_ENTER, SF_trigger_on_leave = NX_TRIGGER_ON_LEAVE, SF_trigger_on_stay = NX_TRIGGER_ON_STAY, SF_trigger_enable = NX_TRIGGER_ENABLE, SF_visualization = NX_SF_VISUALIZATION, SF_disable_collision = NX_SF_DISABLE_COLLISION, SF_disable_raycasting = NX_SF_DISABLE_RAYCASTING, SF_disable_response = NX_SF_DISABLE_RESPONSE, SF_disable_scene_queries = NX_SF_DISABLE_SCENE_QUERIES, SF_point_contact_force = NX_SF_POINT_CONTACT_FORCE, SF_feature_indices = NX_SF_FEATURE_INDICES, SF_dynamic_dynamic_ccd = NX_SF_DYNAMIC_DYNAMIC_CCD, SF_fluid_drain = NX_SF_FLUID_DRAIN, SF_fluid_disable_collision = NX_SF_FLUID_DISABLE_COLLISION, SF_fluid_twoway = NX_SF_FLUID_TWOWAY, SF_cloth_drain = NX_SF_CLOTH_DRAIN, SF_cloth_disable_collision = NX_SF_CLOTH_DISABLE_COLLISION, SF_cloth_twoway = NX_SF_CLOTH_TWOWAY, SF_softbody_drain = NX_SF_SOFTBODY_DRAIN, SF_softbody_disable_collision = NX_SF_SOFTBODY_DISABLE_COLLISION, SF_softbody_twoway = NX_SF_SOFTBODY_TWOWAY } |
| enum | PhysxShapesType { ST_static = NX_STATIC_SHAPES, ST_dynamic = NX_DYNAMIC_SHAPES, ST_all = NX_ALL_SHAPES } |
| enum | PhysxSoftBodyFlag { SBF_static = NX_SBF_STATIC, SBF_disable_collision = NX_SBF_DISABLE_COLLISION, SBF_selfcollision = NX_SBF_SELFCOLLISION, SBF_visualization = NX_SBF_VISUALIZATION, SBF_gravity = NX_SBF_GRAVITY, SBF_volume_conservtion = NX_SBF_VOLUME_CONSERVATION, SBF_damping = NX_SBF_DAMPING, SBF_collision_twoway = NX_SBF_COLLISION_TWOWAY, SBF_tearable = NX_SBF_TEARABLE, SBF_hardware = NX_SBF_HARDWARE, SBF_comdamping = NX_SBF_COMDAMPING, SBF_validbounds = NX_SBF_VALIDBOUNDS, SBF_fluid_collision = NX_SBF_FLUID_COLLISION, SBF_disable_dynamic_ccd = NX_SBF_DISABLE_DYNAMIC_CCD, SBF_adhere = NX_SBF_ADHERE } |
| enum | PhysxSphericalJointFlag { SJF_twist_limit_enabled = NX_SJF_TWIST_LIMIT_ENABLED, SJF_swing_limit_enabled = NX_SJF_SWING_LIMIT_ENABLED, SJF_twist_spring_enabled = NX_SJF_TWIST_SPRING_ENABLED, SJF_swing_spring_enabled = NX_SJF_SWING_SPRING_ENABLED, SJF_joint_spring_enabled = NX_SJF_JOINT_SPRING_ENABLED, SJF_perpendicular_dir_constraints = NX_SJF_PERPENDICULAR_DIR_CONSTRAINTS } |
| enum | PhysxUpAxis { X_up = NX_X, Y_up = NX_Y, Z_up = NX_Z } |
| enum | PhysxVertexAttachmentStatus { VAS_none = NX_CLOTH_VERTEX_ATTACHMENT_NONE, VAS_global = NX_CLOTH_VERTEX_ATTACHMENT_GLOBAL, VAS_shape = NX_CLOTH_VERTEX_ATTACHMENT_SHAPE } |
| enum | PhysxWheelFlag { WF_steerable_input = 1<<0, WF_steerable_auto = 1<<1, WF_affected_by_handbrake = 1<<2, WF_accelerated = 1<<3 } |
| enum | PhysxWheelShapeFlag { WSF_wheel_axis_contact_normal = NX_WF_WHEEL_AXIS_CONTACT_NORMAL, WSF_input_lat_slipvelocity = NX_WF_INPUT_LAT_SLIPVELOCITY, WSF_input_lng_slipvelocity = NX_WF_INPUT_LNG_SLIPVELOCITY, WSF_unscaled_spring_behavior = NX_WF_UNSCALED_SPRING_BEHAVIOR, WSF_axle_speed_override = NX_WF_AXLE_SPEED_OVERRIDE, WSF_emulate_legacy_wheel = NX_WF_EMULATE_LEGACY_WHEEL, WSF_clamped_friction = NX_WF_CLAMPED_FRICTION } |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
Detailed Description
A box shaped collision detection primitive.
Each shape is owned by the actor which it is attached to.
An instance can be created by calling the createShape() method of the PhysxActor object that will own it, with a PhysxBoxShapeDesc object as the parameter, or by adding the shape descriptor to the PhysxActorDesc class before creating the actor.
The shape is deleted by calling release() on the shape itself.
Definition at line 36 of file physxBoxShape.h.
Member Function Documentation
◆ get_dimensions()
| LVector3f PhysxBoxShape::get_dimensions | ( | ) | const |
Retrieves the dimensions of the box.
The dimensions are the 'radii' of the box, meaning 1/2 extents in x dimension, 1/2 extents in y dimension, 1/2 extents in z dimension.
Definition at line 79 of file physxBoxShape.cxx.
◆ save_to_desc()
| void PhysxBoxShape::save_to_desc | ( | PhysxBoxShapeDesc & | shapeDesc | ) | const |
Saves the state of the shape object to a descriptor.
Definition at line 53 of file physxBoxShape.cxx.
◆ set_dimensions()
| void PhysxBoxShape::set_dimensions | ( | const LVector3f & | vec | ) |
Sets the box dimensions.
The dimensions are the 'radii' of the box, meaning 1/2 extents in x dimension, 1/2 extents in y dimension, 1/2 extents in z dimension.
Definition at line 66 of file physxBoxShape.cxx.
The documentation for this class was generated from the following files:
- panda/src/physx/physxBoxShape.h
- panda/src/physx/physxBoxShape.cxx
- panda/src/physx/physxBoxShape.I
