Indicates the set of TextureStages and their associated Textures that should be applied to (or removed from) a node. More...

#include "textureAttrib.h"

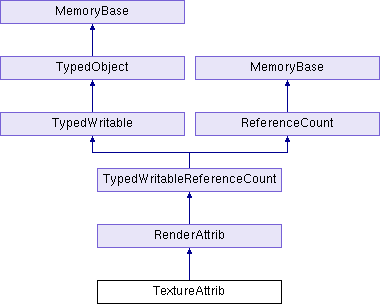

Inheritance diagram for TextureAttrib:

Public Member Functions
virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

	CPT (RenderAttrib) add_on_stage(TextureStage *stage

	CPT (RenderAttrib) add_on_stage(TextureStage *stage

	CPT (RenderAttrib) remove_on_stage(TextureStage *stage) const

	CPT (RenderAttrib) add_off_stage(TextureStage *stage

	CPT (RenderAttrib) remove_off_stage(TextureStage *stage) const

	CPT (RenderAttrib) unify_texture_stages(TextureStage *stage) const

	CPT (TextureAttrib) filter_to_max(int max_texture_stages) const

virtual bool	cull_callback (CullTraverser *trav, const CullTraverserData &data) const
	If has_cull_callback() returns true, this function will be called during the cull traversal to perform any additional operations that should be performed at cull time. More...

int	find_on_stage (const TextureStage *stage) const
	Returns the index number of the indicated TextureStage within the list of on_stages, or -1 if the indicated stage is not listed. More...

virtual TypeHandle	force_init_type ()

int	get_ff_tc_index (int n) const
	For each TextureStage listed in get_on_ff_stage(), this returns a unique index number for the texture coordinate name used by that TextureStage. More...

int	get_num_off_stages () const

int	get_num_on_ff_stages () const

int	get_num_on_stages () const

TextureStage *	get_off_stage (int n) const

TextureStage *	get_on_ff_stage (int n) const

const SamplerState &	get_on_sampler (TextureStage *stage) const

TextureStage *	get_on_stage (int n) const

int	get_on_stage_override (TextureStage *stage) const
	Returns the override value associated with the indicated stage. More...

Texture *	get_on_texture (TextureStage *stage) const

virtual int	get_slot () const

Texture *	get_texture () const
	If the TextureAttrib is not an 'off' TextureAttrib, returns the base-level texture that is associated. More...

virtual TypeHandle	get_type () const

bool	has_all_off () const
	Returns true if this attrib turns off all stages (although it may also turn some on). More...

virtual bool	has_cull_callback () const
	Should be overridden by derived classes to return true if cull_callback() has been defined. More...

bool	has_off_stage (TextureStage *stage) const
	Returns true if the indicated stage is turned off by the attrib, false otherwise. More...

bool	has_on_stage (TextureStage *stage) const

bool	is_identity () const
	Returns true if this is an identity attrib: it does not change the set of stages in use. More...

bool	is_off () const
	Returns true if the TextureAttrib is an 'off' TextureAttrib, indicating that it should disable texturing. More...

virtual bool	lower_attrib_can_override () const
	Intended to be overridden by derived RenderAttrib types to specify how two consecutive RenderAttrib objects of the same type interact. More...

virtual void	output (std::ostream &out) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from RenderAttrib
	RenderAttrib (const RenderAttrib &copy)=delete

virtual	~RenderAttrib ()
	The destructor is responsible for removing the RenderAttrib from the global set if it is there. More...

int	compare_to (const RenderAttrib &other) const

	CPT (RenderAttrib) compose(const RenderAttrib *other) const

	CPT (RenderAttrib) invert_compose(const RenderAttrib *other) const

	CPT (RenderAttrib) get_unique() const

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

size_t	get_hash () const

RenderAttrib &	operator= (const RenderAttrib &copy)=delete

virtual bool	unref () const final
	This method overrides ReferenceCount::unref() to clear the pointer from the global object pool when its reference count goes to zero. More...

virtual void	write (std::ostream &out, int indent_level) const

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static	CPT (RenderAttrib) make(Texture *tex)

static	CPT (RenderAttrib) make_off()

static	CPT (RenderAttrib) make_default()

static	CPT (RenderAttrib) make()

static	CPT (RenderAttrib) make_all_off()

static int	get_class_slot ()

static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()

Static Public Member Functions inherited from RenderAttrib
static TypedWritable *	change_this (TypedWritable old_ptr, BamReader manager)
	Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired. More...

static int	garbage_collect ()
	Performs a garbage-collection cycle. More...

static TypeHandle	get_class_type ()

static int	get_num_attribs ()
	Returns the total number of unique RenderAttrib objects allocated in the world. More...

static void	init_attribs ()
	Make sure the global _attribs map is allocated. More...

static void	init_type ()

static void	list_attribs (std::ostream &out)
	Lists all of the RenderAttribs in the cache to the output stream, one per line. More...

static int	register_slot (TypeHandle type_handle, int sort, RenderAttrib *default_attrib)
	Adds the indicated TypeHandle to the registry, if it is not there already, and returns a unique slot number. More...

static bool	validate_attribs ()
	Ensures that the cache is still stored in sorted order. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_class_slot

	get_num_off_stages
	Returns the number of stages that are turned off by the attribute. More...

	get_num_on_ff_stages
	Returns the number of on-stages that are relevant to the classic fixed function pipeline. More...

	get_num_on_stages
	Returns the number of stages that are turned on by the attribute. More...

	get_off_stage
	Returns the nth stage turned off by the attribute, sorted in arbitrary (pointer) order. More...

	get_on_ff_stage
	Returns the nth stage turned on by the attribute, sorted in render order, including only those relevant to the classic fixed function pipeline. More...

	get_on_sampler
	Returns the sampler associated with the indicated stage, or the one associated with its texture if no custom stage has been specified. More...

	get_on_stage
	Returns the nth stage turned on by the attribute, sorted in render order. More...

	get_on_texture
	Returns the texture associated with the indicated stage, or NULL if no texture is associated. More...

	has_on_stage
	Returns true if the indicated stage is turned on by the attrib, false otherwise. More...

Texture int	override = 0) const

Texture const SamplerState int	override = 0) const

int	override = 0) const

Texture const SamplerState &	sampler

Texture *	tex

Public Attributes inherited from RenderAttrib
	get_slot

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Additional Inherited Members
Public Types inherited from RenderAttrib
enum	PandaCompareFunc { M_none =0, M_never, M_less, M_equal, M_less_equal, M_greater, M_not_equal, M_greater_equal, M_always }

enum	TexGenMode { M_off, M_eye_sphere_map, M_world_cube_map, M_eye_cube_map, M_world_normal, M_eye_normal, M_world_position, M_unused, M_eye_position, M_point_sprite, M_unused2, M_constant }

Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Indicates the set of TextureStages and their associated Textures that should be applied to (or removed from) a node.

Definition at line 31 of file textureAttrib.h.

Member Function Documentation

◆ complete_pointers()

int TextureAttrib::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 795 of file textureAttrib.cxx.

◆ cull_callback()

virtual bool TextureAttrib::cull_callback	(	CullTraverser *	trav,
		const CullTraverserData &	data
	)		const

virtual

If has_cull_callback() returns true, this function will be called during the cull traversal to perform any additional operations that should be performed at cull time.

This is called each time the RenderAttrib is discovered applied to a Geom in the traversal. It should return true if the Geom is visible, false if it should be omitted.

Reimplemented from RenderAttrib.

◆ find_on_stage()

int TextureAttrib::find_on_stage ( const TextureStage * stage ) const

Returns the index number of the indicated TextureStage within the list of on_stages, or -1 if the indicated stage is not listed.

Definition at line 94 of file textureAttrib.cxx.

References ordered_vector< Key, Compare, Vector >::begin(), and ordered_vector< Key, Compare, Vector >::end().

◆ get_ff_tc_index()

int TextureAttrib::get_ff_tc_index ( int n ) const

inline

For each TextureStage listed in get_on_ff_stage(), this returns a unique index number for the texture coordinate name used by that TextureStage.

It is guaranteed to remain the same index number for each texcoord name (for a given set of TextureStages), even if the texture render order changes.

Definition at line 115 of file textureAttrib.I.

◆ get_on_stage_override()

int TextureAttrib::get_on_stage_override ( TextureStage * stage ) const

inline

Returns the override value associated with the indicated stage.

Definition at line 162 of file textureAttrib.I.

References ordered_vector< Key, Compare, Vector >::end().

◆ get_texture()

Texture * TextureAttrib::get_texture ( ) const

inline

If the TextureAttrib is not an 'off' TextureAttrib, returns the base-level texture that is associated.

Otherwise, return NULL.

Definition at line 61 of file textureAttrib.I.

References ordered_vector< Key, Compare, Vector >::empty(), get_on_stage, and get_on_texture.

◆ has_all_off()

bool TextureAttrib::has_all_off ( ) const

inline

Returns true if this attrib turns off all stages (although it may also turn some on).

Definition at line 205 of file textureAttrib.I.

◆ has_cull_callback()

virtual bool TextureAttrib::has_cull_callback ( ) const

virtual

Should be overridden by derived classes to return true if cull_callback() has been defined.

Otherwise, returns false to indicate cull_callback() does not need to be called for this node during the cull traversal.

Reimplemented from RenderAttrib.

◆ has_off_stage()

bool TextureAttrib::has_off_stage ( TextureStage * stage ) const

inline

Returns true if the indicated stage is turned off by the attrib, false otherwise.

Definition at line 195 of file textureAttrib.I.

References ordered_vector< Key, Compare, Vector >::end(), and has_on_stage.

◆ is_identity()

bool TextureAttrib::is_identity ( ) const

inline

Returns true if this is an identity attrib: it does not change the set of stages in use.

Definition at line 214 of file textureAttrib.I.

References ordered_vector< Key, Compare, Vector >::empty().

◆ is_off()

bool TextureAttrib::is_off ( ) const

inline

Returns true if the TextureAttrib is an 'off' TextureAttrib, indicating that it should disable texturing.

If multitexture is in effect, a TextureAttrib may not be strictly "on" or "off"; therefore, to get a more precise answer to this question, you should consider using has_all_off() or get_num_off_stages() or has_off_stage() instead.

Definition at line 52 of file textureAttrib.I.

References ordered_vector< Key, Compare, Vector >::empty().

◆ lower_attrib_can_override()

virtual bool TextureAttrib::lower_attrib_can_override ( ) const

virtual

Intended to be overridden by derived RenderAttrib types to specify how two consecutive RenderAttrib objects of the same type interact.

This should return false if a RenderAttrib on a higher node will compose into a RenderAttrib on a lower node that has a higher override value, or true if the lower RenderAttrib will completely replace the state.

The default behavior is false: normally, a RenderAttrib in the graph cannot completely override a RenderAttrib above it, regardless of its override value–instead, the two attribs are composed. But for some kinds of RenderAttribs, it is useful to allow this kind of override.

This method only handles the one special case of a lower RenderAttrib with a higher override value. If the higher RenderAttrib has a higher override value, it always completely overrides. And if both RenderAttribs have the same override value, they are always composed.

Reimplemented from RenderAttrib.

◆ write_datagram()

void TextureAttrib::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from RenderAttrib.

Definition at line 753 of file textureAttrib.cxx.

References Datagram::add_bool(), Datagram::add_uint16(), ordered_vector< Key, Compare, Vector >::begin(), ordered_vector< Key, Compare, Vector >::end(), get_num_off_stages, get_num_on_stages, RenderAttrib::write_datagram(), and BamWriter::write_pointer().

Member Data Documentation

◆ get_num_off_stages

int TextureAttrib::get_num_off_stages

inline

Returns the number of stages that are turned off by the attribute.

Definition at line 77 of file textureAttrib.h.

Referenced by write_datagram().

◆ get_num_on_ff_stages

int TextureAttrib::get_num_on_ff_stages

inline

Returns the number of on-stages that are relevant to the classic fixed function pipeline.

This excludes texture stages such as normal maps.

Definition at line 58 of file textureAttrib.h.

◆ get_num_on_stages

int TextureAttrib::get_num_on_stages

inline

Returns the number of stages that are turned on by the attribute.

Definition at line 55 of file textureAttrib.h.

Referenced by GraphicsStateGuardian::get_alpha_scale_via_texture(), PT(), and write_datagram().

◆ get_off_stage

TextureStage * TextureAttrib::get_off_stage

inline

Returns the nth stage turned off by the attribute, sorted in arbitrary (pointer) order.

Definition at line 77 of file textureAttrib.h.

◆ get_on_ff_stage

TextureStage * TextureAttrib::get_on_ff_stage

inline

Returns the nth stage turned on by the attribute, sorted in render order, including only those relevant to the classic fixed function pipeline.

This excludes texture stages such as normal maps.

Definition at line 58 of file textureAttrib.h.

◆ get_on_sampler

const SamplerState & TextureAttrib::get_on_sampler

inline

Returns the sampler associated with the indicated stage, or the one associated with its texture if no custom stage has been specified.

It is an error to call this if the stage does not exist.

Definition at line 72 of file textureAttrib.h.

Referenced by PT().

◆ get_on_stage

TextureStage * TextureAttrib::get_on_stage

inline

Returns the nth stage turned on by the attribute, sorted in render order.

Definition at line 55 of file textureAttrib.h.

Referenced by get_texture(), and PT().

◆ get_on_texture

Texture * TextureAttrib::get_on_texture

inline

Returns the texture associated with the indicated stage, or NULL if no texture is associated.

Definition at line 69 of file textureAttrib.h.

Referenced by get_texture(), and PT().

◆ has_on_stage

bool TextureAttrib::has_on_stage

inline

Returns true if the indicated stage is turned on by the attrib, false otherwise.

Definition at line 69 of file textureAttrib.h.

Referenced by has_off_stage().

The documentation for this class was generated from the following files:

panda/src/pgraph/textureAttrib.h
panda/src/pgraph/textureAttrib.cxx
panda/src/pgraph/textureAttrib.I

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ complete_pointers()

◆ cull_callback()

◆ find_on_stage()

◆ get_ff_tc_index()

◆ get_on_stage_override()

◆ get_texture()

◆ has_all_off()

◆ has_cull_callback()

◆ has_off_stage()

◆ is_identity()

◆ is_off()

◆ lower_attrib_can_override()

◆ write_datagram()

Member Data Documentation

◆ get_num_off_stages

◆ get_num_on_ff_stages

◆ get_num_on_stages

◆ get_off_stage

◆ get_on_ff_stage

◆ get_on_sampler

◆ get_on_stage

◆ get_on_texture

◆ has_on_stage
