Defines the properties of a named stage of the multitexture pipeline. More...

#include "textureStage.h"

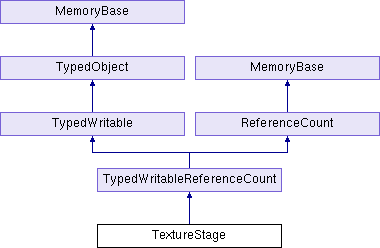

Inheritance diagram for TextureStage:

Public Types
enum	CombineMode { CM_undefined, CM_replace, CM_modulate, CM_add, CM_add_signed, CM_interpolate, CM_subtract, CM_dot3_rgb, CM_dot3_rgba }

enum	CombineOperand { CO_undefined, CO_src_color, CO_one_minus_src_color, CO_src_alpha, CO_one_minus_src_alpha }

enum	CombineSource { CS_undefined, CS_texture, CS_constant, CS_primary_color, CS_previous, CS_constant_color_scale, CS_last_saved_result }

enum	Mode { M_modulate, M_decal, M_blend, M_replace, M_add, M_combine, M_blend_color_scale, M_modulate_glow, M_modulate_gloss, M_normal, M_normal_height, M_glow, M_gloss, M_height, M_selector, M_normal_gloss }

Public Member Functions
	TextureStage (const std::string &name)
	Initialize the texture stage at construction. More...

	TextureStage (const TextureStage &copy)
	Initialize the texture stage from other. More...

int	compare_to (const TextureStage &other) const
	Returns a number less than zero if this TextureStage sorts before the other one, greater than zero if it sorts after, or zero if they are equivalent. More...

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

virtual TypeHandle	force_init_type ()

int	get_alpha_scale () const

InternalName *	get_binormal_name () const

LColor	get_color () const

CombineMode	get_combine_alpha_mode () const
	Get combine_alpha_mode. More...

CombineOperand	get_combine_alpha_operand0 () const
	Get operand0 of combine_alpha_mode. More...

CombineOperand	get_combine_alpha_operand1 () const
	Get operand1 of combine_alpha_mode. More...

CombineOperand	get_combine_alpha_operand2 () const
	Get operand2 of combine_alpha_mode. More...

CombineSource	get_combine_alpha_source0 () const
	Get source0 of combine_alpha_mode. More...

CombineSource	get_combine_alpha_source1 () const
	Get source1 of combine_alpha_mode. More...

CombineSource	get_combine_alpha_source2 () const
	Get source2 of combine_alpha_mode. More...

CombineMode	get_combine_rgb_mode () const
	Get the combine_rgb_mode. More...

CombineOperand	get_combine_rgb_operand0 () const
	Get operand0 of combine_rgb_mode. More...

CombineOperand	get_combine_rgb_operand1 () const
	Get operand1 of combine_rgb_mode. More...

CombineOperand	get_combine_rgb_operand2 () const
	Get operand2 of combine_rgb_mode. More...

CombineSource	get_combine_rgb_source0 () const
	Get source0 of combine_rgb_mode. More...

CombineSource	get_combine_rgb_source1 () const
	Get source1 of combine_rgb_mode. More...

CombineSource	get_combine_rgb_source2 () const
	Get source2 of combine_rgb_mode. More...

Mode	get_mode () const

const std::string &	get_name () const

int	get_num_combine_alpha_operands () const
	Returns the number of meaningful operands that may be retrieved via get_combine_alpha_sourceN() and get_combine_alpha_operandN(). More...

int	get_num_combine_rgb_operands () const
	Returns the number of meaningful operands that may be retrieved via get_combine_rgb_sourceN() and get_combine_rgb_operandN(). More...

int	get_priority () const

int	get_rgb_scale () const

bool	get_saved_result () const

int	get_sort () const

InternalName *	get_tangent_name () const

int	get_tex_view_offset () const

InternalName *	get_texcoord_name () const

virtual TypeHandle	get_type () const

bool	involves_color_scale () const
	Returns true if the TextureStage is affected by the setting of the current ColorScaleAttrib, false otherwise. More...

bool	is_fixed_function () const
	Returns true if the TextureStage is relevant to the classic fixed function pipeline. More...

void	mark_used_by_auto_shader () const
	Marks this TextureStage as having been used by the auto shader. More...

bool	operator != (const TextureStage &other) const

bool	operator< (const TextureStage &other) const

void	operator= (const TextureStage &copy)
	just copy the members of other to this More...

bool	operator== (const TextureStage &other) const

void	output (std::ostream &out) const
	Just a single line output. More...

void	set_alpha_scale (int alpha_scale)

void	set_color (const LColor &color)

void	set_combine_alpha (CombineMode mode, CombineSource source0, CombineOperand operand0)
	Specifies any of the CombineMode values that represent a one-parameter operation. More...

void	set_combine_alpha (CombineMode mode, CombineSource source0, CombineOperand operand0, CombineSource source1, CombineOperand operand1)
	Specifies any of the CombineMode values that represent a two-parameter operation. More...

void	set_combine_alpha (CombineMode mode, CombineSource source0, CombineOperand operand0, CombineSource source1, CombineOperand operand1, CombineSource source2, CombineOperand operand2)
	Specifies any of the CombineMode values that represent a one-parameter operation. More...

void	set_combine_rgb (CombineMode mode, CombineSource source0, CombineOperand operand0)
	Specifies any of the CombineMode values that represent a one-parameter operation. More...

void	set_combine_rgb (CombineMode mode, CombineSource source0, CombineOperand operand0, CombineSource source1, CombineOperand operand1)
	Specifies any of the CombineMode values that represent a two-parameter operation. More...

void	set_combine_rgb (CombineMode mode, CombineSource source0, CombineOperand operand0, CombineSource source1, CombineOperand operand1, CombineSource source2, CombineOperand operand2)
	Specifies any of the CombineMode values that represent a one-parameter operation. More...

void	set_mode (Mode mode)

void	set_name (const std::string &name)

void	set_priority (int priority)

void	set_rgb_scale (int rgb_scale)

void	set_saved_result (bool saved_result)

void	set_sort (int sort)

void	set_tex_view_offset (int tex_view_offset)

void	set_texcoord_name (InternalName *name)

void	set_texcoord_name (const std::string &texcoord_name)

bool	uses_color () const
	Returns true if the TextureStage makes use of whatever color is specified in set_color(), false otherwise. More...

bool	uses_last_saved_result () const
	Returns true if the TextureStage makes use of the CS_primary_color combine source. More...

bool	uses_primary_color () const
	Returns true if the TextureStage makes use of the CS_primary_color combine source. More...

void	write (std::ostream &out) const
	Writes the details of this stage. More...

virtual void	write_datagram (BamWriter *manager, Datagram &me)
	Function to write the important information in the particular object to a Datagram. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static TextureStage *	get_default ()

static UpdateSeq	get_sort_seq ()
	Returns a global sequence number that is incremented any time any TextureStage in the world changes sort or priority. More...

static void	init_type ()

static TypedWritable *	make_TextureStage (const FactoryParams &params)
	Factory method to generate a TextureStage object. More...

static void	register_with_read_factory ()
	Factory method to generate a TextureStage object. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
	get_alpha_scale
	See set_alpha_scale(). More...

	get_binormal_name
	Returns the set of binormals this texture stage will use. More...

	get_color
	return the color for this stage More...

	get_default
	Returns the default TextureStage that will be used for all texturing that does not name a particular stage. More...

	get_mode
	Return the mode of this stage. More...

	get_name
	Returns the name of this texture stage. More...

	get_priority
	Returns the priority associated with this stage. More...

	get_rgb_scale
	See set_rgb_scale(). More...

	get_saved_result
	Returns the current setting of the saved_result flag. More...

	get_sort
	Returns the sort order of this texture stage. More...

	get_tangent_name
	Returns the set of tangents this texture stage will use. More...

	get_tex_view_offset
	Returns the current setting of the tex_view_offset. More...

	get_texcoord_name
	See set_texcoord_name. More...

	set_alpha_scale
	Sets an additional factor that will scale the alpha component after the texture has been applied. More...

	set_color
	Set the color for this stage. More...

	set_mode
	Set the mode of this texture stage. More...

	set_name
	Changes the name of this texture stage. More...

	set_priority
	Changes the relative importance of the texture associated with this stage relative to the other texture stages that are applied simultaneously. More...

	set_rgb_scale
	Sets an additional factor that will scale all three r, g, b components after the texture has been applied. More...

	set_saved_result
	Sets the saved_result flag. More...

	set_sort
	Changes the order in which the texture associated with this stage is rendered relative to the other texture stages. More...

	set_tex_view_offset
	Sets the tex_view_offset value. More...

	set_texcoord_name
	Indicate which set of UV's this texture stage will use. More...

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Defines the properties of a named stage of the multitexture pipeline.

The TextureAttrib will associated a number of these stages with Texture objects, and the GSG will render geometry by sorting all of the currently active TextureStages in order and then issuing the appropriate rendering calls to activate them.

Definition at line 35 of file textureStage.h.

Constructor & Destructor Documentation

◆ TextureStage() [1/2]

TextureStage::TextureStage ( const std::string & name )

explicit

Initialize the texture stage at construction.

Definition at line 30 of file textureStage.cxx.

Referenced by make_TextureStage().

◆ TextureStage() [2/2]

TextureStage::TextureStage ( const TextureStage & copy )

inline

Initialize the texture stage from other.

Definition at line 18 of file textureStage.I.

Member Function Documentation

◆ compare_to()

int TextureStage::compare_to ( const TextureStage & other ) const

Returns a number less than zero if this TextureStage sorts before the other one, greater than zero if it sorts after, or zero if they are equivalent.

The sorting order is arbitrary and largely meaningless, except to differentiate different stages.

Definition at line 113 of file textureStage.cxx.

References get_alpha_scale, get_combine_alpha_mode(), get_combine_alpha_operand0(), get_combine_alpha_operand1(), get_combine_alpha_operand2(), get_combine_alpha_source0(), get_combine_alpha_source1(), get_combine_alpha_source2(), get_combine_rgb_mode(), get_combine_rgb_operand0(), get_combine_rgb_operand1(), get_combine_rgb_operand2(), get_combine_rgb_source0(), get_combine_rgb_source1(), get_combine_rgb_source2(), get_mode, get_name, get_num_combine_alpha_operands(), get_num_combine_rgb_operands(), get_priority, get_rgb_scale, get_saved_result, get_sort, get_tex_view_offset, and get_texcoord_name.

◆ complete_pointers()

int TextureStage::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 415 of file textureStage.cxx.

◆ get_combine_alpha_mode()

TextureStage::CombineMode TextureStage::get_combine_alpha_mode ( ) const

inline

Get combine_alpha_mode.

Definition at line 534 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_alpha_operand0()

TextureStage::CombineOperand TextureStage::get_combine_alpha_operand0 ( ) const

inline

Get operand0 of combine_alpha_mode.

Definition at line 559 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_alpha_operand1()

TextureStage::CombineOperand TextureStage::get_combine_alpha_operand1 ( ) const

inline

Get operand1 of combine_alpha_mode.

Definition at line 575 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_alpha_operand2()

TextureStage::CombineOperand TextureStage::get_combine_alpha_operand2 ( ) const

inline

Get operand2 of combine_alpha_mode.

Definition at line 591 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_alpha_source0()

TextureStage::CombineSource TextureStage::get_combine_alpha_source0 ( ) const

inline

Get source0 of combine_alpha_mode.

Definition at line 551 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_alpha_source1()

TextureStage::CombineSource TextureStage::get_combine_alpha_source1 ( ) const

inline

Get source1 of combine_alpha_mode.

Definition at line 567 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_alpha_source2()

TextureStage::CombineSource TextureStage::get_combine_alpha_source2 ( ) const

inline

Get source2 of combine_alpha_mode.

Definition at line 583 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_rgb_mode()

TextureStage::CombineMode TextureStage::get_combine_rgb_mode ( ) const

inline

Get the combine_rgb_mode.

Definition at line 396 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_rgb_operand0()

TextureStage::CombineOperand TextureStage::get_combine_rgb_operand0 ( ) const

inline

Get operand0 of combine_rgb_mode.

Definition at line 421 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_rgb_operand1()

TextureStage::CombineOperand TextureStage::get_combine_rgb_operand1 ( ) const

inline

Get operand1 of combine_rgb_mode.

Definition at line 437 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_rgb_operand2()

TextureStage::CombineOperand TextureStage::get_combine_rgb_operand2 ( ) const

inline

Get operand2 of combine_rgb_mode.

Definition at line 453 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_rgb_source0()

TextureStage::CombineSource TextureStage::get_combine_rgb_source0 ( ) const

inline

Get source0 of combine_rgb_mode.

Definition at line 413 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_rgb_source1()

TextureStage::CombineSource TextureStage::get_combine_rgb_source1 ( ) const

inline

Get source1 of combine_rgb_mode.

Definition at line 429 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_combine_rgb_source2()

TextureStage::CombineSource TextureStage::get_combine_rgb_source2 ( ) const

inline

Get source2 of combine_rgb_mode.

Definition at line 445 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_num_combine_alpha_operands()

int TextureStage::get_num_combine_alpha_operands ( ) const

inline

Returns the number of meaningful operands that may be retrieved via get_combine_alpha_sourceN() and get_combine_alpha_operandN().

Definition at line 543 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_num_combine_rgb_operands()

int TextureStage::get_num_combine_rgb_operands ( ) const

inline

Returns the number of meaningful operands that may be retrieved via get_combine_rgb_sourceN() and get_combine_rgb_operandN().

Definition at line 405 of file textureStage.I.

Referenced by compare_to(), and write().

◆ get_sort_seq()

UpdateSeq TextureStage::get_sort_seq ( )

inlinestatic

Returns a global sequence number that is incremented any time any TextureStage in the world changes sort or priority.

This is used by TextureAttrib to determine when it is necessary to re-sort its internal array of stages.

Definition at line 675 of file textureStage.I.

◆ involves_color_scale()

bool TextureStage::involves_color_scale ( ) const

inline

Returns true if the TextureStage is affected by the setting of the current ColorScaleAttrib, false otherwise.

Definition at line 600 of file textureStage.I.

◆ is_fixed_function()

bool TextureStage::is_fixed_function ( ) const

inline

Returns true if the TextureStage is relevant to the classic fixed function pipeline.

This excludes texture stages such as normal mapping and the like.

Definition at line 193 of file textureStage.I.

◆ make_TextureStage()

TypedWritable * TextureStage::make_TextureStage ( const FactoryParams & params )

static

Factory method to generate a TextureStage object.

Definition at line 349 of file textureStage.cxx.

References DatagramIterator::get_bool(), get_default, parse_params(), and TextureStage().

Referenced by register_with_read_factory().

◆ mark_used_by_auto_shader()

void TextureStage::mark_used_by_auto_shader ( ) const

inline

Marks this TextureStage as having been used by the auto shader.

Definition at line 683 of file textureStage.I.

◆ operator=()

void TextureStage::operator= ( const TextureStage & copy )

just copy the members of other to this

Definition at line 66 of file textureStage.cxx.

◆ output()

void TextureStage::output ( std::ostream & out ) const

Just a single line output.

Definition at line 265 of file textureStage.cxx.

References get_name.

◆ register_with_read_factory()

void TextureStage::register_with_read_factory ( )

static

Factory method to generate a TextureStage object.

Definition at line 341 of file textureStage.cxx.

References BamReader::get_factory(), make_TextureStage(), and Factory< Type >::register_factory().

◆ set_combine_alpha() [1/3]

void TextureStage::set_combine_alpha	(	CombineMode	mode,
		CombineSource	source0,
		CombineOperand	operand0
	)

inline

Specifies any of the CombineMode values that represent a one-parameter operation.

Specifically, this is CM_replace only.

Definition at line 462 of file textureStage.I.

◆ set_combine_alpha() [2/3]

void TextureStage::set_combine_alpha	(	CombineMode	mode,
		CombineSource	source0,
		CombineOperand	operand0,
		CombineSource	source1,
		CombineOperand	operand1
	)

inline

Specifies any of the CombineMode values that represent a two-parameter operation.

Specifically, this is everything except for CM_replace and CM_interpolate.

Definition at line 485 of file textureStage.I.

◆ set_combine_alpha() [3/3]

void TextureStage::set_combine_alpha	(	CombineMode	mode,
		CombineSource	source0,
		CombineOperand	operand0,
		CombineSource	source1,
		CombineOperand	operand1,
		CombineSource	source2,
		CombineOperand	operand2
	)

inline

Specifies any of the CombineMode values that represent a one-parameter operation.

Specifically, this is CM_interpolate only.

Definition at line 509 of file textureStage.I.

◆ set_combine_rgb() [1/3]

void TextureStage::set_combine_rgb	(	CombineMode	mode,
		CombineSource	source0,
		CombineOperand	operand0
	)

inline

Specifies any of the CombineMode values that represent a one-parameter operation.

Specifically, this is CM_replace only.

Definition at line 324 of file textureStage.I.

◆ set_combine_rgb() [2/3]

void TextureStage::set_combine_rgb	(	CombineMode	mode,
		CombineSource	source0,
		CombineOperand	operand0,
		CombineSource	source1,
		CombineOperand	operand1
	)

inline

Specifies any of the CombineMode values that represent a two-parameter operation.

Specifically, this is everything except for CM_replace and CM_interpolate.

Definition at line 347 of file textureStage.I.

◆ set_combine_rgb() [3/3]

void TextureStage::set_combine_rgb	(	CombineMode	mode,
		CombineSource	source0,
		CombineOperand	operand0,
		CombineSource	source1,
		CombineOperand	operand1,
		CombineSource	source2,
		CombineOperand	operand2
	)

inline

Specifies any of the CombineMode values that represent a one-parameter operation.

Specifically, this is CM_interpolate only.

Definition at line 371 of file textureStage.I.

◆ uses_color()

bool TextureStage::uses_color ( ) const

inline

Returns true if the TextureStage makes use of whatever color is specified in set_color(), false otherwise.

Definition at line 609 of file textureStage.I.

◆ uses_last_saved_result()

bool TextureStage::uses_last_saved_result ( ) const

inline

Returns true if the TextureStage makes use of the CS_primary_color combine source.

Definition at line 627 of file textureStage.I.

◆ uses_primary_color()

bool TextureStage::uses_primary_color ( ) const

inline

Returns true if the TextureStage makes use of the CS_primary_color combine source.

Definition at line 618 of file textureStage.I.

◆ write()

void TextureStage::write ( std::ostream & out ) const

◆ write_datagram()

void TextureStage::write_datagram	(	BamWriter *	manager,
		Datagram &	me
	)

virtual

Function to write the important information in the particular object to a Datagram.

Reimplemented from TypedWritable.

Definition at line 428 of file textureStage.cxx.

References Datagram::add_bool(), Datagram::add_int32(), Datagram::add_string(), Datagram::add_uint8(), get_default, BamWriter::get_file_minor_ver(), and BamWriter::write_pointer().

Member Data Documentation

◆ get_alpha_scale

int TextureStage::get_alpha_scale

inline

See set_alpha_scale().

Definition at line 200 of file textureStage.h.

Referenced by compare_to(), and write().

◆ get_binormal_name

InternalName * TextureStage::get_binormal_name

inline

Returns the set of binormals this texture stage will use.

This is the same as get_binormal_name(), except that the first part is "binormal".

Definition at line 194 of file textureStage.h.

◆ get_color

LColor TextureStage::get_color

inline

return the color for this stage

Definition at line 198 of file textureStage.h.

Referenced by write().

◆ get_default

TextureStage * TextureStage::get_default

inline

Returns the default TextureStage that will be used for all texturing that does not name a particular stage.

This generally handles the normal single-texture case.

Definition at line 205 of file textureStage.h.

Referenced by make_TextureStage(), and write_datagram().

◆ get_mode

TextureStage::Mode TextureStage::get_mode

inline

Return the mode of this stage.

Definition at line 196 of file textureStage.h.

Referenced by compare_to(), and write().

◆ get_name

const std::string & TextureStage::get_name

inline

Returns the name of this texture stage.

Definition at line 188 of file textureStage.h.

Referenced by compare_to(), output(), and write().

◆ get_priority

int TextureStage::get_priority

inline

Returns the priority associated with this stage.

This is specially helpful for cards that do not support more than n stages of multi-texturing.

Definition at line 190 of file textureStage.h.

Referenced by compare_to(), and write().

◆ get_rgb_scale

int TextureStage::get_rgb_scale

inline

See set_rgb_scale().

Definition at line 199 of file textureStage.h.

Referenced by compare_to(), and write().

◆ get_saved_result

bool TextureStage::get_saved_result

inline

Returns the current setting of the saved_result flag.

See set_saved_result().

Definition at line 201 of file textureStage.h.

Referenced by compare_to(), and write().

◆ get_sort

int TextureStage::get_sort

inline

Returns the sort order of this texture stage.

Definition at line 189 of file textureStage.h.

Referenced by compare_to(), and write().

◆ get_tangent_name

InternalName * TextureStage::get_tangent_name

inline

Returns the set of tangents this texture stage will use.

This is the same as get_texcoord_name(), except that the first part is "tangent".

Definition at line 193 of file textureStage.h.

◆ get_tex_view_offset

int TextureStage::get_tex_view_offset

inline

Returns the current setting of the tex_view_offset.

See set_tex_view_offset().

Definition at line 203 of file textureStage.h.

Referenced by compare_to(), PT(), and write().

◆ get_texcoord_name

InternalName * TextureStage::get_texcoord_name

inline

See set_texcoord_name.

The default is InternalName::get_texcoord().

Definition at line 192 of file textureStage.h.

Referenced by compare_to(), DXShaderContext9::update_shader_vertex_arrays(), and write().

◆ set_alpha_scale

void TextureStage::set_alpha_scale

inline

Sets an additional factor that will scale the alpha component after the texture has been applied.

This is used only when the mode is CM_combine.

The only legal values are 1, 2, or 4.

Definition at line 200 of file textureStage.h.

◆ set_color

void TextureStage::set_color

inline

Set the color for this stage.

Definition at line 198 of file textureStage.h.

◆ set_mode

void TextureStage::set_mode

inline

Set the mode of this texture stage.

Definition at line 196 of file textureStage.h.

◆ set_name

void TextureStage::set_name

inline

Changes the name of this texture stage.

Definition at line 188 of file textureStage.h.

◆ set_priority

void TextureStage::set_priority

inline

Changes the relative importance of the texture associated with this stage relative to the other texture stages that are applied simultaneously.

This is unrelated to set_sort(), which controls the order in which multiple textures are applied. The priority number is used to decide which of the requested textures are to be selected for rendering when more textures are requested than the hardware will support. The highest-priority n textures are selected for rendering, and then rendered in order by their sort factor.

Definition at line 190 of file textureStage.h.

◆ set_rgb_scale

void TextureStage::set_rgb_scale

inline

Sets an additional factor that will scale all three r, g, b components after the texture has been applied.

This is used only when the mode is CM_combine.

The only legal values are 1, 2, or 4.

Definition at line 199 of file textureStage.h.

◆ set_saved_result

void TextureStage::set_saved_result

inline

Sets the saved_result flag.

When this is true, the output of this stage will be supplied as the "last_saved_result" source for any future stages, until the next TextureStage with a saved_result set true is encountered.

This can be used to reuse the results of this texture stage as input to more than one stage later in the pipeline.

The last texture in the pipeline (the one with the highest sort value) should not have this flag set.

Definition at line 201 of file textureStage.h.

◆ set_sort

void TextureStage::set_sort

inline

Changes the order in which the texture associated with this stage is rendered relative to the other texture stages.

When geometry is rendered with multiple textures, the textures are rendered in order from the lowest sort number to the highest sort number.

Also see set_priority(), which is used to select the most important textures for rendering when some must be omitted because of hardware limitations.

Definition at line 189 of file textureStage.h.

◆ set_tex_view_offset

void TextureStage::set_tex_view_offset

inline

Sets the tex_view_offset value.

This is used only when a special multiview texture is bound to the TextureStage, and it selects the particular view of the texture that is to be used.

This value is added to the similar parameter on DisplayRegion to derive the final texture view index that is selected for rendering.

Definition at line 203 of file textureStage.h.

◆ set_texcoord_name

void TextureStage::set_texcoord_name

inline

Indicate which set of UV's this texture stage will use.

Geometry may have any number of associated UV sets, each of which must have a unique name.

Definition at line 192 of file textureStage.h.

The documentation for this class was generated from the following files:

panda/src/gobj/textureStage.h
panda/src/gobj/textureStage.cxx
panda/src/gobj/textureStage.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TextureStage() [1/2]

◆ TextureStage() [2/2]

Member Function Documentation

◆ compare_to()

◆ complete_pointers()

◆ get_combine_alpha_mode()

◆ get_combine_alpha_operand0()

◆ get_combine_alpha_operand1()

◆ get_combine_alpha_operand2()

◆ get_combine_alpha_source0()

◆ get_combine_alpha_source1()

◆ get_combine_alpha_source2()

◆ get_combine_rgb_mode()

◆ get_combine_rgb_operand0()

◆ get_combine_rgb_operand1()

◆ get_combine_rgb_operand2()

◆ get_combine_rgb_source0()

◆ get_combine_rgb_source1()

◆ get_combine_rgb_source2()

◆ get_num_combine_alpha_operands()

◆ get_num_combine_rgb_operands()

◆ get_sort_seq()

◆ involves_color_scale()

◆ is_fixed_function()

◆ make_TextureStage()

◆ mark_used_by_auto_shader()

◆ operator=()

◆ output()

◆ register_with_read_factory()

◆ set_combine_alpha() [1/3]

◆ set_combine_alpha() [2/3]

◆ set_combine_alpha() [3/3]

◆ set_combine_rgb() [1/3]

◆ set_combine_rgb() [2/3]

◆ set_combine_rgb() [3/3]

◆ uses_color()

◆ uses_last_saved_result()

◆ uses_primary_color()

◆ write()

◆ write_datagram()

Member Data Documentation

◆ get_alpha_scale

◆ get_binormal_name

◆ get_color

◆ get_default

◆ get_mode

◆ get_name

◆ get_priority

◆ get_rgb_scale

◆ get_saved_result

◆ get_sort

◆ get_tangent_name

◆ get_tex_view_offset

◆ get_texcoord_name

◆ set_alpha_scale

◆ set_color

◆ set_mode

◆ set_name

◆ set_priority

◆ set_rgb_scale

◆ set_saved_result

◆ set_sort

◆ set_tex_view_offset

◆ set_texcoord_name
