An inverted sphere: this is a sphere whose collision surface is the inside surface of the sphere. More...
#include "collisionInvSphere.h"

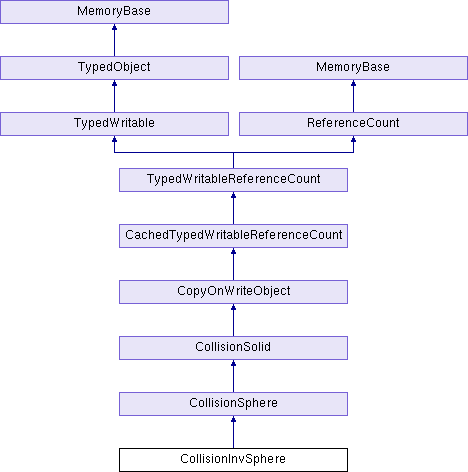

Inheritance diagram for CollisionInvSphere:
Public Member Functions | |
| CollisionInvSphere (const LPoint3 ¢er, PN_stdfloat radius) | |
| CollisionInvSphere (PN_stdfloat cx, PN_stdfloat cy, PN_stdfloat cz, PN_stdfloat radius) | |
| CollisionInvSphere (const CollisionInvSphere ©) | |
| virtual TypeHandle | force_init_type () |
| virtual PStatCollector & | get_test_pcollector () |
| Returns a PStatCollector that is used to count the number of intersection tests made against a solid of this type in a given frame. More... | |
| virtual TypeHandle | get_type () const |
| virtual PStatCollector & | get_volume_pcollector () |
| Returns a PStatCollector that is used to count the number of bounding volume tests made against a solid of this type in a given frame. More... | |
| virtual CollisionSolid * | make_copy () |
| virtual void | output (std::ostream &out) const |
| virtual | PT (CollisionEntry) test_intersection(const CollisionEntry &entry) const |
| virtual void | write_datagram (BamWriter *manager, Datagram &me) |
| Function to write the important information in the particular object to a Datagram. More... | |
 Public Member Functions inherited from CollisionSphere | |
| CollisionSphere (const LPoint3 ¢er, PN_stdfloat radius) | |
| CollisionSphere (PN_stdfloat cx, PN_stdfloat cy, PN_stdfloat cz, PN_stdfloat radius) | |
| CollisionSphere (const CollisionSphere ©) | |
| const LPoint3 & | get_center () const |
| virtual LPoint3 | get_collision_origin () const |
| Returns the point in space deemed to be the "origin" of the solid for collision purposes. More... | |
| PN_stdfloat | get_radius () const |
| void | set_center (const LPoint3 ¢er) |
| void | set_center (PN_stdfloat x, PN_stdfloat y, PN_stdfloat z) |
| void | set_radius (PN_stdfloat radius) |
| virtual void | xform (const LMatrix4 &mat) |
| Public Member Functions inherited from CollisionSolid | |
| CollisionSolid (const CollisionSolid ©) | |
| void | clear_effective_normal () |
| Removes the normal previously set by set_effective_normal(). More... | |
| CPT (BoundingVolume) get_bounds() const | |
| const LVector3 & | get_effective_normal () const |
| Returns the normal that was set by set_effective_normal(). More... | |
| bool | get_respect_effective_normal () const |
| bool | has_effective_normal () const |
| Returns true if a special normal was set by set_effective_normal(), false otherwise. More... | |
| bool | is_tangible () const |
| virtual | PT (PandaNode) get_viz(const CullTraverser *trav |
| void | set_bounds (const BoundingVolume &bounding_volume) |
| void | set_effective_normal (const LVector3 &effective_normal) |
| Records a false normal for this CollisionSolid that will be reported by the collision system with all collisions into it, instead of its actual normal. More... | |
| void | set_respect_effective_normal (bool respect_effective_normal) |
| void | set_tangible (bool tangible) |
| virtual void | write (std::ostream &out, int indent_level=0) const |
| Public Member Functions inherited from CopyOnWriteObject | |
| CopyOnWriteObject (const CopyOnWriteObject ©) | |
| void | operator= (const CopyOnWriteObject ©) |
| Public Member Functions inherited from CachedTypedWritableReferenceCount | |
| void | cache_ref () const |
| Explicitly increments the cache reference count and the normal reference count simultaneously. More... | |
| void | cache_ref_only () const |
| Decrements the cache reference count without affecting the normal reference count. More... | |
| bool | cache_unref () const |
| Explicitly decrements the cache reference count and the normal reference count simultaneously. More... | |
| int | get_cache_ref_count () const |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| Public Member Functions inherited from TypedWritableReferenceCount | |
| TypedWritableReferenceCount (const TypedWritableReferenceCount ©) | |
| virtual ReferenceCount * | as_reference_count () |
| Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More... | |
| void | operator= (const TypedWritableReferenceCount ©) |
| Public Member Functions inherited from TypedWritable | |
| TypedWritable (const TypedWritable ©) | |
| virtual int | complete_pointers (TypedWritable **p_list, BamReader *manager) |
| Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More... | |
| vector_uchar | encode_to_bam_stream () const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More... | |
| bool | encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More... | |
| virtual void | finalize (BamReader *manager) |
| Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More... | |
| UpdateSeq | get_bam_modified () const |
| Returns the current bam_modified counter. More... | |
| void | mark_bam_modified () |
| Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More... | |
| void | operator= (const TypedWritable ©) |
| virtual bool | require_fully_complete () const |
| Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More... | |
| virtual void | update_bam_nested (BamWriter *manager) |
| Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More... | |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static void | register_with_read_factory () |
| Factory method to generate a CollisionInvSphere object. More... | |
| Static Public Member Functions inherited from CollisionSphere | |
| static void | flush_level () |
| Flushes the PStatCollectors used during traversal. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static void | register_with_read_factory () |
| Factory method to generate a CollisionSphere object. More... | |
| Static Public Member Functions inherited from CollisionSolid | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from CopyOnWriteObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from CachedTypedWritableReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedWritableReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data |
| Static Public Member Functions inherited from TypedWritable | |
| static bool | decode_raw_from_bam_stream (TypedWritable *&ptr, ReferenceCount *&ref_ptr, vector_uchar data, BamReader *reader=nullptr) |
| Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
Additional Inherited Members | |
| Public Attributes inherited from CollisionSphere | |
| get_center | |
| get_radius | |
| set_center | |
| set_radius | |
| Public Attributes inherited from CollisionSolid | |
| virtual const CullTraverserData bool bounds_only | const |
| virtual const CullTraverserData & | data |
| get_bounds | |
| get_collision_origin | |
| get_respect_effective_normal | |
| See set_respect_effective_normal(). More... | |
| is_tangible | |
| Returns whether the solid is considered 'tangible' or not. More... | |
| set_bounds | |
| set_respect_effective_normal | |
| This is only meaningful for CollisionSolids that will be added to a traverser as colliders. More... | |
| set_tangible | |
| Sets the current state of the 'tangible' flag. More... | |
| Public Attributes inherited from CachedTypedWritableReferenceCount | |
| get_cache_ref_count | |
| Returns the current reference count. More... | |
| Public Attributes inherited from TypedWritableReferenceCount | |
| static BamReader * | reader = nullptr) |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
| Static Public Attributes inherited from TypedWritable | |
| static TypedWritable *const | Null = nullptr |
Detailed Description
An inverted sphere: this is a sphere whose collision surface is the inside surface of the sphere.
Everything outside the sphere is solid matter; everything inside is empty space. Useful for constraining objects to remain within a spherical perimeter.
Definition at line 27 of file collisionInvSphere.h.
Member Function Documentation
◆ get_test_pcollector()
|
virtual |
Returns a PStatCollector that is used to count the number of intersection tests made against a solid of this type in a given frame.
Reimplemented from CollisionSphere.
Definition at line 67 of file collisionInvSphere.cxx.
◆ get_volume_pcollector()
|
virtual |
Returns a PStatCollector that is used to count the number of bounding volume tests made against a solid of this type in a given frame.
Reimplemented from CollisionSphere.
◆ register_with_read_factory()
|
static |
Factory method to generate a CollisionInvSphere object.
Definition at line 336 of file collisionInvSphere.cxx.
References BamReader::get_factory(), and Factory< Type >::register_factory().
Referenced by init_libcollide().
◆ write_datagram()
Function to write the important information in the particular object to a Datagram.
Reimplemented from CollisionSphere.
Definition at line 345 of file collisionInvSphere.cxx.
References CollisionSphere::write_datagram().
The documentation for this class was generated from the following files:
- panda/src/collide/collisionInvSphere.h
- panda/src/collide/collisionInvSphere.cxx
- panda/src/collide/collisionInvSphere.I
