Caches a GeomVertexArrayData in the DirectX device as a vertex buffer. More...
#include "dxVertexBufferContext9.h"

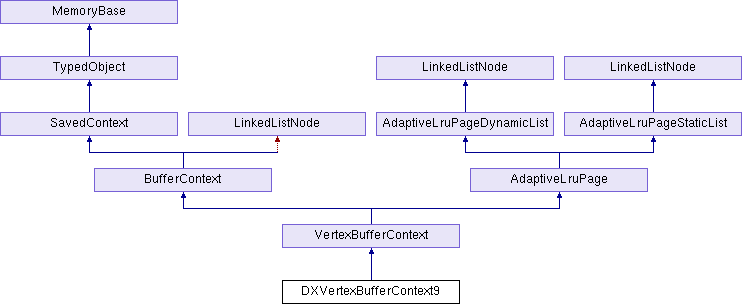

Inheritance diagram for DXVertexBufferContext9:
Public Member Functions | |
| DXVertexBufferContext9 (DXGraphicsStateGuardian9 *dxgsg, PreparedGraphicsObjects *pgo, GeomVertexArrayData *data) | |
| virtual void | evict_lru () |
| Evicts the page from the LRU. More... | |
| virtual TypeHandle | force_init_type () |
| virtual TypeHandle | get_type () const |
 Public Member Functions inherited from VertexBufferContext | |
| VertexBufferContext (PreparedGraphicsObjects *pgo, GeomVertexArrayData *data) | |
| bool | changed_size (const GeomVertexArrayDataHandle *reader) const |
| Returns true if the data has changed size since the last time mark_loaded() was called. More... | |
| bool | changed_usage_hint (const GeomVertexArrayDataHandle *reader) const |
| Returns true if the data has changed its usage hint since the last time mark_loaded() was called. More... | |
| GeomVertexArrayData * | get_data () const |
| Returns the pointer to the client-side array data object. More... | |
| void | mark_loaded (const GeomVertexArrayDataHandle *reader) |
| Should be called after the VertexBufferContext has been loaded into graphics memory, this updates the internal flags for changed_size() and modified(). More... | |
| void | mark_unloaded () |
| Should be called after the buffer has been forced out of graphics memory. More... | |
| virtual void | output (std::ostream &out) const |
| void | update_data_size_bytes (size_t new_data_size_bytes) |
| Should be called (usually by a derived class) when the on-card size of this object has changed. More... | |
| bool | was_modified (const GeomVertexArrayDataHandle *reader) const |
| Returns true if the data has been modified since the last time mark_loaded() was called. More... | |
| virtual void | write (std::ostream &out, int indent_level) const |
| Public Member Functions inherited from BufferContext | |
| BufferContext (BufferResidencyTracker *residency, TypedWritableReferenceCount *object) | |
| bool | get_active () const |
| size_t | get_data_size_bytes () const |
| UpdateSeq | get_modified () const |
| BufferContext * | get_next () const |
| This can be used along with BufferContextChain::get_first() to walk through the list of objects stored on a tracker. More... | |
| TypedWritableReferenceCount * | get_object () const |
| bool | get_resident () const |
| void | set_active (bool flag) |
| Changes the active flag associated with this object. More... | |
| void | set_resident (bool flag) |
| Changes the resident flag associated with this object. More... | |
| void | update_data_size_bytes (size_t new_data_size_bytes) |
| Should be called (usually by a derived class) when the on-card size of this object has changed. More... | |
| void | update_modified (UpdateSeq new_modified) |
| Should be called (usually by a derived class) when the modified counter for this object has changed. More... | |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from AdaptiveLruPage | |
| AdaptiveLruPage (size_t lru_size) | |
| AdaptiveLruPage (const AdaptiveLruPage ©) | |
| void | dequeue_lru () |
| Removes the page from its AdaptiveLru. More... | |
| void | enqueue_lru (AdaptiveLru *lru) |
| Adds the page to the LRU for the first time, or marks it recently-accessed if it has already been added. More... | |
| AdaptiveLru * | get_lru () const |
| Returns the LRU that manages this page, or NULL if it is not currently managed by any LRU. More... | |
| size_t | get_lru_size () const |
| Returns the size of this page as reported to the LRU, presumably in bytes. More... | |
| unsigned int | get_num_frames () const |
| Returns the number of frames since the page was first added to its LRU. More... | |
| unsigned int | get_num_inactive_frames () const |
| Returns the number of frames since the page was last accessed on its LRU. More... | |
| void | mark_used_lru () const |
| To be called when the page is used; this will move it to the tail of the AdaptiveLru queue it is already on. More... | |
| void | mark_used_lru (AdaptiveLru *lru) |
| To be called when the page is used; this will move it to the tail of the specified AdaptiveLru queue. More... | |
| void | operator= (const AdaptiveLruPage ©) |
| void | set_lru_size (size_t lru_size) |
| Specifies the size of this page, presumably in bytes, although any unit is possible. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from VertexBufferContext | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from BufferContext | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from SavedContext | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
Public Attributes | |
| int | _fvf |
| LPDIRECT3DVERTEXBUFFER9 | _vbuffer |
| Public Attributes inherited from BufferContext | |
| get_active | |
| Returns the active flag associated with this object. More... | |
| get_data_size_bytes | |
| Returns the number of bytes previously reported for the data object. More... | |
| get_modified | |
| Returns the UpdateSeq that was recorded the last time mark_loaded() was called. More... | |
| get_object | |
| Returns the associated object. More... | |
| get_resident | |
| Returns the resident flag associated with this object. More... | |
| Public Attributes inherited from TypedObject | |
| get_type | |
Detailed Description
Caches a GeomVertexArrayData in the DirectX device as a vertex buffer.
Definition at line 27 of file dxVertexBufferContext9.h.
Member Function Documentation
◆ evict_lru()
|
virtual |
Evicts the page from the LRU.
Called internally when the LRU determines that it is full. May also be called externally when necessary to explicitly evict the page.
It is legal for this method to either evict the page as requested, do nothing (in which case the eviction will be requested again at the next epoch), or requeue itself on the tail of the queue (in which case the eviction will be requested again much later).
Reimplemented from AdaptiveLruPage.
Definition at line 174 of file dxVertexBufferContext9.cxx.
References AdaptiveLruPage::dequeue_lru(), VertexBufferContext::mark_unloaded(), and VertexBufferContext::update_data_size_bytes().
The documentation for this class was generated from the following files:
- panda/src/dxgsg9/dxVertexBufferContext9.h
- panda/src/dxgsg9/dxVertexBufferContext9.cxx
