A rectangular subregion within a window for rendering into. More...

#include "displayRegion.h"

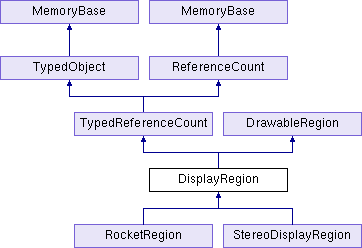

Inheritance diagram for DisplayRegion:

Classes
struct	Region

Public Types
typedef epvector< Region >	Regions

Public Types inherited from DrawableRegion
enum	RenderTexturePlane { RTP_stencil =0, RTP_depth_stencil =1, RTP_color, RTP_aux_rgba_0, RTP_aux_rgba_1, RTP_aux_rgba_2, RTP_aux_rgba_3, RTP_aux_hrgba_0, RTP_aux_hrgba_1, RTP_aux_hrgba_2, RTP_aux_hrgba_3, RTP_aux_float_0, RTP_aux_float_1, RTP_aux_float_2, RTP_aux_float_3, RTP_depth, RTP_COUNT }

Public Member Functions
void	cleanup ()
	Cleans up some pointers associated with the DisplayRegion to help reduce the chance of memory leaks due to circular reference counts. More...

void	clear_cull_callback ()
	Removes the callback set by an earlier call to set_cull_callback(). More...

void	clear_draw_callback ()
	Removes the callback set by an earlier call to set_draw_callback(). More...

void	compute_pixels ()
	Computes the pixel locations of the DisplayRegion within its window. More...

void	compute_pixels (int x_size, int y_size)
	Computes the pixel locations of the DisplayRegion within its window, given the size of the window in pixels. More...

void	compute_pixels_all_stages ()
	Computes the pixel locations of the DisplayRegion within its window. More...

void	compute_pixels_all_stages (int x_size, int y_size)
	Performs a compute_pixels() operation for all stages of the pipeline. More...

virtual TypeHandle	force_init_type ()

PN_stdfloat	get_bottom (int i=0) const
	Retrieves the y coordinate of the bottom edge of the rectangle within its GraphicsOutput. More...

NodePath	get_camera (Thread *current_thread=Thread::get_current_thread()) const

CallbackObject *	get_cull_callback () const

PStatCollector &	get_cull_region_pcollector ()
	Returns a PStatCollector for timing the cull operation for just this DisplayRegion. More...

CullResult *	get_cull_result (Thread *current_thread) const
	Returns the CullResult value that was stored on this DisplayRegion, presumably by the last successful cull operation. More...

CullTraverser *	get_cull_traverser ()

const std::string &	get_debug_name () const
	Returns a unique name used for debugging. More...

void	get_dimensions (PN_stdfloat &l, PN_stdfloat &r, PN_stdfloat &b, PN_stdfloat &t) const

void	get_dimensions (int i, PN_stdfloat &l, PN_stdfloat &r, PN_stdfloat &b, PN_stdfloat &t) const

LVecBase4	get_dimensions (int i=0) const

CallbackObject *	get_draw_callback () const

PStatCollector &	get_draw_region_pcollector ()
	Returns a PStatCollector for timing the draw operation for just this DisplayRegion. More...

bool	get_incomplete_render () const

PN_stdfloat	get_left (int i=0) const
	Retrieves the x coordinate of the left edge of the rectangle within its GraphicsOutput. More...

int	get_lens_index () const

int	get_num_regions () const
	Returns the number of regions, see set_num_regions. More...

GraphicsPipe *	get_pipe () const

int	get_pixel_height (int i=0) const
	Returns the height of the DisplayRegion in pixels. More...

LVecBase2i	get_pixel_size (int i=0) const

int	get_pixel_width (int i=0) const
	Returns the width of the DisplayRegion in pixels. More...

void	get_pixels (int &pl, int &pr, int &pb, int &pt) const
	Retrieves the coordinates of the DisplayRegion within its window, in pixels. More...

void	get_pixels (int i, int &pl, int &pr, int &pb, int &pt) const
	Retrieves the coordinates of the DisplayRegion within its window, in pixels. More...

void	get_region_pixels (int &xo, int &yo, int &w, int &h) const
	Retrieves the coordinates of the DisplayRegion within its window, as the pixel location of its bottom-left corner, along with a pixel width and height. More...

void	get_region_pixels (int i, int &xo, int &yo, int &w, int &h) const
	Retrieves the coordinates of the DisplayRegion within its window, as the pixel location of its bottom-left corner, along with a pixel width and height. More...

void	get_region_pixels_i (int &xo, int &yo, int &w, int &h) const
	Similar to get_region_pixels(), but returns the upper left corner, and the pixel numbers are numbered from the top-left corner down, in the DirectX way of things. More...

void	get_region_pixels_i (int i, int &xo, int &yo, int &w, int &h) const
	Similar to get_region_pixels(), but returns the upper left corner, and the pixel numbers are numbered from the top-left corner down, in the DirectX way of things. More...

PN_stdfloat	get_right (int i=0) const
	Retrieves the x coordinate of the right edge of the rectangle within its GraphicsOutput. More...

SceneSetup *	get_scene_setup (Thread *current_thread) const
	Returns the SceneSetup value that was stored on this DisplayRegion, presumably by the last successful cull operation. More...

bool	get_scissor_enabled () const

bool	get_screenshot (PNMImage &image)
	Captures the most-recently rendered image from the framebuffer into the indicated PNMImage. More...

int	get_sort () const

Lens::StereoChannel	get_stereo_channel () const

int	get_target_tex_page () const

int	get_tex_view_offset () const

int	get_texture_reload_priority () const

PN_stdfloat	get_top (int i=0) const
	Retrieves the y coordinate of the top edge of the rectangle within its GraphicsOutput. More...

virtual TypeHandle	get_type () const

GraphicsOutput *	get_window () const

bool	is_active () const

virtual bool	is_stereo () const

bool	operator< (const DisplayRegion &other) const
	Returns true if this DisplayRegion should be sorted before the other one, false otherwise. More...

virtual void	output (std::ostream &out) const

	PT (Texture) get_screenshot()

virtual	PT (PandaNode) make_cull_result_graph()

bool	save_screenshot (const Filename &filename, const std::string &image_comment="")
	Saves a screenshot of the region to the indicated filename. More...

Filename	save_screenshot_default (const std::string &prefix="screenshot")
	Saves a screenshot of the region to a default filename, and returns the filename, or empty string if the screenshot failed. More...

virtual void	set_active (bool active)

virtual void	set_camera (const NodePath &camera)

void	set_cube_map_index (int cube_map_index)
	Deprecated; replaced by set_target_tex_page(). More...

void	set_cull_callback (CallbackObject *object)

void	set_cull_result (PT(CullResult) cull_result, PT(SceneSetup) scene_setup, Thread *current_thread)
	Stores the result of performing a cull operation on this DisplayRegion. More...

virtual void	set_cull_traverser (CullTraverser *trav)

void	set_dimensions (PN_stdfloat l, PN_stdfloat r, PN_stdfloat b, PN_stdfloat t)

void	set_dimensions (int i, PN_stdfloat l, PN_stdfloat r, PN_stdfloat b, PN_stdfloat t)

void	set_dimensions (const LVecBase4 &dimensions)

virtual void	set_dimensions (int i, const LVecBase4 &dimensions)

void	set_draw_callback (CallbackObject *object)

virtual void	set_incomplete_render (bool incomplete_render)

void	set_lens_index (int index)

void	set_num_regions (int i)
	Sets the number of regions that this DisplayRegion indicates. More...

void	set_scissor_enabled (bool scissor_enabled)

virtual void	set_sort (int sort)

virtual void	set_stereo_channel (Lens::StereoChannel stereo_channel)

virtual void	set_target_tex_page (int page)

virtual void	set_tex_view_offset (int tex_view_offset)

virtual void	set_texture_reload_priority (int texture_reload_priority)

virtual bool	supports_pixel_zoom () const
	Returns true if a call to set_pixel_zoom() will be respected, false if it will be ignored. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from DrawableRegion
	DrawableRegion (const DrawableRegion &copy)

void	copy_clear_settings (const DrawableRegion &copy)
	Copies only the clear settings from the other drawable region. More...

virtual void	disable_clears ()
	Disables both the color and depth clear. More...

virtual bool	get_clear_active (int n) const
	Gets the clear-active flag for any bitplane. More...

const LColor &	get_clear_color () const

bool	get_clear_color_active () const
	Returns the current setting of the flag that indicates whether the color buffer should be cleared every frame. More...

PN_stdfloat	get_clear_depth () const

bool	get_clear_depth_active () const
	Returns the current setting of the flag that indicates whether the depth buffer should be cleared every frame. More...

unsigned int	get_clear_stencil () const

bool	get_clear_stencil_active () const
	Returns the current setting of the flag that indicates whether the color buffer should be cleared every frame. More...

virtual const LColor &	get_clear_value (int n) const
	Returns the clear value for any bitplane. More...

int	get_draw_buffer_type () const
	Returns the RenderBuffer into which the GSG should issue draw commands. More...

PN_stdfloat	get_pixel_factor () const

PN_stdfloat	get_pixel_zoom () const

int	get_screenshot_buffer_type () const
	Returns the RenderBuffer that should be used for capturing screenshots from this particular DrawableRegion. More...

virtual bool	is_any_clear_active () const
	Returns true if any of the clear types (so far there are just color or depth) have been set active, or false if none of them are active and there is no need to clear. More...

void	operator= (const DrawableRegion &copy)

virtual void	set_clear_active (int n, bool clear_aux_active)
	Sets the clear-active flag for any bitplane. More...

void	set_clear_color (const LColor &color)

void	set_clear_color_active (bool clear_color_active)
	Toggles the flag that indicates whether the color buffer should be cleared every frame. More...

void	set_clear_depth (PN_stdfloat depth)

void	set_clear_depth_active (bool clear_depth_active)
	Toggles the flag that indicates whether the depth buffer should be cleared every frame. More...

void	set_clear_stencil (unsigned int stencil)

void	set_clear_stencil_active (bool clear_stencil_active)
	Toggles the flag that indicates whether the stencil buffer should be cleared every frame. More...

virtual void	set_clear_value (int n, const LColor &clear_value)
	Sets the clear value for any bitplane. More...

virtual void	set_pixel_zoom (PN_stdfloat pixel_zoom)

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static Filename	make_screenshot_filename (const std::string &prefix="screenshot")
	Synthesizes a suitable default filename for passing to save_screenshot(). More...

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from DrawableRegion
static int	get_renderbuffer_type (int plane)
	Returns the RenderBuffer::Type that corresponds to a RenderTexturePlane. More...

Public Attributes
	get_camera
	Returns the camera associated with this DisplayRegion, or an empty NodePath if no camera is associated. More...

	get_cull_callback
	Returns the CallbackObject set by set_cull_callback(). More...

	get_cull_traverser
	Returns the CullTraverser that will be used to draw the contents of this DisplayRegion. More...

	get_dimensions
	Retrieves the coordinates of the DisplayRegion's rectangle within its GraphicsOutput. More...

	get_draw_callback
	Returns the CallbackObject set by set_draw_callback(). More...

	get_incomplete_render
	Returns the incomplete_render flag. More...

	get_lens_index
	Returns the specific lens of the associated Camera that will be used for rendering this scene. More...

	get_pipe
	Returns the GraphicsPipe that this DisplayRegion is ultimately associated with, or NULL if no pipe is associated. More...

	get_pixel_size
	Returns the size of the DisplayRegion in pixels. More...

	get_scissor_enabled
	Returns whether or not scissor testing is enabled for this region. More...

	get_sort
	Returns the sort value associated with the DisplayRegion. More...

	get_stereo_channel
	Returns whether the DisplayRegion is specified as the left or right channel of a stereo pair, or whether it is a normal, monocular image. More...

	get_target_tex_page
	Returns the target page number associated with this particular DisplayRegion, or -1 if it is not associated with a page. More...

	get_tex_view_offset
	Returns the current texture view offset for this DisplayRegion. More...

	get_texture_reload_priority
	Returns the priority which is assigned to asynchronous texture reload requests. More...

	get_window
	Returns the GraphicsOutput that this DisplayRegion is ultimately associated with, or NULL if no window is associated. More...

	is_active
	Returns the active flag associated with the DisplayRegion. More...

	is_stereo
	Returns true if this is a StereoDisplayRegion, false otherwise. More...

	set_active
	Sets the active flag associated with the DisplayRegion. More...

	set_camera
	Sets the camera that is associated with this DisplayRegion. More...

	set_cull_callback
	Sets the CallbackObject that will be notified when the DisplayRegion is visited during the cull traversal. More...

	set_cull_traverser
	Specifies the CullTraverser that will be used to draw the contents of this DisplayRegion. More...

	set_dimensions
	Changes the portion of the framebuffer this DisplayRegion corresponds to. More...

	set_draw_callback
	Sets the CallbackObject that will be notified when the contents of DisplayRegion is drawn during the draw traversal. More...

	set_incomplete_render
	Sets the incomplete_render flag. More...

	set_lens_index
	Sets the lens index, allows for multiple lenses to be attached to a camera. More...

	set_scissor_enabled
	Sets whether or not scissor testing is enabled for this region. More...

	set_sort
	Sets the sort value associated with the DisplayRegion. More...

	set_stereo_channel
	Specifies whether the DisplayRegion represents the left or right channel of a stereo pair, or whether it is a normal, monocular image. More...

	set_target_tex_page
	This is a special parameter that is only used when rendering the faces of a cube map or multipage and/or multiview texture. More...

	set_tex_view_offset
	Sets the current texture view offset for this DisplayRegion. More...

	set_texture_reload_priority
	Specifies an integer priority which is assigned to any asynchronous texture reload requests spawned while processing this DisplayRegion. More...

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from DrawableRegion
	get_clear_color
	Returns the current clear color value. More...

	get_clear_depth
	Returns the current clear depth value. More...

	get_clear_stencil
	Returns the current clear stencil value. More...

	get_pixel_factor
	Returns the amount by which the height and width of the region will be scaled internally, based on the zoom factor set by set_pixel_zoom(). More...

	get_pixel_zoom
	Returns the value set by set_pixel_zoom(), regardless of whether it is being respected or not. More...

	set_clear_color
	Sets the clear color to the indicated value. More...

	set_clear_depth
	Sets the clear depth to the indicated value. More...

	set_clear_stencil
	Sets the clear stencil to the indicated value. More...

	set_pixel_zoom
	Sets the amount by which the pixels of the region are scaled internally when filling the image interally. More...

Friends
class	DisplayRegionCullCallbackData

class	DisplayRegionPipelineReader

class	GraphicsEngine

class	GraphicsOutput

Detailed Description

A rectangular subregion within a window for rendering into.

Typically, there is one DisplayRegion that covers the whole window, but you may also create smaller DisplayRegions for having different regions within the window that represent different scenes. You may also stack up DisplayRegions like panes of glass, usually for layering 2-d interfaces on top of a 3-d scene.

Definition at line 57 of file displayRegion.h.

Member Function Documentation

◆ cleanup()

void DisplayRegion::cleanup ( )

Cleans up some pointers associated with the DisplayRegion to help reduce the chance of memory leaks due to circular reference counts.

Definition at line 69 of file displayRegion.cxx.

Referenced by GraphicsOutput::remove_all_display_regions().

◆ clear_cull_callback()

void DisplayRegion::clear_cull_callback ( )

inline

Removes the callback set by an earlier call to set_cull_callback().

Definition at line 308 of file displayRegion.I.

References set_cull_callback.

◆ clear_draw_callback()

void DisplayRegion::clear_draw_callback ( )

inline

Removes the callback set by an earlier call to set_draw_callback().

Definition at line 356 of file displayRegion.I.

References set_draw_callback.

◆ compute_pixels() [1/2]

void DisplayRegion::compute_pixels ( )

Computes the pixel locations of the DisplayRegion within its window.

The DisplayRegion will request the size from the window.

Definition at line 546 of file displayRegion.cxx.

◆ compute_pixels() [2/2]

void DisplayRegion::compute_pixels	(	int	x_size,
		int	y_size
	)

Computes the pixel locations of the DisplayRegion within its window, given the size of the window in pixels.

Definition at line 579 of file displayRegion.cxx.

◆ compute_pixels_all_stages() [1/2]

void DisplayRegion::compute_pixels_all_stages ( )

Computes the pixel locations of the DisplayRegion within its window.

The DisplayRegion will request the size from the window.

Definition at line 561 of file displayRegion.cxx.

◆ compute_pixels_all_stages() [2/2]

void DisplayRegion::compute_pixels_all_stages	(	int	x_size,
		int	y_size
	)

Performs a compute_pixels() operation for all stages of the pipeline.

This is appropriate, for instance, when a window changes sizes, since this is a global operation; and you want the new window size to be immediately available even to the downstream stages.

Definition at line 593 of file displayRegion.cxx.

◆ get_bottom()

PN_stdfloat DisplayRegion::get_bottom ( int i = 0 ) const

inline

Retrieves the y coordinate of the bottom edge of the rectangle within its GraphicsOutput.

This number will be in the range [0..1].

Definition at line 114 of file displayRegion.I.

◆ get_cull_region_pcollector()

PStatCollector & DisplayRegion::get_cull_region_pcollector ( )

inline

Returns a PStatCollector for timing the cull operation for just this DisplayRegion.

Definition at line 513 of file displayRegion.I.

Referenced by GraphicsEngine::do_cull().

◆ get_cull_result()

CullResult * DisplayRegion::get_cull_result ( Thread * current_thread ) const

inline

Returns the CullResult value that was stored on this DisplayRegion, presumably by the last successful cull operation.

This method is for the benefit of the GraphicsEngine; normally you shouldn't call this directly.

Definition at line 492 of file displayRegion.I.

Referenced by PT().

◆ get_debug_name()

const std::string & DisplayRegion::get_debug_name ( ) const

inline

Returns a unique name used for debugging.

Definition at line 530 of file displayRegion.I.

◆ get_draw_region_pcollector()

PStatCollector & DisplayRegion::get_draw_region_pcollector ( )

inline

Returns a PStatCollector for timing the draw operation for just this DisplayRegion.

Definition at line 522 of file displayRegion.I.

◆ get_left()

PN_stdfloat DisplayRegion::get_left ( int i = 0 ) const

inline

Retrieves the x coordinate of the left edge of the rectangle within its GraphicsOutput.

This number will be in the range [0..1].

Definition at line 94 of file displayRegion.I.

◆ get_num_regions()

int DisplayRegion::get_num_regions ( ) const

inline

Returns the number of regions, see set_num_regions.

Definition at line 38 of file displayRegion.I.

◆ get_pixel_height()

int DisplayRegion::get_pixel_height ( int i = 0 ) const

inline

Returns the height of the DisplayRegion in pixels.

Definition at line 382 of file displayRegion.I.

◆ get_pixel_width()

int DisplayRegion::get_pixel_width ( int i = 0 ) const

inline

Returns the width of the DisplayRegion in pixels.

Definition at line 373 of file displayRegion.I.

◆ get_pixels() [1/2]

void DisplayRegion::get_pixels	(	int &	pl,
		int &	pr,
		int &	pb,
		int &	pt
	)		const

inline

Retrieves the coordinates of the DisplayRegion within its window, in pixels.

Definition at line 402 of file displayRegion.I.

◆ get_pixels() [2/2]

void DisplayRegion::get_pixels	(	int	i,
		int &	pl,
		int &	pr,
		int &	pb,
		int &	pt
	)		const

inline

Retrieves the coordinates of the DisplayRegion within its window, in pixels.

Definition at line 411 of file displayRegion.I.

◆ get_region_pixels() [1/2]

void DisplayRegion::get_region_pixels	(	int &	xo,
		int &	yo,
		int &	w,
		int &	h
	)		const

inline

Retrieves the coordinates of the DisplayRegion within its window, as the pixel location of its bottom-left corner, along with a pixel width and height.

Definition at line 426 of file displayRegion.I.

◆ get_region_pixels() [2/2]

void DisplayRegion::get_region_pixels	(	int	i,
		int &	xo,
		int &	yo,
		int &	w,
		int &	h
	)		const

inline

Retrieves the coordinates of the DisplayRegion within its window, as the pixel location of its bottom-left corner, along with a pixel width and height.

Definition at line 436 of file displayRegion.I.

◆ get_region_pixels_i() [1/2]

void DisplayRegion::get_region_pixels_i	(	int &	xo,
		int &	yo,
		int &	w,
		int &	h
	)		const

inline

Similar to get_region_pixels(), but returns the upper left corner, and the pixel numbers are numbered from the top-left corner down, in the DirectX way of things.

Definition at line 451 of file displayRegion.I.

Referenced by DXGraphicsStateGuardian9::framebuffer_copy_to_texture().

◆ get_region_pixels_i() [2/2]

void DisplayRegion::get_region_pixels_i	(	int	i,
		int &	xo,
		int &	yo,
		int &	w,
		int &	h
	)		const

inline

Similar to get_region_pixels(), but returns the upper left corner, and the pixel numbers are numbered from the top-left corner down, in the DirectX way of things.

Definition at line 461 of file displayRegion.I.

◆ get_right()

PN_stdfloat DisplayRegion::get_right ( int i = 0 ) const

inline

Retrieves the x coordinate of the right edge of the rectangle within its GraphicsOutput.

This number will be in the range [0..1].

Definition at line 104 of file displayRegion.I.

◆ get_scene_setup()

SceneSetup * DisplayRegion::get_scene_setup ( Thread * current_thread ) const

inline

Returns the SceneSetup value that was stored on this DisplayRegion, presumably by the last successful cull operation.

This method is for the benefit of the GraphicsEngine; normally you shouldn't call this directly.

Definition at line 503 of file displayRegion.I.

◆ get_screenshot()

bool DisplayRegion::get_screenshot ( PNMImage & image )

Captures the most-recently rendered image from the framebuffer into the indicated PNMImage.

Returns true on success, false on failure.

Definition at line 458 of file displayRegion.cxx.

References PT().

Referenced by save_screenshot().

◆ get_top()

PN_stdfloat DisplayRegion::get_top ( int i = 0 ) const

inline

Retrieves the y coordinate of the top edge of the rectangle within its GraphicsOutput.

This number will be in the range [0..1].

Definition at line 124 of file displayRegion.I.

◆ make_screenshot_filename()

Filename DisplayRegion::make_screenshot_filename ( const std::string & prefix = "screenshot" )

static

Synthesizes a suitable default filename for passing to save_screenshot().

The default filename is generated from the supplied prefix and from the Config variable screenshot-filename, which contains the following strings:

%~p - the supplied prefix %~f - the frame count %~e - the value of screenshot-extension All other % strings in strftime().

Definition at line 360 of file displayRegion.cxx.

References ClockObject::get_frame_count, and ClockObject::get_global_clock().

Referenced by GraphicsOutput::make_screenshot_filename(), and save_screenshot_default().

◆ operator<()

bool DisplayRegion::operator< ( const DisplayRegion & other ) const

inline

Returns true if this DisplayRegion should be sorted before the other one, false otherwise.

Definition at line 19 of file displayRegion.I.

References get_sort.

◆ save_screenshot()

bool DisplayRegion::save_screenshot	(	const Filename &	filename,
		const std::string &	image_comment = `""`
	)

Saves a screenshot of the region to the indicated filename.

Returns true on success, false on failure.

Definition at line 440 of file displayRegion.cxx.

References get_screenshot(), PNMImageHeader::set_comment, and PNMImage::write().

Referenced by save_screenshot_default().

◆ save_screenshot_default()

Filename DisplayRegion::save_screenshot_default ( const std::string & prefix = "screenshot" )

Saves a screenshot of the region to a default filename, and returns the filename, or empty string if the screenshot failed.

The filename is generated by make_screenshot_filename().

Definition at line 427 of file displayRegion.cxx.

References make_screenshot_filename(), and save_screenshot().

◆ set_cube_map_index()

void DisplayRegion::set_cube_map_index ( int cube_map_index )

inline

Deprecated; replaced by set_target_tex_page().

Definition at line 242 of file displayRegion.I.

References set_target_tex_page.

◆ set_cull_result()

void DisplayRegion::set_cull_result	(	PT(CullResult)	cull_result,
		PT(SceneSetup)	scene_setup,
		Thread *	current_thread
	)

inline

Stores the result of performing a cull operation on this DisplayRegion.

Normally, this will only be called by the GraphicsEngine; you should not call this directly.

The stored result will automatically be applied back to all upstream pipeline stages.

Definition at line 479 of file displayRegion.I.

◆ set_num_regions()

void DisplayRegion::set_num_regions ( int i )

inline

Sets the number of regions that this DisplayRegion indicates.

Usually, this number is 1 (and it is always at least 1), and only the first is used for rendering. However, if more than one is provided, you may select which one to render into using a geometry shader (gl_ViewportIndex in GLSL).

Definition at line 50 of file displayRegion.I.

◆ supports_pixel_zoom()

bool DisplayRegion::supports_pixel_zoom ( ) const

virtual

Returns true if a call to set_pixel_zoom() will be respected, false if it will be ignored.

If this returns false, then get_pixel_factor() will always return 1.0, regardless of what value you specify for set_pixel_zoom().

This may return false if the underlying renderer doesn't support pixel zooming, or if you have called this on a DisplayRegion that doesn't have both set_clear_color() and set_clear_depth() enabled.

Reimplemented from DrawableRegion.

Definition at line 614 of file displayRegion.cxx.

References DrawableRegion::get_clear_color_active(), DrawableRegion::get_clear_depth_active(), and DrawableRegion::supports_pixel_zoom().

Member Data Documentation

◆ get_camera

NodePath DisplayRegion::get_camera

inline

Returns the camera associated with this DisplayRegion, or an empty NodePath if no camera is associated.

Definition at line 94 of file displayRegion.h.

◆ get_cull_callback

CallbackObject * DisplayRegion::get_cull_callback

inline

Returns the CallbackObject set by set_cull_callback().

Definition at line 141 of file displayRegion.h.

◆ get_cull_traverser

CullTraverser * DisplayRegion::get_cull_traverser

Returns the CullTraverser that will be used to draw the contents of this DisplayRegion.

Definition at line 127 of file displayRegion.h.

Referenced by GraphicsEngine::do_cull().

◆ get_dimensions

LVecBase4 DisplayRegion::get_dimensions

inline

Retrieves the coordinates of the DisplayRegion's rectangle within its GraphicsOutput.

These numbers will be in the range [0..1].

Definition at line 83 of file displayRegion.h.

◆ get_draw_callback

CallbackObject * DisplayRegion::get_draw_callback

inline

Returns the CallbackObject set by set_draw_callback().

Definition at line 146 of file displayRegion.h.

◆ get_incomplete_render

bool DisplayRegion::get_incomplete_render

inline

Returns the incomplete_render flag.

See set_incomplete_render().

Definition at line 114 of file displayRegion.h.

Referenced by GraphicsEngine::do_cull().

◆ get_lens_index

int DisplayRegion::get_lens_index

inline

Returns the specific lens of the associated Camera that will be used for rendering this scene.

Most Cameras hold only one lens, but for multiple lenses this method may be used to selected between them.

Definition at line 123 of file displayRegion.h.

◆ get_pipe

GraphicsPipe * DisplayRegion::get_pipe

Returns the GraphicsPipe that this DisplayRegion is ultimately associated with, or NULL if no pipe is associated.

Definition at line 89 of file displayRegion.h.

◆ get_pixel_size

LVecBase2i DisplayRegion::get_pixel_size

inline

Returns the size of the DisplayRegion in pixels.

Definition at line 151 of file displayRegion.h.

◆ get_scissor_enabled

bool DisplayRegion::get_scissor_enabled

inline

Returns whether or not scissor testing is enabled for this region.

The default is true, except for the overlay display region.

Definition at line 136 of file displayRegion.h.

◆ get_sort

int DisplayRegion::get_sort

inline

Returns the sort value associated with the DisplayRegion.

Definition at line 102 of file displayRegion.h.

Referenced by operator<(), and PT().

◆ get_stereo_channel

Lens::StereoChannel DisplayRegion::get_stereo_channel

inline

Returns whether the DisplayRegion is specified as the left or right channel of a stereo pair, or whether it is a normal, monocular image.

See set_stereo_channel().

Definition at line 106 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_active().

◆ get_target_tex_page

int DisplayRegion::get_target_tex_page

inline

Returns the target page number associated with this particular DisplayRegion, or -1 if it is not associated with a page.

See set_target_tex_page().

Definition at line 132 of file displayRegion.h.

◆ get_tex_view_offset

int DisplayRegion::get_tex_view_offset

inline

Returns the current texture view offset for this DisplayRegion.

This is normally set to zero. If nonzero, it is used to select a particular view of any multiview textures that are rendered within this DisplayRegion.

For a StereoDisplayRegion, this is normally 0 for the left eye, and 1 for the right eye, to support stereo textures.

Definition at line 110 of file displayRegion.h.

◆ get_texture_reload_priority

int DisplayRegion::get_texture_reload_priority

inline

Returns the priority which is assigned to asynchronous texture reload requests.

See set_texture_reload_priority().

Definition at line 119 of file displayRegion.h.

◆ get_window

GraphicsOutput * DisplayRegion::get_window

inline

Returns the GraphicsOutput that this DisplayRegion is ultimately associated with, or NULL if no window is associated.

Definition at line 88 of file displayRegion.h.

Referenced by NonlinearImager::add_viewer(), WindowFramework::split_window(), DisplayRegionCullCallbackData::upcall(), and DisplayRegionDrawCallbackData::upcall().

◆ is_active

bool DisplayRegion::is_active

inline

Returns the active flag associated with the DisplayRegion.

Definition at line 98 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_stereo_channel().

◆ is_stereo

bool DisplayRegion::is_stereo

Returns true if this is a StereoDisplayRegion, false otherwise.

Definition at line 90 of file displayRegion.h.

Referenced by DisplayRegionDrawCallbackData::upcall().

◆ set_active

void DisplayRegion::set_active

Sets the active flag associated with the DisplayRegion.

If the DisplayRegion is marked inactive, nothing is rendered.

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

Definition at line 98 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_active().

◆ set_camera

void DisplayRegion::set_camera

Sets the camera that is associated with this DisplayRegion.

There is a one-to-many association between cameras and DisplayRegions; one camera may be shared by multiple DisplayRegions.

The camera is actually set via a NodePath, which clarifies which instance of the camera (if there happen to be multiple instances) we should use.

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

Definition at line 94 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_camera().

◆ set_cull_callback

void DisplayRegion::set_cull_callback

inline

Sets the CallbackObject that will be notified when the DisplayRegion is visited during the cull traversal.

This callback will be made during the cull thread.

The cull traversal is responsible for determining which nodes are visible and within the view frustum, and for accumulating state and transform, and generally building up the list of CullableObjects that are to be eventually passed to the draw traversal for rendering.

At the time the cull traversal callback is made, the traversal for this DisplayRegion has not yet started.

The callback is passed an instance of a DisplayRegionCullCallbackData, which contains pointers to the current scene information, as well as the current DisplayRegion and GSG. The callback *replaces* the normal cull behavior, so if your callback does nothing, the scene graph will not be traversed and therefore nothing will be drawn. If you wish the normal cull traversal to be performed for this DisplayRegion, you must call cbdata->upcall() from your callback.

Definition at line 141 of file displayRegion.h.

Referenced by clear_cull_callback().

◆ set_cull_traverser

void DisplayRegion::set_cull_traverser

Specifies the CullTraverser that will be used to draw the contents of this DisplayRegion.

Normally the default CullTraverser is sufficient, but this may be changed to change the default cull behavior.

Definition at line 127 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_cull_traverser().

◆ set_dimensions

void DisplayRegion::set_dimensions

inline

Changes the portion of the framebuffer this DisplayRegion corresponds to.

The parameters range from 0 to 1, where 0,0 is the lower left corner and 1,1 is the upper right; (0, 1, 0, 1) represents the whole screen.

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

The parameters range from 0 to 1, where 0,0 is the lower left corner and 1,1 is the upper right; (0, 1, 0, 1) represents the whole screen.

Definition at line 83 of file displayRegion.h.

Referenced by WindowFramework::split_window().

◆ set_draw_callback

void DisplayRegion::set_draw_callback

inline

Sets the CallbackObject that will be notified when the contents of DisplayRegion is drawn during the draw traversal.

This callback will be made during the draw thread.

The draw traversal is responsible for actually issuing the commands to the graphics engine to draw primitives. Its job is to walk through the list of CullableObjects build up by the cull traversal, as quickly as possible, issuing the appropriate commands to draw each one.

At the time the draw traversal callback is made, the graphics state is in the initial state, and no projection matrix or modelview matrix is in effect. begin_scene() has not yet been called, and no objects have yet been drawn. However, the viewport has already been set to the appropriate part of the window, and the clear commands for this DisplayRegion (if any) have been issued.

The callback is passed an instance of a DisplayRegionDrawCallbackData, which contains pointers to the current scene information, as well as the current DisplayRegion and GSG. The callback *replaces* the normal draw behavior, so if your callback does nothing, nothing in the DisplayRegion will be drawn. If you wish the draw traversal to continue to draw the contents of this DisplayRegion, you must call cbdata->upcall() from your callback.

Definition at line 146 of file displayRegion.h.

Referenced by clear_draw_callback().

◆ set_incomplete_render

void DisplayRegion::set_incomplete_render

Sets the incomplete_render flag.

When this is true, the frame will be rendered even if some of the geometry or textures in the scene are not available (e.g. they have been temporarily paged out). When this is false, the frame will be held up while this data is reloaded.

This flag may also be set on the GraphicsStateGuardian. It will be considered true for a given DisplayRegion only if it is true on both the GSG and on the DisplayRegion.

See GraphicsStateGuardian::set_incomplete_render() for more detail.

Definition at line 114 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_incomplete_render().

◆ set_lens_index

void DisplayRegion::set_lens_index

Sets the lens index, allows for multiple lenses to be attached to a camera.

This is useful for a variety of setups, such as fish eye rendering. The default is 0.

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

Definition at line 123 of file displayRegion.h.

◆ set_scissor_enabled

void DisplayRegion::set_scissor_enabled

inline

Sets whether or not scissor testing is enabled for this region.

The default is true, except for the overlay display region.

Definition at line 136 of file displayRegion.h.

◆ set_sort

void DisplayRegion::set_sort

Sets the sort value associated with the DisplayRegion.

Within a window, DisplayRegions will be rendered in order from the lowest sort value to the highest.

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

Definition at line 102 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_sort().

◆ set_stereo_channel

void DisplayRegion::set_stereo_channel

Specifies whether the DisplayRegion represents the left or right channel of a stereo pair, or whether it is a normal, monocular image.

This automatically adjusts the lens that is used to render to this DisplayRegion to its left or right eye, according to the lens's stereo properties.

When the DisplayRegion is attached to a stereo window (one for which is_stereo() returns true), this also specifies which physical channel the DisplayRegion renders to.

Normally you would create at least two DisplayRegions for a stereo window, one for each of the left and right channels. The two DisplayRegions may share the same camera (and thus the same lens); this parameter is used to control the exact properties of the lens when it is used to render into this DisplayRegion.

Also see the StereoDisplayRegion, which automates managing a pair of left/right DisplayRegions.

An ordinary DisplayRegion may be set to SC_mono, SC_left, or SC_right. You may set SC_stereo only on a StereoDisplayRegion.

This call also resets tex_view_offset to its default value, which is 0 for the left eye or 1 for the right eye of a stereo display region, or 0 for a mono display region.

Definition at line 106 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_stereo_channel().

◆ set_target_tex_page

void DisplayRegion::set_target_tex_page

This is a special parameter that is only used when rendering the faces of a cube map or multipage and/or multiview texture.

This sets up the DisplayRegion to render to the ith page and jth view of its associated texture(s); the value must be consistent with the range of values availble to the texture. A normal DisplayRegion that is not associated with any particular page should be set to page -1 and view 0.

This is particularly useful when rendering cube maps and/or stereo textures.

Don't call this in a downstream thread unless you don't mind it blowing away other changes you might have recently made in an upstream thread.

Definition at line 132 of file displayRegion.h.

Referenced by set_cube_map_index(), and StereoDisplayRegion::set_target_tex_page().

◆ set_tex_view_offset

void DisplayRegion::set_tex_view_offset

Sets the current texture view offset for this DisplayRegion.

This is normally set to zero. If nonzero, it is used to select a particular view of any multiview textures that are rendered within this DisplayRegion.

For a StereoDisplayRegion, this is normally 0 for the left eye, and 1 for the right eye, to support stereo textures. This is set automatically when you call set_stereo_channel().

Definition at line 110 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_tex_view_offset().

◆ set_texture_reload_priority

void DisplayRegion::set_texture_reload_priority

Specifies an integer priority which is assigned to any asynchronous texture reload requests spawned while processing this DisplayRegion.

This controls which textures are loaded first when multiple textures need to be reloaded at once; it also controls the relative priority between asynchronous texture loads and asynchronous model or animation loads.

Specifying a larger number here makes the textures rendered by this DisplayRegion load up first. This may be particularly useful to do, for instance, for the DisplayRegion that renders the gui.

Definition at line 119 of file displayRegion.h.

Referenced by StereoDisplayRegion::set_texture_reload_priority().

The documentation for this class was generated from the following files:

panda/src/display/displayRegion.h
panda/src/display/displayRegion.cxx
panda/src/display/displayRegion.I

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Detailed Description

Member Function Documentation

◆ cleanup()

◆ clear_cull_callback()

◆ clear_draw_callback()

◆ compute_pixels() [1/2]

◆ compute_pixels() [2/2]

◆ compute_pixels_all_stages() [1/2]

◆ compute_pixels_all_stages() [2/2]

◆ get_bottom()

◆ get_cull_region_pcollector()

◆ get_cull_result()

◆ get_debug_name()

◆ get_draw_region_pcollector()

◆ get_left()

◆ get_num_regions()

◆ get_pixel_height()

◆ get_pixel_width()

◆ get_pixels() [1/2]

◆ get_pixels() [2/2]

◆ get_region_pixels() [1/2]

◆ get_region_pixels() [2/2]

◆ get_region_pixels_i() [1/2]

◆ get_region_pixels_i() [2/2]

◆ get_right()

◆ get_scene_setup()

◆ get_screenshot()

◆ get_top()

◆ make_screenshot_filename()

◆ operator<()

◆ save_screenshot()

◆ save_screenshot_default()

◆ set_cube_map_index()

◆ set_cull_result()

◆ set_num_regions()

◆ supports_pixel_zoom()

Member Data Documentation

◆ get_camera

◆ get_cull_callback

◆ get_cull_traverser

◆ get_dimensions

◆ get_draw_callback

◆ get_incomplete_render

◆ get_lens_index

◆ get_pipe

◆ get_pixel_size

◆ get_scissor_enabled

◆ get_sort

◆ get_stereo_channel

◆ get_target_tex_page

◆ get_tex_view_offset

◆ get_texture_reload_priority

◆ get_window

◆ is_active

◆ is_stereo

◆ set_active

◆ set_camera

◆ set_cull_callback

◆ set_cull_traverser

◆ set_dimensions

◆ set_draw_callback

◆ set_incomplete_render

◆ set_lens_index

◆ set_scissor_enabled

◆ set_sort

◆ set_stereo_channel

◆ set_target_tex_page

◆ set_tex_view_offset

◆ set_texture_reload_priority
