Any one-, two-, three-, or four-component vertex, possibly with attributes such as a normal. More...

#include "eggVertex.h"

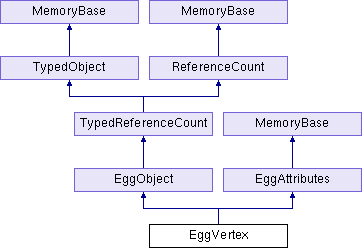

Inheritance diagram for EggVertex:

Public Types
typedef second_of_pair_iterator< AuxMap::const_iterator >	aux_iterator

typedef AuxMap::size_type	aux_size_type

typedef pmap< std::string, PT(EggVertexAux) >	AuxMap

typedef aux_iterator	const_aux_iterator

typedef uv_iterator	const_uv_iterator

typedef pset< EggGroup * >	GroupRef

typedef pmultiset< EggPrimitive * >	PrimitiveRef

typedef second_of_pair_iterator< UVMap::const_iterator >	uv_iterator

typedef UVMap::size_type	uv_size_type

typedef pmap< std::string, PT(EggVertexUV) >	UVMap

Public Member Functions
	EggVertex (const EggVertex &copy)
	Copies all properties of the vertex except its vertex pool, index number, and group membership. More...

const_aux_iterator	aux_begin () const
	Returns an iterator that allows walking through the complete set of auxiliary data on the vertex. More...

const_aux_iterator	aux_end () const
	Returns an iterator that allows walking through the complete set of auxiliary data on the vertex. More...

aux_size_type	aux_size () const
	Returns the number of auxiliary datas on the vertex. More...

void	clear_aux ()
	Removes all auxiliary data from the vertex. More...

void	clear_aux (const std::string &name)
	Removes the named auxiliary data from the vertex. More...

void	clear_grefs ()
	Removes all group references from the vertex, so that it is not assigned to any group. More...

void	clear_uv ()
	Removes all UV coordinate pairs from the vertex. More...

void	clear_uv (const std::string &name)
	Removes the named UV coordinate pair from the vertex, along with any UV morphs. More...

int	compare_to (const EggVertex &other) const
	An ordering operator to compare two vertices for sorting order. More...

void	copy_grefs_from (const EggVertex &other)
	Copies all the group references from the other vertex onto this one. More...

virtual TypeHandle	force_init_type ()

const LVecBase4d &	get_aux (const std::string &name) const
	Returns the named auxiliary data quadruple on the vertex. More...

const EggVertexAux *	get_aux_obj (const std::string &name) const
	Returns the named EggVertexAux object, which defines the auxiliary data for this name. More...

int	get_external_index () const
	Returns the number set by set_external_index(). More...

int	get_external_index2 () const
	Returns the number set by set_external_index2(). More...

int	get_index () const
	Returns the index number of the vertex within its pool. More...

int	get_num_dimensions () const
	Returns the number of dimensions the vertex uses. More...

int	get_num_global_coord () const
	Returns the number of primitives that own this vertex whose vertices are interpreted in the global coordinate system. More...

int	get_num_local_coord () const
	Returns the number of primitives that own this vertex whose vertices are interpreted to be in a local coordinate system. More...

EggVertexPool *	get_pool () const
	Returns the vertex pool this vertex belongs in. More...

double	get_pos1 () const
	Only valid if get_num_dimensions() returns 1. More...

LPoint2d	get_pos2 () const
	Only valid if get_num_dimensions() returns 2. More...

LVertexd	get_pos3 () const
	Valid if get_num_dimensions() returns 3 or 4. More...

LPoint4d	get_pos4 () const
	This is always valid, regardless of the value of get_num_dimensions. More...

virtual TypeHandle	get_type () const

LTexCoordd	get_uv () const
	Returns the unnamed UV coordinate pair on the vertex. More...

LTexCoordd	get_uv (const std::string &name) const
	Returns the named UV coordinate pair on the vertex. More...

const EggVertexUV *	get_uv_obj (const std::string &name) const
	Returns the named EggVertexUV object, which defines both the UV coordinate pair for this name and the UV morphs. More...

const LTexCoord3d &	get_uvw (const std::string &name) const
	Returns the named UV coordinate triple on the vertex. More...

GroupRef::const_iterator	gref_begin () const
	Returns an iterator that can, in conjunction with gref_end(), be used to traverse the entire set of groups that reference this vertex. More...

GroupRef::const_iterator	gref_end () const
	Returns an iterator that can, in conjunction with gref_begin(), be used to traverse the entire set of groups that reference this vertex. More...

GroupRef::size_type	gref_size () const
	Returns the number of elements between gref_begin() and gref_end(). More...

bool	has_aux () const
	Returns true if the vertex has any auxiliary data, false otherwise. More...

bool	has_aux (const std::string &name) const
	Returns true if the vertex has the named auxiliary data quadruple. More...

bool	has_gref (const EggGroup *group) const
	Returns true if the indicated group references this vertex, false otherwise. More...

int	has_pref (const EggPrimitive *prim) const
	Returns the number of times the vertex appears in the indicated primitive, or 0 if it does not appear. More...

bool	has_uv () const
	Returns true if the vertex has an unnamed UV coordinate pair, false otherwise. More...

bool	has_uv (const std::string &name) const
	Returns true if the vertex has the named UV coordinate pair, and the named UV coordinate pair is 2-d, false otherwise. More...

bool	has_uvw (const std::string &name) const
	Returns true if the vertex has the named UV coordinate triple, and the named UV coordinate triple is 3-d, false otherwise. More...

bool	is_forward_reference () const
	Returns true if the vertex is a forward reference to some vertex that hasn't been defined yet. More...

EggVertexAux *	modify_aux_obj (const std::string &name)
	Returns a modifiable pointer to the named EggVertexAux object, which defines the auxiliary data for this name. More...

EggVertexUV *	modify_uv_obj (const std::string &name)
	Returns a modifiable pointer to the named EggVertexUV object, which defines both the UV coordinate pair for this name and the UV morphs. More...

EggVertex &	operator= (const EggVertex &copy)
	Copies all properties of the vertex except its vertex pool, index number, and group membership. More...

void	output (std::ostream &out) const

PrimitiveRef::const_iterator	pref_begin () const
	Returns an iterator that can, in conjunction with pref_end(), be used to traverse the entire set of primitives that reference this vertex. More...

PrimitiveRef::const_iterator	pref_end () const
	Returns an iterator that can, in conjunction with pref_begin(), be used to traverse the entire set of primitives that reference this vertex. More...

PrimitiveRef::size_type	pref_size () const
	Returns the number of elements between pref_begin() and pref_end(). More...

void	set_aux (const std::string &name, const LVecBase4d &aux)
	Sets the indicated auxiliary data quadruple on the vertex. More...

void	set_aux_obj (EggVertexAux *vertex_aux)
	Sets the indicated EggVertexAux on the vertex. More...

void	set_external_index (int external_index)
	Sets a special index number that is associated with the EggVertex (but is not written to the egg file). More...

void	set_external_index2 (int external_index2)
	Similar to set_external_index(), but this is a different number which may be used for a different purpose by the calling code. More...

void	set_pos (double pos)
	Sets the vertex position. More...

void	set_pos (const LPoint2d &pos)
	Sets the vertex position. More...

void	set_pos (const LPoint3d &pos)
	Sets the vertex position. More...

void	set_pos (const LPoint4d &pos)
	Sets the vertex position. More...

void	set_pos4 (const LPoint4d &pos)
	This special flavor of set_pos() sets the vertex as a four-component value, but does not change the set number of dimensions. More...

void	set_uv (const LTexCoordd &texCoord)
	Replaces the unnamed UV coordinate pair on the vertex with the indicated value. More...

void	set_uv (const std::string &name, const LTexCoordd &texCoord)
	Sets the indicated UV coordinate pair on the vertex. More...

void	set_uv_obj (EggVertexUV *vertex_uv)
	Sets the indicated EggVertexUV on the vertex. More...

void	set_uvw (const std::string &name, const LTexCoord3d &texCoord)
	Sets the indicated UV coordinate triple on the vertex. More...

bool	sorts_less_than (const EggVertex &other) const
	An ordering operator to compare two vertices for sorting order. More...

void	test_gref_integrity () const

void	test_pref_integrity () const

void	transform (const LMatrix4d &mat)
	Applies the indicated transformation matrix to the vertex. More...

const_uv_iterator	uv_begin () const
	Returns an iterator that allows walking through the complete set of named UV's on the vertex. More...

const_uv_iterator	uv_end () const
	Returns an iterator that allows walking through the complete set of named UV's on the vertex. More...

uv_size_type	uv_size () const
	Returns the number of named UV's on the vertex. More...

void	write (std::ostream &out, int indent_level) const
	Writes the vertex to the indicated output stream in Egg format. More...

Public Member Functions inherited from EggObject
	EggObject (const EggObject &copy)

virtual EggTransform *	as_transform ()
	Returns this object cross-cast to an EggTransform pointer, if it inherits from EggTransform, or NULL if it does not. More...

void	clear_user_data ()
	Removes all user data pointers from the node. More...

void	clear_user_data (TypeHandle type)
	Removes the user data pointer of the indicated type. More...

EggUserData *	get_user_data () const
	Returns the user data pointer most recently stored on this object, or NULL if nothing was previously stored. More...

EggUserData *	get_user_data (TypeHandle type) const
	Returns the user data pointer of the indicated type, if it exists, or NULL if it does not. More...

bool	has_user_data () const
	Returns true if a generic user data pointer has recently been set and not yet cleared, false otherwise. More...

bool	has_user_data (TypeHandle type) const
	Returns true if the user data pointer of the indicated type has been set, false otherwise. More...

EggObject &	operator= (const EggObject &copy)

void	set_user_data (EggUserData *user_data)
	Sets the user data associated with this object. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from EggAttributes
	EggAttributes (const EggAttributes &copy)

void	clear_color ()

void	clear_normal ()

int	compare_to (const EggAttributes &other) const
	An ordering operator to compare two vertices for sorting order. More...

void	copy_color (const EggAttributes &other)
	Sets this color to be the same as the other's, include morphs. More...

void	copy_normal (const EggAttributes &other)
	Sets this normal to be the same as the other's, include morphs. More...

LColor	get_color () const
	Returns the color set on this particular attribute. More...

const LNormald &	get_normal () const

bool	has_color () const

bool	has_normal () const

bool	matches_color (const EggAttributes &other) const
	Returns true if this color matches that of the other EggAttributes object, include the morph list. More...

bool	matches_normal (const EggAttributes &other) const
	Returns true if this normal matches that of the other EggAttributes object, include the morph list. More...

EggAttributes &	operator= (const EggAttributes &copy)

void	set_color (const LColor &Color)

void	set_normal (const LNormald &normal)

bool	sorts_less_than (const EggAttributes &other) const
	An ordering operator to compare two vertices for sorting order. More...

void	transform (const LMatrix4d &mat)
	Applies the indicated transformation matrix to the attributes. More...

void	write (std::ostream &out, int indent_level) const
	Writes the attributes to the indicated output stream in Egg format. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (EggVertex) make_average(const EggVertex *first

Static Public Member Functions inherited from EggObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggAttributes
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
EggMorphVertexList	_dxyzs

static const EggVertex *	second

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from EggAttributes
EggMorphNormalList	_dnormals

EggMorphColorList	_drgbas

Friends
class	EggGroup

class	EggPrimitive

class	EggVertexPool

Detailed Description

Any one-, two-, three-, or four-component vertex, possibly with attributes such as a normal.

Definition at line 39 of file eggVertex.h.

Constructor & Destructor Documentation

◆ EggVertex()

EggVertex::EggVertex ( const EggVertex & copy )

Copies all properties of the vertex except its vertex pool, index number, and group membership.

Definition at line 55 of file eggVertex.cxx.

Member Function Documentation

◆ aux_begin()

EggVertex::const_aux_iterator EggVertex::aux_begin ( ) const

inline

Returns an iterator that allows walking through the complete set of auxiliary data on the vertex.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 231 of file eggVertex.I.

Referenced by EggVertexPool::get_aux_names().

◆ aux_end()

EggVertex::const_aux_iterator EggVertex::aux_end ( ) const

inline

Returns an iterator that allows walking through the complete set of auxiliary data on the vertex.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 253 of file eggVertex.I.

Referenced by EggVertexPool::get_aux_names().

◆ aux_size()

EggVertex::aux_size_type EggVertex::aux_size ( ) const

inline

Returns the number of auxiliary datas on the vertex.

Definition at line 269 of file eggVertex.I.

◆ clear_aux() [1/2]

void EggVertex::clear_aux ( )

inline

Removes all auxiliary data from the vertex.

Definition at line 209 of file eggVertex.I.

◆ clear_aux() [2/2]

void EggVertex::clear_aux ( const std::string & name )

Removes the named auxiliary data from the vertex.

Definition at line 338 of file eggVertex.cxx.

◆ clear_grefs()

void EggVertex::clear_grefs ( )

Removes all group references from the vertex, so that it is not assigned to any group.

Definition at line 772 of file eggVertex.cxx.

Referenced by copy_grefs_from(), and EggVertexPool::remove_unused_vertices().

◆ clear_uv() [1/2]

void EggVertex::clear_uv ( )

inline

Removes all UV coordinate pairs from the vertex.

Definition at line 201 of file eggVertex.I.

◆ clear_uv() [2/2]

void EggVertex::clear_uv ( const std::string & name )

Removes the named UV coordinate pair from the vertex, along with any UV morphs.

Definition at line 330 of file eggVertex.cxx.

References EggVertexUV::filter_name().

◆ compare_to()

int EggVertex::compare_to ( const EggVertex & other ) const

An ordering operator to compare two vertices for sorting order.

This imposes an arbitrary ordering useful to identify unique vertices.

Group membership is not considered in this comparison. This is somewhat problematic, but cannot easily be helped, because considering group membership would make it difficult to add and remove groups from vertices. It also makes it impossible to meaningfully compare with a concrete EggVertex object (which cannot have group memberships).

However, this is not altogether bad, because two vertices that are identical in all other properties should generally also be identical in group memberships, else the vertices will tend to fly apart when the joints animate.

Definition at line 553 of file eggVertex.cxx.

Referenced by sorts_less_than().

◆ copy_grefs_from()

void EggVertex::copy_grefs_from ( const EggVertex & other )

Copies all the group references from the other vertex onto this one.

This assigns the current vertex to exactly the same groups, with exactly the same memberships, as the given one.

Warning: only an EggVertex allocated from the free store may have groups assigned to it. Do not attempt to call this on a temporary concrete EggVertex object; a core dump will certainly result.

Definition at line 747 of file eggVertex.cxx.

References clear_grefs(), gref_begin(), and gref_end().

◆ get_aux()

const LVecBase4d & EggVertex::get_aux ( const std::string & name ) const

Returns the named auxiliary data quadruple on the vertex.

It is an error to call this if has_aux(name) returned false.

Definition at line 174 of file eggVertex.cxx.

◆ get_aux_obj()

const EggVertexAux * EggVertex::get_aux_obj ( const std::string & name ) const

Returns the named EggVertexAux object, which defines the auxiliary data for this name.

This object might be shared between multiple vertices. You should not attempt to modify this object; instead, call modify_aux_object to return a modifiable pointer.

Definition at line 260 of file eggVertex.cxx.

◆ get_external_index()

int EggVertex::get_external_index ( ) const

inline

Returns the number set by set_external_index().

See set_external_index().

Definition at line 300 of file eggVertex.I.

◆ get_external_index2()

int EggVertex::get_external_index2 ( ) const

inline

Returns the number set by set_external_index2().

See set_external_index2().

Definition at line 319 of file eggVertex.I.

◆ get_index()

int EggVertex::get_index ( ) const

inline

Returns the index number of the vertex within its pool.

Definition at line 277 of file eggVertex.I.

◆ get_num_dimensions()

int EggVertex::get_num_dimensions ( ) const

inline

Returns the number of dimensions the vertex uses.

Usually this will be 3, but it may be 1, 2, 3, or 4.

Definition at line 99 of file eggVertex.I.

Referenced by EggVertexPool::get_num_dimensions().

◆ get_num_global_coord()

int EggVertex::get_num_global_coord ( ) const

Returns the number of primitives that own this vertex whose vertices are interpreted in the global coordinate system.

Definition at line 654 of file eggVertex.cxx.

References EggNode::is_local_coord(), pref_begin(), and pref_end().

◆ get_num_local_coord()

int EggVertex::get_num_local_coord ( ) const

Returns the number of primitives that own this vertex whose vertices are interpreted to be in a local coordinate system.

Definition at line 636 of file eggVertex.cxx.

References EggNode::is_local_coord(), pref_begin(), and pref_end().

◆ get_pool()

EggVertexPool * EggVertex::get_pool ( ) const

inline

Returns the vertex pool this vertex belongs in.

This may be NULL if the vertex has not been added to a pool.

Definition at line 19 of file eggVertex.I.

Referenced by PT(), and split_vertex().

◆ get_pos1()

double EggVertex::get_pos1 ( ) const

inline

Only valid if get_num_dimensions() returns 1.

Returns the position as a one-dimensional value.

Definition at line 109 of file eggVertex.I.

◆ get_pos2()

LPoint2d EggVertex::get_pos2 ( ) const

inline

Only valid if get_num_dimensions() returns 2.

Returns the position as a two-dimensional value.

Definition at line 120 of file eggVertex.I.

◆ get_pos3()

LVertexd EggVertex::get_pos3 ( ) const

inline

Valid if get_num_dimensions() returns 3 or 4.

Returns the position as a three-dimensional value.

Definition at line 131 of file eggVertex.I.

Referenced by EggMesherEdge::compute_box(), EggMesherEdge::compute_length(), and XFileVertex::set_from_egg().

◆ get_pos4()

LPoint4d EggVertex::get_pos4 ( ) const

inline

This is always valid, regardless of the value of get_num_dimensions.

It returns the position as a four-dimensional value. If the pos has fewer than four dimensions, this value represents the pos extended into four- dimensional homogenous space, e.g. by adding 1 as the fourth component.

Definition at line 145 of file eggVertex.I.

◆ get_uv() [1/2]

LTexCoordd EggVertex::get_uv ( ) const

inline

Returns the unnamed UV coordinate pair on the vertex.

It is an error to call this if has_uv() has returned false.

This is the more restrictive interface, and is generally useful only in the absence of multitexturing; see get_uv(name) for the interface that supports multitexturing.

Definition at line 179 of file eggVertex.I.

◆ get_uv() [2/2]

LTexCoordd EggVertex::get_uv ( const std::string & name ) const

Returns the named UV coordinate pair on the vertex.

It is an error to call this if has_uv(name) returned false.

Definition at line 152 of file eggVertex.cxx.

References EggVertexUV::filter_name().

◆ get_uv_obj()

const EggVertexUV * EggVertex::get_uv_obj ( const std::string & name ) const

Returns the named EggVertexUV object, which defines both the UV coordinate pair for this name and the UV morphs.

This object might be shared between multiple vertices. You should not attempt to modify this object; instead, call modify_uv_object to return a modifiable pointer.

Definition at line 245 of file eggVertex.cxx.

References EggVertexUV::filter_name().

◆ get_uvw()

const LTexCoord3d & EggVertex::get_uvw ( const std::string & name ) const

Returns the named UV coordinate triple on the vertex.

It is an error to call this if has_uvw(name) returned false.

Definition at line 163 of file eggVertex.cxx.

References EggVertexUV::filter_name().

◆ gref_begin()

EggVertex::GroupRef::const_iterator EggVertex::gref_begin ( ) const

Returns an iterator that can, in conjunction with gref_end(), be used to traverse the entire set of groups that reference this vertex.

Each iterator returns a pointer to a group.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 702 of file eggVertex.cxx.

Referenced by copy_grefs_from(), and split_vertex().

◆ gref_end()

EggVertex::GroupRef::const_iterator EggVertex::gref_end ( ) const

Returns an iterator that can, in conjunction with gref_begin(), be used to traverse the entire set of groups that reference this vertex.

Each iterator returns a pointer to a group.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 714 of file eggVertex.cxx.

Referenced by copy_grefs_from(), and split_vertex().

◆ gref_size()

EggVertex::GroupRef::size_type EggVertex::gref_size ( ) const

Returns the number of elements between gref_begin() and gref_end().

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 724 of file eggVertex.cxx.

◆ has_aux() [1/2]

bool EggVertex::has_aux ( ) const

inline

Returns true if the vertex has any auxiliary data, false otherwise.

Definition at line 166 of file eggVertex.I.

Referenced by EggVertexPool::has_aux().

◆ has_aux() [2/2]

bool EggVertex::has_aux ( const std::string & name ) const

Returns true if the vertex has the named auxiliary data quadruple.

Definition at line 142 of file eggVertex.cxx.

◆ has_gref()

bool EggVertex::has_gref ( const EggGroup * group ) const

Returns true if the indicated group references this vertex, false otherwise.

Definition at line 733 of file eggVertex.cxx.

◆ has_pref()

int EggVertex::has_pref ( const EggPrimitive * prim ) const

Returns the number of times the vertex appears in the indicated primitive, or 0 if it does not appear.

Definition at line 824 of file eggVertex.cxx.

◆ has_uv() [1/2]

bool EggVertex::has_uv ( ) const

inline

Returns true if the vertex has an unnamed UV coordinate pair, false otherwise.

This is the more restrictive interface, and is generally useful only in the absence of multitexturing; see has_uv(name) for the interface that supports multitexturing.

Definition at line 158 of file eggVertex.I.

Referenced by EggVertexPool::has_uvs().

◆ has_uv() [2/2]

bool EggVertex::has_uv ( const std::string & name ) const

Returns true if the vertex has the named UV coordinate pair, and the named UV coordinate pair is 2-d, false otherwise.

Definition at line 115 of file eggVertex.cxx.

References EggVertexUV::filter_name(), and EggVertexUV::has_w().

◆ has_uvw()

bool EggVertex::has_uvw ( const std::string & name ) const

Returns true if the vertex has the named UV coordinate triple, and the named UV coordinate triple is 3-d, false otherwise.

Definition at line 129 of file eggVertex.cxx.

References EggVertexUV::filter_name(), and EggVertexUV::has_w().

◆ is_forward_reference()

bool EggVertex::is_forward_reference ( ) const

inline

Returns true if the vertex is a forward reference to some vertex that hasn't been defined yet.

In this case, the vertex may not have any properties filled in yet.

This can only happen if you implicitly create a vertex via EggVertexPool::get_forward_vertex(). Presumably, when the vertex pool is later filled in, this vertex will be replaced with real data.

Definition at line 33 of file eggVertex.I.

Referenced by EggVertexPool::get_vertex(), EggVertexPool::has_defined_vertices(), and EggVertexPool::has_forward_vertices().

◆ modify_aux_obj()

EggVertexAux * EggVertex::modify_aux_obj ( const std::string & name )

Returns a modifiable pointer to the named EggVertexAux object, which defines the auxiliary data for this name.

Returns NULL if there is no such named UV object.

Definition at line 293 of file eggVertex.cxx.

◆ modify_uv_obj()

EggVertexUV * EggVertex::modify_uv_obj ( const std::string & name )

Returns a modifiable pointer to the named EggVertexUV object, which defines both the UV coordinate pair for this name and the UV morphs.

Returns NULL if there is no such named UV object.

Definition at line 274 of file eggVertex.cxx.

References EggVertexUV::filter_name().

◆ operator=()

EggVertex & EggVertex::operator= ( const EggVertex & copy )

Copies all properties of the vertex except its vertex pool, index number, and group membership.

Definition at line 78 of file eggVertex.cxx.

◆ pref_begin()

EggVertex::PrimitiveRef::const_iterator EggVertex::pref_begin ( ) const

Returns an iterator that can, in conjunction with pref_end(), be used to traverse the entire set of primitives that reference this vertex.

Each iterator returns a pointer to a primitive.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 793 of file eggVertex.cxx.

Referenced by get_num_global_coord(), get_num_local_coord(), and split_vertex().

◆ pref_end()

EggVertex::PrimitiveRef::const_iterator EggVertex::pref_end ( ) const

Returns an iterator that can, in conjunction with pref_begin(), be used to traverse the entire set of primitives that reference this vertex.

Each iterator returns a pointer to a primitive.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 805 of file eggVertex.cxx.

Referenced by get_num_global_coord(), get_num_local_coord(), and split_vertex().

◆ pref_size()

EggVertex::GroupRef::size_type EggVertex::pref_size ( ) const

Returns the number of elements between pref_begin() and pref_end().

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 815 of file eggVertex.cxx.

Referenced by EggVertexPool::add_unused_vertices_to_prim(), EggVertexPool::remove_unused_vertices(), and split_vertex().

◆ set_aux()

void EggVertex::set_aux	(	const std::string &	name,
		const LVecBase4d &	aux
	)

Sets the indicated auxiliary data quadruple on the vertex.

This replaces any auxiliary data with the same name already on the vertex.

Definition at line 225 of file eggVertex.cxx.

◆ set_aux_obj()

void EggVertex::set_aux_obj ( EggVertexAux * aux )

Sets the indicated EggVertexAux on the vertex.

This replaces any auxiliary data with the same name already on the vertex.

Definition at line 321 of file eggVertex.cxx.

◆ set_external_index()

void EggVertex::set_external_index ( int external_index )

inline

Sets a special index number that is associated with the EggVertex (but is not written to the egg file).

This number is not interpreted by any egg code; it is simply maintained along with the vertex. It *is* used to differentiate otherwise identical vertices in EggVertexPool::create_unique_vertex(), however.

The intention of this number is as an aid for file converters, to associate an EggVertex back to the index number of the original source vertex.

Definition at line 292 of file eggVertex.I.

◆ set_external_index2()

void EggVertex::set_external_index2 ( int external_index2 )

inline

Similar to set_external_index(), but this is a different number which may be used for a different purpose by the calling code.

The egg library does not assign any meaning to this number or use it in any way.

Definition at line 310 of file eggVertex.I.

◆ set_pos() [1/4]

void EggVertex::set_pos ( double pos )

inline

Sets the vertex position.

This variant sets the vertex to a one- dimensional value.

Definition at line 42 of file eggVertex.I.

Referenced by DXFToEggLayer::add_vertex(), and EggVertexPool::make_new_vertex().

◆ set_pos() [2/4]

void EggVertex::set_pos ( const LPoint2d & pos )

inline

Sets the vertex position.

This variant sets the vertex to a two- dimensional value.

Definition at line 53 of file eggVertex.I.

◆ set_pos() [3/4]

void EggVertex::set_pos ( const LPoint3d & pos )

inline

Sets the vertex position.

This variant sets the vertex to a three- dimensional value.

Definition at line 64 of file eggVertex.I.

◆ set_pos() [4/4]

void EggVertex::set_pos ( const LPoint4d & pos )

inline

Sets the vertex position.

This variant sets the vertex to a four- dimensional value.

Definition at line 75 of file eggVertex.I.

◆ set_pos4()

void EggVertex::set_pos4 ( const LPoint4d & pos )

inline

This special flavor of set_pos() sets the vertex as a four-component value, but does not change the set number of dimensions.

It's handy for retrieving the vertex position via get_pos4, manipulating it, then storing it back again, without worrying about the number of dimensions it actually had.

Definition at line 89 of file eggVertex.I.

◆ set_uv() [1/2]

void EggVertex::set_uv ( const LTexCoordd & uv )

inline

Replaces the unnamed UV coordinate pair on the vertex with the indicated value.

This is the more restrictive interface, and is generally useful only in the absence of multitexturing; see set_uv(name, uv) for the interface that supports multitexturing.

Definition at line 193 of file eggVertex.I.

◆ set_uv() [2/2]

void EggVertex::set_uv	(	const std::string &	name,
		const LTexCoordd &	uv
	)

Sets the indicated UV coordinate pair on the vertex.

This replaces any UV coordinate pair with the same name already on the vertex, but preserves UV morphs.

Definition at line 186 of file eggVertex.cxx.

References EggVertexUV::filter_name().

◆ set_uv_obj()

void EggVertex::set_uv_obj ( EggVertexUV * uv )

Sets the indicated EggVertexUV on the vertex.

This replaces any UV coordinate pair with the same name already on the vertex, including UV morphs.

Definition at line 312 of file eggVertex.cxx.

◆ set_uvw()

void EggVertex::set_uvw	(	const std::string &	name,
		const LTexCoord3d &	uvw
	)

Sets the indicated UV coordinate triple on the vertex.

This replaces any UV coordinate pair or triple with the same name already on the vertex, but preserves UV morphs.

Definition at line 206 of file eggVertex.cxx.

References EggVertexUV::filter_name().

◆ sorts_less_than()

bool EggVertex::sorts_less_than ( const EggVertex & other ) const

inline

An ordering operator to compare two vertices for sorting order.

This imposes an arbitrary ordering useful to identify unique vertices.

Definition at line 328 of file eggVertex.I.

References compare_to().

◆ transform()

void EggVertex::transform ( const LMatrix4d & mat )

Applies the indicated transformation matrix to the vertex.

Definition at line 672 of file eggVertex.cxx.

◆ uv_begin()

EggVertex::const_uv_iterator EggVertex::uv_begin ( ) const

inline

Returns an iterator that allows walking through the complete set of named UV's on the vertex.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 220 of file eggVertex.I.

Referenced by EggVertexPool::get_uv_names().

◆ uv_end()

EggVertex::const_uv_iterator EggVertex::uv_end ( ) const

inline

Returns an iterator that allows walking through the complete set of named UV's on the vertex.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 242 of file eggVertex.I.

Referenced by EggVertexPool::get_uv_names().

◆ uv_size()

EggVertex::uv_size_type EggVertex::uv_size ( ) const

inline

Returns the number of named UV's on the vertex.

Definition at line 261 of file eggVertex.I.

◆ write()

void EggVertex::write	(	std::ostream &	out,
		int	indent_level
	)		const

Writes the vertex to the indicated output stream in Egg format.

Definition at line 487 of file eggVertex.cxx.

References indent().

The documentation for this class was generated from the following files:

panda/src/egg/eggVertex.h
panda/src/egg/eggVertex.cxx
panda/src/egg/eggVertex.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ EggVertex()

Member Function Documentation

◆ aux_begin()

◆ aux_end()

◆ aux_size()

◆ clear_aux() [1/2]

◆ clear_aux() [2/2]

◆ clear_grefs()

◆ clear_uv() [1/2]

◆ clear_uv() [2/2]

◆ compare_to()

◆ copy_grefs_from()

◆ get_aux()

◆ get_aux_obj()

◆ get_external_index()

◆ get_external_index2()

◆ get_index()

◆ get_num_dimensions()

◆ get_num_global_coord()

◆ get_num_local_coord()

◆ get_pool()

◆ get_pos1()

◆ get_pos2()

◆ get_pos3()

◆ get_pos4()

◆ get_uv() [1/2]

◆ get_uv() [2/2]

◆ get_uv_obj()

◆ get_uvw()

◆ gref_begin()

◆ gref_end()

◆ gref_size()

◆ has_aux() [1/2]

◆ has_aux() [2/2]

◆ has_gref()

◆ has_pref()

◆ has_uv() [1/2]

◆ has_uv() [2/2]

◆ has_uvw()

◆ is_forward_reference()

◆ modify_aux_obj()

◆ modify_uv_obj()

◆ operator=()

◆ pref_begin()

◆ pref_end()

◆ pref_size()

◆ set_aux()

◆ set_aux_obj()

◆ set_external_index()

◆ set_external_index2()

◆ set_pos() [1/4]

◆ set_pos() [2/4]

◆ set_pos() [3/4]

◆ set_pos() [4/4]

◆ set_pos4()

◆ set_uv() [1/2]

◆ set_uv() [2/2]

◆ set_uv_obj()

◆ set_uvw()

◆ sorts_less_than()

◆ transform()

◆ uv_begin()

◆ uv_end()

◆ uv_size()

◆ write()
