The main glue of the egg hierarchy, this corresponds to the <Group>, <Instance>, and <Joint> type nodes. More...

#include "eggGroup.h"

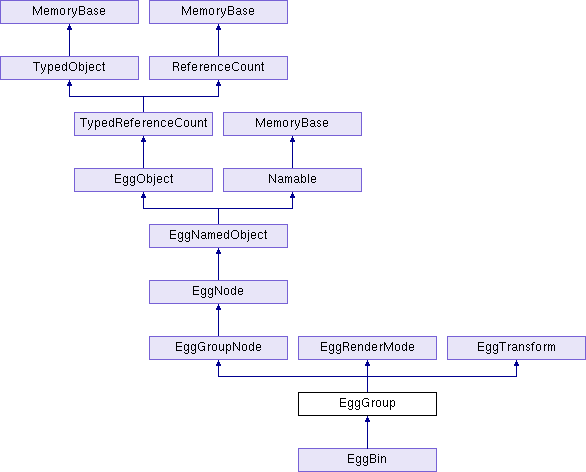

Inheritance diagram for EggGroup:

Public Types
enum	BillboardType { BT_none = 0x00000000, BT_axis = 0x00000020, BT_point_camera_relative = 0x00000040, BT_point_world_relative = 0x00000080 }

enum	BlendMode { BM_unspecified, BM_none, BM_add, BM_subtract, BM_inv_subtract, BM_min, BM_max }

enum	BlendOperand { BO_unspecified, BO_zero, BO_one, BO_incoming_color, BO_one_minus_incoming_color, BO_fbuffer_color, BO_one_minus_fbuffer_color, BO_incoming_alpha, BO_one_minus_incoming_alpha, BO_fbuffer_alpha, BO_one_minus_fbuffer_alpha, BO_constant_color, BO_one_minus_constant_color, BO_constant_alpha, BO_one_minus_constant_alpha, BO_incoming_color_saturate, BO_color_scale, BO_one_minus_color_scale, BO_alpha_scale, BO_one_minus_alpha_scale }

enum	CollideFlags { CF_none = 0x00000000, CF_descend = 0x00100000, CF_event = 0x00200000, CF_keep = 0x00400000, CF_solid = 0x00800000, CF_center = 0x01000000, CF_turnstile = 0x02000000, CF_level = 0x04000000, CF_intangible = 0x08000000 }

enum	CollisionSolidType { CST_none = 0x00000000, CST_plane = 0x00010000, CST_polygon = 0x00020000, CST_polyset = 0x00030000, CST_sphere = 0x00040000, CST_tube = 0x00050000, CST_inv_sphere = 0x00060000, CST_box = 0x00070000, CST_floor_mesh = 0x00080000 }

enum	DartType { DT_none = 0x00000000, DT_structured = 0x10000000, DT_sync = 0x20000000, DT_nosync = 0x30000000, DT_default = 0x40000000 }

enum	DCSType { DC_unspecified = 0x00000000, DC_none = 0x00000010, DC_local = 0x00000020, DC_net = 0x00000030, DC_no_touch = 0x00000040, DC_default = 0x00000050 }

enum	GroupType { GT_invalid = -1, GT_group = 0x00000000, GT_instance = 0x00000001, GT_joint = 0x00000002 }

typedef pmap< std::string, std::string >	TagData

typedef pmap< PT_EggVertex, double >	VertexRef

Public Types inherited from EggGroupNode
typedef Children::const_iterator	const_iterator

typedef Children::const_pointer	const_pointer

typedef Children::const_reference	const_reference

typedef Children::const_reverse_iterator	const_reverse_iterator

typedef Children::difference_type	difference_type

typedef Children::const_iterator	iterator

typedef Children::const_pointer	pointer

typedef Children::const_reference	reference

typedef Children::const_reverse_iterator	reverse_iterator

typedef Children::size_type	size_type

enum	TriangulateFlags { T_polygon = 0x001, T_convex = 0x002, T_composite = 0x004, T_recurse = 0x008, T_flat_shaded = 0x010 }

Public Types inherited from EggRenderMode
enum	AlphaMode { AM_unspecified, AM_off, AM_on, AM_blend, AM_blend_no_occlude, AM_ms, AM_ms_mask, AM_binary, AM_dual, AM_premultiplied }

enum	DepthTestMode { DTM_unspecified, DTM_off, DTM_on }

enum	DepthWriteMode { DWM_unspecified, DWM_off, DWM_on }

enum	VisibilityMode { VM_unspecified, VM_hidden, VM_normal }

Public Types inherited from EggTransform
enum	ComponentType { CT_invalid, CT_translate2d, CT_translate3d, CT_rotate2d, CT_rotx, CT_roty, CT_rotz, CT_rotate3d, CT_scale2d, CT_scale3d, CT_uniform_scale, CT_matrix3, CT_matrix4 }

Public Member Functions
	EggGroup (const std::string &name="")

	EggGroup (const EggGroup &copy)

void	add_group_ref (EggGroup *group)
	Adds a new <Ref> entry to the group. More...

void	add_object_type (const std::string &object_type)

virtual EggTransform *	as_transform ()
	Returns this object cross-cast to an EggTransform pointer, if it inherits from EggTransform, or NULL if it does not. More...

void	clear_billboard_center ()

void	clear_blend_color ()

void	clear_collide_mask ()

void	clear_collision_name ()

void	clear_default_pose ()
	Removes the initial pose transform. More...

void	clear_from_collide_mask ()

void	clear_group_refs ()
	Removes all of the <Ref> entries within this group. More...

void	clear_indexed_flag ()

void	clear_into_collide_mask ()

void	clear_lod ()

void	clear_object_types ()

void	clear_tag (const std::string &key)
	Removes the value defined for this key on this particular node. More...

virtual EggRenderMode *	determine_alpha_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has an alpha_mode other than AM_unspecified. More...

virtual EggRenderMode *	determine_bin ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a bin specified. More...

virtual bool	determine_decal ()
	Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "decal" flag set. More...

virtual EggRenderMode *	determine_depth_offset ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a depth_offset specified. More...

virtual EggRenderMode *	determine_depth_test_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a depth_test_mode other than DTM_unspecified. More...

virtual EggRenderMode *	determine_depth_write_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a depth_write_mode other than DWM_unspecified. More...

virtual EggRenderMode *	determine_draw_order ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a draw_order specified. More...

virtual bool	determine_indexed ()
	Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "indexed" scalar set. More...

virtual EggRenderMode *	determine_visibility_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a visibility_mode other than VM_unspecified. More...

virtual TypeHandle	force_init_type ()

const LPoint3d &	get_billboard_center () const

BillboardType	get_billboard_type () const

const LColor &	get_blend_color () const

BlendMode	get_blend_mode () const

BlendOperand	get_blend_operand_a () const

BlendOperand	get_blend_operand_b () const

CollideFlags	get_collide_flags () const

CollideMask	get_collide_mask () const

const std::string &	get_collision_name () const

CollisionSolidType	get_cs_type () const

DartType	get_dart_type () const

DCSType	get_dcs_type () const

bool	get_decal_flag () const

const EggTransform &	get_default_pose () const

bool	get_direct_flag () const

CollideMask	get_from_collide_mask () const

EggGroup *	get_group_ref (int n) const

GroupType	get_group_type () const

bool	get_indexed_flag () const

CollideMask	get_into_collide_mask () const

const EggSwitchCondition &	get_lod () const

bool	get_model_flag () const

bool	get_nofog_flag () const

int	get_num_group_refs () const

int	get_num_object_types () const

std::string	get_object_type (int index) const

bool	get_occluder_flag () const

bool	get_polylight_flag () const

bool	get_portal_flag () const

double	get_scroll_r () const

double	get_scroll_u () const

double	get_scroll_v () const

double	get_scroll_w () const

bool	get_switch_flag () const

double	get_switch_fps () const

std::string	get_tag (const std::string &key) const
	Retrieves the user-defined value that was previously set on this node for the particular key, if any. More...

bool	get_texlist_flag () const

virtual TypeHandle	get_type () const

double	get_vertex_membership (const EggVertex *vert) const
	Returns the amount of membership of the indicated vertex in this group. More...

bool	has_billboard_center () const

bool	has_blend_color () const

bool	has_collide_mask () const

bool	has_collision_name () const

bool	has_dcs_type () const
	Returns true if the specified DCS type is not DC_none and not DC_unspecified. More...

bool	has_from_collide_mask () const

bool	has_indexed_flag () const

bool	has_into_collide_mask () const

bool	has_lod () const

bool	has_object_type (const std::string &object_type) const
	Returns true if the indicated object type has been added to the group, or false otherwise. More...

bool	has_scrolling_uvs ()

bool	has_tag (const std::string &key) const
	Returns true if a value has been defined on this node for the particular key (even if that value is the empty string), or false if no value has been set. More...

bool	is_instance_type () const
	Returns true if this group is an instance type node; i.e. More...

virtual bool	is_joint () const
	Returns true if this particular node represents a <Joint> entry or not. More...

EggTransform &	modify_default_pose ()
	Returns a writable accessor to the initial pose transform. More...

EggGroup &	operator= (const EggGroup &copy)

void	ref_vertex (EggVertex *vert, double membership=1.0)
	Adds the vertex to the set of those referenced by the group, at the indicated membership level. More...

void	remove_group_ref (int n)
	Removes the nth <Ref> entry within this group. More...

bool	remove_object_type (const std::string &object_type)
	Removes the first instance of the indicated object type from the group if it is present. More...

void	set_billboard_center (const LPoint3d &billboard_center)

void	set_billboard_type (BillboardType type)

void	set_blend_color (const LColor &blend_color)

void	set_blend_mode (BlendMode blend_mode)

void	set_blend_operand_a (BlendOperand blend_operand_a)

void	set_blend_operand_b (BlendOperand blend_operand_b)

void	set_collide_flags (int flags)

void	set_collide_mask (CollideMask mask)

void	set_collision_name (const std::string &collision_name)

void	set_cs_type (CollisionSolidType type)

void	set_dart_type (DartType type)

void	set_dcs_type (DCSType type)

void	set_decal_flag (bool flag)

void	set_default_pose (const EggTransform &transform)

void	set_direct_flag (bool flag)

void	set_from_collide_mask (CollideMask mask)

void	set_group_type (GroupType type)

void	set_indexed_flag (bool flag)

void	set_into_collide_mask (CollideMask mask)

void	set_lod (const EggSwitchCondition &lod)

void	set_model_flag (bool flag)

void	set_nofog_flag (bool flag)

void	set_occluder_flag (bool flag)

void	set_polylight_flag (bool flag)

void	set_portal_flag (bool flag)

void	set_scroll_r (const double r_speed)

void	set_scroll_u (const double u_speed)

void	set_scroll_v (const double v_speed)

void	set_scroll_w (const double w_speed)

void	set_switch_flag (bool flag)

void	set_switch_fps (double fps)

void	set_tag (const std::string &key, const std::string &value)
	Associates a user-defined value with a user-defined key which is stored on the node. More...

void	set_texlist_flag (bool flag)

void	set_vertex_membership (EggVertex *vert, double membership)
	Explicitly sets the net membership of the indicated vertex in this group to the given value. More...

void	steal_vrefs (EggGroup *other)
	Moves all of the vertex references from the indicated other group into this one. More...

TagData::const_iterator	tag_begin () const
	Returns an iterator that can, in conjunction with tag_end(), be used to traverse the entire set of tag keys. More...

TagData::const_iterator	tag_end () const
	Returns an iterator that can, in conjunction with tag_begin(), be used to traverse the entire set of tag keys. More...

TagData::size_type	tag_size () const
	Returns the number of elements between tag_begin() and tag_end(). More...

void	test_vref_integrity () const

void	unref_all_vertices ()
	Removes all vertices from the reference list. More...

void	unref_vertex (EggVertex *vert)
	Removes the vertex from the set of those referenced by the group. More...

VertexRef::const_iterator	vref_begin () const
	Returns an iterator that can, in conjunction with vref_end(), be used to traverse the entire set of referenced vertices. More...

VertexRef::const_iterator	vref_end () const
	Returns an iterator that can, in conjunction with vref_begin(), be used to traverse the entire set of referenced vertices. More...

VertexRef::size_type	vref_size () const
	Returns the number of elements between vref_begin() and vref_end(). More...

virtual void	write (std::ostream &out, int indent_level) const
	Writes the group and all of its children to the indicated output stream in Egg format. More...

void	write_billboard_flags (std::ostream &out, int indent_level) const
	Writes just the <Billboard> entry and related fields to the indicated ostream. More...

void	write_collide_flags (std::ostream &out, int indent_level) const
	Writes just the <Collide> entry and related fields to the indicated ostream. More...

void	write_decal_flags (std::ostream &out, int indent_level) const
	Writes the flags related to decaling, if any. More...

void	write_model_flags (std::ostream &out, int indent_level) const
	Writes the <Model> flag and related flags to the indicated ostream. More...

void	write_object_types (std::ostream &out, int indent_level) const
	Writes just the <ObjectTypes> entries, if any, to the indicated ostream. More...

void	write_render_mode (std::ostream &out, int indent_level) const
	Writes the flags inherited from EggRenderMode and similar flags that control obscure render effects. More...

void	write_switch_flags (std::ostream &out, int indent_level) const
	Writes the <Switch> flag and related flags to the indicated ostream. More...

void	write_tags (std::ostream &out, int indent_level) const
	Writes just the <Tag> entries, if any, to the indicated ostream. More...

Public Member Functions inherited from EggGroupNode
	EggGroupNode (const std::string &name="")

	EggGroupNode (const EggGroupNode &copy)

EggNode *	add_child (EggNode *node)
	Adds the indicated child to the group and returns it. More...

void	apply_first_attribute (bool recurse)
	Sets the first vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded. More...

void	apply_last_attribute (bool recurse)
	Sets the last vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded. More...

iterator	begin () const

void	clear ()

void	clear_connected_shading ()
	Resets the connected_shading information on all primitives at this node and below, so that it may be accurately rederived by the next call to get_connected_shading(). More...

bool	empty () const

iterator	end () const

iterator	erase (iterator position)

iterator	erase (iterator first, iterator last)

EggNode *	find_child (const std::string &name) const
	Returns the child of this node whose name is the indicated string, or NULL if there is no child of this node by that name. More...

void	force_filenames (const Filename &directory)
	Similar to resolve_filenames, but each non-absolute filename encountered is arbitrarily taken to be in the indicated directory, whether or not the so- named filename exists. More...

void	get_connected_shading ()
	Queries the connected_shading information on all primitives at this node and below, to ensure that it has been completely filled in before we start mucking around with vertices. More...

EggNode *	get_first_child ()
	Returns the first child in the group's list of children, or NULL if the list of children is empty. More...

EggNode *	get_next_child ()
	Returns the next child in the group's list of children since the last call to get_first_child() or get_next_child(), or NULL if the last child has been returned. More...

bool	has_absolute_pathnames () const
	Returns true if any nodes at this level and below include a reference to a file via an absolute pathname, or false if all references are relative. More...

virtual bool	has_normals () const
	Returns true if any of the primitives (e.g. More...

virtual bool	has_primitives () const
	Returns true if there are any primitives (e.g. More...

iterator	insert (iterator position, PT(EggNode) x)

virtual bool	joint_has_primitives () const
	Returns true if there are any primitives (e.g. More...

void	make_point_primitives ()
	Creates PointLight primitives to reference any otherwise unreferences vertices discovered in this group or below. More...

void	mesh_triangles (int flags)
	Combine triangles together into triangle strips, at this group and below. More...

EggGroupNode &	operator= (const EggGroupNode &copy)

void	post_apply_flat_attribute (bool recurse)
	Intended as a followup to apply_last_attribute(), this also sets an attribute on the first vertices of the primitive, if they don't already have an attribute set, just so they end up with something. More...

	PT (EggNode) remove_child(EggNode *node)

reverse_iterator	rbegin () const

void	rebuild_vertex_pools (EggVertexPools &vertex_pools, unsigned int max_vertices, bool recurse)
	Copies vertices used by the primitives at this group node (and below, if recurse is true) into one or more new vertex pools, and updates the primitives to reference these pools. More...

void	recompute_polygon_normals (CoordinateSystem cs=CS_default)
	Recomputes all the polygon normals for polygon geometry at this group node and below so that they accurately reflect the vertex positions. More...

bool	recompute_tangent_binormal (const GlobPattern &uv_name)
	This function recomputes the tangent and binormal for the named texture coordinate set for all vertices at this level and below. More...

bool	recompute_tangent_binormal (const vector_string &names)
	This function recomputes the tangent and binormal for the named texture coordinate sets. More...

bool	recompute_tangent_binormal_auto ()
	This function recomputes the tangent and binormal for any texture coordinate set that affects a normal map. More...

void	recompute_vertex_normals (double threshold, CoordinateSystem cs=CS_default)
	Recomputes all the vertex normals for polygon geometry at this group node and below so that they accurately reflect the vertex positions. More...

int	remove_invalid_primitives (bool recurse)
	Removes primitives at this level and below which appear to be degenerate; e.g. More...

int	remove_unused_vertices (bool recurse)
	Removes all vertices from VertexPools within this group or below that are not referenced by at least one primitive. More...

int	rename_nodes (vector_string strip_prefix, bool recurse)
	Rename by stripping out the prefix. More...

reverse_iterator	rend () const

void	replace (iterator position, PT(EggNode) x)
	Replaces the node at the indicated position with the indicated node. More...

void	resolve_filenames (const DSearchPath &searchpath)
	Walks the tree and attempts to resolve any filenames encountered. More...

void	reverse_vertex_ordering ()
	Reverses the vertex ordering of all polygons defined at this node and below. More...

size_type	size () const

void	steal_children (EggGroupNode &other)
	Moves all the children from the other node to this one. More...

void	strip_normals ()
	Removes all normals from primitives, and the vertices they reference, at this node and below. More...

int	triangulate_polygons (int flags)
	Replace all higher-order polygons at this point in the scene graph and below with triangles. More...

void	unify_attributes (bool use_connected_shading, bool allow_per_primitive, bool recurse)
	Applies per-vertex normal and color to all vertices, if they are in fact per-vertex (and different for each vertex), or moves them to the primitive if they are all the same. More...

Public Member Functions inherited from EggNode
	EggNode (const std::string &name="")

	EggNode (const EggNode &copy)

void	apply_texmats ()
	Applies the texture matrices to the UV's of the vertices that reference them, and then removes the texture matrices from the textures themselves. More...

void	flatten_transforms ()
	Removes any transform and instance records from this node in the scene graph and below. More...

int	get_depth () const

const LMatrix4d &	get_node_frame () const
	Returns the coordinate frame of the node itself. More...

const LMatrix4d &	get_node_frame_inv () const
	Returns the inverse of the matrix returned by get_node_frame(). More...

const LMatrix4d *	get_node_frame_inv_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_frame_inv() matrix. More...

const LMatrix4d *	get_node_frame_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_frame() matrix. More...

const LMatrix4d &	get_node_to_vertex () const
	Returns the transformation matrix suitable for converting vertices in the coordinate space of the node to the appropriate coordinate space for storing in the egg file. More...

const LMatrix4d *	get_node_to_vertex_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_to_vertex() matrix. More...

EggGroupNode *	get_parent () const

const LMatrix4d &	get_vertex_frame () const
	Returns the coordinate frame of the vertices referenced by primitives at or under this node. More...

const LMatrix4d &	get_vertex_frame_inv () const
	Returns the inverse of the matrix returned by get_vertex_frame(). More...

const LMatrix4d *	get_vertex_frame_inv_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_frame_inv() matrix. More...

const LMatrix4d *	get_vertex_frame_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_frame() matrix. More...

const LMatrix4d &	get_vertex_to_node () const
	Returns the transformation matrix suitable for converting the vertices as read from the egg file into the coordinate space of the node. More...

const LMatrix4d *	get_vertex_to_node_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_to_node() matrix. More...

virtual bool	is_anim_matrix () const
	Returns true if this node represents a table of animation transformation data, false otherwise. More...

bool	is_local_coord () const
	Returns true if this node's vertices are not in the global coordinate space. More...

bool	is_under_instance () const
	Returns true if there is an <Instance> node somewhere in the egg tree at or above this node, false otherwise. More...

bool	is_under_transform () const
	Returns true if there is a <Transform> entry somewhere in the egg tree at or above this node, false otherwise. More...

EggNode &	operator= (const EggNode &copy)

bool	parse_egg (const std::string &egg_syntax)
	Parses the egg syntax given in the indicate string as if it had been read from the egg file within this object's definition. More...

int	rename_node (vector_string strip_prefix)
	Rename by stripping out the prefix. More...

void	test_under_integrity () const

void	transform (const LMatrix4d &mat)
	Applies the indicated transformation to the node and all of its descendants. More...

void	transform_vertices_only (const LMatrix4d &mat)
	Applies the indicated transformation only to vertices that appear in global space within vertex pools at this node and below. More...

Public Member Functions inherited from EggNamedObject
	EggNamedObject (const std::string &name="")

	EggNamedObject (const EggNamedObject &copy)

EggNamedObject &	operator= (const EggNamedObject &copy)

void	output (std::ostream &out) const

void	write_header (std::ostream &out, int indent_level, const char *egg_keyword) const
	Writes the first line of the egg object, e.g. More...

Public Member Functions inherited from EggObject
	EggObject (const EggObject &copy)

void	clear_user_data ()
	Removes all user data pointers from the node. More...

void	clear_user_data (TypeHandle type)
	Removes the user data pointer of the indicated type. More...

EggUserData *	get_user_data () const
	Returns the user data pointer most recently stored on this object, or NULL if nothing was previously stored. More...

EggUserData *	get_user_data (TypeHandle type) const
	Returns the user data pointer of the indicated type, if it exists, or NULL if it does not. More...

bool	has_user_data () const
	Returns true if a generic user data pointer has recently been set and not yet cleared, false otherwise. More...

bool	has_user_data (TypeHandle type) const
	Returns true if the user data pointer of the indicated type has been set, false otherwise. More...

EggObject &	operator= (const EggObject &copy)

void	set_user_data (EggUserData *user_data)
	Sets the user data associated with this object. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Public Member Functions inherited from EggRenderMode
	EggRenderMode (const EggRenderMode &copy)

void	clear_bin ()
	Removes the bin name that was set for this particular object. More...

void	clear_depth_offset ()
	Removes the depth-offset flag from this particular object. More...

void	clear_draw_order ()
	Removes the draw-order flag from this particular object. More...

AlphaMode	get_alpha_mode () const
	Returns the alpha mode that was set, or AM_unspecified if nothing was set. More...

std::string	get_bin () const
	Returns the bin name that has been set for this particular object, if any. More...

int	get_depth_offset () const
	Returns the "depth-offset" flag as set for this particular object. More...

DepthTestMode	get_depth_test_mode () const
	Returns the depth_test mode that was set, or DTM_unspecified if nothing was set. More...

DepthWriteMode	get_depth_write_mode () const
	Returns the depth_write mode that was set, or DWM_unspecified if nothing was set. More...

int	get_draw_order () const
	Returns the "draw-order" flag as set for this particular object. More...

VisibilityMode	get_visibility_mode () const
	Returns the visibility mode that was set, or VM_unspecified if nothing was set. More...

bool	has_bin () const
	Returns true if a bin name has been set for this particular object. More...

bool	has_depth_offset () const
	Returns true if the depth-offset flag has been set for this particular object. More...

bool	has_draw_order () const
	Returns true if the draw-order flag has been set for this particular object. More...

bool	operator != (const EggRenderMode &other) const

bool	operator< (const EggRenderMode &other) const

EggRenderMode &	operator= (const EggRenderMode &copy)

bool	operator== (const EggRenderMode &other) const

void	set_alpha_mode (AlphaMode mode)
	Specifies precisely how the transparency for this geometry should be achieved, or if it should be used. More...

void	set_bin (const std::string &bin)
	Sets the "bin" string for this particular object. More...

void	set_depth_offset (int bias)
	Sets the "depth-offset" flag associated with this object. More...

void	set_depth_test_mode (DepthTestMode mode)
	Specifies whether this geometry should be tested against the depth buffer when it is drawn (assuming the rendering backend provides a depth buffer). More...

void	set_depth_write_mode (DepthWriteMode mode)
	Specifies whether writes should be made to the depth buffer (assuming the rendering backend provides a depth buffer) when rendering this geometry. More...

void	set_draw_order (int order)
	Sets the "draw-order" flag associated with this object. More...

void	set_visibility_mode (VisibilityMode mode)
	Specifies whether this geometry is to be considered normally visible, or hidden. More...

void	write (std::ostream &out, int indent_level) const
	Writes the attributes to the indicated output stream in Egg format. More...

Public Member Functions inherited from EggTransform
	EggTransform (const EggTransform &copy)

void	add_matrix3 (const LMatrix3d &mat)
	Appends an arbitrary 3x3 matrix to the current transform. More...

void	add_matrix4 (const LMatrix4d &mat)
	Appends an arbitrary 4x4 matrix to the current transform. More...

void	add_rotate2d (double angle)
	Appends a 2-d rotation to the current transform. More...

void	add_rotate3d (double angle, const LVector3d &axis)
	Appends a 3-d rotation about an arbitrary axis to the current transform. More...

void	add_rotate3d (const LQuaterniond &quat)
	Appends an arbitrary 3-d rotation to the current transform, expressed as a quaternion. More...

void	add_rotx (double angle)
	Appends a rotation about the X axis to the current transform. More...

void	add_roty (double angle)
	Appends a rotation about the Y axis to the current transform. More...

void	add_rotz (double angle)
	Appends a rotation about the Z axis to the current transform. More...

void	add_scale2d (const LVecBase2d &scale)
	Appends a possibly non-uniform scale to the current transform. More...

void	add_scale3d (const LVecBase3d &scale)
	Appends a possibly non-uniform scale to the current transform. More...

void	add_translate2d (const LVector2d &translate)
	Appends a 2-d translation operation to the current transform. More...

void	add_translate3d (const LVector3d &translate)
	Appends a 3-d translation operation to the current transform. More...

void	add_uniform_scale (double scale)
	Appends a uniform scale to the current transform. More...

void	clear_transform ()
	Resets the transform to empty, identity. More...

const LMatrix3d &	get_component_mat3 (int n) const
	Returns the 3x3 matrix associated with the nth component. More...

const LMatrix4d &	get_component_mat4 (int n) const
	Returns the 4x4 matrix associated with the nth component. More...

double	get_component_number (int n) const
	Returns the solitary number associated with the nth component. More...

ComponentType	get_component_type (int n) const
	Returns the type of the nth component. More...

const LVecBase2d &	get_component_vec2 (int n) const
	Returns the 2-component vector associated with the nth component. More...

const LVecBase3d &	get_component_vec3 (int n) const
	Returns the 3-component vector associated with the nth component. More...

int	get_num_components () const
	Returns the number of components that make up the transform. More...

LMatrix3d	get_transform2d () const
	Returns the overall transform as a 3x3 matrix. More...

const LMatrix4d &	get_transform3d () const
	Returns the overall transform as a 4x4 matrix. More...

bool	has_transform () const
	Returns true if the transform is nonempty, false if it is empty (no transform components have been added). More...

bool	has_transform2d () const
	Returns true if the transform is specified as a 2-d transform, e.g. More...

bool	has_transform3d () const
	Returns true if the transform is specified as a 3-d transform, e.g. More...

EggTransform &	operator= (const EggTransform &copy)

void	set_transform2d (const LMatrix3d &mat)
	Sets the overall transform as a 3x3 matrix. More...

void	set_transform3d (const LMatrix4d &mat)
	Sets the overall transform as a 4x4 matrix. More...

bool	transform_is_identity () const
	Returns true if the described transform is identity, false otherwise. More...

void	write (std::ostream &out, int indent_level, const std::string &label) const
	Writes the transform to the indicated stream in Egg format. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

static BillboardType	string_billboard_type (const std::string &strval)
	Returns the BillboardType value associated with the given string representation, or BT_none if the string does not match any known BillboardType value. More...

static BlendMode	string_blend_mode (const std::string &strval)
	Returns the BlendMode value associated with the given string representation, or BM_none if the string does not match any known BlendMode. More...

static BlendOperand	string_blend_operand (const std::string &strval)
	Returns the BlendOperand value associated with the given string representation, or BO_none if the string does not match any known BlendOperand. More...

static CollideFlags	string_collide_flags (const std::string &strval)
	Returns the CollideFlags value associated with the given string representation, or CF_none if the string does not match any known CollideFlags value. More...

static CollisionSolidType	string_cs_type (const std::string &strval)
	Returns the CollisionSolidType value associated with the given string representation, or CST_none if the string does not match any known CollisionSolidType value. More...

static DartType	string_dart_type (const std::string &strval)
	Returns the DartType value associated with the given string representation, or DT_none if the string does not match any known DartType value. More...

static DCSType	string_dcs_type (const std::string &strval)
	Returns the DCSType value associated with the given string representation, or DC_unspecified if the string does not match any known DCSType value. More...

static GroupType	string_group_type (const std::string &strval)
	Returns the GroupType value associated with the given string representation, or GT_invalid if the string does not match any known GroupType value. More...

Static Public Member Functions inherited from EggGroupNode
static TypeHandle	get_class_type ()

static void	init_type ()

static bool	is_right (const LVector2d &v1, const LVector2d &v2)
	Returns true if the 2-d v1 is to the right of v2. More...

Static Public Member Functions inherited from EggNode
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggNamedObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggRenderMode
static TypeHandle	get_class_type ()

static void	init_type ()

static AlphaMode	string_alpha_mode (const std::string &string)
	Returns the AlphaMode value associated with the given string representation, or AM_unspecified if the string does not match any known AlphaMode value. More...

static DepthTestMode	string_depth_test_mode (const std::string &string)
	Returns the DepthTestMode value associated with the given string representation, or DTM_unspecified if the string does not match any known DepthTestMode value. More...

static DepthWriteMode	string_depth_write_mode (const std::string &string)
	Returns the DepthWriteMode value associated with the given string representation, or DWM_unspecified if the string does not match any known DepthWriteMode value. More...

static VisibilityMode	string_visibility_mode (const std::string &string)
	Returns the HiddenMode value associated with the given string representation, or VM_unspecified if the string does not match any known HiddenMode value. More...

Public Attributes
	clear_billboard_center

	clear_blend_color
	Removes the blend color specification. More...

	clear_collide_mask

	clear_from_collide_mask

	clear_indexed_flag

	clear_into_collide_mask

	clear_lod

	get_billboard_center

	get_billboard_type

	get_blend_color
	Returns the blend color if one has been specified, or (0, 0, 0, 0) if one has not. More...

	get_blend_mode

	get_blend_operand_a

	get_blend_operand_b

	get_collide_flags

	get_collide_mask

	get_collision_name

	get_cs_type

	get_dart_type

	get_dcs_type

	get_decal_flag

	get_default_pose
	Returns a read-only accessor to the initial pose transform. More...

	get_direct_flag

	get_from_collide_mask

	get_group_ref
	Returns the nth <Ref> entry within this group. More...

	get_group_type

	get_indexed_flag

	get_into_collide_mask

	get_lod

	get_model_flag

	get_nofog_flag

	get_num_group_refs
	Returns the number of <Ref> entries within this group. More...

	get_num_object_types

	get_object_type

	get_occluder_flag

	get_portal_flag

	get_scroll_r

	get_scroll_u

	get_scroll_v

	get_scroll_w

	get_switch_flag

	get_switch_fps

	get_texlist_flag

	has_billboard_center

	has_blend_color
	Returns true if the blend color has been specified, false otherwise. More...

	has_collide_mask

	has_from_collide_mask

	has_indexed_flag

	has_into_collide_mask

	has_lod

	set_billboard_center
	Sets the point around which the billboard will rotate, if this node contains a billboard specification. More...

	set_billboard_type

	set_blend_color

	set_blend_mode

	set_blend_operand_a

	set_blend_operand_b

	set_collide_flags

	set_collide_mask

	set_collision_name

	set_cs_type

	set_dart_type

	set_dcs_type

	set_decal_flag

	set_default_pose
	Replaces the initial pose transform. More...

	set_direct_flag

	set_from_collide_mask

	set_group_type

	set_indexed_flag
	If this flag is true, geometry at this node and below will be generated as indexed geometry. More...

	set_into_collide_mask

	set_lod

	set_model_flag

	set_nofog_flag

	set_occluder_flag

	set_portal_flag

	set_scroll_r

	set_scroll_u

	set_scroll_v

	set_scroll_w

	set_switch_flag

	set_switch_fps

	set_texlist_flag

Public Attributes inherited from EggGroupNode
	get_children

Public Attributes inherited from EggNode
	get_depth
	Returns the number of nodes above this node in the egg hierarchy. More...

	get_parent

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Detailed Description

The main glue of the egg hierarchy, this corresponds to the <Group>, <Instance>, and <Joint> type nodes.

Definition at line 34 of file eggGroup.h.

Member Function Documentation

◆ add_group_ref()

void EggGroup::add_group_ref ( EggGroup * group )

Adds a new <Ref> entry to the group.

This declares an internal reference to another node, and is used to implement scene-graph instancing; it is only valid if the group_type is GT_instance.

Definition at line 760 of file eggGroup.cxx.

◆ as_transform()

EggTransform * EggGroup::as_transform ( )

virtual

Returns this object cross-cast to an EggTransform pointer, if it inherits from EggTransform, or NULL if it does not.

Reimplemented from EggObject.

Definition at line 1019 of file eggGroup.cxx.

◆ clear_default_pose()

void EggGroup::clear_default_pose ( )

inline

Removes the initial pose transform.

See set_default_pose().

Definition at line 799 of file eggGroup.I.

References EggTransform::clear_transform().

◆ clear_group_refs()

void EggGroup::clear_group_refs ( )

Removes all of the <Ref> entries within this group.

See add_group_ref().

Definition at line 796 of file eggGroup.cxx.

◆ clear_tag()

void EggGroup::clear_tag ( const std::string & key )

inline

Removes the value defined for this key on this particular node.

After a call to clear_tag(), has_tag() will return false for the indicated key.

Definition at line 756 of file eggGroup.I.

◆ determine_alpha_mode()

EggRenderMode * EggGroup::determine_alpha_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has an alpha_mode other than AM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 479 of file eggGroup.cxx.

References EggNode::determine_alpha_mode(), and EggRenderMode::get_alpha_mode().

◆ determine_bin()

EggRenderMode * EggGroup::determine_bin ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a bin specified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 563 of file eggGroup.cxx.

References EggNode::determine_bin(), and EggRenderMode::has_bin().

◆ determine_decal()

bool EggGroup::determine_decal ( )

virtual

Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "decal" flag set.

Returns the value of the decal flag if it is found, or false if it is not.

In other words, returns true if the "decal" flag is in effect for the indicated node, false otherwise.

Reimplemented from EggNode.

Definition at line 595 of file eggGroup.cxx.

References EggNode::determine_decal().

◆ determine_depth_offset()

EggRenderMode * EggGroup::determine_depth_offset ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a depth_offset specified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 535 of file eggGroup.cxx.

References EggNode::determine_depth_offset(), and EggRenderMode::has_depth_offset().

◆ determine_depth_test_mode()

EggRenderMode * EggGroup::determine_depth_test_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a depth_test_mode other than DTM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 507 of file eggGroup.cxx.

References EggNode::determine_depth_test_mode(), and EggRenderMode::get_depth_test_mode().

◆ determine_depth_write_mode()

EggRenderMode * EggGroup::determine_depth_write_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a depth_write_mode other than DWM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 493 of file eggGroup.cxx.

References EggNode::determine_depth_write_mode(), and EggRenderMode::get_depth_write_mode().

◆ determine_draw_order()

EggRenderMode * EggGroup::determine_draw_order ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a draw_order specified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 549 of file eggGroup.cxx.

References EggNode::determine_draw_order(), and EggRenderMode::has_draw_order().

◆ determine_indexed()

bool EggGroup::determine_indexed ( )

virtual

Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "indexed" scalar set.

Returns the value of the indexed scalar if it is found, or false if it is not.

In other words, returns true if the "indexed" flag is in effect for the indicated node, false otherwise.

Reimplemented from EggNode.

Definition at line 579 of file eggGroup.cxx.

References EggNode::determine_indexed().

◆ determine_visibility_mode()

EggRenderMode * EggGroup::determine_visibility_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this group that has a visibility_mode other than VM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 521 of file eggGroup.cxx.

References EggNode::determine_visibility_mode(), and EggRenderMode::get_visibility_mode().

◆ get_tag()

std::string EggGroup::get_tag ( const std::string & key ) const

inline

Retrieves the user-defined value that was previously set on this node for the particular key, if any.

If no value has been previously set, returns the empty string.

Definition at line 730 of file eggGroup.I.

◆ get_vertex_membership()

double EggGroup::get_vertex_membership ( const EggVertex * vert ) const

Returns the amount of membership of the indicated vertex in this group.

If the vertex is not reffed by the group, returns 0.

Definition at line 677 of file eggGroup.cxx.

Referenced by split_vertex().

◆ has_dcs_type()

bool EggGroup::has_dcs_type ( ) const

inline

Returns true if the specified DCS type is not DC_none and not DC_unspecified.

Definition at line 199 of file eggGroup.I.

◆ has_object_type()

bool EggGroup::has_object_type ( const std::string & object_type ) const

Returns true if the indicated object type has been added to the group, or false otherwise.

Definition at line 145 of file eggGroup.cxx.

Referenced by MayaNodeDesc::has_object_type().

◆ has_tag()

bool EggGroup::has_tag ( const std::string & key ) const

inline

Returns true if a value has been defined on this node for the particular key (even if that value is the empty string), or false if no value has been set.

Definition at line 745 of file eggGroup.I.

◆ is_instance_type()

bool EggGroup::is_instance_type ( ) const

inline

Returns true if this group is an instance type node; i.e.

it begins the root of a local coordinate space. This is not related to instancing (multiple copies of a node in a scene graph).

This also includes the case of the node including a billboard flag without an explicit center, which implicitly makes the node behave like an instance.

Definition at line 32 of file eggGroup.I.

◆ is_joint()

bool EggGroup::is_joint ( ) const

virtual

Returns true if this particular node represents a <Joint> entry or not.

This is a handy thing to know since Joints are sorted to the end of their sibling list when writing an egg file. See EggGroupNode::write().

Reimplemented from EggNode.

Definition at line 468 of file eggGroup.cxx.

◆ modify_default_pose()

EggTransform & EggGroup::modify_default_pose ( )

inline

Returns a writable accessor to the initial pose transform.

This is the <DefaultPose> entry for a Joint, and defines only the initial transform pose for the unanimated joint; it has nothing to do with the group's <Transform> entry, which defines the (eventual) space of the group's vertices.

Definition at line 780 of file eggGroup.I.

◆ ref_vertex()

void EggGroup::ref_vertex	(	EggVertex *	vert,
		double	membership = `1.0`
	)

Adds the vertex to the set of those referenced by the group, at the indicated membership level.

If the vertex is already being referenced, increases the membership amount by the indicated amount.

Definition at line 608 of file eggGroup.cxx.

References unref_vertex().

Referenced by DaeCharacter::influence_vertex(), and split_vertex().

◆ remove_group_ref()

void EggGroup::remove_group_ref ( int n )

Removes the nth <Ref> entry within this group.

See add_group_ref().

Definition at line 787 of file eggGroup.cxx.

◆ remove_object_type()

bool EggGroup::remove_object_type ( const std::string & object_type )

Removes the first instance of the indicated object type from the group if it is present.

Returns true if the object type was found and removed, false otherwise.

Definition at line 161 of file eggGroup.cxx.

◆ set_tag()

void EggGroup::set_tag	(	const std::string &	key,
		const std::string &	value
	)

inline

Associates a user-defined value with a user-defined key which is stored on the node.

This value has no meaning to Panda; but it is stored indefinitely on the node until it is requested again. This value will be copied to the PandaNode that is created for this particular EggGroup if the egg file is loaded as a scene.

Each unique key stores a different string value. There is no effective limit on the number of different keys that may be stored or on the length of any one key's value.

Definition at line 720 of file eggGroup.I.

◆ set_vertex_membership()

void EggGroup::set_vertex_membership	(	EggVertex *	vert,
		double	membership
	)

Explicitly sets the net membership of the indicated vertex in this group to the given value.

Definition at line 692 of file eggGroup.cxx.

References unref_vertex().

◆ steal_vrefs()

void EggGroup::steal_vrefs ( EggGroup * other )

Moves all of the vertex references from the indicated other group into this one.

If a given vertex was previously shared by both groups, the relative memberships will be summed.

Definition at line 721 of file eggGroup.cxx.

◆ string_billboard_type()

EggGroup::BillboardType EggGroup::string_billboard_type ( const std::string & strval )

static

Returns the BillboardType value associated with the given string representation, or BT_none if the string does not match any known BillboardType value.

Definition at line 866 of file eggGroup.cxx.

◆ string_blend_mode()

EggGroup::BlendMode EggGroup::string_blend_mode ( const std::string & strval )

static

Returns the BlendMode value associated with the given string representation, or BM_none if the string does not match any known BlendMode.

Definition at line 946 of file eggGroup.cxx.

◆ string_blend_operand()

EggGroup::BlendOperand EggGroup::string_blend_operand ( const std::string & strval )

static

Returns the BlendOperand value associated with the given string representation, or BO_none if the string does not match any known BlendOperand.

Definition at line 970 of file eggGroup.cxx.

◆ string_collide_flags()

EggGroup::CollideFlags EggGroup::string_collide_flags ( const std::string & strval )

static

Returns the CollideFlags value associated with the given string representation, or CF_none if the string does not match any known CollideFlags value.

This only recognizes a single keyword; it does not attempt to parse a string of keywords.

Definition at line 918 of file eggGroup.cxx.

◆ string_cs_type()

EggGroup::CollisionSolidType EggGroup::string_cs_type ( const std::string & strval )

static

Returns the CollisionSolidType value associated with the given string representation, or CST_none if the string does not match any known CollisionSolidType value.

Definition at line 886 of file eggGroup.cxx.

◆ string_dart_type()

EggGroup::DartType EggGroup::string_dart_type ( const std::string & strval )

static

Returns the DartType value associated with the given string representation, or DT_none if the string does not match any known DartType value.

Definition at line 825 of file eggGroup.cxx.

◆ string_dcs_type()

EggGroup::DCSType EggGroup::string_dcs_type ( const std::string & strval )

static

Returns the DCSType value associated with the given string representation, or DC_unspecified if the string does not match any known DCSType value.

Definition at line 844 of file eggGroup.cxx.

◆ string_group_type()

EggGroup::GroupType EggGroup::string_group_type ( const std::string & strval )

static

Returns the GroupType value associated with the given string representation, or GT_invalid if the string does not match any known GroupType value.

Definition at line 808 of file eggGroup.cxx.

◆ tag_begin()

EggGroup::TagData::const_iterator EggGroup::tag_begin ( ) const

inline

Returns an iterator that can, in conjunction with tag_end(), be used to traverse the entire set of tag keys.

Each iterator returns a pair<string, string>.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 811 of file eggGroup.I.

◆ tag_end()

EggGroup::TagData::const_iterator EggGroup::tag_end ( ) const

inline

Returns an iterator that can, in conjunction with tag_begin(), be used to traverse the entire set of tag keys.

Each iterator returns a pair<string, string>.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 823 of file eggGroup.I.

◆ tag_size()

EggGroup::TagData::size_type EggGroup::tag_size ( ) const

inline

Returns the number of elements between tag_begin() and tag_end().

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 833 of file eggGroup.I.

◆ unref_all_vertices()

void EggGroup::unref_all_vertices ( )

Removes all vertices from the reference list.

Definition at line 656 of file eggGroup.cxx.

◆ unref_vertex()

void EggGroup::unref_vertex ( EggVertex * vert )

Removes the vertex from the set of those referenced by the group.

Does nothing if the vertex is not already reffed.

Definition at line 640 of file eggGroup.cxx.

Referenced by ref_vertex(), and set_vertex_membership().

◆ vref_begin()

EggGroup::VertexRef::const_iterator EggGroup::vref_begin ( ) const

inline

Returns an iterator that can, in conjunction with vref_end(), be used to traverse the entire set of referenced vertices.

Each iterator returns a pair<PT(EggVertex), double>.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 845 of file eggGroup.I.

◆ vref_end()

EggGroup::VertexRef::const_iterator EggGroup::vref_end ( ) const

inline

Returns an iterator that can, in conjunction with vref_begin(), be used to traverse the entire set of referenced vertices.

Each iterator returns a pair<PT(EggVertex), double>.

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 857 of file eggGroup.I.

◆ vref_size()

EggGroup::VertexRef::size_type EggGroup::vref_size ( ) const

inline

Returns the number of elements between vref_begin() and vref_end().

This interface is not safe to use outside of PANDAEGG.DLL.

Definition at line 867 of file eggGroup.I.

◆ write()

void EggGroup::write	(	std::ostream &	out,
		int	indent_level
	)		const

virtual

Writes the group and all of its children to the indicated output stream in Egg format.

Reimplemented from EggGroupNode.

Definition at line 177 of file eggGroup.cxx.

References EggNamedObject::write_header().

◆ write_billboard_flags()

void EggGroup::write_billboard_flags	(	std::ostream &	out,
		int	indent_level
	)		const

Writes just the <Billboard> entry and related fields to the indicated ostream.

Definition at line 315 of file eggGroup.cxx.

References indent().

◆ write_collide_flags()

void EggGroup::write_collide_flags	(	std::ostream &	out,
		int	indent_level
	)		const

Writes just the <Collide> entry and related fields to the indicated ostream.

Definition at line 332 of file eggGroup.cxx.

References enquote_string(), and indent().

◆ write_decal_flags()

void EggGroup::write_decal_flags	(	std::ostream &	out,
		int	indent_level
	)		const

Writes the flags related to decaling, if any.

Definition at line 426 of file eggGroup.cxx.

References indent().

◆ write_model_flags()

void EggGroup::write_model_flags	(	std::ostream &	out,
		int	indent_level
	)		const

Writes the <Model> flag and related flags to the indicated ostream.

Definition at line 371 of file eggGroup.cxx.

References indent().

◆ write_object_types()

void EggGroup::write_object_types	(	std::ostream &	out,
		int	indent_level
	)		const

Writes just the <ObjectTypes> entries, if any, to the indicated ostream.

Definition at line 413 of file eggGroup.cxx.

References enquote_string(), and indent().

◆ write_render_mode()

void EggGroup::write_render_mode	(	std::ostream &	out,
		int	indent_level
	)		const

Writes the flags inherited from EggRenderMode and similar flags that control obscure render effects.

Definition at line 454 of file eggGroup.cxx.

References indent(), and EggRenderMode::write().

◆ write_switch_flags()

void EggGroup::write_switch_flags	(	std::ostream &	out,
		int	indent_level
	)		const

Writes the <Switch> flag and related flags to the indicated ostream.

Definition at line 399 of file eggGroup.cxx.

References indent().

◆ write_tags()

void EggGroup::write_tags	(	std::ostream &	out,
		int	indent_level
	)		const

Writes just the <Tag> entries, if any, to the indicated ostream.

Definition at line 436 of file eggGroup.cxx.

References enquote_string(), and indent().

Member Data Documentation

◆ clear_blend_color

void EggGroup::clear_blend_color

inline

Removes the blend color specification.

Definition at line 318 of file eggGroup.h.

◆ get_blend_color

const LColor & EggGroup::get_blend_color

inline

Returns the blend color if one has been specified, or (0, 0, 0, 0) if one has not.

Definition at line 318 of file eggGroup.h.

◆ get_default_pose

const EggTransform & EggGroup::get_default_pose

inline

Returns a read-only accessor to the initial pose transform.

This is the <DefaultPose> entry for a Joint, and defines only the initial transform pose for the unanimated joint; it has nothing to do with the group's <Transform> entry, which defines the (eventual) space of the group's vertices.

Definition at line 320 of file eggGroup.h.

◆ get_group_ref

EggGroup * EggGroup::get_group_ref

Returns the nth <Ref> entry within this group.

See add_group_ref().

Definition at line 354 of file eggGroup.h.

◆ get_num_group_refs

int EggGroup::get_num_group_refs

Returns the number of <Ref> entries within this group.

See add_group_ref().

Definition at line 354 of file eggGroup.h.

◆ has_blend_color

bool EggGroup::has_blend_color

inline

Returns true if the blend color has been specified, false otherwise.

Definition at line 318 of file eggGroup.h.

◆ set_billboard_center

void EggGroup::set_billboard_center

inline

Sets the point around which the billboard will rotate, if this node contains a billboard specification.

If a billboard type is given but no billboard_center is specified, then the group node is treated as an <Instance>, and the billboard rotates around the origin. If, however, a billboard_center is specified, then the group node is *not* treated as an <Instance>, and the billboard rotates around the specified point.

The point is in the same coordinate system as the vertices of this node: usually global, but possibly local if there is an <Instance> somewhere above. Specifically, this is the coordinate system defined by get_vertex_frame().

Definition at line 290 of file eggGroup.h.

◆ set_default_pose

void EggGroup::set_default_pose

inline

Replaces the initial pose transform.

This is the <DefaultPose> entry for a Joint, and defines only the initial transform pose for the unanimated joint; it has nothing to do with the group's <Transform> entry, which defines the (eventual) space of the group's vertices.

Definition at line 320 of file eggGroup.h.

◆ set_indexed_flag

void EggGroup::set_indexed_flag

inline

If this flag is true, geometry at this node and below will be generated as indexed geometry.

Definition at line 307 of file eggGroup.h.

The documentation for this class was generated from the following files:

panda/src/egg/eggGroup.h
panda/src/egg/eggGroup.cxx
panda/src/egg/eggGroup.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Member Function Documentation

◆ add_group_ref()

◆ as_transform()

◆ clear_default_pose()

◆ clear_group_refs()

◆ clear_tag()

◆ determine_alpha_mode()

◆ determine_bin()

◆ determine_decal()

◆ determine_depth_offset()

◆ determine_depth_test_mode()

◆ determine_depth_write_mode()

◆ determine_draw_order()

◆ determine_indexed()

◆ determine_visibility_mode()

◆ get_tag()

◆ get_vertex_membership()

◆ has_dcs_type()

◆ has_object_type()

◆ has_tag()

◆ is_instance_type()

◆ is_joint()

◆ modify_default_pose()

◆ ref_vertex()

◆ remove_group_ref()

◆ remove_object_type()

◆ set_tag()

◆ set_vertex_membership()

◆ steal_vrefs()

◆ string_billboard_type()

◆ string_blend_mode()

◆ string_blend_operand()

◆ string_collide_flags()

◆ string_cs_type()

◆ string_dart_type()

◆ string_dcs_type()

◆ string_group_type()

◆ tag_begin()

◆ tag_end()

◆ tag_size()

◆ unref_all_vertices()

◆ unref_vertex()

◆ vref_begin()

◆ vref_end()

◆ vref_size()

◆ write()

◆ write_billboard_flags()

◆ write_collide_flags()

◆ write_decal_flags()

◆ write_model_flags()

◆ write_object_types()

◆ write_render_mode()

◆ write_switch_flags()

◆ write_tags()

Member Data Documentation

◆ clear_blend_color

◆ get_blend_color

◆ get_default_pose

◆ get_group_ref

◆ get_num_group_refs

◆ has_blend_color

◆ set_billboard_center

◆ set_default_pose

◆ set_indexed_flag
