A base class for any of a number of kinds of geometry primitives: polygons, point lights, nurbs patches, parametrics curves, etc. More...

#include "eggPrimitive.h"

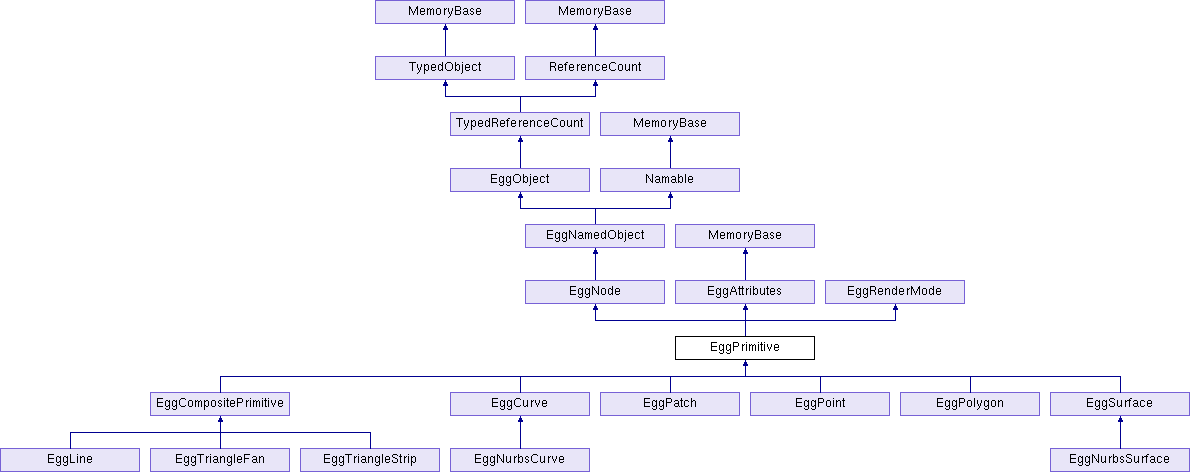

Inheritance diagram for EggPrimitive:

Public Types
typedef Vertices::const_iterator	const_iterator

typedef Vertices::const_pointer	const_pointer

typedef Vertices::const_reference	const_reference

typedef Vertices::const_reverse_iterator	const_reverse_iterator

typedef Vertices::difference_type	difference_type

typedef Vertices::const_iterator	iterator

typedef Vertices::const_pointer	pointer

typedef Vertices::const_reference	reference

typedef Vertices::const_reverse_iterator	reverse_iterator

enum	Shading { S_unknown, S_overall, S_per_face, S_per_vertex }

typedef Vertices::size_type	size_type

Public Types inherited from EggRenderMode
enum	AlphaMode { AM_unspecified, AM_off, AM_on, AM_blend, AM_blend_no_occlude, AM_ms, AM_ms_mask, AM_binary, AM_dual, AM_premultiplied }

enum	DepthTestMode { DTM_unspecified, DTM_off, DTM_on }

enum	DepthWriteMode { DWM_unspecified, DWM_off, DWM_on }

enum	VisibilityMode { VM_unspecified, VM_hidden, VM_normal }

Public Member Functions
	EggPrimitive (const std::string &name="")

	EggPrimitive (const EggPrimitive &copy)

void	add_texture (EggTexture *texture)
	Applies the indicated texture to the primitive. More...

EggVertex *	add_vertex (EggVertex *vertex)
	Adds the indicated vertex to the end of the primitive's list of vertices, and returns it. More...

virtual void	apply_first_attribute ()
	Sets the first vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded. More...

virtual void	apply_last_attribute ()
	Sets the last vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded. More...

iterator	begin () const

virtual bool	cleanup ()
	Cleans up modeling errors in whatever context this makes sense. More...

void	clear ()
	Removes all of the vertices from the primitive. More...

void	clear_connected_shading ()
	Resets the connected_shading member in this primitive, so that get_connected_shading() will recompute a new value. More...

void	clear_material ()

void	clear_texture ()
	Removes any texturing from the primitive. More...

void	copy_attributes (const EggAttributes &other)
	Copies the rendering attributes from the indicated primitive. More...

void	copy_attributes (const EggPrimitive &other)
	Copies the rendering attributes from the indicated primitive. More...

void	copy_vertices (const EggPrimitive &other)
	Replaces the current primitive's list of vertices with a copy of the list of vertices on the other primitive. More...

virtual EggRenderMode *	determine_alpha_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has an alpha_mode other than AM_unspecified. More...

virtual EggRenderMode *	determine_bin ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has a bin specified. More...

virtual EggRenderMode *	determine_depth_offset ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has a depth_offset specified. More...

virtual EggRenderMode *	determine_depth_test_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a depth_test_mode other than DTM_unspecified. More...

virtual EggRenderMode *	determine_depth_write_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a depth_write_mode other than DWM_unspecified. More...

virtual EggRenderMode *	determine_draw_order ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has a draw_order specified. More...

virtual EggRenderMode *	determine_visibility_mode ()
	Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a visibility_mode other than VM_unspecified. More...

bool	empty () const

iterator	end () const

iterator	erase (iterator position)

iterator	erase (iterator first, iterator last)
	Part of the implementaion of the EggPrimitive as an STL container. More...

iterator	find (EggVertex *vertex)
	Returns the iterator pointing to the indicated vertex, or end() if the vertex is not part of the primitive. More...

virtual TypeHandle	force_init_type ()

bool	get_bface_flag () const

Shading	get_connected_shading () const

EggMaterial *	get_material () const

int	get_num_textures () const

size_t	get_num_vertices () const

EggVertexPool *	get_pool () const

virtual Shading	get_shading () const

std::string	get_sort_name () const

EggTexture *	get_texture () const

EggTexture *	get_texture (int n) const

virtual TypeHandle	get_type () const

EggVertex *	get_vertex (size_t index) const

bool	has_material () const

virtual bool	has_normals () const
	Returns true if any of the primitives (e.g. More...

virtual bool	has_primitives () const
	Returns true if there are any primitives (e.g. More...

bool	has_texture () const
	Returns true if the primitive has any textures specified, false otherwise. More...

bool	has_texture (EggTexture *texture) const
	Returns true if the primitive has the particular indicated texture, false otherwise. More...

bool	has_vertex_color () const
	Returns true if any vertex on the primitive has a specific color set, false otherwise. More...

bool	has_vertex_normal () const
	Returns true if any vertex on the primitive has a specific normal set, false otherwise. More...

iterator	insert (iterator position, EggVertex *x)

void	insert_vertex (size_t index, EggVertex *vertex)

virtual bool	joint_has_primitives () const
	Returns true if there are any primitives (e.g. More...

virtual EggPrimitive *	make_copy () const =0

EggVertex *	operator [] (int index) const
	This is read-only: you can't assign directly to an indexed vertex. More...

EggPrimitive &	operator= (const EggPrimitive &copy)

virtual void	post_apply_flat_attribute ()
	Intended as a followup to apply_last_attribute(), this also sets an attribute on the first vertices of the primitive, if they don't already have an attribute set, just so they end up with something. More...

reverse_iterator	rbegin () const

void	remove_doubled_verts (bool closed)
	Certain kinds of primitives, particularly polygons, don't like to have the same vertex repeated consecutively. More...

void	remove_nonunique_verts ()
	Removes any multiple appearances of the same vertex from the primitive. More...

EggVertex *	remove_vertex (EggVertex *vertex)

void	remove_vertex (size_t index)

reverse_iterator	rend () const

void	replace (iterator position, EggVertex *vertex)
	Replaces the vertex at the indicated position with the indicated vertex. More...

virtual void	reverse_vertex_ordering ()
	Reverses the ordering of the vertices in this primitive, if appropriate, in order to change the direction the polygon appears to be facing. More...

void	set_bface_flag (bool flag)

void	set_material (EggMaterial *material)

void	set_texture (EggTexture *texture)
	Replaces the current list of textures with the indicated texture. More...

void	set_vertex (size_t index, EggVertex *vertex)

size_type	size () const

void	test_vref_integrity () const

virtual void	unify_attributes (Shading shading)
	If the shading property is S_per_vertex, ensures that all vertices have a normal and a color, and the overall primitive does not. More...

virtual void	write (std::ostream &out, int indent_level) const =0

Public Member Functions inherited from EggNode
	EggNode (const std::string &name="")

	EggNode (const EggNode &copy)

void	apply_texmats ()
	Applies the texture matrices to the UV's of the vertices that reference them, and then removes the texture matrices from the textures themselves. More...

virtual bool	determine_decal ()
	Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "decal" flag set. More...

virtual bool	determine_indexed ()
	Walks back up the hierarchy, looking for an EggGroup at this level or above that has the "indexed" scalar set. More...

void	flatten_transforms ()
	Removes any transform and instance records from this node in the scene graph and below. More...

int	get_depth () const

const LMatrix4d &	get_node_frame () const
	Returns the coordinate frame of the node itself. More...

const LMatrix4d &	get_node_frame_inv () const
	Returns the inverse of the matrix returned by get_node_frame(). More...

const LMatrix4d *	get_node_frame_inv_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_frame_inv() matrix. More...

const LMatrix4d *	get_node_frame_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_frame() matrix. More...

const LMatrix4d &	get_node_to_vertex () const
	Returns the transformation matrix suitable for converting vertices in the coordinate space of the node to the appropriate coordinate space for storing in the egg file. More...

const LMatrix4d *	get_node_to_vertex_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_node_to_vertex() matrix. More...

EggGroupNode *	get_parent () const

const LMatrix4d &	get_vertex_frame () const
	Returns the coordinate frame of the vertices referenced by primitives at or under this node. More...

const LMatrix4d &	get_vertex_frame_inv () const
	Returns the inverse of the matrix returned by get_vertex_frame(). More...

const LMatrix4d *	get_vertex_frame_inv_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_frame_inv() matrix. More...

const LMatrix4d *	get_vertex_frame_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_frame() matrix. More...

const LMatrix4d &	get_vertex_to_node () const
	Returns the transformation matrix suitable for converting the vertices as read from the egg file into the coordinate space of the node. More...

const LMatrix4d *	get_vertex_to_node_ptr () const
	Returns either a NULL pointer or a unique pointer shared by nodes with the same get_vertex_to_node() matrix. More...

virtual bool	is_anim_matrix () const
	Returns true if this node represents a table of animation transformation data, false otherwise. More...

virtual bool	is_joint () const
	Returns true if this particular node represents a <Joint> entry or not. More...

bool	is_local_coord () const
	Returns true if this node's vertices are not in the global coordinate space. More...

bool	is_under_instance () const
	Returns true if there is an <Instance> node somewhere in the egg tree at or above this node, false otherwise. More...

bool	is_under_transform () const
	Returns true if there is a <Transform> entry somewhere in the egg tree at or above this node, false otherwise. More...

EggNode &	operator= (const EggNode &copy)

bool	parse_egg (const std::string &egg_syntax)
	Parses the egg syntax given in the indicate string as if it had been read from the egg file within this object's definition. More...

int	rename_node (vector_string strip_prefix)
	Rename by stripping out the prefix. More...

void	test_under_integrity () const

void	transform (const LMatrix4d &mat)
	Applies the indicated transformation to the node and all of its descendants. More...

void	transform_vertices_only (const LMatrix4d &mat)
	Applies the indicated transformation only to vertices that appear in global space within vertex pools at this node and below. More...

Public Member Functions inherited from EggNamedObject
	EggNamedObject (const std::string &name="")

	EggNamedObject (const EggNamedObject &copy)

EggNamedObject &	operator= (const EggNamedObject &copy)

void	output (std::ostream &out) const

void	write_header (std::ostream &out, int indent_level, const char *egg_keyword) const
	Writes the first line of the egg object, e.g. More...

Public Member Functions inherited from EggObject
	EggObject (const EggObject &copy)

virtual EggTransform *	as_transform ()
	Returns this object cross-cast to an EggTransform pointer, if it inherits from EggTransform, or NULL if it does not. More...

void	clear_user_data ()
	Removes all user data pointers from the node. More...

void	clear_user_data (TypeHandle type)
	Removes the user data pointer of the indicated type. More...

EggUserData *	get_user_data () const
	Returns the user data pointer most recently stored on this object, or NULL if nothing was previously stored. More...

EggUserData *	get_user_data (TypeHandle type) const
	Returns the user data pointer of the indicated type, if it exists, or NULL if it does not. More...

bool	has_user_data () const
	Returns true if a generic user data pointer has recently been set and not yet cleared, false otherwise. More...

bool	has_user_data (TypeHandle type) const
	Returns true if the user data pointer of the indicated type has been set, false otherwise. More...

EggObject &	operator= (const EggObject &copy)

void	set_user_data (EggUserData *user_data)
	Sets the user data associated with this object. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Public Member Functions inherited from Namable
	Namable (const std::string &initial_name="")

void	clear_name ()
	Resets the Namable's name to empty. More...

const std::string &	get_name () const

bool	has_name () const
	Returns true if the Namable has a nonempty name set, false if the name is empty. More...

void	output (std::ostream &out) const
	Outputs the Namable. More...

void	set_name (const std::string &name)

Public Member Functions inherited from EggAttributes
	EggAttributes (const EggAttributes &copy)

void	clear_color ()

void	clear_normal ()

int	compare_to (const EggAttributes &other) const
	An ordering operator to compare two vertices for sorting order. More...

void	copy_color (const EggAttributes &other)
	Sets this color to be the same as the other's, include morphs. More...

void	copy_normal (const EggAttributes &other)
	Sets this normal to be the same as the other's, include morphs. More...

LColor	get_color () const
	Returns the color set on this particular attribute. More...

const LNormald &	get_normal () const

bool	has_color () const

bool	has_normal () const

bool	matches_color (const EggAttributes &other) const
	Returns true if this color matches that of the other EggAttributes object, include the morph list. More...

bool	matches_normal (const EggAttributes &other) const
	Returns true if this normal matches that of the other EggAttributes object, include the morph list. More...

EggAttributes &	operator= (const EggAttributes &copy)

void	set_color (const LColor &Color)

void	set_normal (const LNormald &normal)

bool	sorts_less_than (const EggAttributes &other) const
	An ordering operator to compare two vertices for sorting order. More...

void	transform (const LMatrix4d &mat)
	Applies the indicated transformation matrix to the attributes. More...

void	write (std::ostream &out, int indent_level) const
	Writes the attributes to the indicated output stream in Egg format. More...

Public Member Functions inherited from EggRenderMode
	EggRenderMode (const EggRenderMode &copy)

void	clear_bin ()
	Removes the bin name that was set for this particular object. More...

void	clear_depth_offset ()
	Removes the depth-offset flag from this particular object. More...

void	clear_draw_order ()
	Removes the draw-order flag from this particular object. More...

AlphaMode	get_alpha_mode () const
	Returns the alpha mode that was set, or AM_unspecified if nothing was set. More...

std::string	get_bin () const
	Returns the bin name that has been set for this particular object, if any. More...

int	get_depth_offset () const
	Returns the "depth-offset" flag as set for this particular object. More...

DepthTestMode	get_depth_test_mode () const
	Returns the depth_test mode that was set, or DTM_unspecified if nothing was set. More...

DepthWriteMode	get_depth_write_mode () const
	Returns the depth_write mode that was set, or DWM_unspecified if nothing was set. More...

int	get_draw_order () const
	Returns the "draw-order" flag as set for this particular object. More...

VisibilityMode	get_visibility_mode () const
	Returns the visibility mode that was set, or VM_unspecified if nothing was set. More...

bool	has_bin () const
	Returns true if a bin name has been set for this particular object. More...

bool	has_depth_offset () const
	Returns true if the depth-offset flag has been set for this particular object. More...

bool	has_draw_order () const
	Returns true if the draw-order flag has been set for this particular object. More...

bool	operator != (const EggRenderMode &other) const

bool	operator< (const EggRenderMode &other) const

EggRenderMode &	operator= (const EggRenderMode &copy)

bool	operator== (const EggRenderMode &other) const

void	set_alpha_mode (AlphaMode mode)
	Specifies precisely how the transparency for this geometry should be achieved, or if it should be used. More...

void	set_bin (const std::string &bin)
	Sets the "bin" string for this particular object. More...

void	set_depth_offset (int bias)
	Sets the "depth-offset" flag associated with this object. More...

void	set_depth_test_mode (DepthTestMode mode)
	Specifies whether this geometry should be tested against the depth buffer when it is drawn (assuming the rendering backend provides a depth buffer). More...

void	set_depth_write_mode (DepthWriteMode mode)
	Specifies whether writes should be made to the depth buffer (assuming the rendering backend provides a depth buffer) when rendering this geometry. More...

void	set_draw_order (int order)
	Sets the "draw-order" flag associated with this object. More...

void	set_visibility_mode (VisibilityMode mode)
	Specifies whether this geometry is to be considered normally visible, or hidden. More...

void	write (std::ostream &out, int indent_level) const
	Writes the attributes to the indicated output stream in Egg format. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggNode
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggNamedObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggObject
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from Namable
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggAttributes
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from EggRenderMode
static TypeHandle	get_class_type ()

static void	init_type ()

static AlphaMode	string_alpha_mode (const std::string &string)
	Returns the AlphaMode value associated with the given string representation, or AM_unspecified if the string does not match any known AlphaMode value. More...

static DepthTestMode	string_depth_test_mode (const std::string &string)
	Returns the DepthTestMode value associated with the given string representation, or DTM_unspecified if the string does not match any known DepthTestMode value. More...

static DepthWriteMode	string_depth_write_mode (const std::string &string)
	Returns the DepthWriteMode value associated with the given string representation, or DWM_unspecified if the string does not match any known DepthWriteMode value. More...

static VisibilityMode	string_visibility_mode (const std::string &string)
	Returns the HiddenMode value associated with the given string representation, or VM_unspecified if the string does not match any known HiddenMode value. More...

Public Attributes
	clear_material
	Removes any material from the primitive. More...

	get_bface_flag
	Retrieves the backfacing flag of the polygon. More...

	get_connected_shading
	Determines what sort of shading properties this primitive's connected neighbors have. More...

	get_material
	Returns a pointer to the applied material, or NULL if there is no material applied. More...

	get_num_textures
	Returns the number of textures applied to the primitive. More...

	get_num_vertices

	get_pool
	Returns the vertex pool associated with the vertices of the primitive, or NULL if the primitive has no vertices. More...

	get_shading
	Returns the shading properties apparent on this particular primitive. More...

	get_sort_name
	Returns the name of the primitive for the purposes of sorting primitives into different groups, if there is one. More...

	get_texture
	Returns the first texture on the primitive, if any, or NULL if there are no textures on the primitive. More...

	get_vertex
	Returns a particular index based on its index number. More...

	has_material
	Returns true if the primitive is materiald (and get_material() will return a real pointer), false otherwise (and get_material() will return NULL). More...

	insert_vertex
	Inserts a vertex at the given position. More...

	remove_vertex
	Removes the indicated vertex from the primitive and returns it. More...

	set_bface_flag
	Sets the backfacing flag of the polygon. More...

	set_material
	Applies the indicated material to the primitive. More...

	set_vertex
	Replaces a particular vertex based on its index number in the list of vertices. More...

Public Attributes inherited from EggNode
	get_depth
	Returns the number of nodes above this node in the egg hierarchy. More...

	get_parent

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Public Attributes inherited from Namable
	get_name

	set_name

Public Attributes inherited from EggAttributes
EggMorphNormalList	_dnormals

EggMorphColorList	_drgbas

Friends
class	EggTextureCollection

Detailed Description

A base class for any of a number of kinds of geometry primitives: polygons, point lights, nurbs patches, parametrics curves, etc.

Things with a set of vertices and some rendering properties like color.

An EggPrimitive is an STL-style container of pointers to EggVertex's. In fact, it IS a vector, and can be manipulated in all the ways that vectors can. However, it is necessary that all vertices belong to the same vertex pool.

Definition at line 47 of file eggPrimitive.h.

Member Function Documentation

◆ add_texture()

void EggPrimitive::add_texture ( EggTexture * texture )

inline

Applies the indicated texture to the primitive.

Note that, in the case of multiple textures being applied to a single primitive, the order in which the textures are applied does not affect the rendering order; use EggTexture::set_sort() to specify that.

Definition at line 162 of file eggPrimitive.I.

Referenced by DaeMaterials::apply_to_primitive(), and set_texture().

◆ add_vertex()

EggVertex * EggPrimitive::add_vertex ( EggVertex * vertex )

Adds the indicated vertex to the end of the primitive's list of vertices, and returns it.

Definition at line 654 of file eggPrimitive.cxx.

Referenced by EggVertexPool::add_unused_vertices_to_prim().

◆ apply_first_attribute()

void EggPrimitive::apply_first_attribute ( )

virtual

Sets the first vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded.

This reflects the DirectX convention of storing flat-shaded properties on the first vertex, although it is not usually a convention in Egg.

This may introduce redundant vertices to the vertex pool.

Reimplemented in EggCompositePrimitive, and EggTriangleFan.

Definition at line 450 of file eggPrimitive.cxx.

◆ apply_last_attribute()

void EggPrimitive::apply_last_attribute ( )

virtual

Sets the last vertex of the triangle (or each component) to the primitive normal and/or color, if the primitive is flat-shaded.

This reflects the OpenGL convention of storing flat-shaded properties on the last vertex, although it is not usually a convention in Egg.

This may introduce redundant vertices to the vertex pool.

Reimplemented in EggCompositePrimitive.

Definition at line 435 of file eggPrimitive.cxx.

◆ cleanup()

bool EggPrimitive::cleanup ( )

virtual

Cleans up modeling errors in whatever context this makes sense.

For instance, for a polygon, this calls remove_doubled_verts(true). For a point, it calls remove_nonunique_verts(). Returns true if the primitive is valid, or false if it is degenerate.

Reimplemented in EggCompositePrimitive, EggPoint, and EggPolygon.

Definition at line 499 of file eggPrimitive.cxx.

◆ clear()

void EggPrimitive::clear ( )

inline

Removes all of the vertices from the primitive.

Definition at line 352 of file eggPrimitive.I.

Referenced by copy_vertices().

◆ clear_connected_shading()

void EggPrimitive::clear_connected_shading ( )

inline

Resets the connected_shading member in this primitive, so that get_connected_shading() will recompute a new value.

Definition at line 84 of file eggPrimitive.I.

◆ clear_texture()

void EggPrimitive::clear_texture ( )

inline

Removes any texturing from the primitive.

Definition at line 170 of file eggPrimitive.I.

Referenced by set_texture().

◆ copy_attributes() [1/2]

void EggPrimitive::copy_attributes ( const EggAttributes & other )

Copies the rendering attributes from the indicated primitive.

Definition at line 265 of file eggPrimitive.cxx.

Referenced by PT().

◆ copy_attributes() [2/2]

void EggPrimitive::copy_attributes ( const EggPrimitive & other )

Copies the rendering attributes from the indicated primitive.

Definition at line 273 of file eggPrimitive.cxx.

References get_bface_flag, get_material, set_bface_flag, and set_material.

◆ copy_vertices()

void EggPrimitive::copy_vertices ( const EggPrimitive & other )

Replaces the current primitive's list of vertices with a copy of the list of vertices on the other primitive.

Definition at line 704 of file eggPrimitive.cxx.

References clear().

◆ determine_alpha_mode()

EggRenderMode * EggPrimitive::determine_alpha_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has an alpha_mode other than AM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 34 of file eggPrimitive.cxx.

References EggNode::determine_alpha_mode(), EggRenderMode::get_alpha_mode(), and get_num_textures.

Referenced by EggRenderState::fill_state().

◆ determine_bin()

EggRenderMode * EggPrimitive::determine_bin ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has a bin specified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 187 of file eggPrimitive.cxx.

References EggNode::determine_bin(), get_num_textures, and EggRenderMode::has_bin().

Referenced by EggRenderState::fill_state().

◆ determine_depth_offset()

EggRenderMode * EggPrimitive::determine_depth_offset ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has a depth_offset specified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 139 of file eggPrimitive.cxx.

References EggNode::determine_depth_offset(), get_num_textures, and EggRenderMode::has_depth_offset().

Referenced by EggRenderState::fill_state().

◆ determine_depth_test_mode()

EggRenderMode * EggPrimitive::determine_depth_test_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a depth_test_mode other than DTM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 91 of file eggPrimitive.cxx.

References EggNode::determine_depth_test_mode(), EggRenderMode::get_depth_test_mode(), and get_num_textures.

Referenced by EggRenderState::fill_state().

◆ determine_depth_write_mode()

EggRenderMode * EggPrimitive::determine_depth_write_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a depth_write_mode other than DWM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 67 of file eggPrimitive.cxx.

References EggNode::determine_depth_write_mode(), EggRenderMode::get_depth_write_mode(), and get_num_textures.

Referenced by EggRenderState::fill_state().

◆ determine_draw_order()

EggRenderMode * EggPrimitive::determine_draw_order ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this primitive that has a draw_order specified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 163 of file eggPrimitive.cxx.

References EggNode::determine_draw_order(), get_num_textures, and EggRenderMode::has_draw_order().

Referenced by EggRenderState::fill_state().

◆ determine_visibility_mode()

EggRenderMode * EggPrimitive::determine_visibility_mode ( )

virtual

Walks back up the hierarchy, looking for an EggGroup or EggPrimitive or some such object at this level or above this node that has a visibility_mode other than VM_unspecified.

Returns a valid EggRenderMode pointer if one is found, or NULL otherwise.

Reimplemented from EggNode.

Definition at line 115 of file eggPrimitive.cxx.

References EggNode::determine_visibility_mode(), get_num_textures, and EggRenderMode::get_visibility_mode().

Referenced by EggRenderState::fill_state().

◆ erase()

EggPrimitive::iterator EggPrimitive::erase	(	iterator	first,
		iterator	last
	)

Part of the implementaion of the EggPrimitive as an STL container.

Most of the rest of these functions are inline and declared in EggPrimitive.I.

Definition at line 624 of file eggPrimitive.cxx.

◆ find()

EggPrimitive::iterator EggPrimitive::find ( EggVertex * vertex )

Returns the iterator pointing to the indicated vertex, or end() if the vertex is not part of the primitive.

Definition at line 643 of file eggPrimitive.cxx.

◆ has_normals()

bool EggPrimitive::has_normals ( ) const

virtual

Returns true if any of the primitives (e.g.

polygons) defined within this group or below have either face or vertex normals defined, false otherwise.

Reimplemented from EggNode.

Definition at line 603 of file eggPrimitive.cxx.

◆ has_primitives()

bool EggPrimitive::has_primitives ( ) const

virtual

Returns true if there are any primitives (e.g.

polygons) defined within this group or below, false otherwise.

Reimplemented from EggNode.

Definition at line 585 of file eggPrimitive.cxx.

◆ has_texture() [1/2]

bool EggPrimitive::has_texture ( ) const

inline

Returns true if the primitive has any textures specified, false otherwise.

This method is deprecated and is used in support of single-texturing only. New code should be written to use the multitexture variants instead.

Definition at line 128 of file eggPrimitive.I.

References get_num_textures.

Referenced by XFileMaterial::set_from_egg().

◆ has_texture() [2/2]

bool EggPrimitive::has_texture ( EggTexture * texture ) const

inline

Returns true if the primitive has the particular indicated texture, false otherwise.

Definition at line 137 of file eggPrimitive.I.

◆ has_vertex_color()

bool EggPrimitive::has_vertex_color ( ) const

Returns true if any vertex on the primitive has a specific color set, false otherwise.

If you call unify_attributes() first, this will also return false even if all the vertices were set to the same value (since unify_attributes() removes redundant vertex properties).

Definition at line 308 of file eggPrimitive.cxx.

◆ has_vertex_normal()

bool EggPrimitive::has_vertex_normal ( ) const

Returns true if any vertex on the primitive has a specific normal set, false otherwise.

If you call unify_attributes() first, this will also return false even if all the vertices were set to the same value (since unify_attributes() removes redundant vertex properties).

Definition at line 289 of file eggPrimitive.cxx.

◆ joint_has_primitives()

bool EggPrimitive::joint_has_primitives ( ) const

virtual

Returns true if there are any primitives (e.g.

polygons) defined within this group or below, but the search does not include nested joints.

Reimplemented from EggNode.

Definition at line 594 of file eggPrimitive.cxx.

◆ operator []()

EggVertex * EggPrimitive::operator [] ( int index ) const

inline

This is read-only: you can't assign directly to an indexed vertex.

See set_vertex() instead.

Definition at line 301 of file eggPrimitive.I.

◆ post_apply_flat_attribute()

void EggPrimitive::post_apply_flat_attribute ( )

virtual

Intended as a followup to apply_last_attribute(), this also sets an attribute on the first vertices of the primitive, if they don't already have an attribute set, just so they end up with *something*.

Reimplemented in EggCompositePrimitive.

Definition at line 462 of file eggPrimitive.cxx.

References EggAttributes::get_color().

◆ remove_doubled_verts()

void EggPrimitive::remove_doubled_verts ( bool closed )

Certain kinds of primitives, particularly polygons, don't like to have the same vertex repeated consecutively.

Unfortunately, some modeling programs (like MultiGen) make this an easy mistake to make.

It's handy to have a function to remove these redundant vertices. If closed is true, it also checks that the first and last vertices are not the same.

This function identifies repeated vertices by position only; it does not consider any other properties, such as color or UV, significant in differentiating vertices.

Definition at line 517 of file eggPrimitive.cxx.

Referenced by EggPolygon::cleanup().

◆ remove_nonunique_verts()

void EggPrimitive::remove_nonunique_verts ( )

Removes any multiple appearances of the same vertex from the primitive.

This primarily makes sense for a point primitive, which is really a collection of points and which doesn't make sense to include the same point twice, in any order.

Definition at line 560 of file eggPrimitive.cxx.

Referenced by EggPoint::cleanup().

◆ replace()

void EggPrimitive::replace	(	iterator	position,
		EggVertex *	x
	)

inline

Replaces the vertex at the indicated position with the indicated vertex.

It is an error to call this with an invalid position iterator (e.g. end()).

Definition at line 335 of file eggPrimitive.I.

◆ reverse_vertex_ordering()

void EggPrimitive::reverse_vertex_ordering ( )

virtual

Reverses the ordering of the vertices in this primitive, if appropriate, in order to change the direction the polygon appears to be facing.

Does not adjust the surface normal, if any.

Definition at line 485 of file eggPrimitive.cxx.

◆ set_texture()

void EggPrimitive::set_texture ( EggTexture * texture )

inline

Replaces the current list of textures with the indicated texture.

This method is deprecated and is used in support of single-texturing only. Please use the multitexture variant add_texture instead.

Definition at line 116 of file eggPrimitive.I.

References add_texture(), and clear_texture().

Referenced by CLwoSurface::apply_properties(), and XFileMaterial::apply_to_egg().

◆ unify_attributes()

void EggPrimitive::unify_attributes ( EggPrimitive::Shading shading )

virtual

If the shading property is S_per_vertex, ensures that all vertices have a normal and a color, and the overall primitive does not.

If the shading property is S_per_face, and this is a composite primitive, ensures that all components have a normal and a color, and the vertices and overall primitive do not. (If this is a simple primitive, S_per_face works the same as S_overall, below).

If the shading property is S_overall, ensures that no vertices or components have a normal or a color, and the overall primitive does (if any exists at all).

After this call, either the primitive will have normals or its vertices will, but not both. Ditto for colors.

This may create redundant vertices in the vertex pool.

Reimplemented in EggCompositePrimitive.

Definition at line 337 of file eggPrimitive.cxx.

References get_shading.

Member Data Documentation

◆ clear_material

void EggPrimitive::clear_material

inline

Removes any material from the primitive.

Definition at line 115 of file eggPrimitive.h.

◆ get_bface_flag

bool EggPrimitive::get_bface_flag

inline

Retrieves the backfacing flag of the polygon.

See set_bface_flag().

Definition at line 116 of file eggPrimitive.h.

Referenced by copy_attributes().

◆ get_connected_shading

EggPrimitive::Shading EggPrimitive::get_connected_shading

inline

Determines what sort of shading properties this primitive's connected neighbors have.

To get the most accurate results, you should first call clear_connected_shading() on all connected primitives (or on all primitives in the egg file). It might also be a good idea to call remove_unused_vertices() to ensure proper connectivity.

You may find it easiest to call these other methods on the EggData root node (they are defined on EggGroupNode).

Definition at line 112 of file eggPrimitive.h.

◆ get_material

EggMaterial * EggPrimitive::get_material

inline

Returns a pointer to the applied material, or NULL if there is no material applied.

Definition at line 115 of file eggPrimitive.h.

Referenced by copy_attributes(), and XFileMaterial::set_from_egg().

◆ get_num_textures

int EggPrimitive::get_num_textures

inline

Returns the number of textures applied to the primitive.

Definition at line 100 of file eggPrimitive.h.

Referenced by determine_alpha_mode(), determine_bin(), determine_depth_offset(), determine_depth_test_mode(), determine_depth_write_mode(), determine_draw_order(), determine_visibility_mode(), EggRenderState::fill_state(), and has_texture().

◆ get_pool

EggVertexPool * EggPrimitive::get_pool

inline

Returns the vertex pool associated with the vertices of the primitive, or NULL if the primitive has no vertices.

Definition at line 192 of file eggPrimitive.h.

◆ get_shading

EggPrimitive::Shading EggPrimitive::get_shading

Returns the shading properties apparent on this particular primitive.

This returns S_per_vertex if the vertices have colors or normals (and they are not all the same values), or for a simple primitive, S_overall otherwise. A composite primitive may also return S_per_face if the individual component primitives have colors or normals that are not all the same values.

To get the most accurate results, you should call clear_shading() on all connected primitives (or on all primitives in the egg file), followed by get_shading() on each primitive. You may find it easiest to call these methods on the EggData root node (they are defined on EggGroupNode).

Definition at line 111 of file eggPrimitive.h.

Referenced by EggCompositePrimitive::get_shading(), and unify_attributes().

◆ get_sort_name

std::string EggPrimitive::get_sort_name

inline

Returns the name of the primitive for the purposes of sorting primitives into different groups, if there is one.

Presently, this is defined as the primitive name itself, unless it begins with a digit.

Definition at line 110 of file eggPrimitive.h.

◆ get_texture

EggTexture * EggPrimitive::get_texture

inline

Returns the first texture on the primitive, if any, or NULL if there are no textures on the primitive.

Returns the nth texture that has been applied to the primitive.

This method is deprecated and is used in support of single-texturing only. New code should be written to use the multitexture variants instead.

Definition at line 100 of file eggPrimitive.h.

Referenced by XFileMaterial::set_from_egg().

◆ get_vertex

EggVertex * EggPrimitive::get_vertex

inline

Returns a particular index based on its index number.

Definition at line 187 of file eggPrimitive.h.

◆ has_material

bool EggPrimitive::has_material

inline

Returns true if the primitive is materiald (and get_material() will return a real pointer), false otherwise (and get_material() will return NULL).

Definition at line 115 of file eggPrimitive.h.

Referenced by XFileMaterial::set_from_egg().

◆ insert_vertex

void EggPrimitive::insert_vertex

inline

Inserts a vertex at the given position.

Definition at line 191 of file eggPrimitive.h.

◆ remove_vertex

void EggPrimitive::remove_vertex

Removes the indicated vertex from the primitive and returns it.

Removes the indicated vertex from the primitive.

If the vertex was not already in the primitive, does nothing and returns NULL.

Definition at line 191 of file eggPrimitive.h.

◆ set_bface_flag

void EggPrimitive::set_bface_flag

inline

Sets the backfacing flag of the polygon.

If this is true, the polygon will be rendered so that both faces are visible; if it is false, only the front face of the polygon will be visible.

Definition at line 116 of file eggPrimitive.h.

Referenced by CLwoSurface::apply_properties(), DaeMaterials::apply_to_primitive(), and copy_attributes().

◆ set_material

void EggPrimitive::set_material

inline

Applies the indicated material to the primitive.

Definition at line 115 of file eggPrimitive.h.

Referenced by CLwoSurface::apply_properties(), DaeMaterials::apply_to_primitive(), and copy_attributes().

◆ set_vertex

void EggPrimitive::set_vertex

inline

Replaces a particular vertex based on its index number in the list of vertices.

This is just a convenience function for people who don't want to mess with the iterators.

Definition at line 191 of file eggPrimitive.h.

The documentation for this class was generated from the following files:

panda/src/egg/eggPrimitive.h
panda/src/egg/eggPrimitive.cxx
panda/src/egg/eggPrimitive.I

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Detailed Description

Member Function Documentation

◆ add_texture()

◆ add_vertex()

◆ apply_first_attribute()

◆ apply_last_attribute()

◆ cleanup()

◆ clear()

◆ clear_connected_shading()

◆ clear_texture()

◆ copy_attributes() [1/2]

◆ copy_attributes() [2/2]

◆ copy_vertices()

◆ determine_alpha_mode()

◆ determine_bin()

◆ determine_depth_offset()

◆ determine_depth_test_mode()

◆ determine_depth_write_mode()

◆ determine_draw_order()

◆ determine_visibility_mode()

◆ erase()

◆ find()

◆ has_normals()

◆ has_primitives()

◆ has_texture() [1/2]

◆ has_texture() [2/2]

◆ has_vertex_color()

◆ has_vertex_normal()

◆ joint_has_primitives()

◆ operator []()

◆ post_apply_flat_attribute()

◆ remove_doubled_verts()

◆ remove_nonunique_verts()

◆ replace()

◆ reverse_vertex_ordering()

◆ set_texture()

◆ unify_attributes()

Member Data Documentation

◆ clear_material

◆ get_bface_flag

◆ get_connected_shading

◆ get_material

◆ get_num_textures

◆ get_pool

◆ get_shading

◆ get_sort_name

◆ get_texture

◆ get_vertex

◆ has_material

◆ insert_vertex

◆ remove_vertex

◆ set_bface_flag

◆ set_material

◆ set_vertex
