This specialization of CullTraverser uses the graphics pipe itself to perform occlusion culling. More...

#include "pipeOcclusionCullTraverser.h"

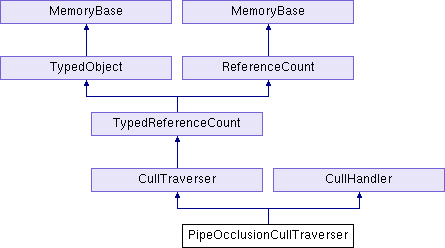

Inheritance diagram for PipeOcclusionCullTraverser:

Public Member Functions
	PipeOcclusionCullTraverser (GraphicsOutput *host)

	PipeOcclusionCullTraverser (const PipeOcclusionCullTraverser &copy)=delete

virtual void	end_traverse ()
	Should be called when the traverser has finished traversing its scene, this gives it a chance to do any necessary finalization. More...

virtual TypeHandle	force_init_type ()

GraphicsOutput *	get_buffer () const

const DrawMask &	get_occlusion_mask () const
	Returns the DrawMask for occlusion polygons. More...

Texture *	get_texture ()
	Returns a Texture that can be used to visualize the efforts of the occlusion cull. More...

virtual TypeHandle	get_type () const

void	set_occlusion_mask (const DrawMask &occlusion_mask)
	Specifies the DrawMask that should be set on occlusion polygons for this scene. More...

virtual void	set_scene (SceneSetup scene_setup, GraphicsStateGuardianBase gsg, bool dr_incomplete_render)
	Sets the SceneSetup object that indicates the initial camera position, etc. More...

Public Member Functions inherited from CullTraverser
	CullTraverser (const CullTraverser &copy)

void	draw_bounding_volume (const BoundingVolume vol, const TransformState internal_transform) const
	Draws an appropriate visualization of the indicated bounding volume. More...

const DrawMask &	get_camera_mask () const
	Returns the visibility mask from the camera viewing the scene. More...

const TransformState *	get_camera_transform () const
	Returns the position of the camera relative to the starting node. More...

CullHandler *	get_cull_handler () const
	Returns the object that will receive the culled Geoms. More...

Thread *	get_current_thread () const
	Returns the currently-executing thread object, as passed to the CullTraverser constructor. More...

bool	get_depth_offset_decals () const
	Returns true, as depth offsets are the only way that we implement decals nowadays. More...

bool	get_effective_incomplete_render () const
	Returns true if the cull traversal is effectively in incomplete_render state, considering both the GSG's incomplete_render and the current DisplayRegion's incomplete_render flags. More...

GraphicsStateGuardianBase *	get_gsg () const
	Returns the GraphicsStateGuardian in effect. More...

const RenderState *	get_initial_state () const
	Returns the initial RenderState at the top of the scene graph we are traversing, or the empty state if the initial state was never set. More...

PortalClipper *	get_portal_clipper () const
	Returns the _portal_clipper pointer. More...

SceneSetup *	get_scene () const
	Returns the SceneSetup object. More...

const std::string &	get_tag_state_key () const
	Returns the tag state key that has been specified for the scene's camera, if any. More...

GeometricBoundingVolume *	get_view_frustum () const
	Returns the bounding volume that corresponds to the view frustum, or NULL if the view frustum is not in use or has not been set. More...

const TransformState *	get_world_transform () const
	Returns the position of the starting node relative to the camera. More...

bool	has_tag_state_key () const
	Returns true if a nonempty tag state key has been specified for the scene's camera, false otherwise. More...

void	set_camera_mask (const DrawMask &camera_mask)
	Changes the visibility mask for the camera viewing the scene. More...

void	set_cull_handler (CullHandler *cull_handler)
	Specifies the object that will receive the culled Geoms. More...

void	set_portal_clipper (PortalClipper *portal_clipper)
	Specifies _portal_clipper object pointer that subsequent traverse() or traverse_below may use. More...

void	set_view_frustum (GeometricBoundingVolume *view_frustum)
	Specifies the bounding volume that corresponds to the view frustum. More...

void	traverse (const NodePath &root)
	Begins the traversal from the indicated node. More...

void	traverse (CullTraverserData &data)
	Traverses from the next node with the given data, which has been constructed with the node but has not yet been converted into the node's space. More...

Public Member Functions inherited from TypedReferenceCount
	TypedReferenceCount (const TypedReferenceCount &copy)

void	operator= (const TypedReferenceCount &copy)

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CullTraverser
static void	flush_level ()
	Flushes the PStatCollectors used during traversal. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from CullHandler
static void	draw (CullableObject object, GraphicsStateGuardianBase gsg, bool force, Thread *current_thread)
	Draws the indicated CullableObject, with full support for decals if they are attached to the object. More...

Additional Inherited Members
Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Static Public Attributes inherited from CullTraverser
static PStatCollector	_geom_nodes_pcollector

static PStatCollector	_geoms_occluded_pcollector

static PStatCollector	_geoms_pcollector

static PStatCollector	_nodes_pcollector

Detailed Description

This specialization of CullTraverser uses the graphics pipe itself to perform occlusion culling.

As such, it's likely to be inefficient (since it interferes with the pipe's normal mode of rendering), and is mainly useful to test other, CPU-based occlusion algorithms.

This cannot be used in a multithreaded pipeline environment where cull and draw are operating simultaneously.

It can't be defined in the cull subdirectory, because it needs access to GraphicsPipe and DisplayRegion and other classes in display. So we put it in grutil instead, for lack of any better ideas.

Definition at line 41 of file pipeOcclusionCullTraverser.h.
