This represents a unique collection of RenderEffect objects that correspond to a particular renderable state. More...

#include "renderEffects.h"

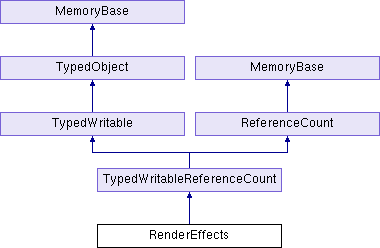

Inheritance diagram for RenderEffects:

Public Member Functions
	RenderEffects (const RenderEffects &copy)=delete

virtual	~RenderEffects ()
	The destructor is responsible for removing the RenderEffects from the global set if it is there. More...

void	adjust_transform (CPT(TransformState) &net_transform, CPT(TransformState) &node_transform, const PandaNode *node) const
	Calls adjust_transform() on all effects. More...

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

virtual	CPT (TransformState) prepare_flatten_transform(const TransformState *net_transform) const

	CPT (RenderEffects) xform(const LMatrix4 &mat) const

	CPT (RenderEffects) add_effect(const RenderEffect *effect) const

	CPT (RenderEffects) remove_effect(TypeHandle type) const

void	cull_callback (CullTraverser *trav, CullTraverserData &data, CPT(TransformState) &node_transform, CPT(RenderState) &node_state) const
	Calls cull_callback() on all effects. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

int	find_effect (TypeHandle type) const

virtual TypeHandle	force_init_type ()

const RenderEffect *	get_effect (size_t n) const
	Returns the nth effect in the state. More...

const RenderEffect *	get_effect (TypeHandle type) const

size_t	get_num_effects () const
	Returns the number of separate effects indicated in the state. More...

virtual TypeHandle	get_type () const

bool	has_adjust_transform () const
	This function is provided as an optimization, to speed up the render-time checking for the existance of an effect with a compute_adjust_transform on this state. More...

bool	has_cull_callback () const
	This function is provided as an optimization, to speed up the render-time checking for the existance of an effect with a cull_callback on this state. More...

bool	has_decal () const
	This function is provided as an optimization, to speed up the render-time checking for the existance of a DecalEffect on this state. More...

bool	has_show_bounds () const
	This function is provided as an optimization, to speed up the render-time checking for the existance of a ShowBoundsEffect on this state. More...

bool	has_show_tight_bounds () const
	If has_show_bounds() returns true, this will return true if the ShowBoundsEffect in question requests showing a "tight" bound. More...

bool	is_empty () const
	Returns true if the state is empty, false otherwise. More...

const RenderEffect *	operator [] (size_t n) const
	Returns the nth effect in the state. More...

const RenderEffect *	operator [] (TypeHandle type) const
	Returns the effect in the state with the given type. More...

bool	operator< (const RenderEffects &other) const

RenderEffects &	operator= (const RenderEffects &copy)=delete

void	output (std::ostream &out) const

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

bool	safe_to_combine () const

bool	safe_to_transform () const
	Returns true if all of the effects in this set can safely be transformed, and therefore the complete set can be transformed, by calling xform(). More...

size_t	size () const
	Returns the number of separate effects indicated in the state. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

void	write (std::ostream &out, int indent_level) const

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static TypedWritable *	change_this (TypedWritable old_ptr, BamReader manager)
	Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired. More...

static	CPT (RenderEffects) make_empty()

static	CPT (RenderEffects) make(const RenderEffect *effect)

static	CPT (RenderEffects) make(const RenderEffect *effect1

static	CPT (RenderEffects) make(const RenderEffect *effect1

static	CPT (RenderEffects) make(const RenderEffect *effect1

static TypeHandle	get_class_type ()

static int	get_num_states ()

static void	init_states ()
	Make sure the global _states map is allocated. More...

static void	init_type ()

static void	list_states (std::ostream &out)
	Lists all of the RenderEffects in the cache to the output stream, one per line. More...

static void	register_with_read_factory ()
	Tells the BamReader how to create objects of type RenderEffects. More...

static bool	validate_states ()
	Ensures that the cache is still stored in sorted order. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
static const RenderEffect *	effect2

static const RenderEffect const RenderEffect *	effect3

static const RenderEffect const RenderEffect const RenderEffect *	effect4

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

This represents a unique collection of RenderEffect objects that correspond to a particular renderable state.

You should not attempt to create or modify a RenderEffects object directly. Instead, call one of the make() functions to create one for you. And instead of modifying a RenderEffects object, create a new one.

Definition at line 41 of file renderEffects.h.

Constructor & Destructor Documentation

◆ ~RenderEffects()

RenderEffects::~RenderEffects ( )

virtual

The destructor is responsible for removing the RenderEffects from the global set if it is there.

Definition at line 56 of file renderEffects.cxx.

Member Function Documentation

◆ adjust_transform()

void RenderEffects::adjust_transform	(	CPT(TransformState) &	net_transform,
		CPT(TransformState) &	node_transform,
		const PandaNode *	node
	)		const

Calls adjust_transform() on all effects.

You may check has_adjust_transform() first to see if any effects define this method to do anything useful.

The order in which the individual effects are applied is not defined, so if more than one effect applies a change to the transform on any particular node, you might get indeterminate results.

Definition at line 477 of file renderEffects.cxx.

References ordered_vector< Key, Compare, Vector >::begin(), and ordered_vector< Key, Compare, Vector >::end().

◆ change_this()

TypedWritable * RenderEffects::change_this	(	TypedWritable *	old_ptr,
		BamReader *	manager
	)

static

Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired.

Most objects don't change pointers after completion, but some need to.

Once this function has been called, the old pointer will no longer be accessed.

Definition at line 744 of file renderEffects.cxx.

◆ complete_pointers()

int RenderEffects::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 688 of file renderEffects.cxx.

◆ cull_callback()

void RenderEffects::cull_callback	(	CullTraverser *	trav,
		CullTraverserData &	data,
		CPT(TransformState) &	node_transform,
		CPT(RenderState) &	node_state
	)		const

Calls cull_callback() on all effects.

You may check has_cull_callback() first to see if any effects define this method to do anything useful.

Definition at line 458 of file renderEffects.cxx.

Referenced by CullTraverserData::apply_transform_and_state().

◆ finalize()

void RenderEffects::finalize ( BamReader * manager )

virtual

Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed.

Reimplemented from TypedWritable.

Definition at line 769 of file renderEffects.cxx.

References unref().

◆ get_effect()

const RenderEffect * RenderEffects::get_effect ( size_t n ) const

inline

Returns the nth effect in the state.

Definition at line 111 of file renderEffects.I.

Referenced by operator []().

◆ get_num_effects()

size_t RenderEffects::get_num_effects ( ) const

inline

Returns the number of separate effects indicated in the state.

Definition at line 103 of file renderEffects.I.

References ordered_vector< Key, Compare, Vector >::size().

◆ has_adjust_transform()

bool RenderEffects::has_adjust_transform ( ) const

inline

This function is provided as an optimization, to speed up the render-time checking for the existance of an effect with a compute_adjust_transform on this state.

Definition at line 209 of file renderEffects.I.

◆ has_cull_callback()

bool RenderEffects::has_cull_callback ( ) const

inline

This function is provided as an optimization, to speed up the render-time checking for the existance of an effect with a cull_callback on this state.

Definition at line 194 of file renderEffects.I.

Referenced by CullTraverserData::apply_transform_and_state().

◆ has_decal()

bool RenderEffects::has_decal ( ) const

inline

This function is provided as an optimization, to speed up the render-time checking for the existance of a DecalEffect on this state.

It returns true if a DecalEffect exists, false otherwise. Note that since there is no additional information stored on the DecalEffect, there's no point in returning it if it exists.

Definition at line 149 of file renderEffects.I.

◆ has_show_bounds()

bool RenderEffects::has_show_bounds ( ) const

inline

This function is provided as an optimization, to speed up the render-time checking for the existance of a ShowBoundsEffect on this state.

It returns true if a ShowBoundsEffect exists, false otherwise. Note that since there is no additional information stored on the ShowBoundsEffect, there's no point in returning it if it exists.

Definition at line 166 of file renderEffects.I.

◆ has_show_tight_bounds()

bool RenderEffects::has_show_tight_bounds ( ) const

inline

If has_show_bounds() returns true, this will return true if the ShowBoundsEffect in question requests showing a "tight" bound.

Definition at line 180 of file renderEffects.I.

◆ init_states()

void RenderEffects::init_states ( )

static

Make sure the global _states map is allocated.

This only has to be done once. We could make this map static, but then we run into problems if anyone creates a RenderEffects object at static init time; it also seems to cause problems when the Panda shared library is unloaded at application exit time.

Definition at line 494 of file renderEffects.cxx.

Referenced by init_libpgraph().

◆ is_empty()

bool RenderEffects::is_empty ( ) const

inline

Returns true if the state is empty, false otherwise.

Definition at line 94 of file renderEffects.I.

References ordered_vector< Key, Compare, Vector >::empty().

◆ list_states()

void RenderEffects::list_states ( std::ostream & out )

static

Lists all of the RenderEffects in the cache to the output stream, one per line.

This can be quite a lot of output if the cache is large, so be prepared.

Definition at line 403 of file renderEffects.cxx.

◆ operator []() [1/2]

const RenderEffect * RenderEffects::operator [] ( size_t n ) const

inline

Returns the nth effect in the state.

Definition at line 128 of file renderEffects.I.

◆ operator []() [2/2]

const RenderEffect * RenderEffects::operator [] ( TypeHandle type ) const

inline

Returns the effect in the state with the given type.

Definition at line 137 of file renderEffects.I.

References get_effect().

◆ register_with_read_factory()

void RenderEffects::register_with_read_factory ( )

static

Tells the BamReader how to create objects of type RenderEffects.

Definition at line 659 of file renderEffects.cxx.

References BamReader::get_factory(), and Factory< Type >::register_factory().

Referenced by init_libpgraph().

◆ require_fully_complete()

bool RenderEffects::require_fully_complete ( ) const

virtual

Some objects require all of their nested pointers to have been completed before the objects themselves can be completed.

If this is the case, override this method to return true, and be careful with circular references (which would make the object unreadable from a bam file).

Reimplemented from TypedWritable.

Definition at line 725 of file renderEffects.cxx.

◆ safe_to_transform()

bool RenderEffects::safe_to_transform ( ) const

Returns true if all of the effects in this set can safely be transformed, and therefore the complete set can be transformed, by calling xform().

Definition at line 69 of file renderEffects.cxx.

References ordered_vector< Key, Compare, Vector >::begin(), and ordered_vector< Key, Compare, Vector >::end().

◆ size()

size_t RenderEffects::size ( ) const

inline

Returns the number of separate effects indicated in the state.

Definition at line 120 of file renderEffects.I.

References ordered_vector< Key, Compare, Vector >::size().

◆ unref()

virtual bool RenderEffects::unref ( ) const

virtual

Explicitly decrements the reference count.

Note that the object will not be implicitly deleted by unref() simply because the reference count drops to zero. (Having a member function delete itself is problematic.) However, see the helper function unref_delete().

User code should avoid using ref() and unref() directly, which can result in missed reference counts. Instead, let a PointerTo object manage the reference counting automatically.

This function is const, even though it changes the object, because generally fiddling with an object's reference count isn't considered part of fiddling with the object. An object might be const in other ways, but we still need to accurately count the number of references to it.

The return value is true if the new reference count is nonzero, false if it is zero.

Reimplemented from ReferenceCount.

Referenced by finalize().

◆ validate_states()

bool RenderEffects::validate_states ( )

static

Ensures that the cache is still stored in sorted order.

Returns true if so, false if there is a problem (which implies someone has modified one of the supposedly-const RenderEffects objects).

Definition at line 418 of file renderEffects.cxx.

◆ write_datagram()

void RenderEffects::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from TypedWritable.

Definition at line 668 of file renderEffects.cxx.

References ordered_vector< Key, Compare, Vector >::size(), and TypedWritable::write_datagram().

The documentation for this class was generated from the following files:

panda/src/pgraph/renderEffects.h
panda/src/pgraph/renderEffects.cxx
panda/src/pgraph/renderEffects.I

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~RenderEffects()

Member Function Documentation

◆ adjust_transform()

◆ change_this()

◆ complete_pointers()

◆ cull_callback()

◆ finalize()

◆ get_effect()

◆ get_num_effects()

◆ has_adjust_transform()

◆ has_cull_callback()

◆ has_decal()

◆ has_show_bounds()

◆ has_show_tight_bounds()

◆ init_states()

◆ is_empty()

◆ list_states()

◆ operator []() [1/2]

◆ operator []() [2/2]

◆ register_with_read_factory()

◆ require_fully_complete()

◆ safe_to_transform()

◆ size()

◆ unref()

◆ validate_states()

◆ write_datagram()
