Indicates that geometry at this node should automatically rotate to face the camera, or any other arbitrary node. More...

#include "billboardEffect.h"

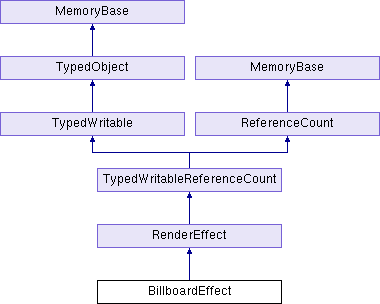

Inheritance diagram for BillboardEffect:

Public Member Functions
virtual void	adjust_transform (CPT(TransformState) &net_transform, CPT(TransformState) &node_transform, const PandaNode *node) const

virtual int	complete_pointers (TypedWritable *plist, BamReader manager)
	Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More...

virtual	CPT (TransformState) prepare_flatten_transform(const TransformState *net_transform) const

virtual void	cull_callback (CullTraverser *trav, CullTraverserData &data, CPT(TransformState) &node_transform, CPT(RenderState) &node_state) const

virtual TypeHandle	force_init_type ()

bool	get_axial_rotate () const
	Returns true if this billboard rotates only around the axis of the up vector, or false if it rotates freely in three dimensions. More...

bool	get_eye_relative () const
	Returns true if this billboard interprets the up vector relative to the camera, or false if it is relative to the world. More...

bool	get_fixed_depth () const
	Returns true if this billboard always appears at a fixed distance from the camera. More...

const NodePath &	get_look_at () const
	Returns the node this billboard will rotate to look towards. More...

const LPoint3 &	get_look_at_point () const
	Returns the point, relative to the look_at node, towards which the billboard will rotate. More...

PN_stdfloat	get_offset () const
	Returns the distance toward the camera (or the look_at_point) the billboard is moved towards, after rotating. More...

virtual TypeHandle	get_type () const

const LVector3 &	get_up_vector () const
	Returns the up vector in effect for this billboard. More...

virtual bool	has_adjust_transform () const

virtual bool	has_cull_callback () const

bool	is_off () const
	Returns true if the BillboardEffect is an 'off' BillboardEffect, indicating that it does not enable billboarding. More...

virtual void	output (std::ostream &out) const

virtual bool	safe_to_transform () const
	Returns true if it is generally safe to transform this particular kind of RenderEffect by calling the xform() method, false otherwise. More...

virtual void	write_datagram (BamWriter *manager, Datagram &dg)
	Writes the contents of this object to the datagram for shipping out to a Bam file. More...

Public Member Functions inherited from RenderEffect
	RenderEffect (const RenderEffect &copy)=delete

virtual	~RenderEffect ()
	The destructor is responsible for removing the RenderEffect from the global set if it is there. More...

int	compare_to (const RenderEffect &other) const
	Provides an arbitrary ordering among all unique RenderEffects, so we can store the essentially different ones in a big set and throw away the rest. More...

virtual void	finalize (BamReader *manager)
	Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More...

RenderEffect &	operator= (const RenderEffect &copy)=delete

virtual bool	safe_to_combine () const

virtual void	write (std::ostream &out, int indent_level) const

Public Member Functions inherited from TypedWritableReferenceCount
	TypedWritableReferenceCount (const TypedWritableReferenceCount &copy)

virtual ReferenceCount *	as_reference_count ()
	Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More...

void	operator= (const TypedWritableReferenceCount &copy)

Public Member Functions inherited from TypedWritable
	TypedWritable (const TypedWritable &copy)

vector_uchar	encode_to_bam_stream () const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More...

bool	encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const
	Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More...

UpdateSeq	get_bam_modified () const
	Returns the current bam_modified counter. More...

void	mark_bam_modified ()
	Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More...

void	operator= (const TypedWritable &copy)

virtual bool	require_fully_complete () const
	Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More...

virtual void	update_bam_nested (BamWriter *manager)
	Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More...

Public Member Functions inherited from TypedObject
	TypedObject (const TypedObject &copy)=default

TypedObject *	as_typed_object ()
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

const TypedObject *	as_typed_object () const
	Returns the object, upcast (if necessary) to a TypedObject pointer. More...

int	get_best_parent_from_Set (const std::set< int > &) const

int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More...

bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly. More...

bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type. More...

TypedObject &	operator= (const TypedObject &copy)=default

Public Member Functions inherited from ReferenceCount
int	get_ref_count () const

WeakReferenceList *	get_weak_list () const
	Returns the WeakReferenceList associated with this ReferenceCount object. More...

bool	has_weak_list () const
	Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More...

void	local_object ()
	This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More...

void	ref () const
	Explicitly increments the reference count. More...

bool	ref_if_nonzero () const
	Atomically increases the reference count of this object if it is not zero. More...

bool	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus. More...

bool	test_ref_count_nonzero () const
	Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More...

virtual bool	unref () const
	Explicitly decrements the reference count. More...

WeakReferenceList *	weak_ref ()
	Adds the indicated PointerToVoid as a weak reference to this object. More...

void	weak_unref ()
	Removes the indicated PointerToVoid as a weak reference to this object. More...

Static Public Member Functions
static	CPT (RenderEffect) make(const LVector3 &up_vector

static	CPT (RenderEffect) make_axis()

static	CPT (RenderEffect) make_point_eye()

static	CPT (RenderEffect) make_point_world()

static TypeHandle	get_class_type ()

static void	init_type ()

static void	register_with_read_factory ()

Static Public Member Functions inherited from RenderEffect
static TypedWritable *	change_this (TypedWritable old_ptr, BamReader manager)
	Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired. More...

static TypeHandle	get_class_type ()

static int	get_num_effects ()

static void	init_type ()

static void	list_effects (std::ostream &out)
	Lists all of the RenderEffects in the cache to the output stream, one per line. More...

static bool	validate_effects ()
	Ensures that the cache is still stored in sorted order. More...

Static Public Member Functions inherited from TypedWritableReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

static	PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data

Static Public Member Functions inherited from TypedWritable
static bool	decode_raw_from_bam_stream (TypedWritable &ptr, ReferenceCount &ref_ptr, vector_uchar data, BamReader *reader=nullptr)
	Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More...

static TypeHandle	get_class_type ()

static void	init_type ()

Static Public Member Functions inherited from TypedObject
static TypeHandle	get_class_type ()

static void	init_type ()
	This function is declared non-inline to work around a compiler bug in g++ 2.96. More...

Static Public Member Functions inherited from ReferenceCount
static TypeHandle	get_class_type ()

static void	init_type ()

Public Attributes
static bool bool	axial_rotate

static bool	eye_relative

static bool bool PN_stdfloat const NodePath const LPoint3 bool	fixed_depth = false)

static bool bool PN_stdfloat const NodePath &	look_at

static bool bool PN_stdfloat const NodePath const LPoint3 &	look_at_point

static bool bool PN_stdfloat	offset

Public Attributes inherited from TypedWritableReferenceCount
static BamReader *	reader = nullptr)

Public Attributes inherited from TypedObject
	get_type

Public Attributes inherited from ReferenceCount
	get_ref_count
	Returns the current reference count. More...

Additional Inherited Members
Static Public Attributes inherited from TypedWritable
static TypedWritable *const	Null = nullptr

Detailed Description

Indicates that geometry at this node should automatically rotate to face the camera, or any other arbitrary node.

Definition at line 27 of file billboardEffect.h.

Member Function Documentation

◆ complete_pointers()

int BillboardEffect::complete_pointers	(	TypedWritable **	p_list,
		BamReader *	manager
	)

virtual

Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

Reimplemented from TypedWritable.

Definition at line 333 of file billboardEffect.cxx.

◆ get_axial_rotate()

bool BillboardEffect::get_axial_rotate ( ) const

inline

Returns true if this billboard rotates only around the axis of the up vector, or false if it rotates freely in three dimensions.

Definition at line 85 of file billboardEffect.I.

◆ get_eye_relative()

bool BillboardEffect::get_eye_relative ( ) const

inline

Returns true if this billboard interprets the up vector relative to the camera, or false if it is relative to the world.

Definition at line 76 of file billboardEffect.I.

◆ get_fixed_depth()

bool BillboardEffect::get_fixed_depth ( ) const

inline

Returns true if this billboard always appears at a fixed distance from the camera.

Definition at line 94 of file billboardEffect.I.

◆ get_look_at()

const NodePath & BillboardEffect::get_look_at ( ) const

inline

Returns the node this billboard will rotate to look towards.

If this is empty, it means the billboard will rotate towards the current camera node, wherever that might be.

Definition at line 114 of file billboardEffect.I.

◆ get_look_at_point()

const LPoint3 & BillboardEffect::get_look_at_point ( ) const

inline

Returns the point, relative to the look_at node, towards which the billboard will rotate.

Normally this is (0, 0, 0).

Definition at line 123 of file billboardEffect.I.

◆ get_offset()

PN_stdfloat BillboardEffect::get_offset ( ) const

inline

Returns the distance toward the camera (or the look_at_point) the billboard is moved towards, after rotating.

This can be used to ensure the billboard is not obscured by nearby geometry.

Definition at line 104 of file billboardEffect.I.

◆ get_up_vector()

const LVector3 & BillboardEffect::get_up_vector ( ) const

inline

Returns the up vector in effect for this billboard.

Definition at line 67 of file billboardEffect.I.

◆ is_off()

bool BillboardEffect::is_off ( ) const

inline

Returns true if the BillboardEffect is an 'off' BillboardEffect, indicating that it does not enable billboarding.

This kind of BillboardEffect isn't particularly useful and isn't normally created or stored in the graph; it might be implicitly discovered as the result of a NodePath::get_rel_state().

Definition at line 59 of file billboardEffect.I.

◆ safe_to_transform()

bool BillboardEffect::safe_to_transform ( ) const

virtual

Returns true if it is generally safe to transform this particular kind of RenderEffect by calling the xform() method, false otherwise.

Reimplemented from RenderEffect.

Definition at line 50 of file billboardEffect.cxx.

◆ write_datagram()

void BillboardEffect::write_datagram	(	BamWriter *	manager,
		Datagram &	dg
	)

virtual

Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from RenderEffect.

Definition at line 312 of file billboardEffect.cxx.

References Datagram::add_bool(), Datagram::add_stdfloat(), BamWriter::get_file_minor_ver(), RenderEffect::write_datagram(), and NodePath::write_datagram().

The documentation for this class was generated from the following files:

panda/src/pgraph/billboardEffect.h
panda/src/pgraph/billboardEffect.cxx
panda/src/pgraph/billboardEffect.I
