This special window object doesn't represent a window in its own right, but instead hooks into some third-party API for creating and rendering to windows via callbacks. More...
#include "callbackGraphicsWindow.h"

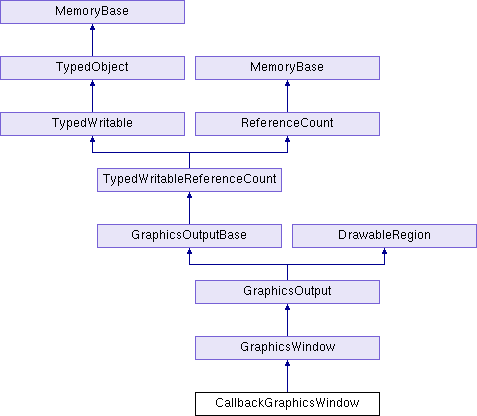

Inheritance diagram for CallbackGraphicsWindow:
Classes | |
| class | EventsCallbackData |
| class | PropertiesCallbackData |
| class | RenderCallbackData |
| class | WindowCallbackData |
Public Types | |
| enum | RenderCallbackType { RCT_begin_frame, RCT_end_frame, RCT_begin_flip, RCT_end_flip } |
 Public Types inherited from GraphicsOutput | |
| enum | FrameMode { FM_render, FM_parasite, FM_refresh } |
| enum | RenderTextureMode { RTM_none, RTM_bind_or_copy, RTM_copy_texture, RTM_copy_ram, RTM_triggered_copy_texture, RTM_triggered_copy_ram, RTM_bind_layered } |
| Public Types inherited from DrawableRegion | |
| enum | RenderTexturePlane { RTP_stencil =0, RTP_depth_stencil =1, RTP_color, RTP_aux_rgba_0, RTP_aux_rgba_1, RTP_aux_rgba_2, RTP_aux_rgba_3, RTP_aux_hrgba_0, RTP_aux_hrgba_1, RTP_aux_hrgba_2, RTP_aux_hrgba_3, RTP_aux_float_0, RTP_aux_float_1, RTP_aux_float_2, RTP_aux_float_3, RTP_depth, RTP_COUNT } |
Public Member Functions | |
| virtual void | begin_flip () |
| This function will be called within the draw thread after end_frame() has been called on all windows, to initiate the exchange of the front and back buffers. More... | |
| virtual bool | begin_frame (FrameMode mode, Thread *current_thread) |
| This function will be called within the draw thread before beginning rendering for a given frame. More... | |
| void | clear_events_callback () |
| Removes the callback set by an earlier call to set_events_callback(). More... | |
| void | clear_properties_callback () |
| Removes the callback set by an earlier call to set_properties_callback(). More... | |
| void | clear_render_callback () |
| Removes the callback set by an earlier call to set_render_callback(). More... | |
| int | create_input_device (const std::string &name) |
| Adds a new input device (mouse) to the window with the indicated name. More... | |
| virtual void | end_flip () |
| This function will be called within the draw thread after begin_flip() has been called on all windows, to finish the exchange of the front and back buffers. More... | |
| virtual void | end_frame (FrameMode mode, Thread *current_thread) |
| This function will be called within the draw thread after rendering is completed for a given frame. More... | |
| virtual TypeHandle | force_init_type () |
| CallbackObject * | get_events_callback () const |
| Returns the CallbackObject set by set_events_callback(). More... | |
| CallbackObject * | get_properties_callback () const |
| Returns the CallbackObject set by set_properties_callback(). More... | |
| CallbackObject * | get_render_callback () const |
| Returns the CallbackObject set by set_render_callback(). More... | |
| virtual TypeHandle | get_type () const |
| virtual void | process_events () |
| Do whatever processing is necessary to ensure that the window responds to user events. More... | |
| void | set_events_callback (CallbackObject *object) |
| Sets the CallbackObject that will be notified when this window is polled for window events, including mouse and keyboard events, as well as window resize events and other system-generated events. More... | |
| void | set_properties_callback (CallbackObject *object) |
| Sets the CallbackObject that will be notified when this window receives a property change request from user code (e.g. More... | |
| virtual void | set_properties_now (WindowProperties &properties) |
| Applies the requested set of properties to the window, if possible, for instance to request a change in size or minimization status. More... | |
| void | set_render_callback (CallbackObject *object) |
| Sets the CallbackObject that will be notified when this window is invoked (in the draw thread) to render its contents, and/or flip the graphics buffers. More... | |
| Public Member Functions inherited from GraphicsWindow | |
| virtual void | add_window_proc (const GraphicsWindowProc *wnd_proc_object) |
| void | clear_rejected_properties () |
| Empties the set of failed properties that will be returned by get_rejected_properties(). More... | |
| virtual void | clear_window_procs () |
| virtual void | close_ime () |
| Forces the ime window to close if any. More... | |
| void | disable_pointer_events (int device) |
| Turn off the generation of pointer events. More... | |
| void | enable_pointer_events (int device) |
| Turn on the generation of pointer events. More... | |
| std::string | get_close_request_event () const |
| InputDevice * | get_input_device (int i) const |
| std::string | get_input_device_name (int device) const |
| virtual ButtonMap * | get_keyboard_map () const |
| Returns a ButtonMap containing the association between raw buttons and virtual buttons. More... | |
| int | get_num_input_devices () const |
| virtual int | get_num_touches () |
| Returns the current number of touches on this window. More... | |
| virtual MouseData | get_pointer (int device) const |
| See GraphicsWindowInputDevice::enable_pointer_mode. More... | |
| const WindowProperties | get_properties () const |
| WindowProperties | get_rejected_properties () const |
| const WindowProperties | get_requested_properties () const |
| virtual TouchInfo | get_touch_info (int index) |
| Returns the TouchInfo object describing the specified touch. More... | |
| bool | get_unexposed_draw () const |
| std::string | get_window_event () const |
| WindowHandle * | get_window_handle () const |
| bool | has_keyboard (int device) const |
| Returns true if the nth input device has a keyboard, false otherwise. More... | |
| bool | has_pointer (int device) const |
| Returns true if the nth input device has a screen-space pointer (for instance, a mouse), false otherwise. More... | |
| virtual bool | is_active () const |
| Returns true if the window is ready to be rendered into, false otherwise. More... | |
| bool | is_closed () const |
| bool | is_fullscreen () const |
| Returns true if the window has been opened as a fullscreen window, false otherwise. More... | |
| virtual bool | is_touch_event (GraphicsWindowProcCallbackData *callbackData) |
| Returns whether the specified event msg is a touch message. More... | |
| virtual bool | move_pointer (int device, int x, int y) |
| Forces the pointer to the indicated position within the window, if possible. More... | |
| virtual void | remove_window_proc (const GraphicsWindowProc *wnd_proc_object) |
| virtual void | request_close () |
| This is called by the GraphicsEngine to request that the window (or whatever) close itself or, in general, make itself invalid, at the next call to process_events(). More... | |
| virtual void | request_open () |
| This is called by the GraphicsEngine to request that the window (or whatever) open itself or, in general, make itself valid, at the next call to process_events(). More... | |
| void | request_properties (const WindowProperties &requested_properties) |
| Requests a property change on the window. More... | |
| virtual void | set_close_now () |
| This is called by the GraphicsEngine to insist that the window be closed immediately. More... | |
| void | set_close_request_event (const std::string &close_request_event) |
| void | set_unexposed_draw (bool unexposed_draw) |
| void | set_window_event (const std::string &window_event) |
| virtual bool | supports_window_procs () const |
| Returns whether this window supports adding of Windows proc handlers. More... | |
| virtual int | verify_window_sizes (int numsizes, int *dimen) |
| Determines which of the indicated window sizes are supported by available hardware (e.g. More... | |
| Public Member Functions inherited from GraphicsOutput | |
| void | add_render_texture (Texture *tex, RenderTextureMode mode, RenderTexturePlane bitplane=RTP_COUNT) |
| Creates a new Texture object, suitable for rendering the contents of this buffer into, and appends it to the list of render textures. More... | |
| void | change_scenes (DisplayRegionPipelineReader *new_dr) |
| Called by the GraphicsEngine when the window is about to change to another DisplayRegion. More... | |
| virtual void | clear (Thread *current_thread) |
| Clears the entire framebuffer before rendering, according to the settings of get_color_clear_active() and get_depth_clear_active() (inherited from DrawableRegion). More... | |
| void | clear_child_sort () |
| Resets the sort value of future offscreen buffers created by make_texture_sort() to the default value. More... | |
| void | clear_delete_flag () |
| Resets the delete flag, so the GraphicsOutput will not be automatically deleted before the beginning of the next frame. More... | |
| virtual void | clear_pipe () |
| Sets the window's _pipe pointer to NULL; this is generally called only as a precursor to deleting the window. More... | |
| void | clear_render_textures () |
| If the GraphicsOutput is currently rendering to a texture, then all textures are dissociated from the GraphicsOuput. More... | |
| int | count_textures () const |
| If the GraphicsOutput is set to render into a texture, returns the number of textures that are being rendered into. More... | |
| virtual bool | flip_ready () const |
| Returns true if a frame has been rendered and needs to be flipped, false otherwise. More... | |
| int | get_child_sort () const |
| PStatCollector & | get_clear_window_pcollector () |
| Returns a PStatCollector for timing the clear operation for just this GraphicsOutput. More... | |
| PStatCollector & | get_cull_window_pcollector () |
| Returns a PStatCollector for timing the cull operation for just this GraphicsOutput. More... | |
| bool | get_delete_flag () const |
| Returns the current setting of the delete flag. More... | |
| PStatCollector & | get_draw_window_pcollector () |
| Returns a PStatCollector for timing the draw operation for just this GraphicsOutput. More... | |
| GraphicsEngine * | get_engine () const |
| const FrameBufferProperties & | get_fb_properties () const |
| Returns the framebuffer properties of the window. More... | |
| LVecBase2i | get_fb_size () const |
| int | get_fb_x_size () const |
| Returns the internal width of the window or buffer. More... | |
| int | get_fb_y_size () const |
| Returns the internal height of the window or buffer. More... | |
| GraphicsStateGuardian * | get_gsg () const |
| virtual GraphicsOutput * | get_host () |
| This is normally called only from within make_texture_buffer(). More... | |
| bool | get_inverted () const |
| unsigned int | get_left_eye_color_mask () const |
| Returns the color mask in effect when rendering a left-eye view in red_blue stereo mode. More... | |
| const std::string & | get_name () const |
| int | get_num_active_display_regions () const |
| int | get_num_display_regions () const |
| bool | get_one_shot () const |
| DisplayRegion * | get_overlay_display_region () const |
| Returns the special "overlay" DisplayRegion that is created for each window or buffer. More... | |
| GraphicsPipe * | get_pipe () const |
| bool | get_red_blue_stereo () const |
| Returns whether red-blue stereo mode is in effect for this particular window. More... | |
| unsigned int | get_right_eye_color_mask () const |
| Returns the color mask in effect when rendering a right-eye view in red_blue stereo mode. More... | |
| RenderTextureMode | get_rtm_mode (int i=0) const |
| Returns the RenderTextureMode associated with the nth render-texture. More... | |
| const LVecBase4 & | get_sbs_left_dimensions () const |
| Returns the effective sub-region of the window for displaying the left channel, if side-by-side stereo mode is in effect for the window. More... | |
| LVecBase2i | get_sbs_left_size () const |
| int | get_sbs_left_x_size () const |
| If side-by-side stereo is enabled, this returns the pixel width of the left eye, based on scaling get_x_size() by get_sbs_left_dimensions(). More... | |
| int | get_sbs_left_y_size () const |
| If side-by-side stereo is enabled, this returns the pixel height of the left eye, based on scaling get_y_size() by get_sbs_left_dimensions(). More... | |
| const LVecBase4 & | get_sbs_right_dimensions () const |
| Returns the effective sub-region of the window for displaying the right channel, if side-by-side stereo mode is in effect for the window. More... | |
| LVecBase2i | get_sbs_right_size () const |
| int | get_sbs_right_x_size () const |
| If side-by-side stereo is enabled, this returns the pixel width of the right eye, based on scaling get_x_size() by get_sbs_right_dimensions(). More... | |
| int | get_sbs_right_y_size () const |
| If side-by-side stereo is enabled, this returns the pixel height of the right eye, based on scaling get_y_size() by get_sbs_right_dimensions(). More... | |
| bool | get_screenshot (PNMImage &image) |
| Captures the most-recently rendered image from the framebuffer into the indicated PNMImage. More... | |
| bool | get_side_by_side_stereo () const |
| Returns whether side-by-side stereo mode is in effect for this particular window. More... | |
| const LVecBase2i & | get_size () const |
| int | get_sort () const |
| virtual bool | get_supports_render_texture () const |
| bool | get_swap_eyes () const |
| virtual Texture * | get_texture (int i=0) const |
| Returns the nth texture into which the GraphicsOutput renders. More... | |
| NodePath | get_texture_card () |
| Returns a PandaNode containing a square polygon. More... | |
| RenderTexturePlane | get_texture_plane (int i=0) const |
| Returns the RenderTexturePlane associated with the nth render-texture. More... | |
| int | get_x_size () const |
| Returns the visible width of the window or buffer, if it is known. More... | |
| int | get_y_size () const |
| Returns the visible height of the window or buffer, if it is known. More... | |
| bool | has_size () const |
| Returns true if the size of the window/frame buffer is known, false otherwise. More... | |
| bool | has_texture () const |
| Returns true if the GraphicsOutput is rendering into any textures at all. More... | |
| bool | is_nonzero_size () const |
| Returns true if the output has a nonzero size in both X and Y, or false if it is zero (and therefore invalid). More... | |
| bool | is_stereo () const |
| Returns Returns true if this window can render stereo DisplayRegions, either through red-blue stereo (see set_red_blue_stereo()) or through true hardware stereo rendering. More... | |
| bool | is_valid () const |
| Returns true if the output is fully created and ready for rendering, false otherwise. More... | |
| GraphicsOutput * | make_cube_map (const std::string &name, int size, NodePath &camera_rig, DrawMask camera_mask=PandaNode::get_all_camera_mask(), bool to_ram=false, FrameBufferProperties *fbp=nullptr) |
| This is similar to make_texture_buffer() in that it allocates a separate buffer suitable for rendering to a texture that can be assigned to geometry in this window, but in this case, the buffer is set up to render the six faces of a cube map. More... | |
| DisplayRegion * | make_display_region () |
| Creates a new DisplayRegion that covers the entire window. More... | |
| DisplayRegion * | make_display_region (PN_stdfloat l, PN_stdfloat r, PN_stdfloat b, PN_stdfloat t) |
| Creates a new DisplayRegion that covers the indicated sub-rectangle within the window. More... | |
| DisplayRegion * | make_display_region (const LVecBase4 &dimensions) |
| Creates a new DisplayRegion that covers the indicated sub-rectangle within the window. More... | |
| DisplayRegion * | make_mono_display_region () |
| Creates a new DisplayRegion that covers the entire window. More... | |
| DisplayRegion * | make_mono_display_region (PN_stdfloat l, PN_stdfloat r, PN_stdfloat b, PN_stdfloat t) |
| Creates a new DisplayRegion that covers the entire window. More... | |
| DisplayRegion * | make_mono_display_region (const LVecBase4 &dimensions) |
| Creates a new DisplayRegion that covers the indicated sub-rectangle within the window. More... | |
| StereoDisplayRegion * | make_stereo_display_region () |
| Creates a new DisplayRegion that covers the entire window. More... | |
| StereoDisplayRegion * | make_stereo_display_region (PN_stdfloat l, PN_stdfloat r, PN_stdfloat b, PN_stdfloat t) |
| Creates a new DisplayRegion that covers the entire window. More... | |
| StereoDisplayRegion * | make_stereo_display_region (const LVecBase4 &dimensions) |
| Creates a new DisplayRegion that covers the indicated sub-rectangle within the window. More... | |
| GraphicsOutput * | make_texture_buffer (const std::string &name, int x_size, int y_size, Texture *tex=nullptr, bool to_ram=false, FrameBufferProperties *fbp=nullptr) |
| bool | operator< (const GraphicsOutput &other) const |
| The sorting operator is used to order the GraphicsOutput object in order by their sort number, so that they will render in the correct order in the GraphicsEngine. More... | |
| PT (DisplayRegion) get_display_region(int n) const | |
| PT (DisplayRegion) get_active_display_region(int n) const | |
| PT (Texture) get_screenshot() | |
| virtual void | ready_flip () |
| This function will be called within the draw thread after end_frame() has been called on all windows, to initiate the exchange of the front and back buffers. More... | |
| void | remove_all_display_regions () |
| Removes all display regions from the window, except the default one that is created with the window. More... | |
| bool | remove_display_region (DisplayRegion *display_region) |
| Removes the indicated DisplayRegion from the window, and destructs it if there are no other references. More... | |
| bool | save_screenshot (const Filename &filename, const std::string &image_comment="") |
| Saves a screenshot of the region to the indicated filename. More... | |
| Filename | save_screenshot_default (const std::string &prefix="screenshot") |
| Saves a screenshot of the region to a default filename, and returns the filename, or empty string if the screenshot failed. More... | |
| virtual void | select_target_tex_page (int page) |
| Called internally when the window is in render-to-a-texture mode and we are in the process of rendering the six faces of a cube map, or any other multi-page texture. More... | |
| void | set_active (bool active) |
| void | set_child_sort (int child_sort) |
| void | set_inverted (bool inverted) |
| void | set_one_shot (bool one_shot) |
| void | set_overlay_display_region (DisplayRegion *display_region) |
| Replaces the special "overlay" DisplayRegion that is created for each window or buffer. More... | |
| void | set_red_blue_stereo (bool red_blue_stereo, unsigned int left_eye_color_mask, unsigned int right_eye_color_mask) |
| Enables red-blue stereo mode on this particular window. More... | |
| void | set_side_by_side_stereo (bool side_by_side_stereo) |
| Enables side-by-side stereo mode on this particular window. More... | |
| void | set_side_by_side_stereo (bool side_by_side_stereo, const LVecBase4 &sbs_left_dimensions, const LVecBase4 &sbs_right_dimensions) |
| Enables side-by-side stereo mode on this particular window. More... | |
| void | set_size_and_recalc (int x, int y) |
| Changes the x_size and y_size, then recalculates structures that depend on size. More... | |
| virtual void | set_sort (int sort) |
| void | set_swap_eyes (bool swap_eyes) |
| void | setup_render_texture (Texture *tex, bool allow_bind, bool to_ram) |
| This is a deprecated interface that made sense back when GraphicsOutputs could only render into one texture at a time. More... | |
| virtual bool | share_depth_buffer (GraphicsOutput *graphics_output) |
| Will attempt to use the depth buffer of the input graphics_output. More... | |
| AsyncFuture * | trigger_copy () |
| When the GraphicsOutput is in triggered copy mode, this function triggers the copy (at the end of the next frame). More... | |
| virtual void | unshare_depth_buffer () |
| Discontinue sharing the depth buffer. More... | |
| Public Member Functions inherited from TypedWritableReferenceCount | |
| TypedWritableReferenceCount (const TypedWritableReferenceCount ©) | |
| virtual ReferenceCount * | as_reference_count () |
| Returns the pointer cast to a ReferenceCount pointer, if it is in fact of that type. More... | |
| void | operator= (const TypedWritableReferenceCount ©) |
| Public Member Functions inherited from TypedWritable | |
| TypedWritable (const TypedWritable ©) | |
| virtual int | complete_pointers (TypedWritable **p_list, BamReader *manager) |
| Receives an array of pointers, one for each time manager->read_pointer() was called in fillin(). More... | |
| vector_uchar | encode_to_bam_stream () const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and returns that data as a bytes object. More... | |
| bool | encode_to_bam_stream (vector_uchar &data, BamWriter *writer=nullptr) const |
| Converts the TypedWritable object into a single stream of data using a BamWriter, and stores that data in the indicated string. More... | |
| virtual void | fillin (DatagramIterator &scan, BamReader *manager) |
| This internal function is intended to be called by each class's make_from_bam() method to read in all of the relevant data from the BamFile for the new object. More... | |
| virtual void | finalize (BamReader *manager) |
| Called by the BamReader to perform any final actions needed for setting up the object after all objects have been read and all pointers have been completed. More... | |
| UpdateSeq | get_bam_modified () const |
| Returns the current bam_modified counter. More... | |
| void | mark_bam_modified () |
| Increments the bam_modified counter, so that this object will be invalidated and retransmitted on any open bam streams. More... | |
| void | operator= (const TypedWritable ©) |
| virtual bool | require_fully_complete () const |
| Some objects require all of their nested pointers to have been completed before the objects themselves can be completed. More... | |
| virtual void | update_bam_nested (BamWriter *manager) |
| Called by the BamWriter when this object has not itself been modified recently, but it should check its nested objects for updates. More... | |
| virtual void | write_datagram (BamWriter *manager, Datagram &dg) |
| Writes the contents of this object to the datagram for shipping out to a Bam file. More... | |
| Public Member Functions inherited from TypedObject | |
| TypedObject (const TypedObject ©)=default | |
| TypedObject * | as_typed_object () |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| const TypedObject * | as_typed_object () const |
| Returns the object, upcast (if necessary) to a TypedObject pointer. More... | |
| int | get_best_parent_from_Set (const std::set< int > &) const |
| int | get_type_index () const |
| Returns the internal index number associated with this object's TypeHandle, a unique number for each different type. More... | |
| bool | is_exact_type (TypeHandle handle) const |
| Returns true if the current object is the indicated type exactly. More... | |
| bool | is_of_type (TypeHandle handle) const |
| Returns true if the current object is or derives from the indicated type. More... | |
| TypedObject & | operator= (const TypedObject ©)=default |
| Public Member Functions inherited from ReferenceCount | |
| int | get_ref_count () const |
| WeakReferenceList * | get_weak_list () const |
| Returns the WeakReferenceList associated with this ReferenceCount object. More... | |
| bool | has_weak_list () const |
| Returns true if this particular ReferenceCount object has a WeakReferenceList created, false otherwise. More... | |
| void | local_object () |
| This function should be called, once, immediately after creating a new instance of some ReferenceCount-derived object on the stack. More... | |
| void | ref () const |
| Explicitly increments the reference count. More... | |
| bool | ref_if_nonzero () const |
| Atomically increases the reference count of this object if it is not zero. More... | |
| bool | test_ref_count_integrity () const |
| Does some easy checks to make sure that the reference count isn't completely bogus. More... | |
| bool | test_ref_count_nonzero () const |
| Does some easy checks to make sure that the reference count isn't zero, or completely bogus. More... | |
| virtual bool | unref () const |
| Explicitly decrements the reference count. More... | |
| WeakReferenceList * | weak_ref () |
| Adds the indicated PointerToVoid as a weak reference to this object. More... | |
| void | weak_unref () |
| Removes the indicated PointerToVoid as a weak reference to this object. More... | |
| Public Member Functions inherited from DrawableRegion | |
| DrawableRegion (const DrawableRegion ©) | |
| void | copy_clear_settings (const DrawableRegion ©) |
| Copies only the clear settings from the other drawable region. More... | |
| virtual void | disable_clears () |
| Disables both the color and depth clear. More... | |
| virtual bool | get_clear_active (int n) const |
| Gets the clear-active flag for any bitplane. More... | |
| const LColor & | get_clear_color () const |
| bool | get_clear_color_active () const |
| Returns the current setting of the flag that indicates whether the color buffer should be cleared every frame. More... | |
| PN_stdfloat | get_clear_depth () const |
| bool | get_clear_depth_active () const |
| Returns the current setting of the flag that indicates whether the depth buffer should be cleared every frame. More... | |
| unsigned int | get_clear_stencil () const |
| bool | get_clear_stencil_active () const |
| Returns the current setting of the flag that indicates whether the color buffer should be cleared every frame. More... | |
| virtual const LColor & | get_clear_value (int n) const |
| Returns the clear value for any bitplane. More... | |
| int | get_draw_buffer_type () const |
| Returns the RenderBuffer into which the GSG should issue draw commands. More... | |
| PN_stdfloat | get_pixel_factor () const |
| PN_stdfloat | get_pixel_zoom () const |
| int | get_screenshot_buffer_type () const |
| Returns the RenderBuffer that should be used for capturing screenshots from this particular DrawableRegion. More... | |
| virtual bool | is_any_clear_active () const |
| Returns true if any of the clear types (so far there are just color or depth) have been set active, or false if none of them are active and there is no need to clear. More... | |
| void | operator= (const DrawableRegion ©) |
| virtual void | set_clear_active (int n, bool clear_aux_active) |
| Sets the clear-active flag for any bitplane. More... | |
| void | set_clear_color (const LColor &color) |
| void | set_clear_color_active (bool clear_color_active) |
| Toggles the flag that indicates whether the color buffer should be cleared every frame. More... | |
| void | set_clear_depth (PN_stdfloat depth) |
| void | set_clear_depth_active (bool clear_depth_active) |
| Toggles the flag that indicates whether the depth buffer should be cleared every frame. More... | |
| void | set_clear_stencil (unsigned int stencil) |
| void | set_clear_stencil_active (bool clear_stencil_active) |
| Toggles the flag that indicates whether the stencil buffer should be cleared every frame. More... | |
| virtual void | set_clear_value (int n, const LColor &clear_value) |
| Sets the clear value for any bitplane. More... | |
| virtual void | set_pixel_zoom (PN_stdfloat pixel_zoom) |
| virtual bool | supports_pixel_zoom () const |
| Returns true if a call to set_pixel_zoom() will be respected, false if it will be ignored. More... | |
Static Public Member Functions | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from GraphicsWindow | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from GraphicsOutput | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static Filename | make_screenshot_filename (const std::string &prefix="screenshot") |
| Saves a screenshot of the region to a default filename, and returns the filename, or empty string if the screenshot failed. More... | |
| Static Public Member Functions inherited from GraphicsOutputBase | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedWritableReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| static | PT (TypedWritableReferenceCount) decode_from_bam_stream(vector_uchar data |
| Static Public Member Functions inherited from TypedWritable | |
| static bool | decode_raw_from_bam_stream (TypedWritable *&ptr, ReferenceCount *&ref_ptr, vector_uchar data, BamReader *reader=nullptr) |
| Reads the bytes created by a previous call to encode_to_bam_stream(), and extracts the single object on those bytes. More... | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from TypedObject | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| This function is declared non-inline to work around a compiler bug in g++ 2.96. More... | |
| Static Public Member Functions inherited from ReferenceCount | |
| static TypeHandle | get_class_type () |
| static void | init_type () |
| Static Public Member Functions inherited from DrawableRegion | |
| static int | get_renderbuffer_type (int plane) |
| Returns the RenderBuffer::Type that corresponds to a RenderTexturePlane. More... | |
Friends | |
| class | GraphicsEngine |
Additional Inherited Members | |
| Public Attributes inherited from GraphicsWindow | |
| get_close_request_event | |
| Returns the name of the event set via set_close_request_event(). More... | |
| get_input_device | |
| Returns the nth input device associated with the window. More... | |
| get_input_device_name | |
| Returns the name of the nth input device. More... | |
| get_num_input_devices | |
| Returns the number of separate input devices associated with the window. More... | |
| get_properties | |
| Returns the current properties of the window. More... | |
| get_rejected_properties | |
| Returns the set of properties that have recently been requested, but could not be applied to the window for some reason. More... | |
| get_requested_properties | |
| Returns the properties of the window that are currently requested. More... | |
| get_unexposed_draw | |
| See set_unexposed_draw(). More... | |
| get_window_event | |
| Returns the name of the event that is generated when this window is modified externally, e.g. More... | |
| get_window_handle | |
| Returns the WindowHandle corresponding to this window on the desktop. More... | |
| is_closed | |
| Returns true if the window has not yet been opened, or has been fully closed, false if it is open. More... | |
| set_close_request_event | |
| Sets the event that is triggered when the user requests to close the window, e.g. More... | |
| set_unexposed_draw | |
| If this flag is false, the window is redrawn only after it has received a recent "unexpose" or "draw" event from the underlying windowing systme. More... | |
| set_window_event | |
| Changes the name of the event that is generated when this window is modified externally, e.g. More... | |
| Public Attributes inherited from GraphicsOutput | |
| get_active_display_region | |
| get_child_sort | |
| Returns the sort value of future offscreen buffers created by make_texture_sort(). More... | |
| get_display_region | |
| get_engine | |
| Returns the graphics engine that created this output. More... | |
| get_fb_size | |
| Returns the internal size of the window or buffer. More... | |
| get_gsg | |
| Returns the GSG that is associated with this window. More... | |
| get_inverted | |
| Returns the current setting of the inverted flag. More... | |
| get_name | |
| Returns the name that was passed to the GraphicsOutput constructor. More... | |
| get_num_active_display_regions | |
| get_num_display_regions | |
| Returns the number of DisplayRegions that have been created within the window, active or otherwise. More... | |
| get_one_shot | |
| Returns the current setting of the one-shot flag. More... | |
| get_pipe | |
| Returns the GraphicsPipe that this window is associated with. More... | |
| get_sbs_left_size | |
| If side-by-side stereo is enabled, this returns the pixel size of the left eye, based on scaling get_size() by get_sbs_left_dimensions(). More... | |
| get_sbs_right_size | |
| If side-by-side stereo is enabled, this returns the pixel size of the right eye, based on scaling get_size() by get_sbs_right_dimensions(). More... | |
| get_size | |
| Returns the visible size of the window or buffer, if it is known. More... | |
| get_sort | |
| Returns the sorting order of this particular GraphicsOutput. More... | |
| get_supports_render_texture | |
| Returns true if this particular GraphicsOutput can render directly into a texture, or false if it must always copy-to-texture at the end of each frame to achieve this effect. More... | |
| get_swap_eyes | |
| Returns the current setting of the "swap eyes" flag. More... | |
| is_active | |
| Returns true if the window is ready to be rendered into, false otherwise. More... | |
| set_active | |
| Sets the active flag associated with the GraphicsOutput. More... | |
| set_child_sort | |
| Specifies the sort value of future offscreen buffers created by make_texture_sort(). More... | |
| set_inverted | |
| Changes the current setting of the inverted flag. More... | |
| set_one_shot | |
| Changes the current setting of the one-shot flag. More... | |
| set_sort | |
| Adjusts the sorting order of this particular GraphicsOutput, relative to other GraphicsOutputs. More... | |
| set_swap_eyes | |
| Changes the "swap eyes" flag. More... | |
| Public Attributes inherited from TypedWritableReferenceCount | |
| static BamReader * | reader = nullptr) |
| Public Attributes inherited from TypedObject | |
| get_type | |
| Public Attributes inherited from ReferenceCount | |
| get_ref_count | |
| Returns the current reference count. More... | |
| Public Attributes inherited from DrawableRegion | |
| get_clear_color | |
| Returns the current clear color value. More... | |
| get_clear_depth | |
| Returns the current clear depth value. More... | |
| get_clear_stencil | |
| Returns the current clear stencil value. More... | |
| get_pixel_factor | |
| Returns the amount by which the height and width of the region will be scaled internally, based on the zoom factor set by set_pixel_zoom(). More... | |
| get_pixel_zoom | |
| Returns the value set by set_pixel_zoom(), regardless of whether it is being respected or not. More... | |
| set_clear_color | |
| Sets the clear color to the indicated value. More... | |
| set_clear_depth | |
| Sets the clear depth to the indicated value. More... | |
| set_clear_stencil | |
| Sets the clear stencil to the indicated value. More... | |
| set_pixel_zoom | |
| Sets the amount by which the pixels of the region are scaled internally when filling the image interally. More... | |
| Static Public Attributes inherited from TypedWritable | |
| static TypedWritable *const | Null = nullptr |
Detailed Description
This special window object doesn't represent a window in its own right, but instead hooks into some third-party API for creating and rendering to windows via callbacks.
This can be used to allow Panda to render into an already-created OpenGL context, for instance.
Definition at line 26 of file callbackGraphicsWindow.h.
Member Function Documentation
◆ begin_flip()
|
virtual |
This function will be called within the draw thread after end_frame() has been called on all windows, to initiate the exchange of the front and back buffers.
This should instruct the window to prepare for the flip at the next video sync, but it should not wait.
We have the two separate functions, begin_flip() and end_flip(), to make it easier to flip all of the windows at the same time.
Reimplemented from GraphicsOutput.
Definition at line 125 of file callbackGraphicsWindow.cxx.
◆ begin_frame()
|
virtual |
This function will be called within the draw thread before beginning rendering for a given frame.
It should do whatever setup is required, and return true if the frame should be rendered, or false if it should be skipped.
Reimplemented from GraphicsOutput.
Definition at line 66 of file callbackGraphicsWindow.cxx.
◆ clear_events_callback()
|
inline |
Removes the callback set by an earlier call to set_events_callback().
Definition at line 34 of file callbackGraphicsWindow.I.
References set_events_callback().
◆ clear_properties_callback()
|
inline |
Removes the callback set by an earlier call to set_properties_callback().
Definition at line 68 of file callbackGraphicsWindow.I.
References set_properties_callback().
◆ clear_render_callback()
|
inline |
Removes the callback set by an earlier call to set_render_callback().
Definition at line 98 of file callbackGraphicsWindow.I.
References set_render_callback().
◆ create_input_device()
| int CallbackGraphicsWindow::create_input_device | ( | const std::string & | name | ) |
Adds a new input device (mouse) to the window with the indicated name.
Returns the index of the new device.
Definition at line 55 of file callbackGraphicsWindow.cxx.
◆ end_flip()
|
virtual |
This function will be called within the draw thread after begin_flip() has been called on all windows, to finish the exchange of the front and back buffers.
This should cause the window to wait for the flip, if necessary.
Reimplemented from GraphicsOutput.
Definition at line 142 of file callbackGraphicsWindow.cxx.
◆ end_frame()
|
virtual |
This function will be called within the draw thread after rendering is completed for a given frame.
It should do whatever finalization is required.
Reimplemented from GraphicsOutput.
Definition at line 92 of file callbackGraphicsWindow.cxx.
◆ get_events_callback()
|
inline |
Returns the CallbackObject set by set_events_callback().
Definition at line 42 of file callbackGraphicsWindow.I.
◆ get_properties_callback()
|
inline |
Returns the CallbackObject set by set_properties_callback().
Definition at line 76 of file callbackGraphicsWindow.I.
◆ get_render_callback()
|
inline |
Returns the CallbackObject set by set_render_callback().
Definition at line 106 of file callbackGraphicsWindow.I.
◆ process_events()
|
virtual |
Do whatever processing is necessary to ensure that the window responds to user events.
Also, honor any requests recently made via request_properties().
This function is called only within the window thread.
Reimplemented from GraphicsWindow.
Definition at line 159 of file callbackGraphicsWindow.cxx.
◆ set_events_callback()
|
inline |
Sets the CallbackObject that will be notified when this window is polled for window events, including mouse and keyboard events, as well as window resize events and other system-generated events.
This callback will receive a CallbackGraphicsWindow::EventsCallbackData.
This callback should process any system-generated events, and call data->upcall() to process requested property change requests made via request_properties().
Definition at line 26 of file callbackGraphicsWindow.I.
Referenced by clear_events_callback().
◆ set_properties_callback()
|
inline |
Sets the CallbackObject that will be notified when this window receives a property change request from user code (e.g.
via request_properties).
This callback will receive a CallbackGraphicsWindow::PropertiesCallbackData, which provides a get_properties() method that returns a modifiable reference to a WindowsProperties object. This object will contain only those properties requested by user code. The callback should handle any of the requests it finds, including and especially set_open(), and remove them from the object when it has handled them. Any unhandled properties should be left unchanged in the properties object.
Definition at line 60 of file callbackGraphicsWindow.I.
Referenced by clear_properties_callback().
◆ set_properties_now()
|
virtual |
Applies the requested set of properties to the window, if possible, for instance to request a change in size or minimization status.
Reimplemented from GraphicsWindow.
Definition at line 173 of file callbackGraphicsWindow.cxx.
◆ set_render_callback()
|
inline |
Sets the CallbackObject that will be notified when this window is invoked (in the draw thread) to render its contents, and/or flip the graphics buffers.
This callback will actually serve several different functions. It receivces a RenderCallbackData, and you can query data->get_callback_type() to return the actual function of each particular callback.
Definition at line 90 of file callbackGraphicsWindow.I.
Referenced by clear_render_callback().
The documentation for this class was generated from the following files:
- panda/src/display/callbackGraphicsWindow.h
- panda/src/display/callbackGraphicsWindow.cxx
- panda/src/display/callbackGraphicsWindow.I
